Product Features
1. Supports 5–24V input; output voltage (15V/20V/24V/30V) is selectable via jumper settings.
2. Conversion efficiency exceeds 95%; excellent thermal performance ensures no overheating during prolonged full-load operation.
3. Features over-temperature protection and robust performance, meeting high-power boost requirements.
4. Utilizes high-frequency capacitors, a high-efficiency control chip, and high-current MOSFETs for stable performance.
5. Built-in over-voltage and over-temperature protection; TVS diodes on input and output ensure safety and reliability.
Product Introduction

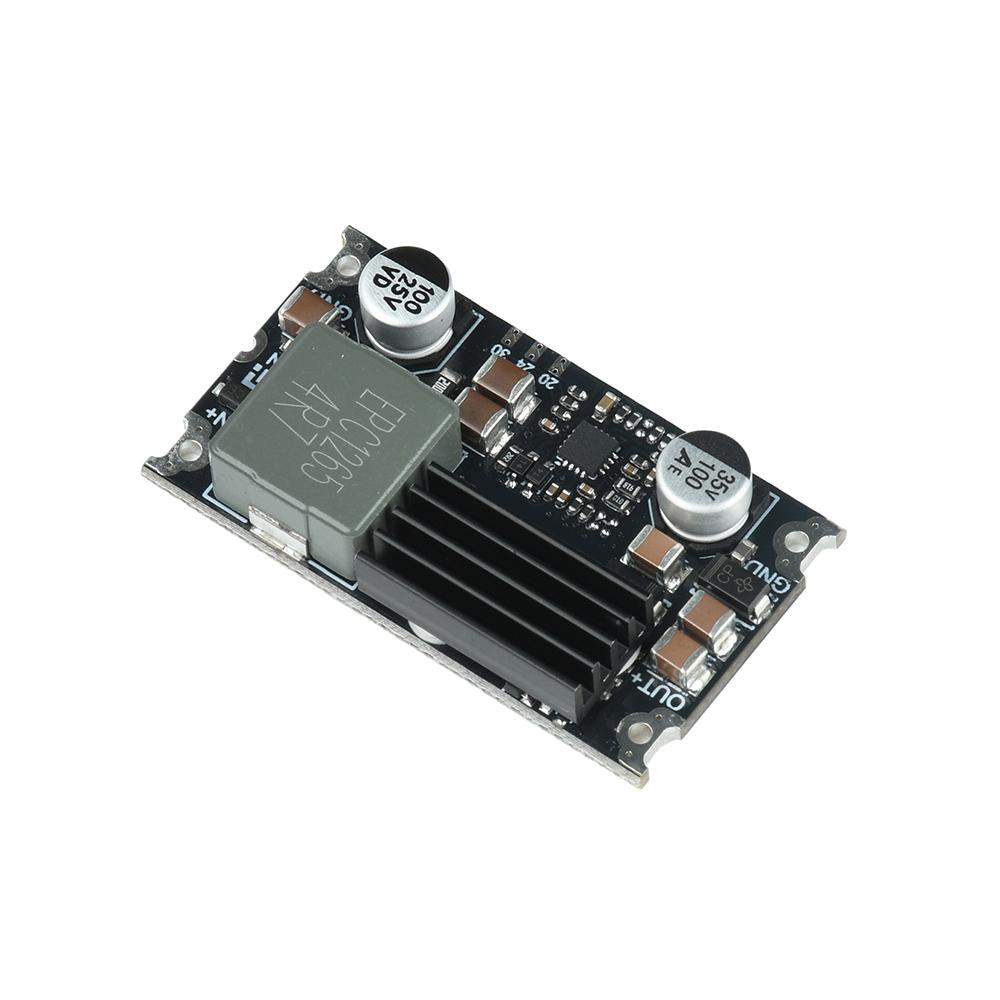

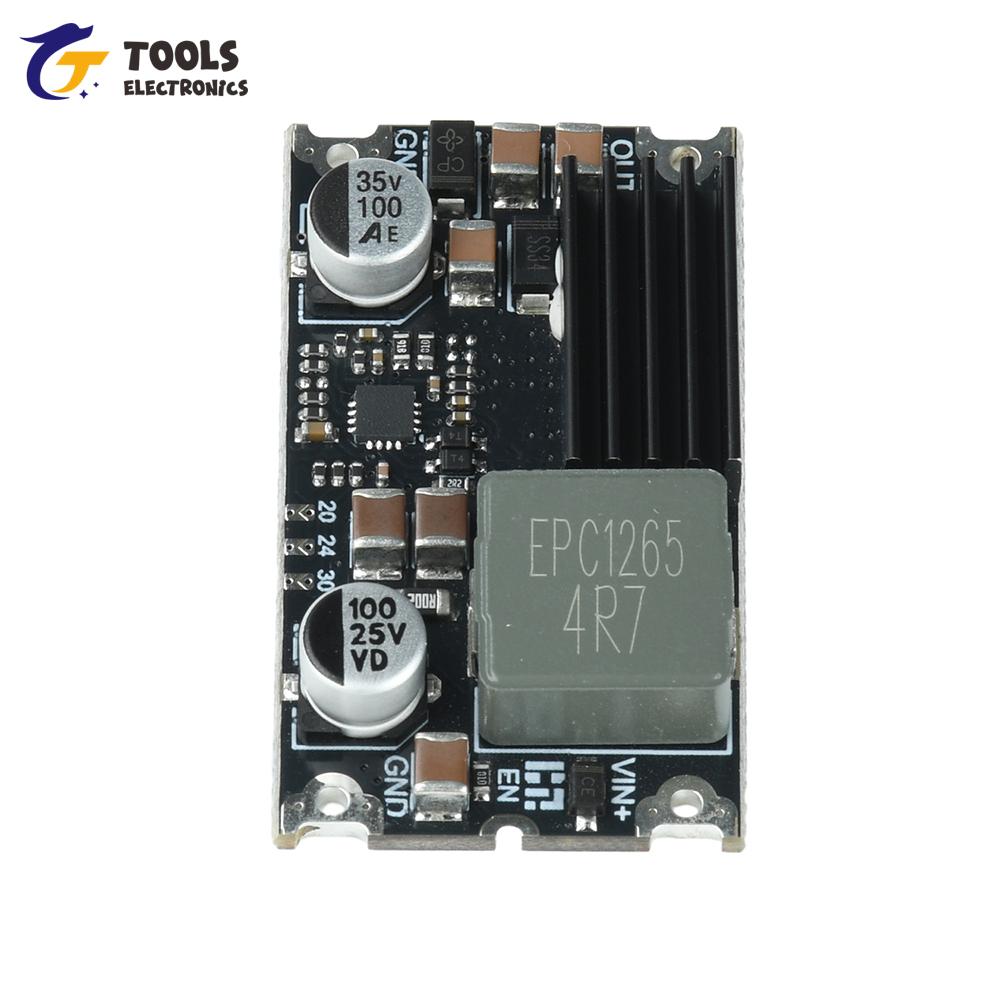

This is a high-performance, high-power-density boost module. It employs a high-efficiency control chip, high-current MOSFETs, and a high-quality ECP inductor, enabling a continuous output of 300W (with 24V input and 30V output). With robust performance and over-temperature protection, it meets demanding high-power boost applications.
Suitable for automotive electronics, industrial control, communication equipment, and other fields.
Product Specifications
Input Voltage: DC 5–24V (must be lower than the output voltage)
Input Current: 15A
Output Voltage: 15V, 20V, 24V, 30V (Default: 15V; switchable via jumpers)
Output Power: 300W
Quiescent Current: 3mA

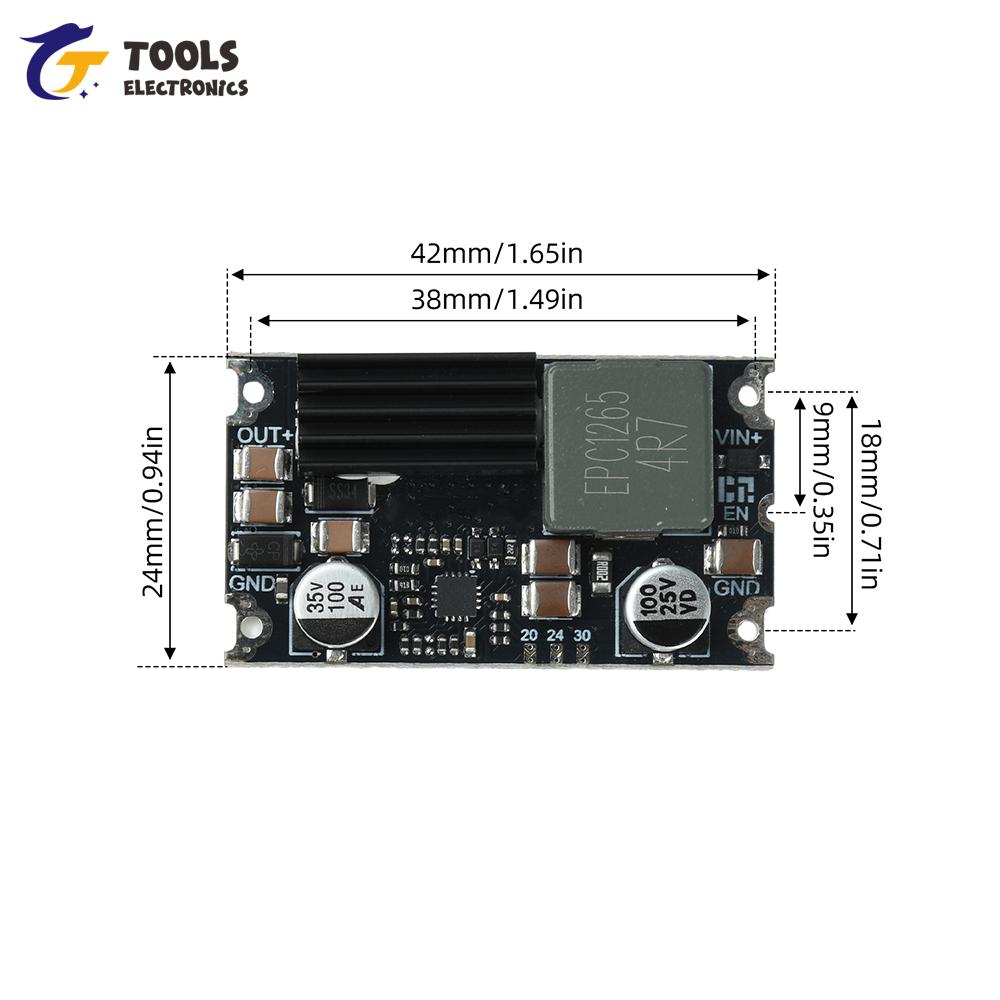

Module Interfaces
VIN+: DC input positive
GND: DC input negative (common ground with output negative)
OUT+: DC output positive
EN: Boost enable pin (default: boost enabled); connect to GND to disable boost (stops boosting only)
No connection is required for EN by default. To disable the boost function, pull the EN voltage down to 0V. Note: This only stops the boost function; output voltage remains present (approximately equal to the input voltage).
Package Contents
Boost Module x1
label:yes
