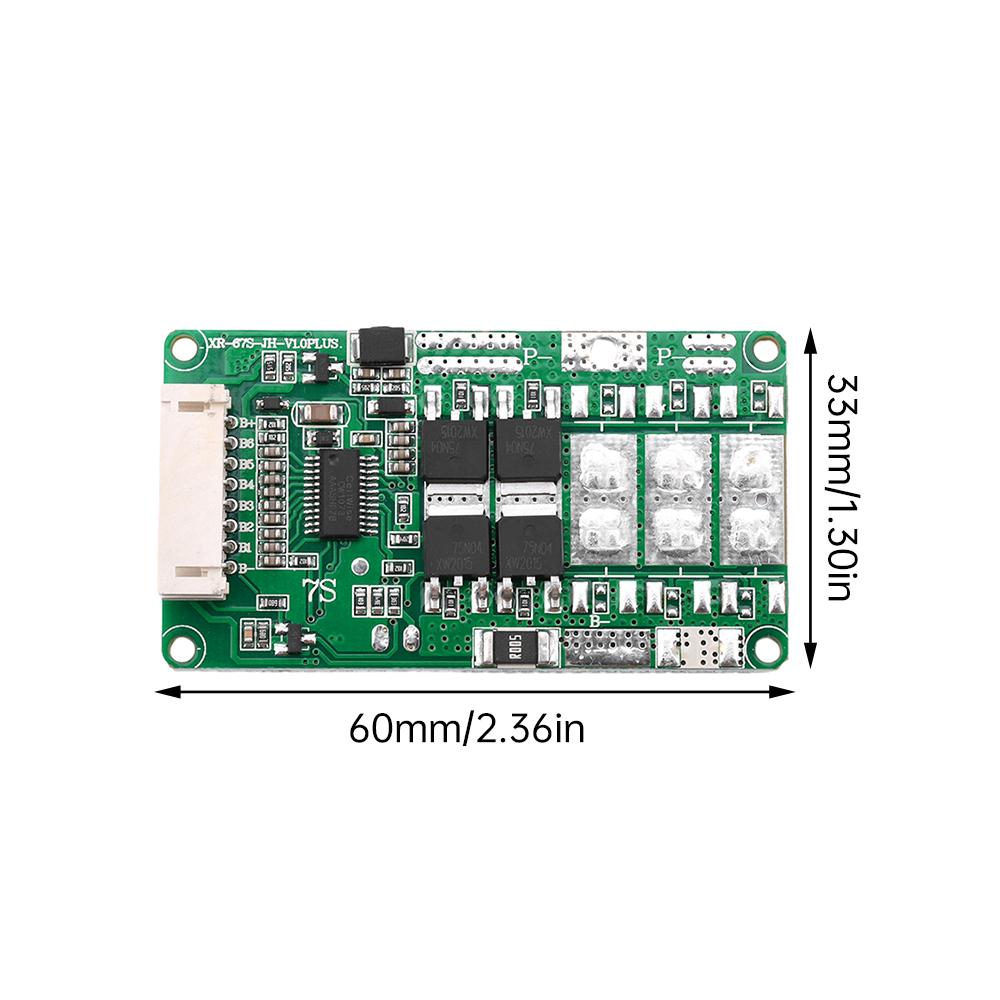

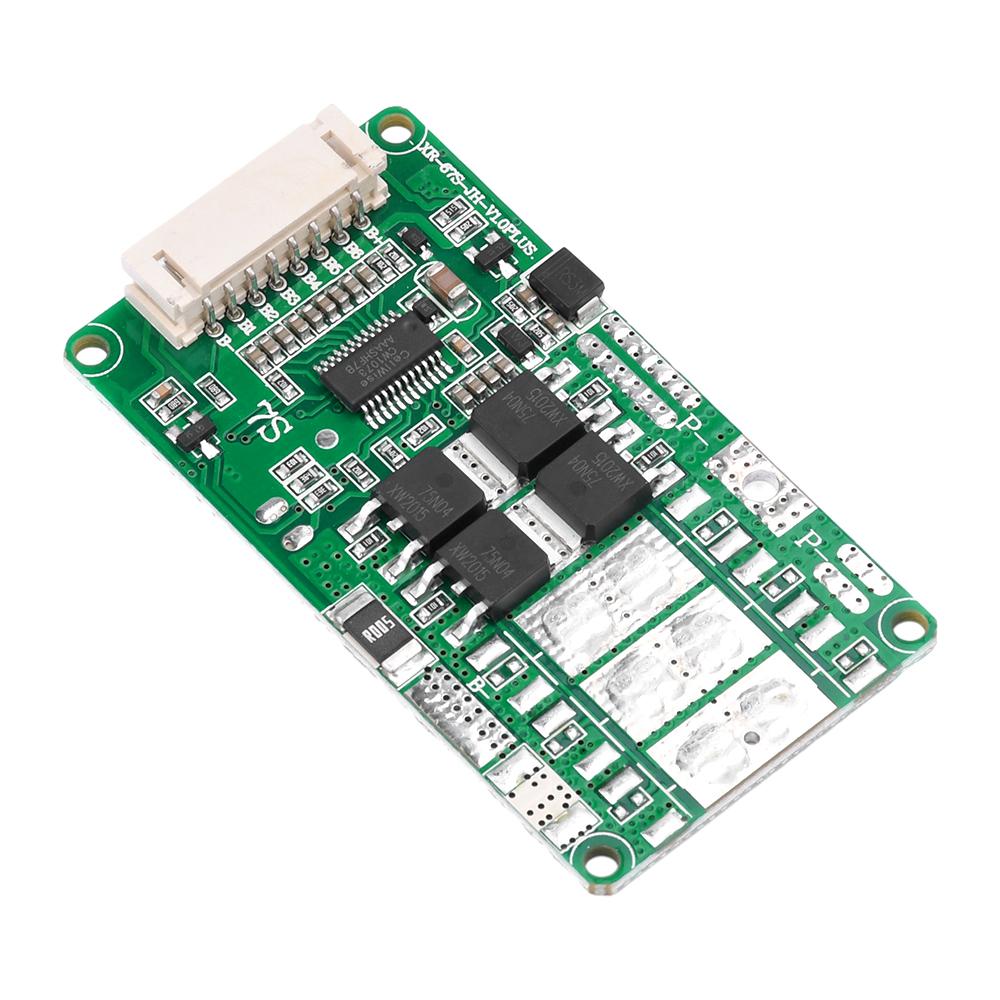

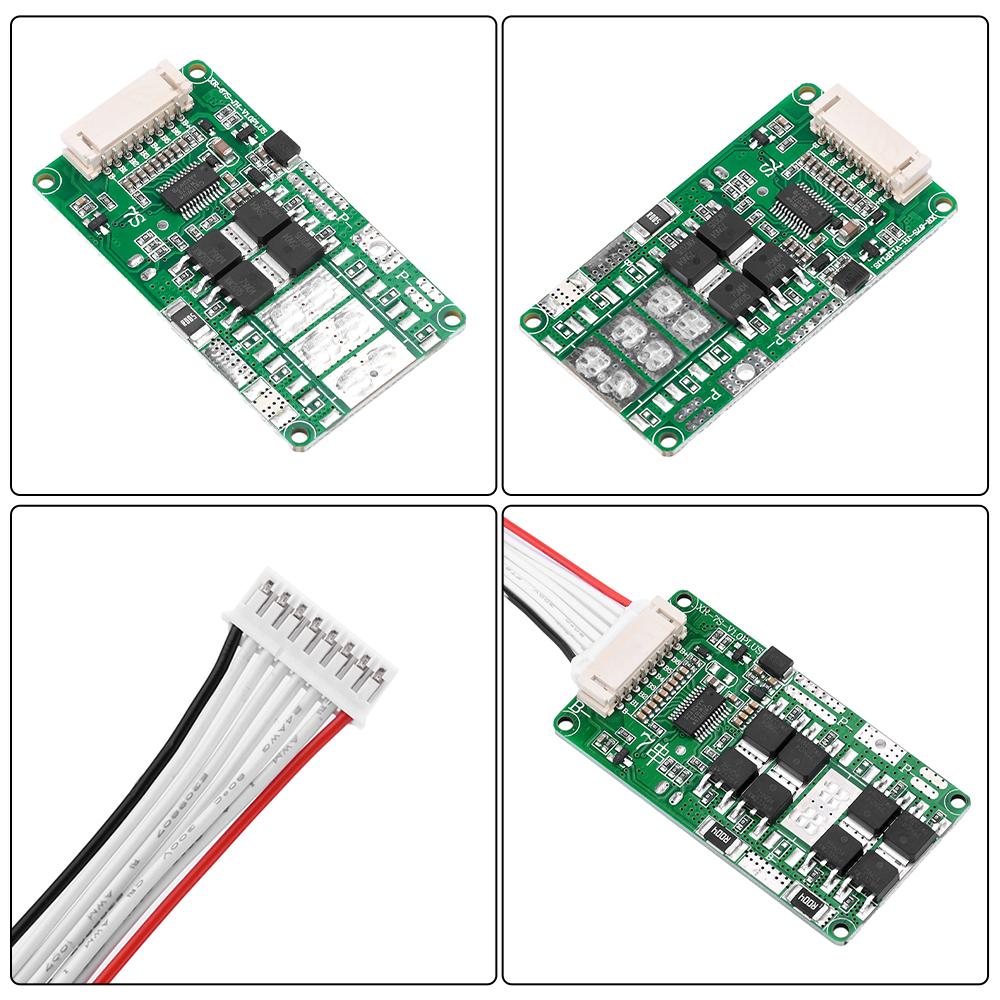

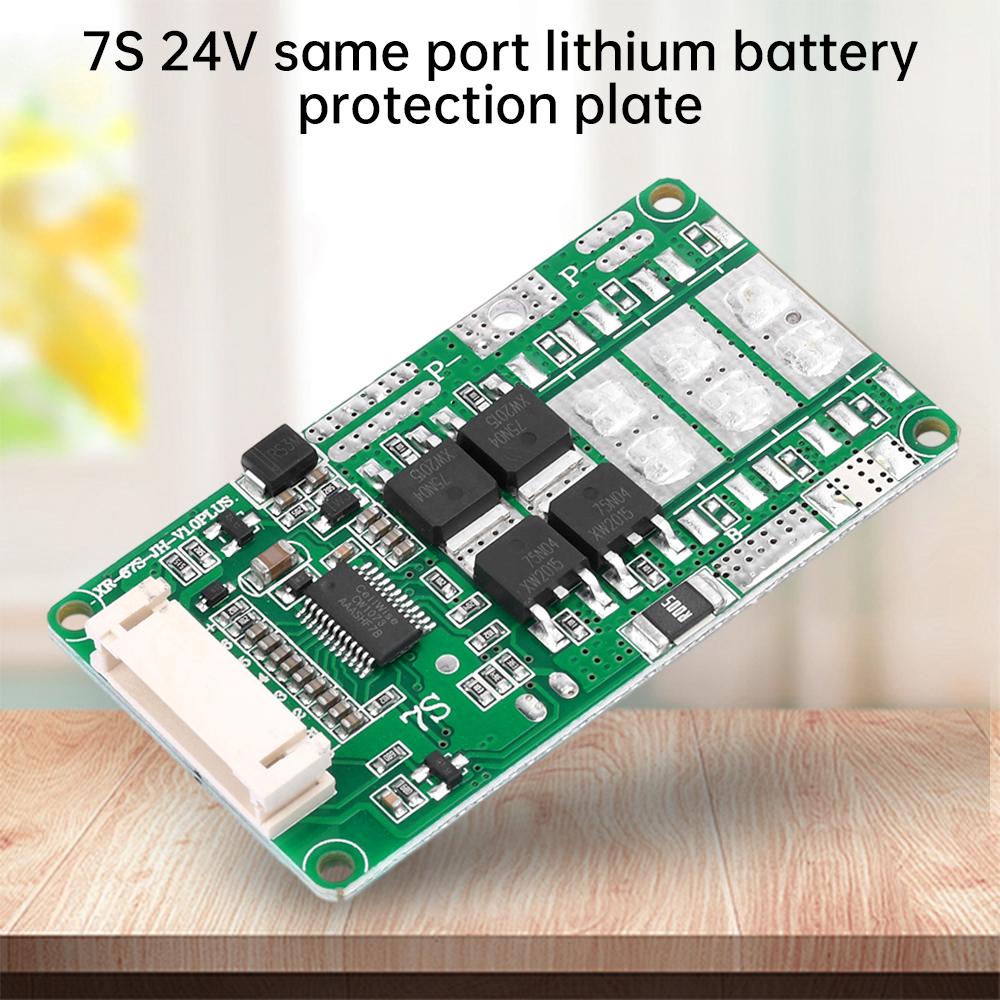

BMS 7S 24V 10A/15A/18A Lithium Battery Protection Plate Same Port Lithium Battery Protection Board With Equalization for E-bike

Charging Current : 10A Usage Scenario : 3C Digital BMS,Power BMS Certification : NONE Balance Function : Passive Balanced BMS Handware or Smart : Handware BMS Charge and Discharge Port : Common Port BMS Type : LIFEPO4 Battery BMS Origin : Mainland China Brand Name : occkic Function : Overcharge Protection,Over Discharge Protection,Overcurrent Protection,Short Circuit Protection

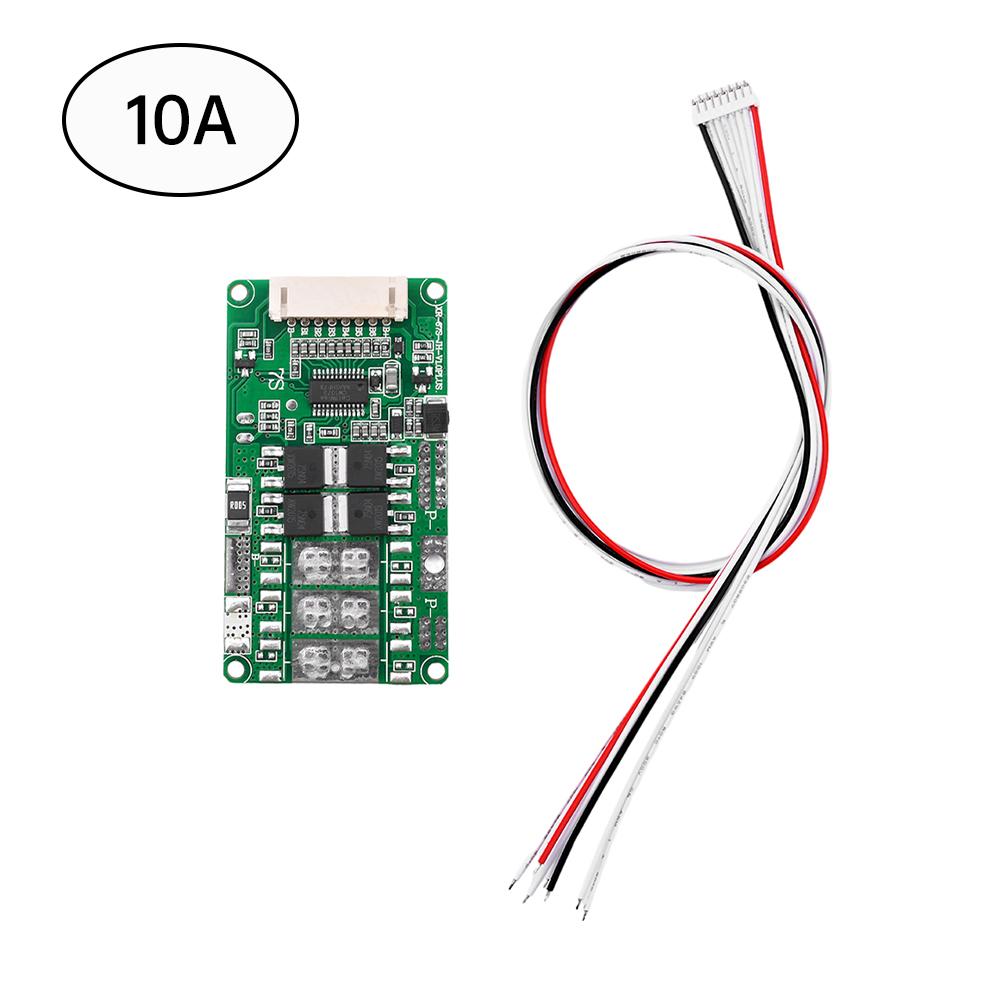

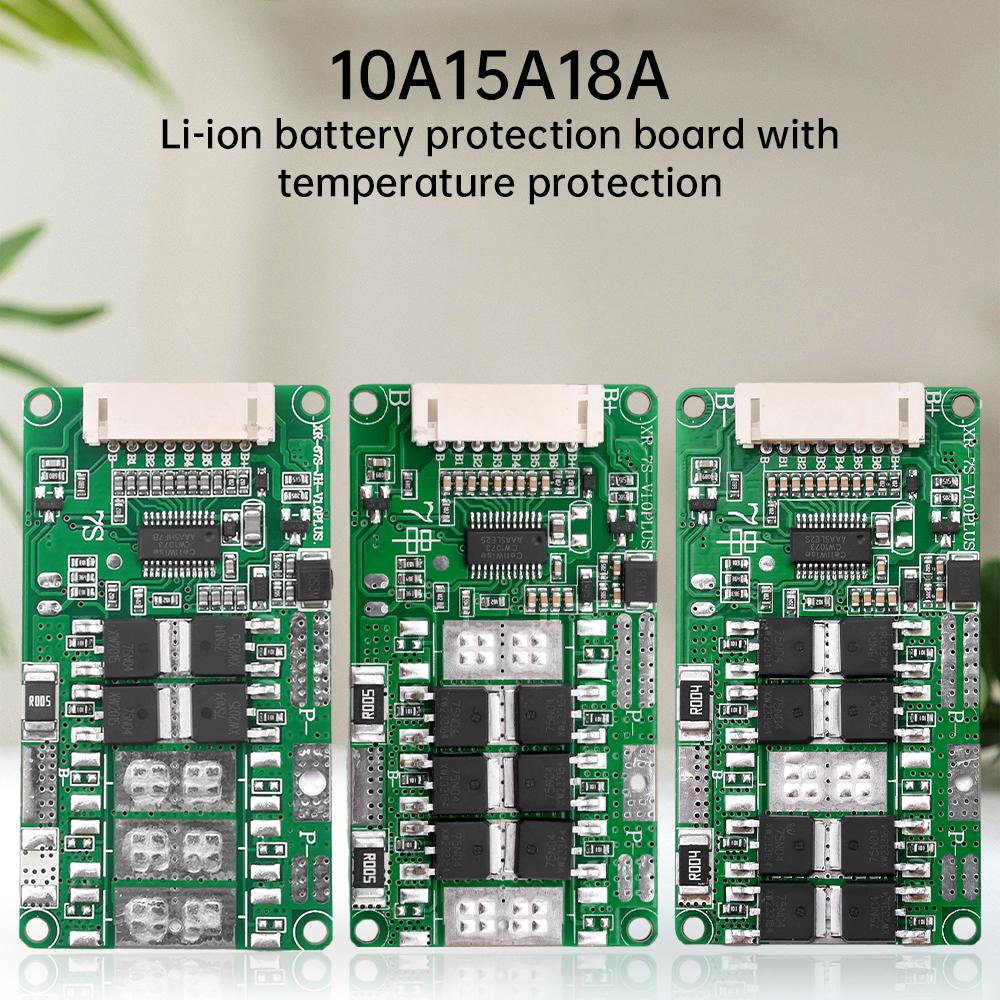

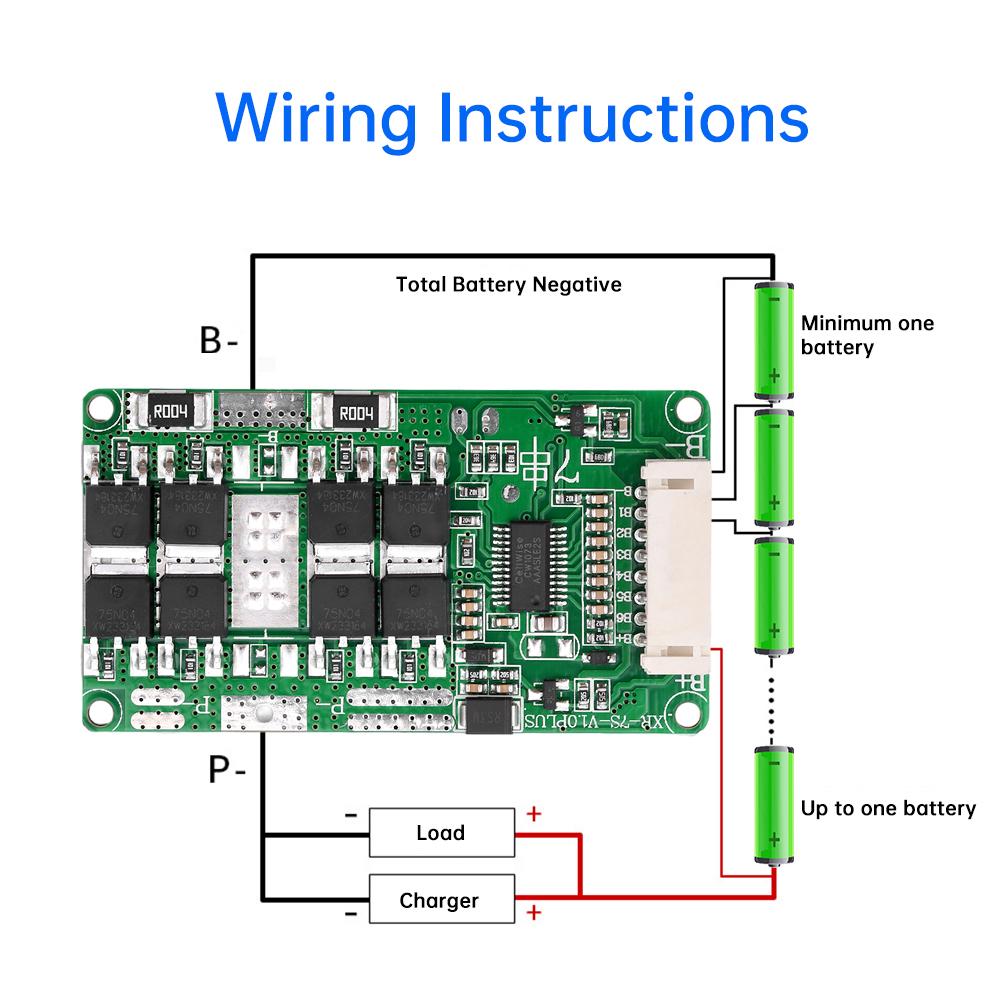

Features: 1. The use of high-quality materials, product quality assurance 2. Exquisite and compact appearance, beautiful arrangement of components 3. Using a single integrated circuit, more stable performance 4. The product has over-current protection, over-voltage protection, over-discharge protection, short-circuit protection, charging protection and other protection functions, the use of more secure and safe! 5. Wide range of applications, suitable for a variety of industrial DIY occasions Parameter: Wiring: same port Single battery over-discharge voltage: 2.7V±0.08V Continuous working current: 10A/15A/18A Instantaneous protection current: 50A Overcurrent recovery conditions: charging recovery or disconnecting the load Short-circuit recovery condition: charging recovery or disconnecting the load Single battery overcharge voltage: 4.25V±0.025V Continuous charging current: 10A/15A/18A Charger voltage: 30V (recommended) Operating power consumption: ≤30uA Main circuit conduction internal resistance: ≤20mΩ Temperature range: -40 to +80℃ Disconnection protection: Yes Wire size: 2.0MM pitch/40CM length Attention: Lithium batteries should be charged with lithium battery charger, do not use lead-acid battery charger, lead-acid charging may be high-voltage breakdown of the protection board MOS tubes, resulting in the protection board overcharge is not protected. 18650 battery charger voltage: the number of battery strings * 4.2V Package include: Li-ion battery protection board * 1 Cable*1
