High-concerned chemical : none
Voltage : 6V
is_d : Yes
Max. Reverse Current : 25A
Max. Forward Current : 30A
Max. Reverse Voltage : 30A
Max. Forward Voltage : 30A
Package Type : Through Hole
Model Number : high current ideal diode module
Type : Rectifier Diode
Brand Name : diymore
Origin : Mainland China
Condition : New
Features
1. Supports continuous high current, easily handling high-power solar panels, energy storage batteries, and industrial equipment—stable, reliable, and heat-free

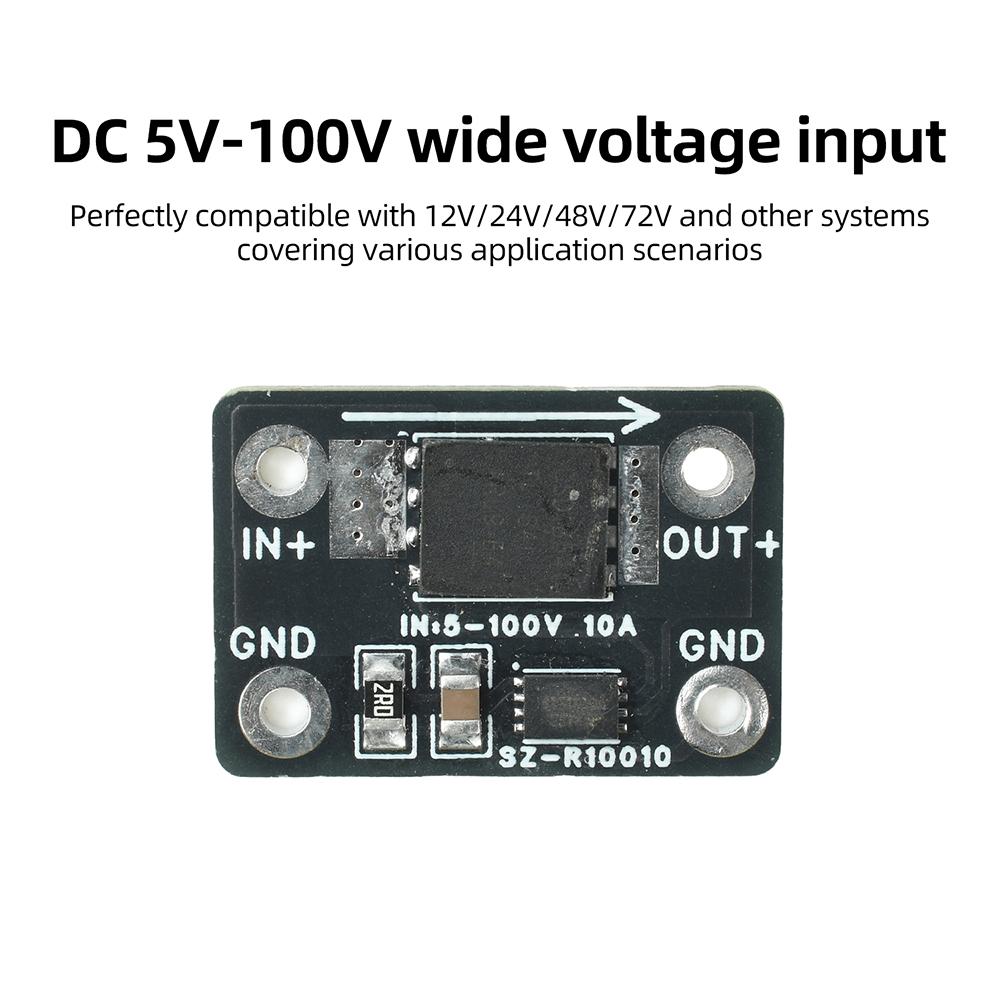

2. Wide DC input voltage range of 5V–100V, perfectly compatible with 12V, 24V, 48V, and 72V systems, covering a wide range of applications

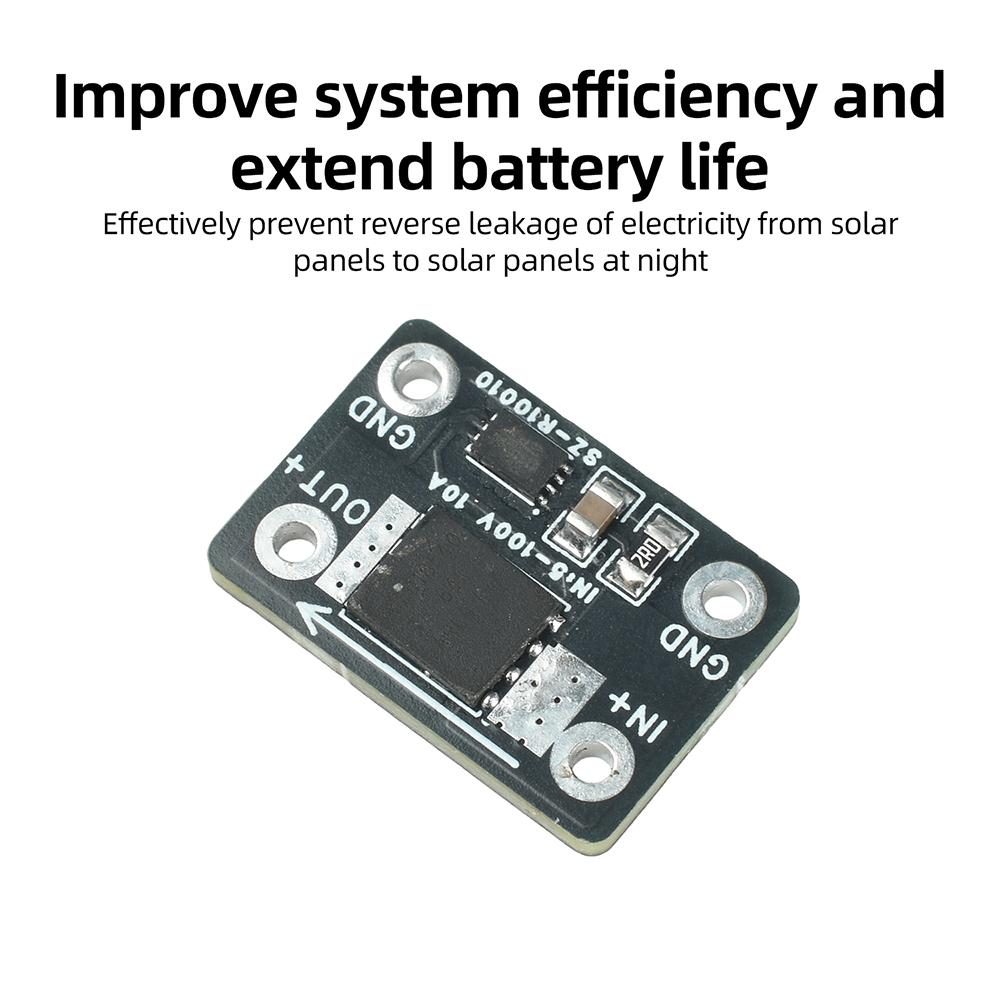

3. Effectively prevents reverse leakage from batteries to solar panels at night, improving system efficiency and extending battery life

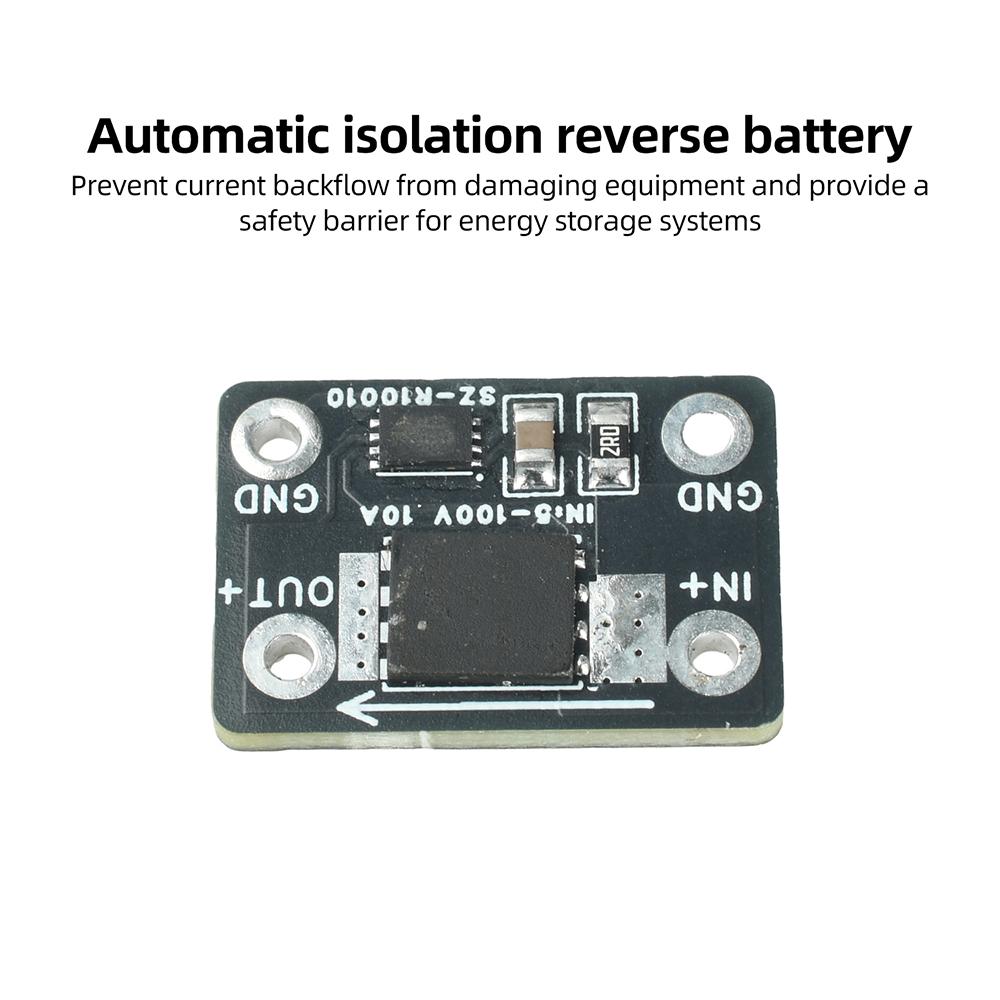

4. Automatically isolates reverse-connected batteries, preventing backflow from damaging equipment and providing a safety barrier for energy storage systems
5. Near-zero on-state voltage drop, enabling high current flow without the need for a heat sink

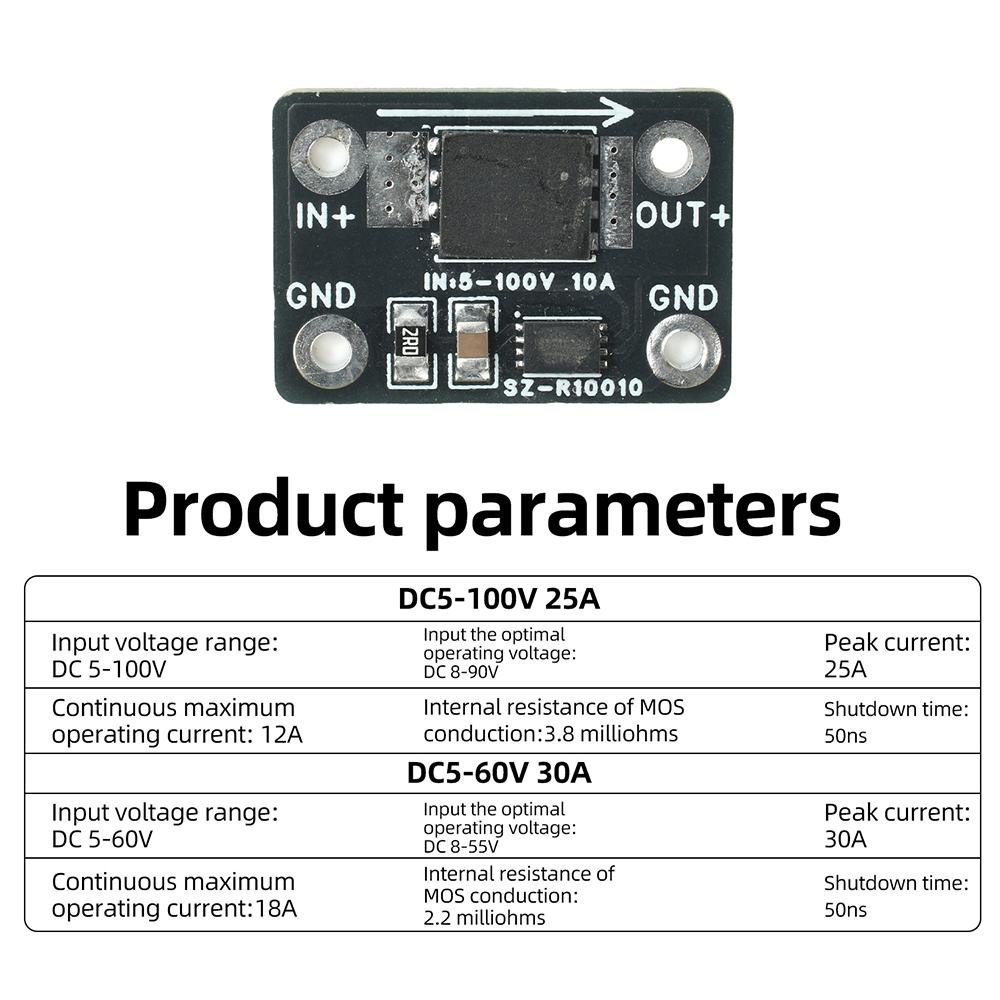

Parameter
Model A
Input Voltage Range: DC 5–100V
Optimal Input Voltage: DC 8–90V
Peak Current: 25A
Maximum Continuous Operating Current: 12A
MOS On-Resistance: 3.8 mΩ
Turn-Off Time: 50 ns
Model B
Input Voltage Range: DC 5–60 V
Optimal Input Voltage: DC 8–55 V
Peak Current: 30 A
Maximum Continuous Operating Current: 18 A
MOS On-Resistance: 2.2 mΩ
Turn-Off Time: 50 ns
Precautions
1. GND must be connected to the negative terminal.
2. Do not connect to AC power; do not use as a substitute for a rectifier bridge in AC rectification circuits.
3. The input voltage must not be lower than 5V. When the input voltage is below 8V, power loss increases and heat generation rises; please reduce the current accordingly.
4. Do not reverse the input positive and negative terminals.
Main Applications
1. High-voltage power supply OR-ing (multi-power-supply parallel redundancy) for 48V/72V communication power supplies; automatic isolation of faulty power supplies in server/base station multi-power-supply parallel configurations to prevent backfeed; 50 ns ultra-fast turn-off replaces multiple Schottky diodes with minimal heat generation even at high currents
2. Battery system reverse connection/backfeed protection for electric vehicles (54V/72V/90V) and energy storage battery packs—prevents reverse connection of chargers, backfeed during plug insertion/removal, and inter-cell short circuits. With a 100V withstand voltage, it covers the voltage range of most power batteries
3. Industrial/new energy high-voltage backflow protection for PV junction boxes and micro-inverters (prevents nighttime module backflow); 20–80V protection for power tool and industrial control power paths
Package include
Diode module *1
label:yes
