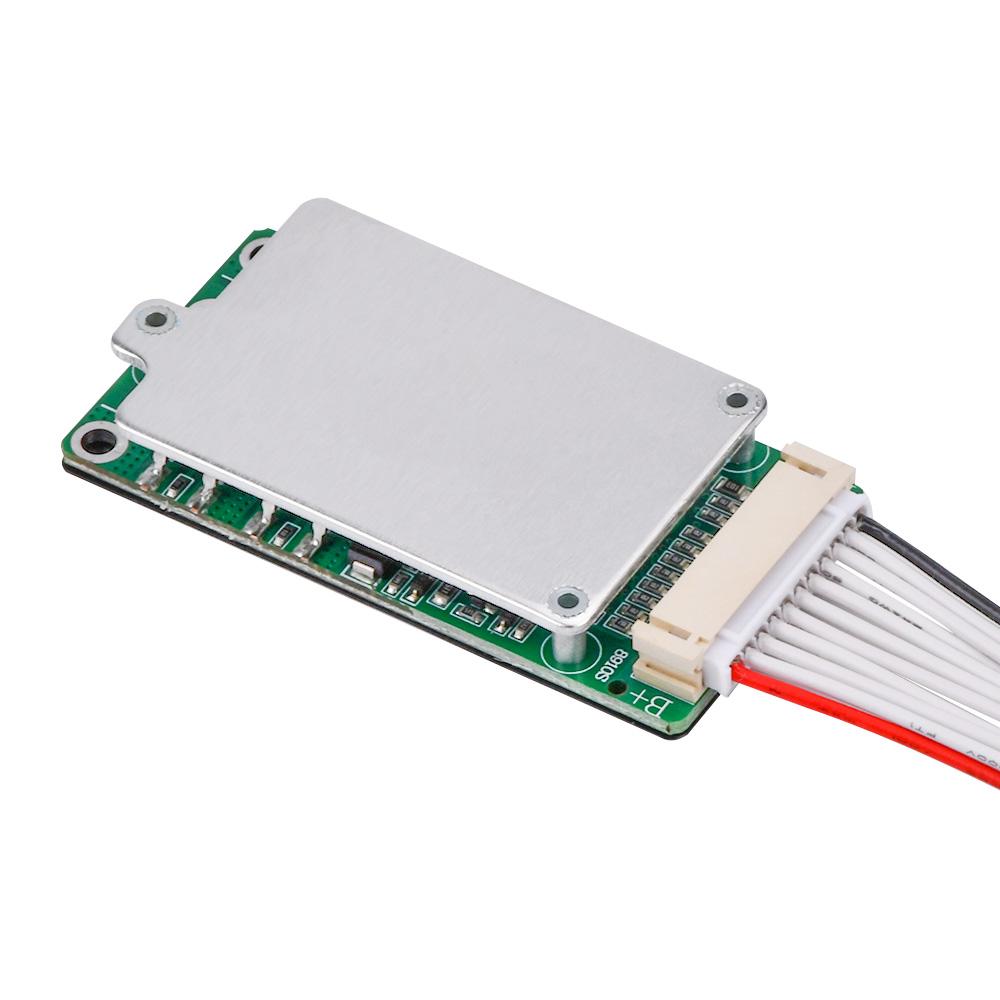

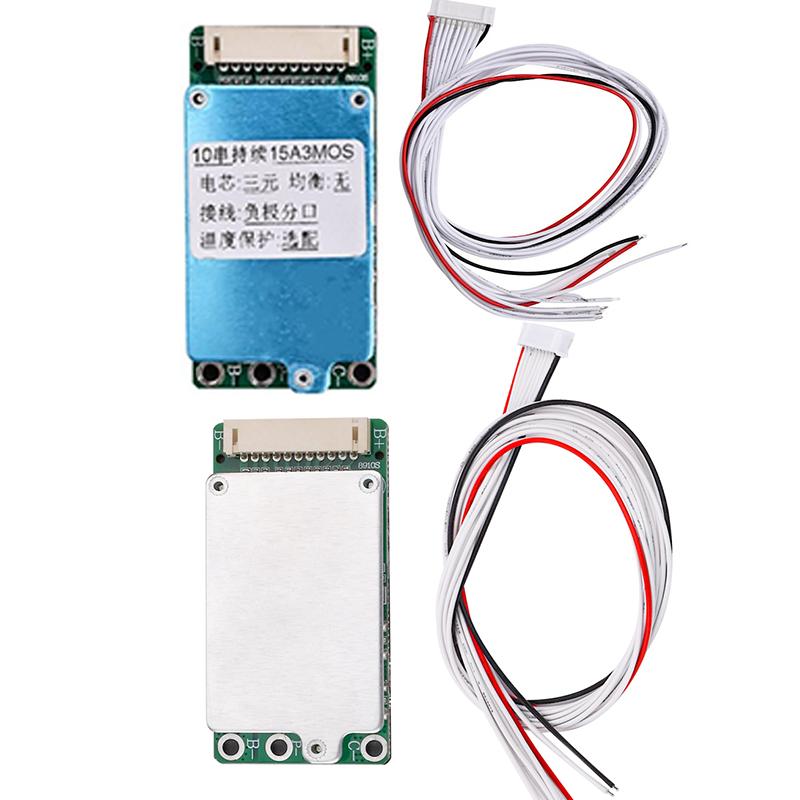

BMS 10S 36V 15A Common/SPLIT Port Li-ion Lipolymer 18650 Lithium Battery Protection Board Short Circuit Protection

Quantity : 1 High-concerned chemical : none Package : SMD is_d : Yes Dissipation Power : BMS 10S 36V 15A Supply Voltage : BMS 10S 36V 15A Application : Electric Toy Type : Module Brand Name : diymore Origin : Mainland China Condition : New Operating Temperature : 18650 lithium Battery Protection Board

Product Features:Exquisite craftsmanshipStable heat dissipationOver-voltage protection Over-discharge protectionCharging protectionShort circuit protectionOvercurrent protection Specification:Type: 10S 36V 15AWiring mode: same port / sub-port optional Operating power consumption: ≤40uAMain circuit conduction internal resistance: ≤ 15mΩTemperature range: -40 to +80°CDisconnection protection: YesCable size: 2.0MM pitch / 40CM lengthDischarge:Single battery overdischarge voltage: 2.7V±0.08VContinuous operating current: 15A at the same port 7.5A at the sub-portTransient protection current: 80AOvercurrent recovery condition: charge recovery/disconnect loadShort-circuit recovery condition: charge recovery/disconnect loadCharging:Single battery overcharge voltage: 4.25V±0.025VContinuous charging current: 15ACharger voltage: 56V-60V (recommended) Package:10S 36V 15A 18650 lithium battery charging protection board X1 label:yes
