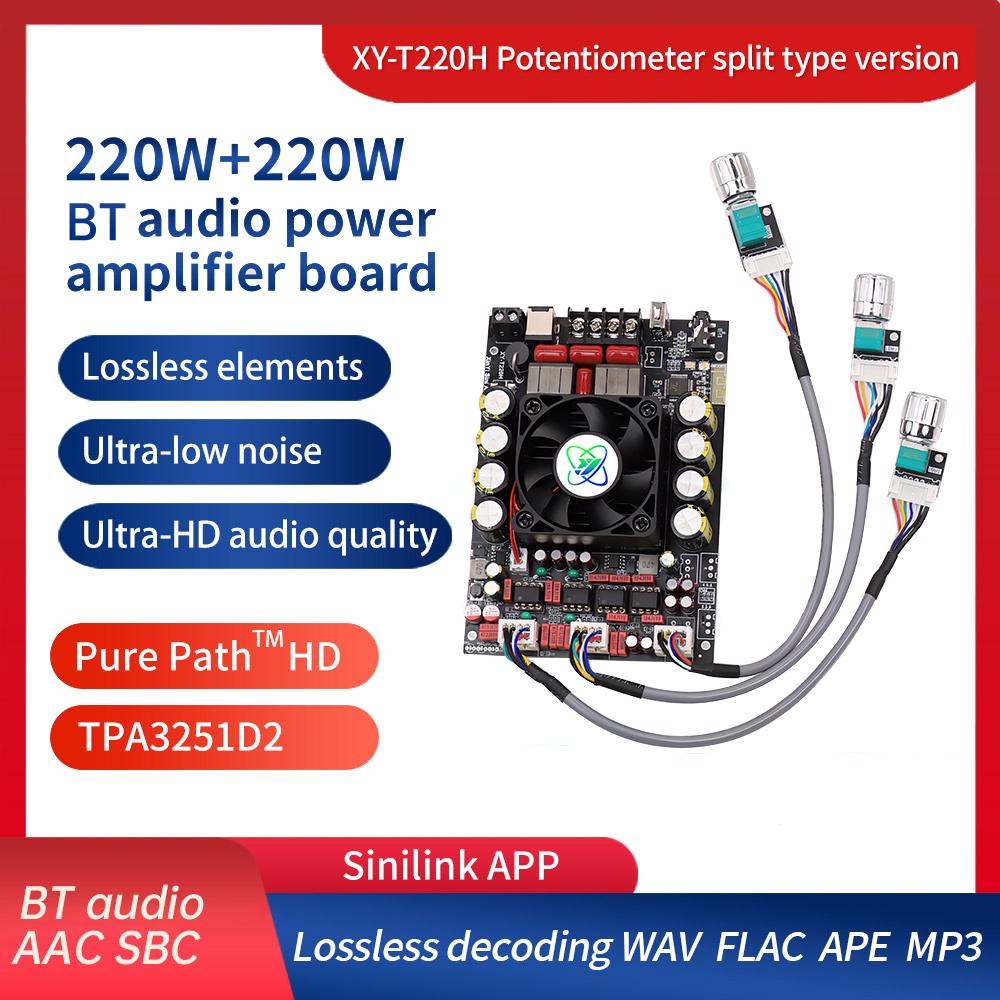

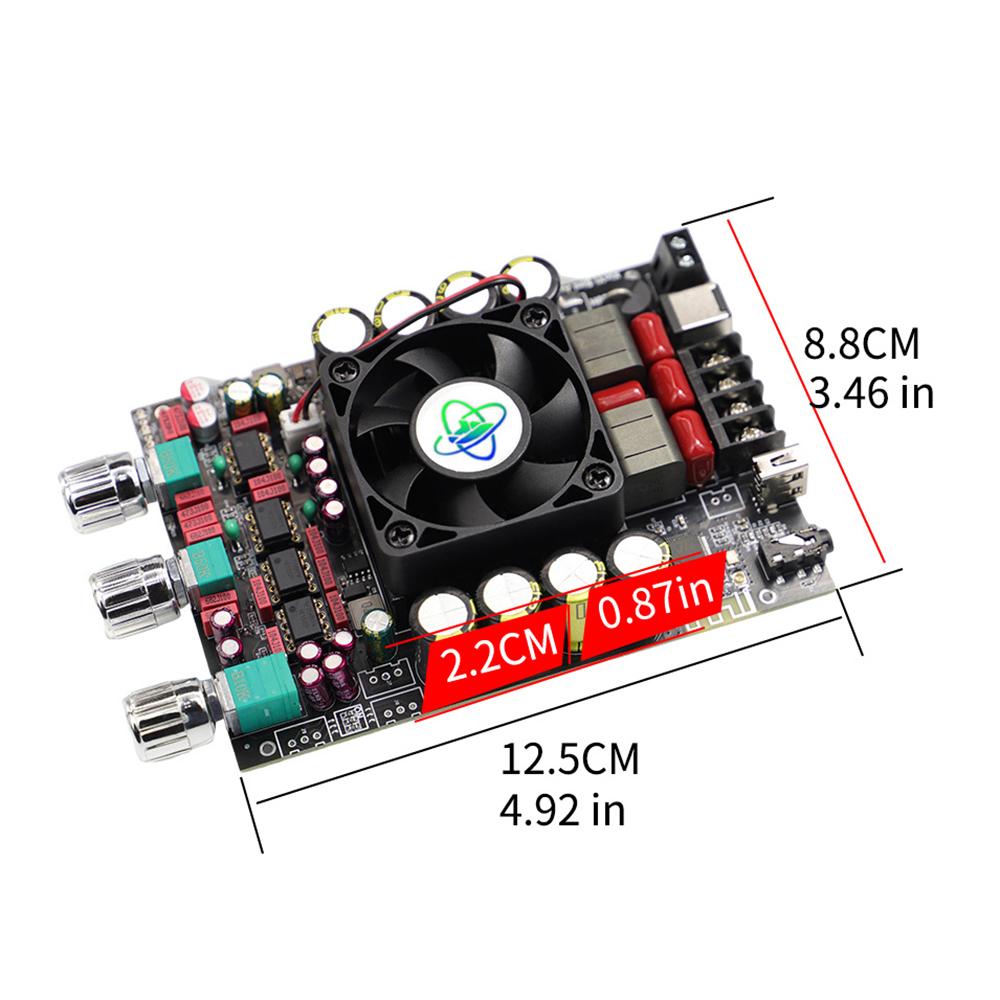

XY-T220H 220W * 2 Fever Level Lossless BT Audio Amplifier Board Module Stereo High Low Frequency Adjustment Amplifier Module

High-concerned chemical : none Type : Module Brand Name : diymore Origin : Mainland China Condition : New Function 1 : supports Sinilink APP Function 2 : Modify Bluetooth name Function 3 : Left and right channel output Function 4 : BT audio amplifier Function 5 : BT version 5.2

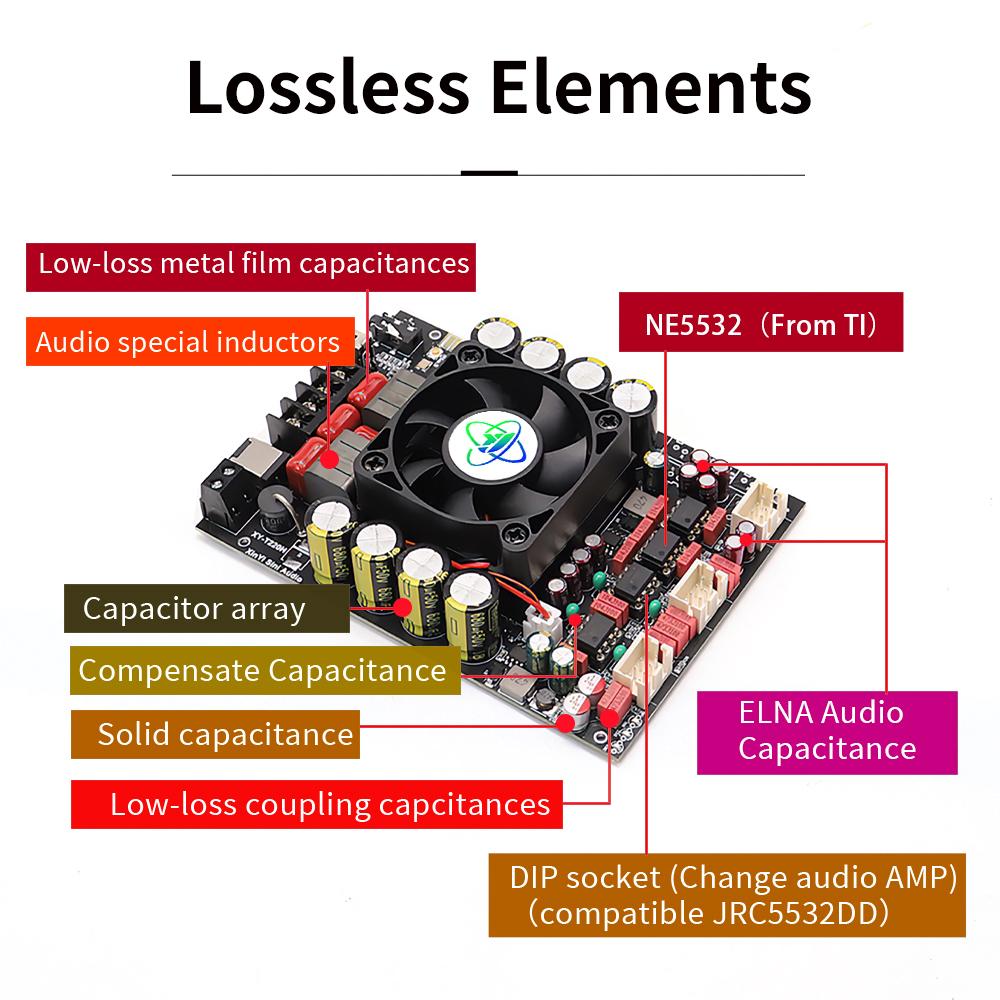

XY-T220H Features: 1. TPA3251D2 is a high-performance Class D power amplifier that has Class D efficiency and can bring true high-end sound quality. 2. Equipped with a protection mechanism for overvoltage, short circuit, overheating, undervoltage, and other protections. The technology of TPA3251 enables the device to maintain ultra-low distortion throughout the entire audio frequency band while displaying high-definition sound quality. 4. High power, 220W+220W fever grade high-power BT amplifier, fever grade lossless components, ultra-low noise, high-definition sound quality. 5. The gold-plated socket has good conductivity, high reliability, and long life. Parameter: Product model: XY-T220H Power supply: DC 12-36V/8A BT version: 5.2 Audio input: BT+AUX+USB flash drive+USB sound card BT audio decoding: AAC SBC Frequency range: 20Hz-20KHz Audio adjustment: independent adjustment of high and low frequencies USB decoding: WAV FLAC APE MP3 Audio output: Stereo/2.0 Left and right channel output power: 2 * 10W @ 8 Ω/12VDC 2 * 20W @ 4 Ω/12VDC 2 * 35W @ 8 Ω/24VDC 2 * 70W @ 4 Ω/24VDC 2 * 80W @ 8 Ω/36VDC 2 * 160W @ 4 Ω/36VDC 2 * 220W @ 3 Ω/36VDC Protection mechanism: protection against overvoltage, short circuit, overheating, undervoltage, etc Remote control function: supports Sinilink APP Left and right channel gain adjustment: L left channel gain setting, R right channel gain setting, gain=R/10K, R factory default 15K Product size: 125mm * 88mm * 35mm Package include: XY-T220H 1 1X amplifier board motherboard +3X knob cap XY-T220H 2 1X amplifier board motherboard +1X shell (including screw accessories) +3X knob cap +1X screwdriver XY-T220H 3 1X amplifier board +3X knob cap +1X screwdriver
