Quantity : 1
High-concerned chemical : none
Package : SMD
is_d : Yes
Dissipation Power : As Description
Supply Voltage : As Description
Application : As Description
Type : Logic ICs
Brand Name : Gaqqee
Operating Temperature : As Description
Origin : Mainland China
Condition : New
Condition : New
Type : 25-in-1 SMD to DIP8
Key Word : SMD to DIP8 Board
Dropship : Support

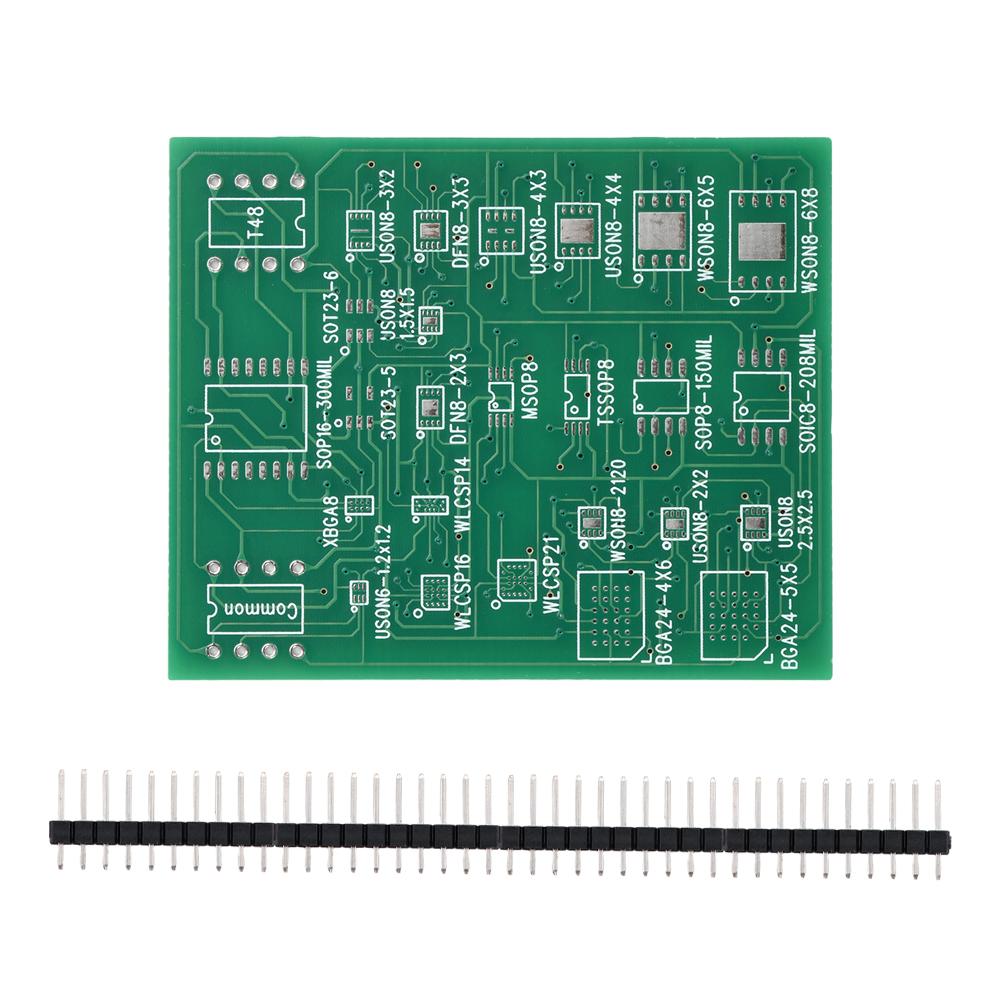

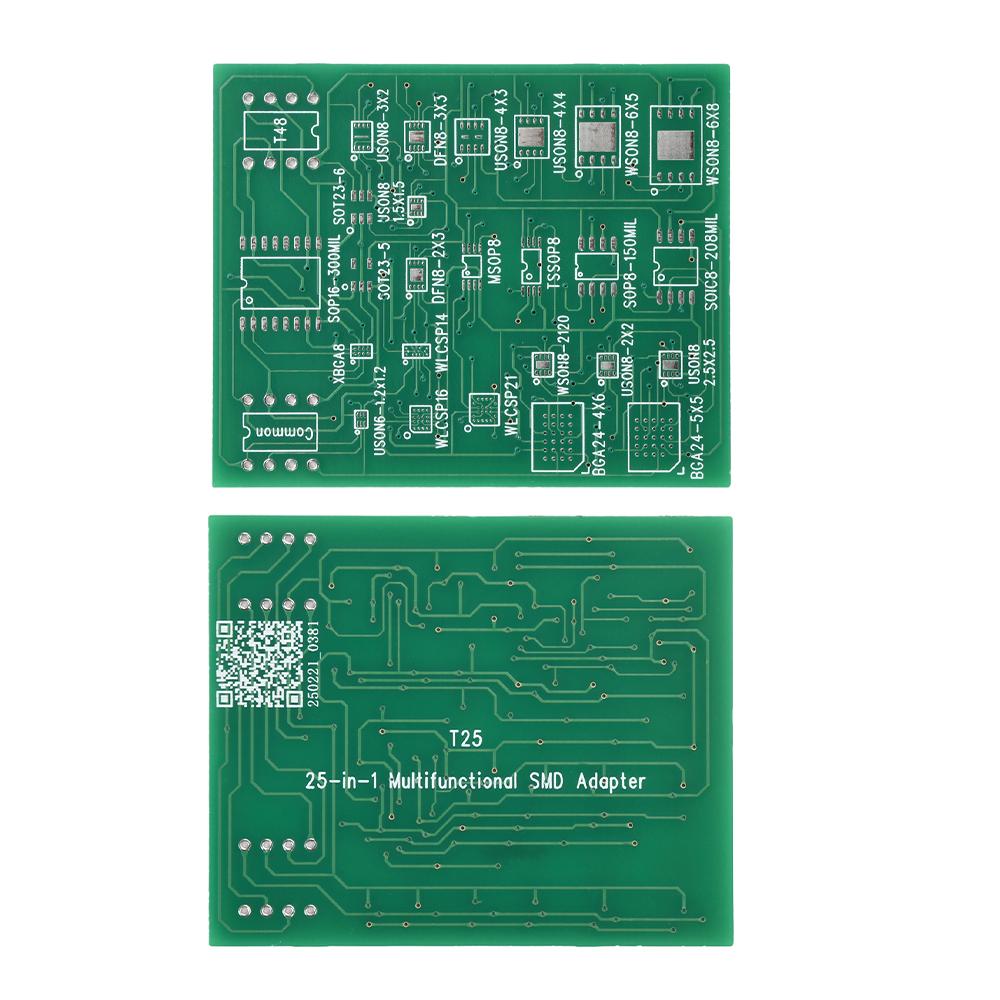

25-in-1 SMD to DIP8 Universal Adapter 4-Layer PCB SOIC8/16 SOP8 DFN8 USON8 DFN8 SOT5 SOT6 WSON8 WLCSP TSSOP8 Electronic Kit
Feature:
1. Multi-function conversion: supports 25 kinds of SMD package chips to convert to DIP8 to meet various needs
2. Wide compatibility: compatible with various programmers such as XGecu T48/T56, with a wide range of applications
3. High-quality materials: 4-layer PCB board made of high-quality materials to ensure stability and durability
4. Optimized circuit design: The circuit is carefully optimized with minimal interference, suitable for SPI FLASH high-speed programming
5. Easy to assemble and use: The DIP8 interface position is reasonably designed to avoid conflicts and simplify installation steps
Product parameters:
Product name: 25-in-1 multi-function board

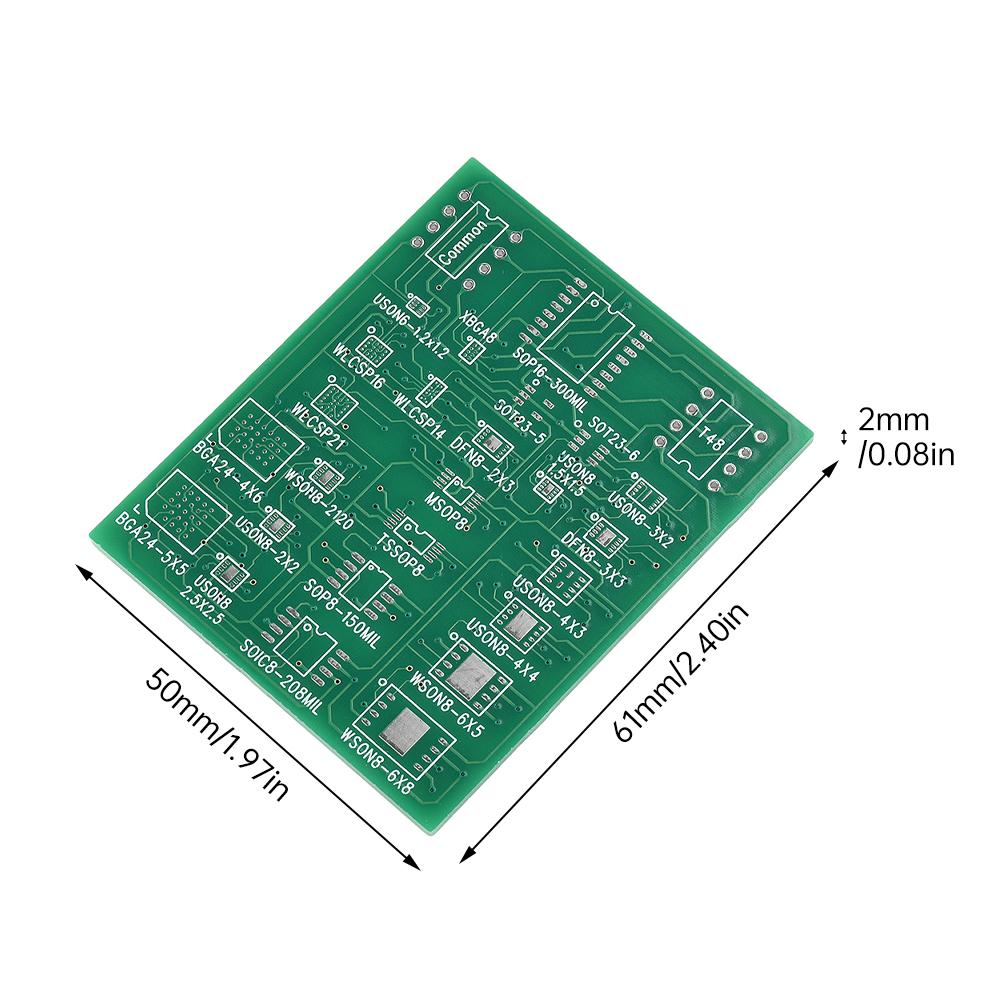

Size: 61x50x2mm
Function: chip burning, reading and writing chips. Supports converting 25 SMD package chips to DIP8 package
Supports converting the following package chips to DIP8 package:
1: SOC8-150MIL(mark 5*4)
2: SOP8-200MIL(mark 5.3*5.3)
3: DFN8-8*6
4: DFN6-1.2*1.2
5: USON8-1.5*1.5
6: DFN8 -2*2
7: DFN8 -3*2
8: USON8-3*2
9: SOT6-23-6
10: SOT5-23-5
11: USON8-4*3
12: WSON8-6*5
13: WSON8-3*3
14: WLCSP-16
15: WLCSP-12
16: WLCSP-21
17: WLCSP12--3119
18: WLCSP12--2320
19: WLCSP8-2216
20: TSSOP8
21: MSOP8
22: XSON8-4
23: BGA24-5*5
24: BGA24-4*6
25: SOIC16 300MIL
Note: This adapter is designed for SPI NOR flash memory and may not be suitable for SPI NAND.
Package List:
PCB board x1
Pin header x1
label:yes
