18KHz DC8-24V Brushless DC Motor Speed Controller Driver PWM Controller Driver Board Regulator Forward Backward Electroinc Kit

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Supply Voltage : DC8-24V Application : Electric Toy Type : Drive IC Brand Name : DIY NOW Origin : Mainland China Condition : New Condition : New Type : Brushless DC Motor Speed Controller Key Word : Motor Controller Dropship : Support

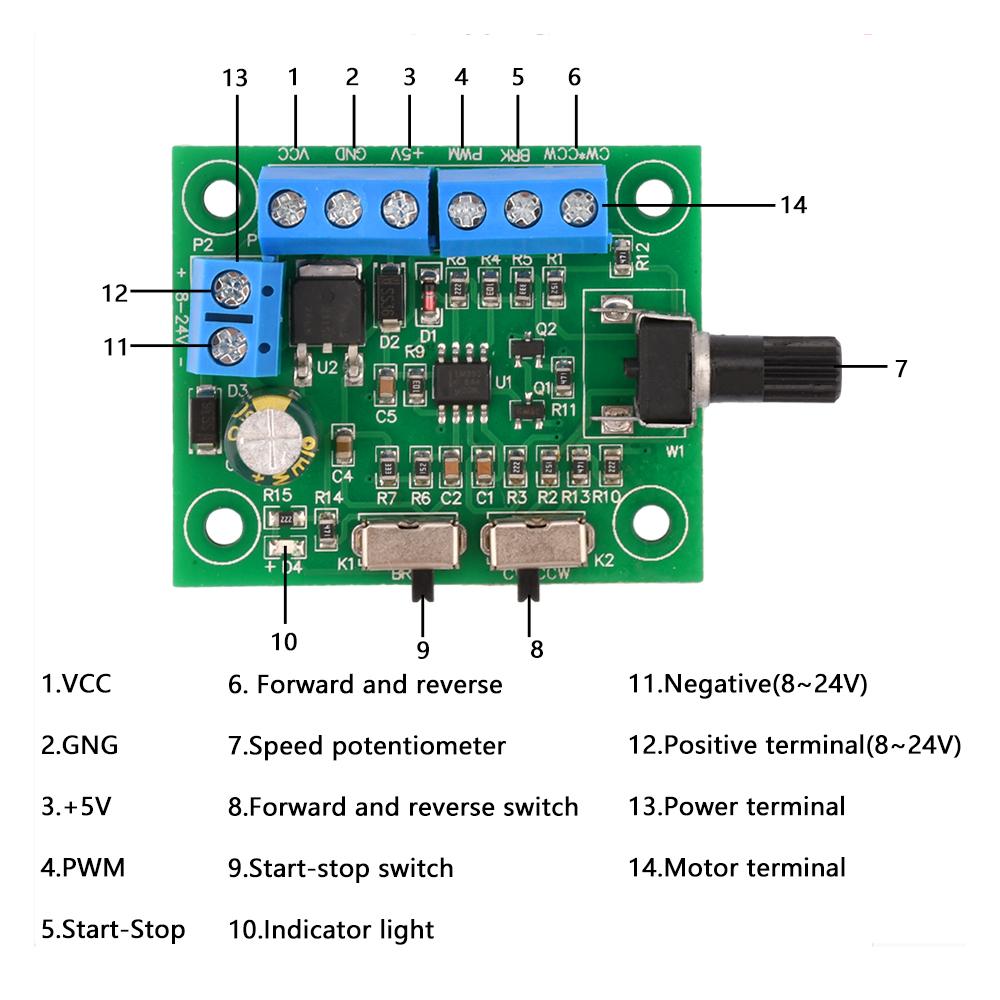

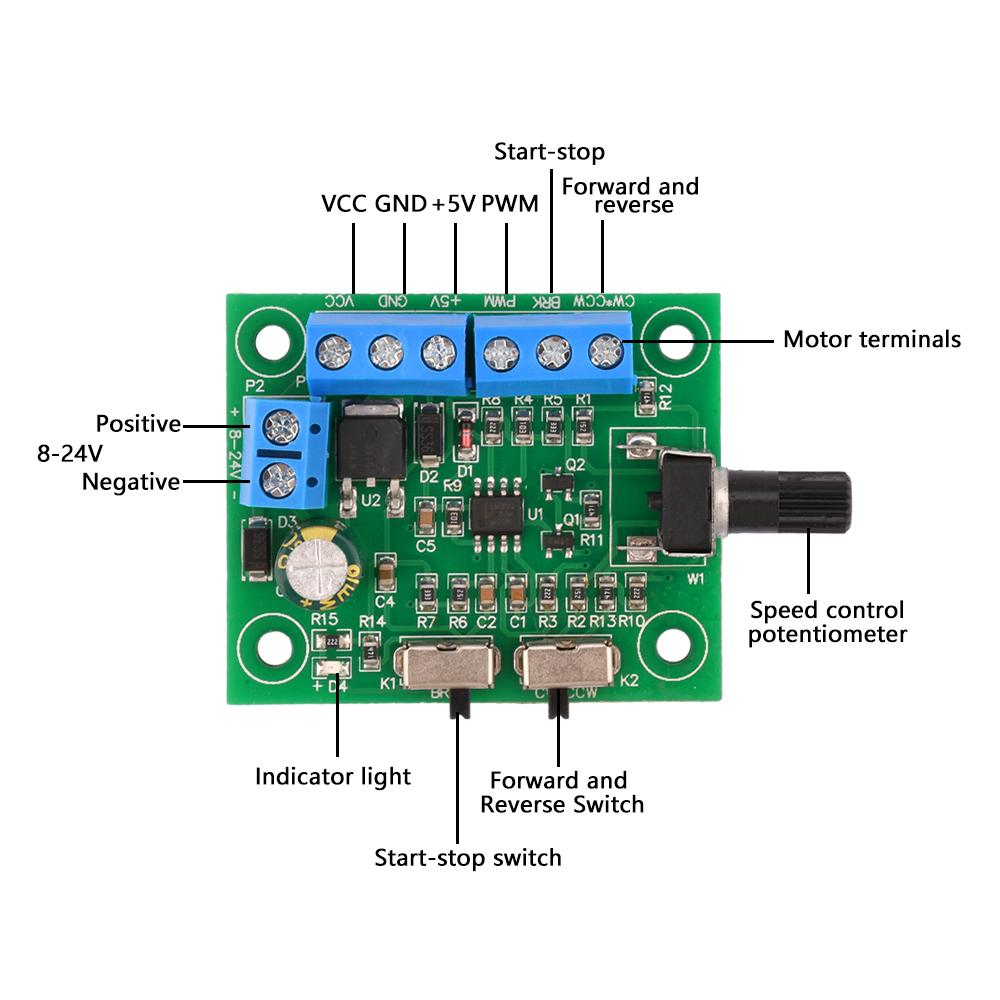

18KHz DC8-24V Brushless DC Motor Speed Controller Driver PWM Controller Driver Board Regulator Forward Backward Electroinc Kit Feature: 1. The product is made of high-quality PCB materials and high-quality components, and the quality is guaranteed 2. This is a PWM brushless DC motor speed controller driver, which can only adjust the speed of brushless motors with drivers and PWM terminals 3. The product has a start-stop switch and a forward and reverse switch that need to be supported by the motor itself. The product has two specifications to choose from, front switch and side switch 4. The product has stable performance, PWM frequency is about 16KHZ, and the duty cycle is 0-100% 5. The product adopts a terminal design, which is simple and convenient to wire. The potentiometer is 10K and the speed is convenient

Product Introduction: This is a PWM brushless DC motor speed controller. The product is light and compact in design. The working voltage is between 8-24V DC, the output is 5V, the PWM frequency is about 18KHZ, and the duty cycle is 0%-100%. There are start-stop switches and forward and reverse switches on the driver board that need to be supported by the motor itself. This speed controller can only adjust the speed of brushless motors with drivers and PWM terminals.

Parameters: Name: Brushless DC motor speed controller Color: Green Optional specifications: Front switch and side switch Voltage: DC 8-24V Output: 5V PWM frequency: 18KHZ Duty cycle: 0-100% With indicator light, with forward and reverse function Package list: Speed controller X1 label:yes
