Quantity : 1
High-concerned chemical : none
is_d : Yes
Supply Voltage : As Description
Type : Module
Brand Name : Gaqqee
Origin : Mainland China
Condition : New
Condition : New
Type : ESP32-S3-CAM
Key Word : ESP32-S3-CAM Module
Dropship : Support

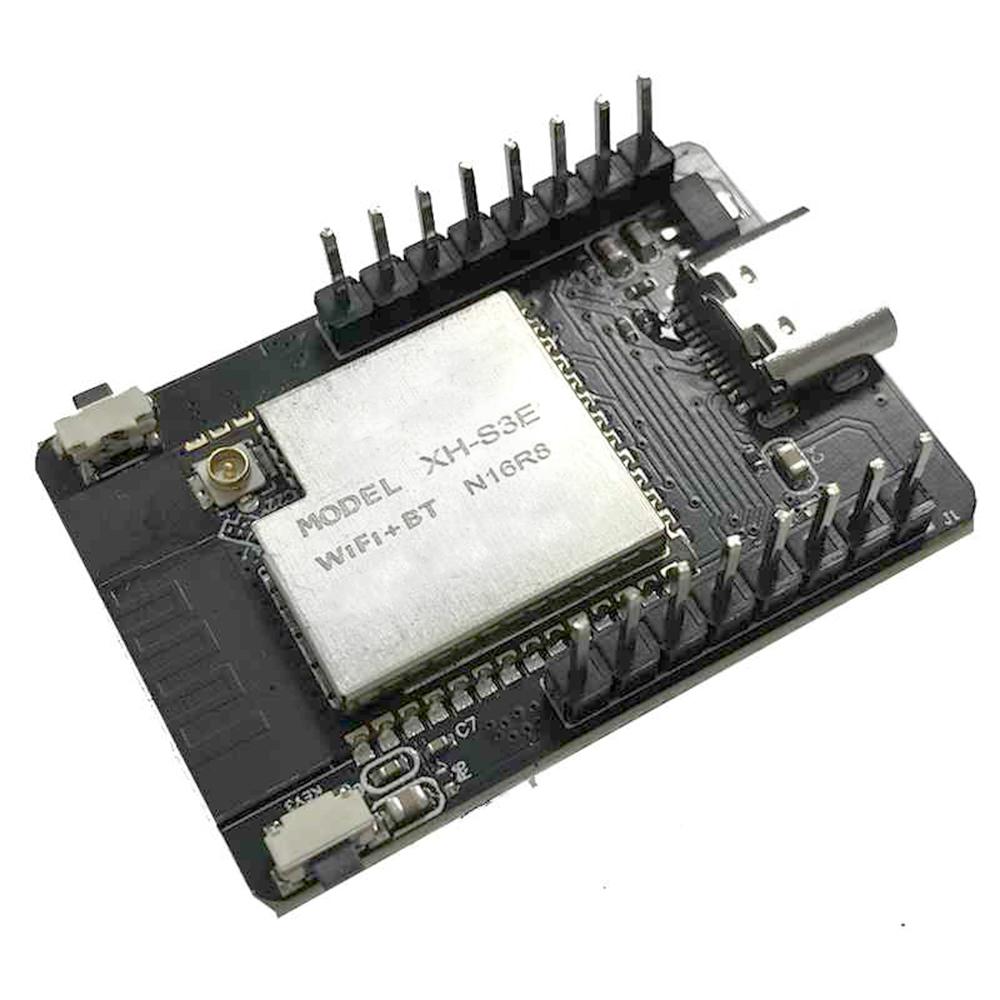

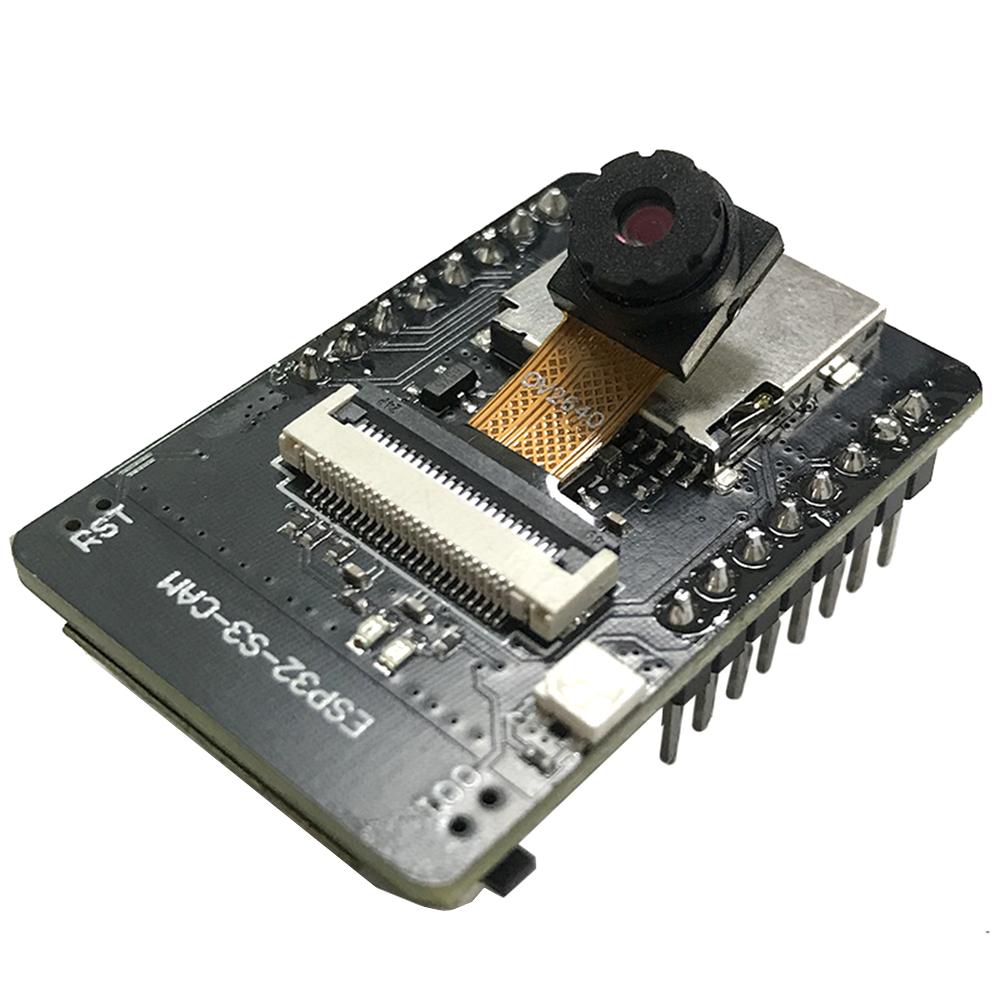

ESP32-S3-CAM WiFi+Bluetooth Internet Of Things Dual Type-C Development Board ESP 32 Core Board Ov2640 Camera N16R8 Version
Feature:
1. Low power consumption and high performance: ESP32-S3 chip, dual-core 32-bit LX7 processor, up to 240MHz frequency, low power design.
2. Rich wireless connection: support WiFi and Bluetooth 5.0, data rate up to 150Mbps.
3. Large capacity storage: built-in storage, support up to 16MB external PSRAM.
4. Support low power mode: support multiple low power working states, fine clock gating, optimize power consumption.
5. Convenient development experience: can realize automatic download mode, FLASH download mode.
Performance introduction:
Processor: ESP32-S3 series chips use Xtensa® dual-core 32-bit LX7 microprocessor, with a maximum clock frequency of up to 240 MHz1.
Storage: Integrated 384KB ROM, 512KB SRAM and 16KB RTC SRAM, supports up to 16MB external PSRAM
Wi-Fi: Supports 802.11 b/g/n protocol in 2.4 GHz band, with data rate up to 150 Mbps1.
Bluetooth: Supports low-power Bluetooth (Bluetooth LE) 5.0, supports multiple rates (125Kbps, 500Kbps, 1Mbps, 2Mbps)1.
Supply voltage: DC 3.3V;
Wi-Fi module IO maximum output current: 12mA;
Wi-Fi module RST pin low level is valid;
External interface: Wi-Fi module RXD connects to external MCU TXD, Wi-Fi module TXD connects to external MCU RXD;
Automatic download mode: Connect the module's EN and GPIO pins to the DTR and RTS of the serial port chip to achieve software automatic download mode.
The module enters the FLASH download mode: IOO is at a low level, then the module is reset and powered on; the Wi-Fi module enters the normal working mode: IOO is at a high level, and the module is reset and powered on.
Size: 40mm*27mm
Note:
The product has a built-in program, please do not re-burn the firmware!
If the firmware is re-burned, it will cause the connection to our APP to fail.
The development board module uses the ESP32-S3 chip, which is fully compatible with the ESP-S3-WROOM-1 series module, and the default N16R8 version.

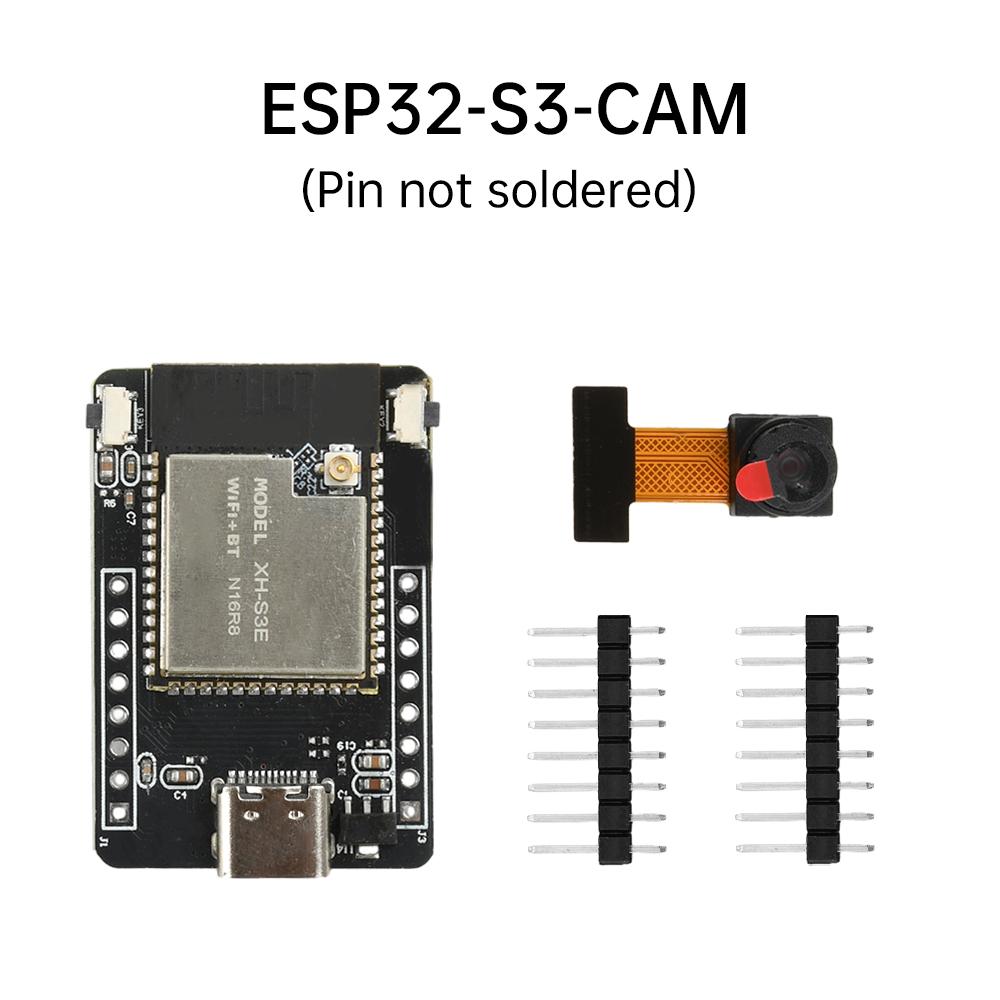

Product list:
1X development board
2X pin headers (optional if the pin headers are not soldered or soldered)
1X camera
label:yes
