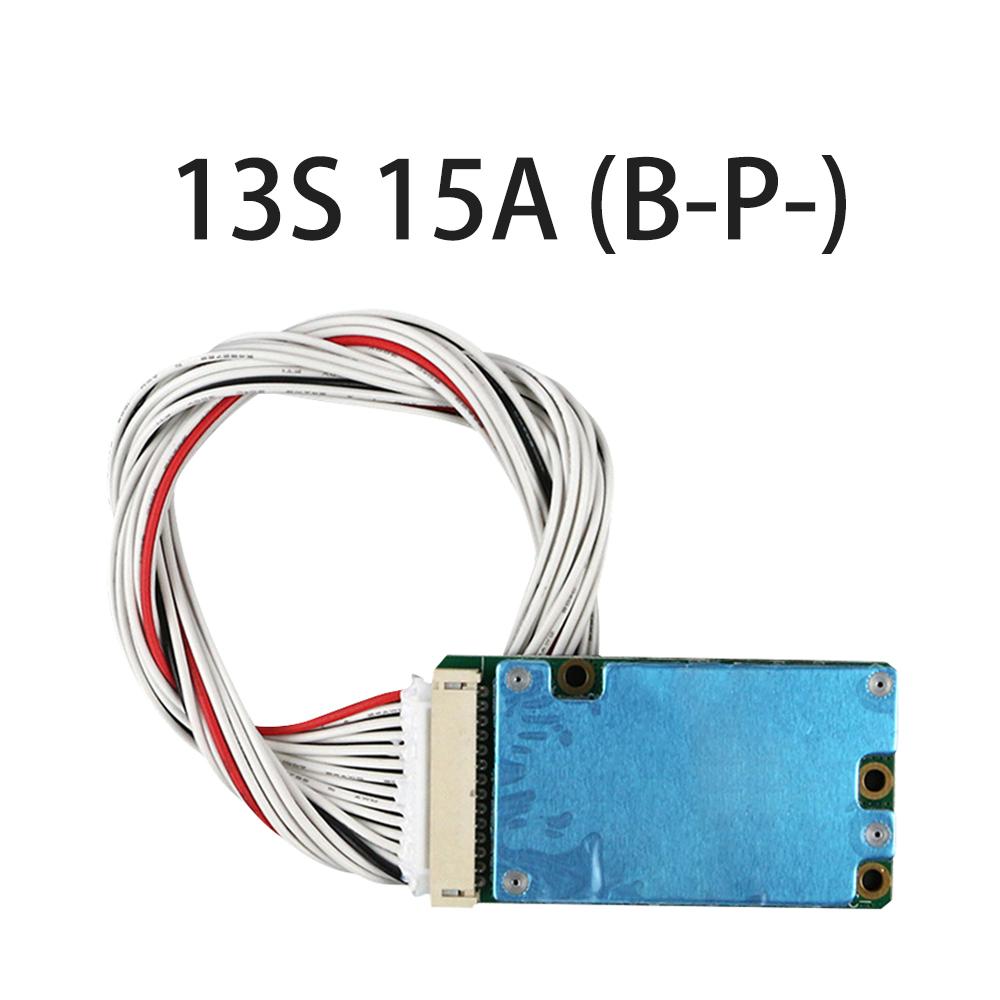

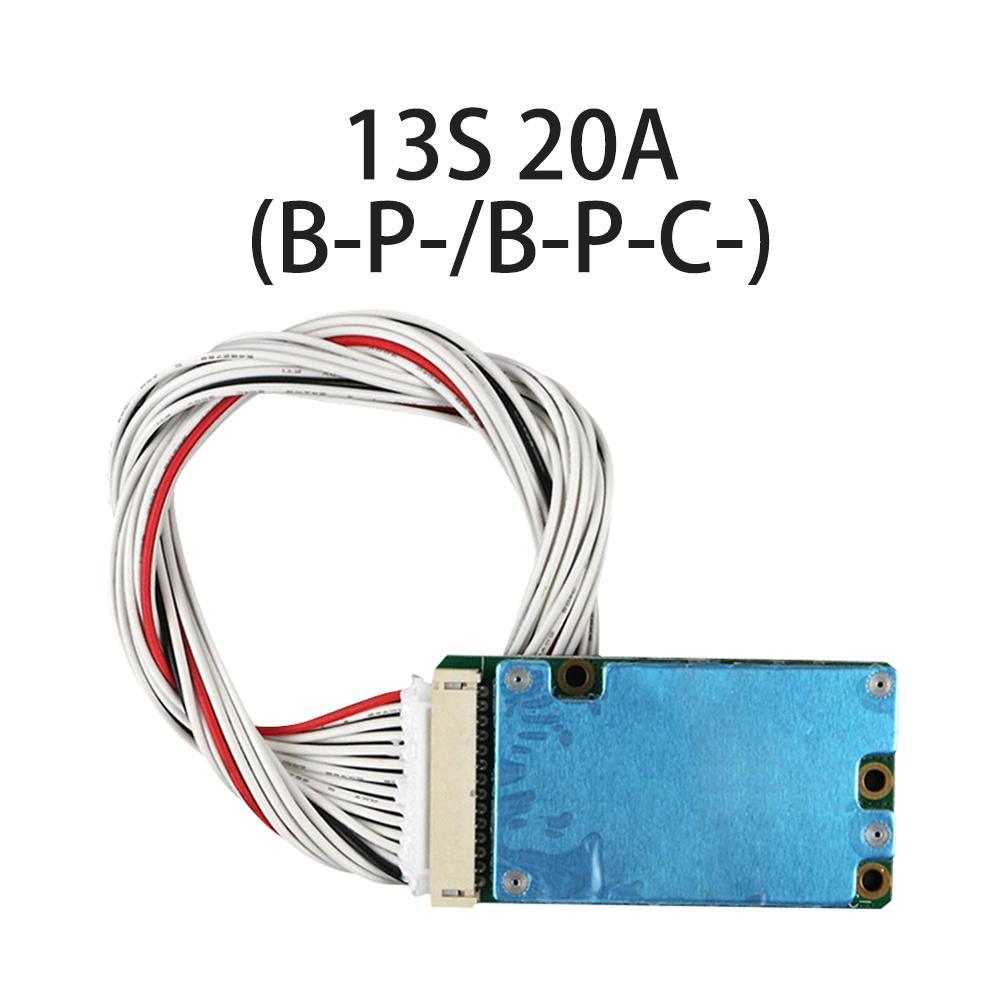

13S 48V Ternary Lithium Battery Charging Protection Board Equalizing Module Power Battery Management System

High-concerned chemical : none Charging Current : 15A Usage Scenario : Power BMS,Energy Storage BMS,3C Digital BMS Certification : CE Balance Function : Active Balanced BMS Handware or Smart : Handware BMS Charge and Discharge Port : Common Port BMS Type : LI-ION Battery BMS Origin : Mainland China Brand Name : occkic Function : Overcharge Protection,Over Discharge Protection,Overcurrent Protection,Short Circuit Protection

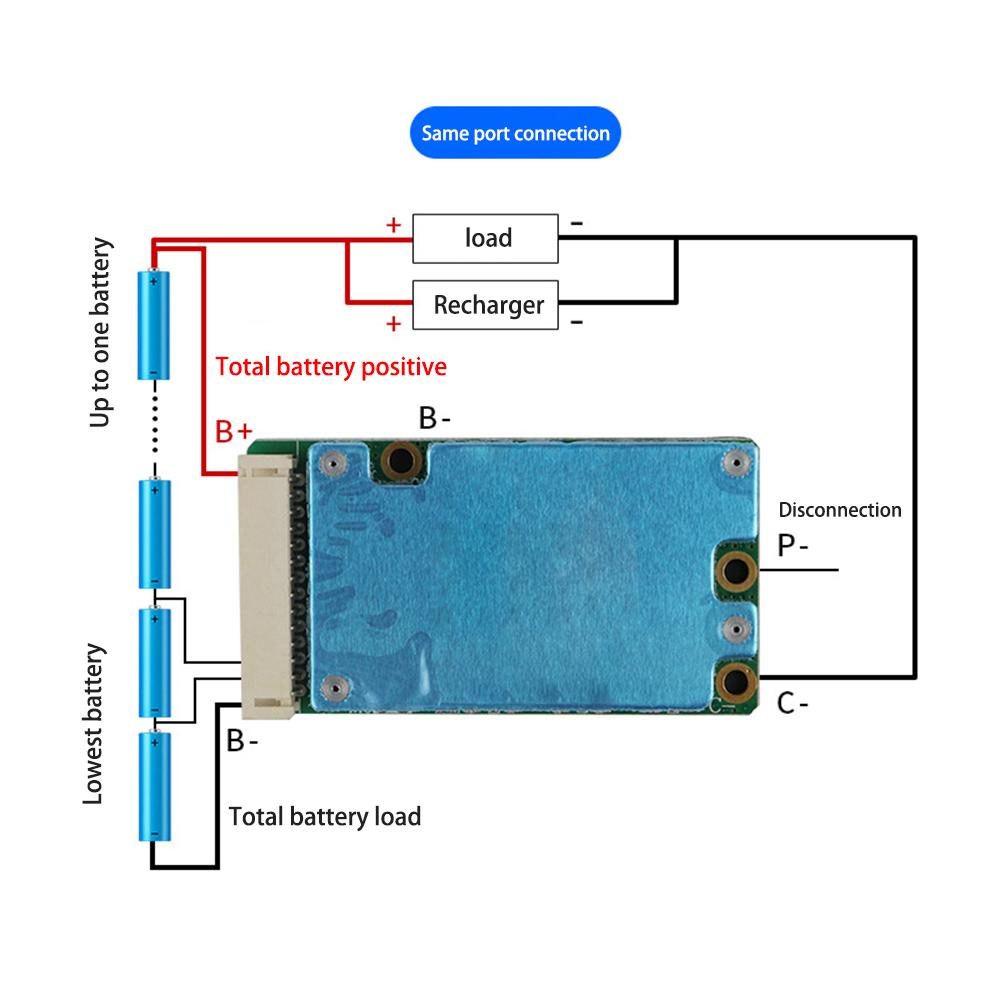

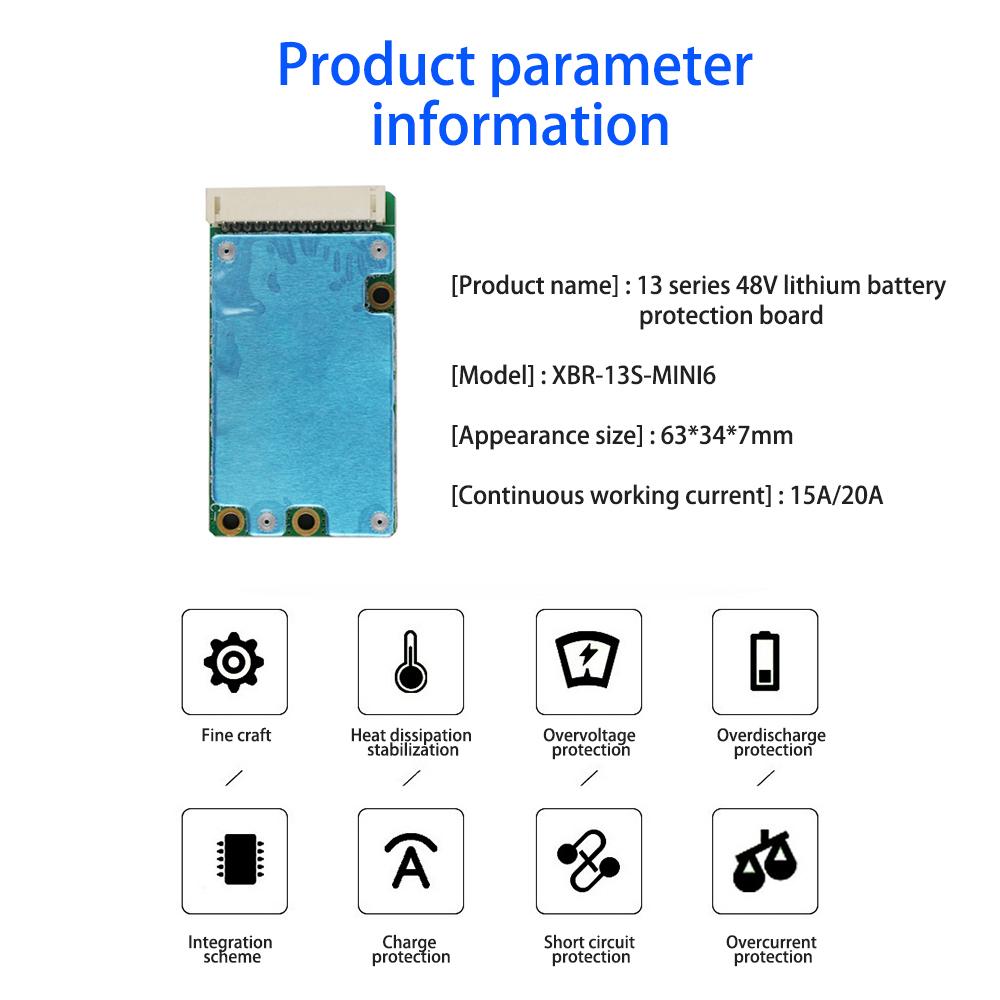

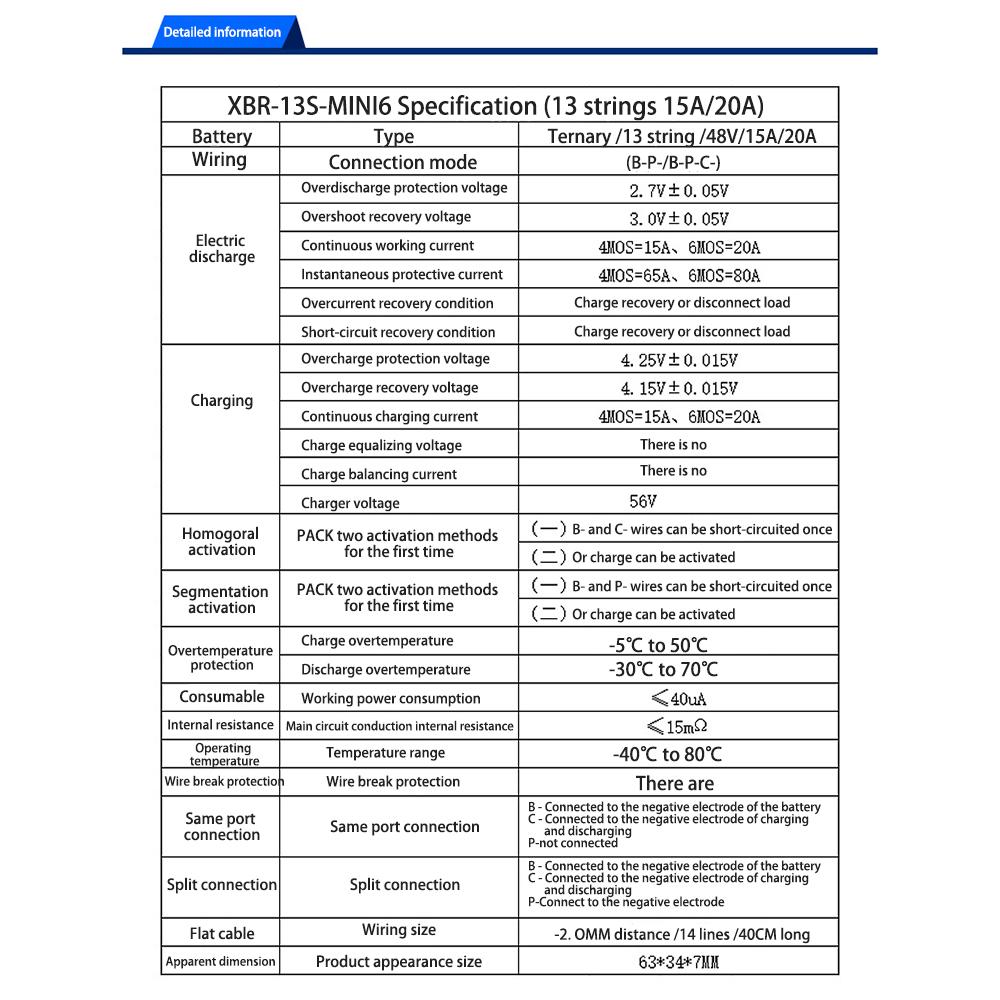

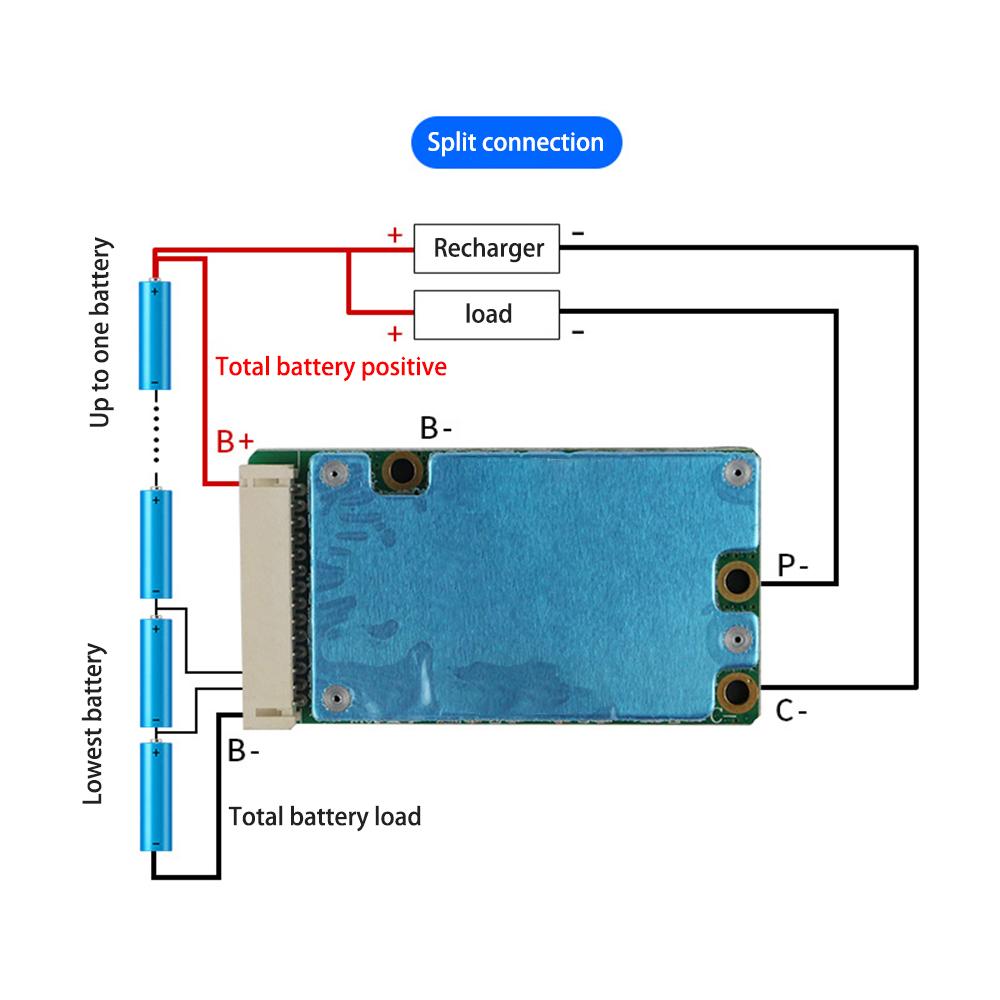

Features: 1.Exquisite craftsmanship, stable heat dissipation 2.Overvoltage protection 3.Integrated solution, charging protection 4.Short-circuit protection 5.Adopting a single integrated circuit for more stable performance, with wire breakage protection and temperature protection function Parameters: Product Name: 13 Series 48V Lithium Battery Protection Board Type: ternary/13 strings/48V/15A/20A Wiring method: same port, separate port Continuous working current: 15A/20A Overdischarge protection voltage: 2.7V ± 0.05V Overdischarge recovery voltage: 3.0V ± 0.05V Continuous working current: 4MOS=15A, 6MOS=20A Instantaneous protection current: 4MOS=65A, 6MOS=80A Overcurrent recovery condition: charging recovery or load disconnection Short circuit recovery condition: charging recovery or load disconnection Overcharge protection voltage: 4.25V ± 0.015V Overcharge recovery voltage: 4.15V ± 0.015V Continuous charging current: 4MOS=15A, 6MOS=20A Charging equalization voltage: None Charging equalization current: None Charger voltage: 56V (recommended) Two activation methods for the first PACK （1） Short circuit of B - and C-wires once is sufficient （2） Or charge to activate Two activation methods for the first PACK （1） Short circuit of B - and P-wires once is sufficient （2） Or charge to activate Charging over temperature: -5 ℃ to 50 ℃ (default shipment without temperature control) Discharge over temperature: -30 ℃ to 70 ℃ (default shipment without temperature control) Working power consumption: ≤ 40uA Main circuit conduction internal resistance: ≤ 15mS Ω Temperature range: -40 to+80 ℃ Wire breakage protection: Yes Same port wiring: B - connected to the negative electrode of the battery, c - connected to the charging and discharging negative electrode, P - not connected Split connection: B-connected to the negative electrode of the battery, c-connected to the charging negative electrode, P-connected to the discharge negative electrode Cable size: 2.0MM spacing/14 wires/40CM length Product appearance size: 63 * 34 * 7MM Package include: 1X protective board 1 X Cable label:yes

Battery capacity: 43200
