BMS 8S 100A 24V LiFePO4 Battery Protection Board BMS Iron Phosphate LFP Board Charging Controller with Balancing Function

<kse:widget data-widget-type="customText" id="1005000004119628" type="relation"></kse:widget> Features: 1.Overcharge protection 2.Balanced protection 3.Overdischarge protection 4.Overcurrent protection 5.Short circuit protection,Electrostatic protection 6.Weak current switch

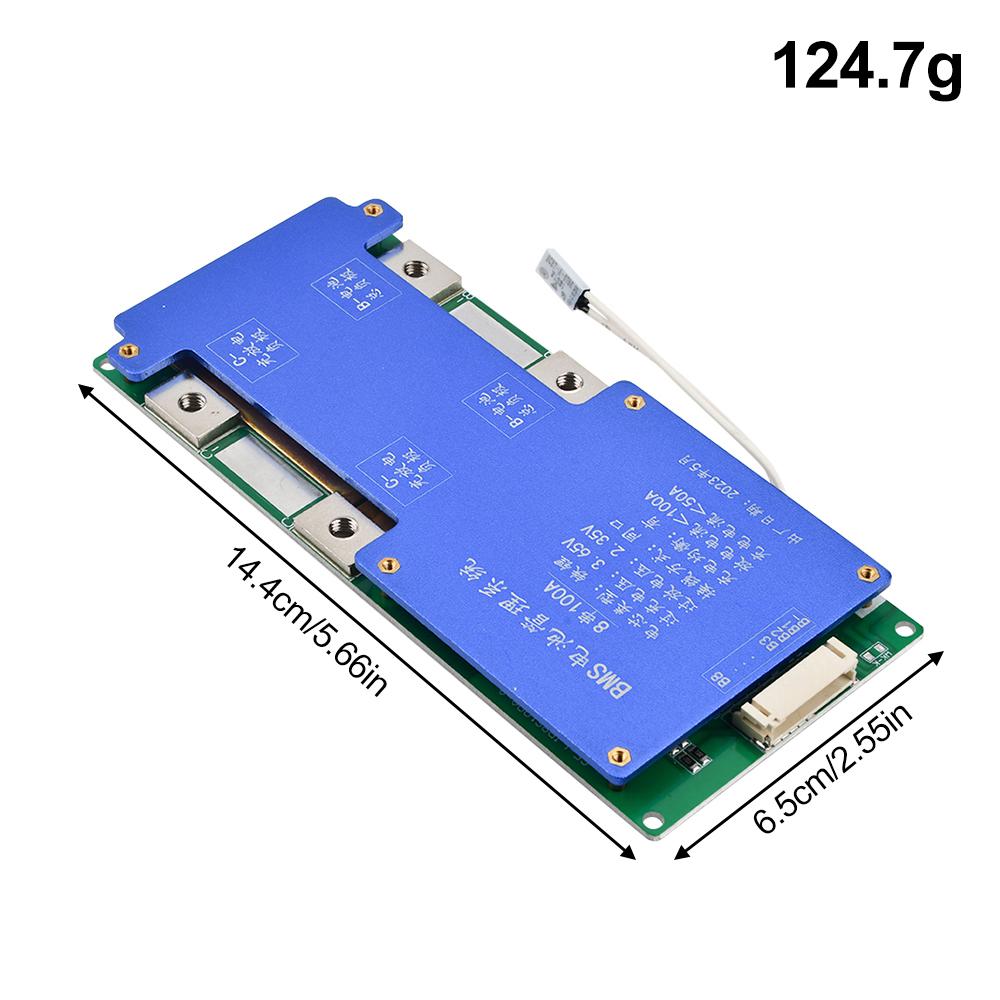

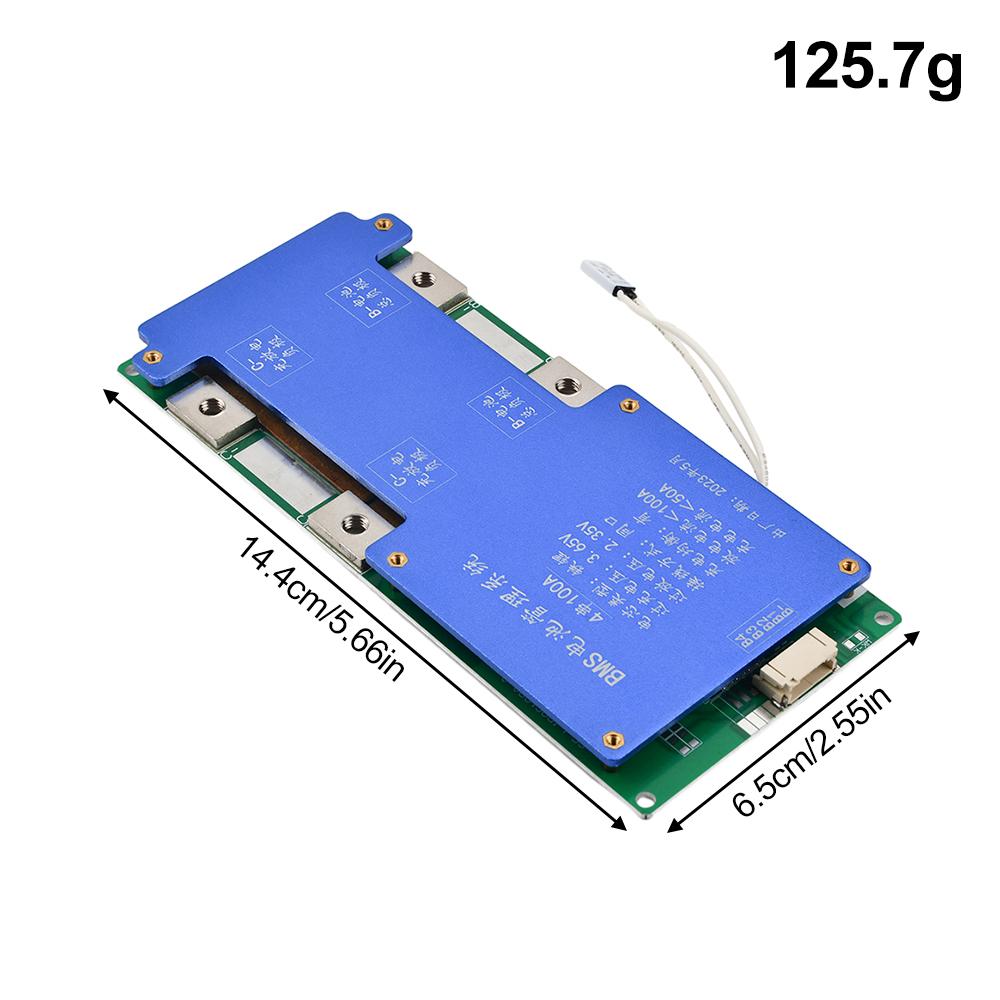

Parameters: Style 1 Voltage: DC14.6V Discharge current: 100A Charging current (same port): ≤ 50A Main circuit conduction internal resistance: ≤ 5MQ Discharge overcurrent protection: 600+10A Product size: 145 * 65 * 11+1MM

Style 2 Voltage: DC24V Discharge current: 100A Charging current (same port): ≤ 50A Main circuit conduction internal resistance: ≤ 5MQ Discharge overcurrent protection: 600+10A Product size: 145 * 65 * 11+1MM

Overcharge protection Detection voltage: 3.65+0.025V Detection delay: 1000+500MS Release voltage: 3.5+0.05V Overdischarge protection Detection voltage: 2.35+0.1V Detection delay: 1000+500MS Release voltage: 2.7+0.1V

Equilibrium parameters Detection voltage: 3.5+0.025V Detection delay: 100+50MS Equalizing current: 70+5MA

Overcurrent protection Detection voltage: 50+15MV Detection delay: 1000+500MS Current protection: 600+100A

Short circuit protection Trigger condition: external short circuit Detection delay: ≤ 350US Release condition: disconnect the load Temperature control protection Charging high temperature protection detection temperature: 75 ° C Discharge high-temperature protection detection temperature: 75 ° C Release condition: 65 ° C

Self consumption Working power consumption: ≤ 40UA Sleep over discharge power consumption: ≤ 10UA Working temperature range: -20/+80C

Package include: Protection board * 1

Origin: Mainland China Battery Included: no Model Number: BMS 8S 24V 100A Certification: NONE Voltage: DC14.6V DC24V Discharge current: 100A High-concerned chemical: none Charging current (same port): Max Main circuit conduction internal resistance: Maximum 5MQ Product size: 145 * 65 * 11+1MM Charger included: N Function 2: Balanced protection Function 3: Overdischarge protection Function 4: Overcurrent protection Function 5: Short circuit protection Discharge overcurrent protection: 600+10A Brand Name: occkic Electronic: no Function 1: Overcharge protection Function 6: Electrostatic protection Function 7: Weak current switch Voltage range: No voltage Accessory Type: Charger Accessories
