10W LED bead Driver Control Board DIY Flashlight Control Main Board Brightness Adjustable Charging Protection Board with Switch

Charger included : Y Battery Included : no High-concerned chemical : none Model Number : DIY Flashlight Control Board Accessory Type : Battery Accessories Brand Name : occkic Origin : Mainland China Certification : CE

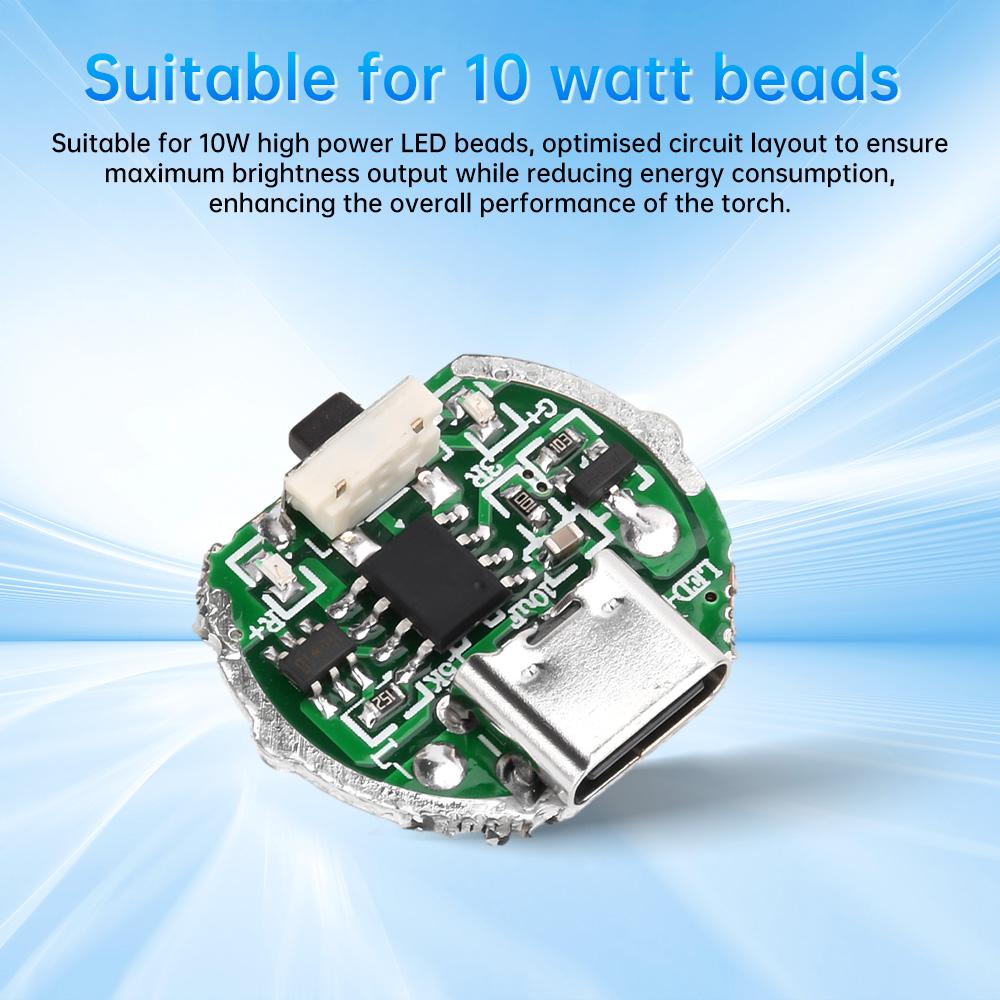

Features: 1.Type-C charging interface, adapt to a wide range of chargers, enhance the charging efficiency, for the flashlight to quickly replenish the energy 2.Provide two modes of switching between medium brightness and high brightness to meet different lighting needs, which can be used for long-distance irradiation as well as short-distance lighting, saving energy. 3.Apply 10W high power LED beads, optimize the circuit layout to ensure maximum brightness output and reduce energy consumption, enhance the overall performance of the flashlight. 4. Adopt high efficiency driver chip, optimize the circuit design, reduce power consumption and heat generation, enhance the overall performance of the flashlight. 5. Adopting high quality switching components to ensure long switching life, good operation feel, even in harsh environments can work stably. Parameter: Input voltage: 3.2~4.2V (suitable for one lithium battery) Output voltage: 3~3.3V Output current: 1.8~2A (suitable for 6~10W lamp beads) Gear: two gears (medium brightness 50% - high brightness 100%) Charging port: Type-c This driver board universal cell phone charger charging, with microswitch, two adjustable gears without memory, overcharge protection, reverse connection protection, the board with charging indicator light Package include: Flashlight driver board *1 label:yes
