High-concerned chemical : none
Origin : Mainland China
Brand Name : occkic
Features:
1. Large current output capacity: continuous maximum output current 10A, instantaneous operating current up to 20A
2. High-efficiency rectifier and filter design: 25A bridge rectifier with built-in heat sink to ensure stable operation
3. Multi-capacitor parallel filtering: main capacitor 4700uF/35V or 3300uF/50V, total capacity up to 18800uF or 13200uF
4. Low ripple power output: provide low internal resistance, low ripple power supply, suitable for power supply equipment below 50V
5. Wide applicability: suitable for audio, electrical appliances and other equipment, to meet the diverse power requirements
Parameter:
Product name: 10A single power supply module
Input voltage:
4700uF/AC 35V, Maximum input AC voltage: AC 20V
3300uF/AC 50V, maximum input AC voltage: AC 30V
Output current: maximum 10A (instantaneous operating current can reach 20A)
Description:

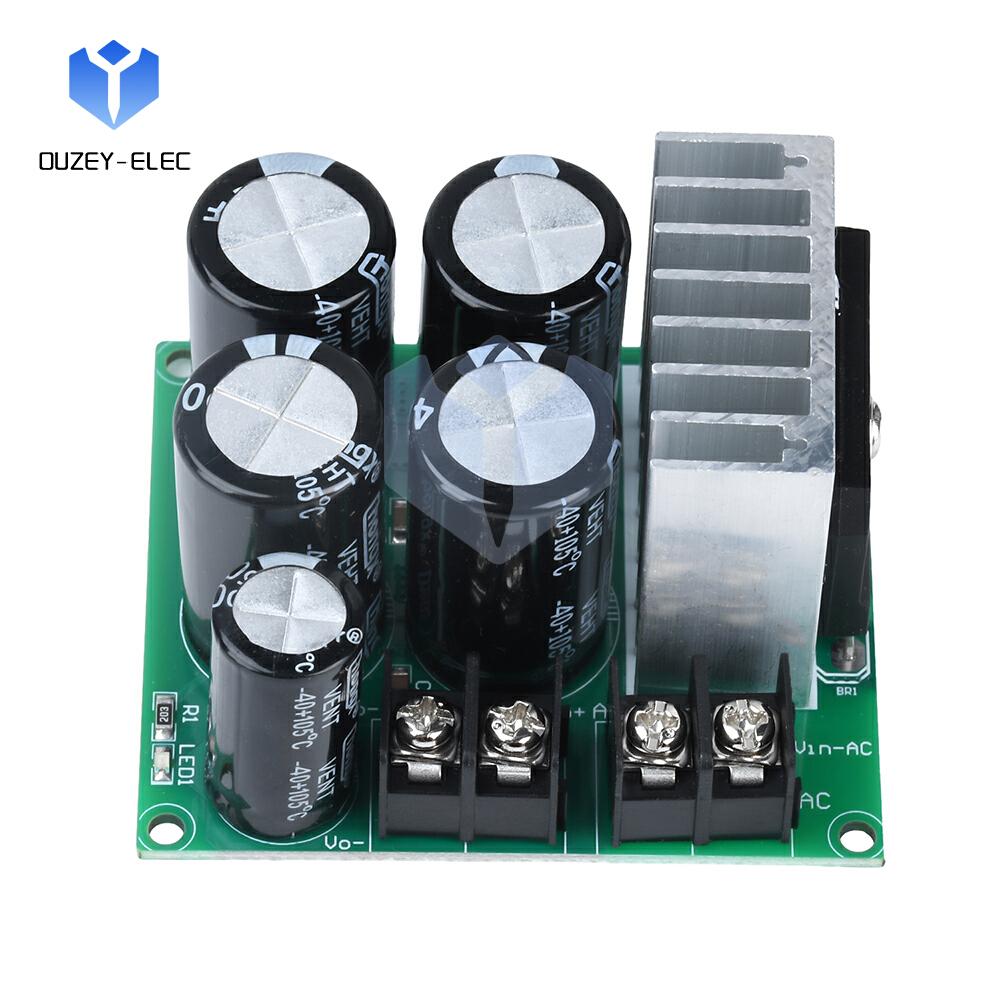

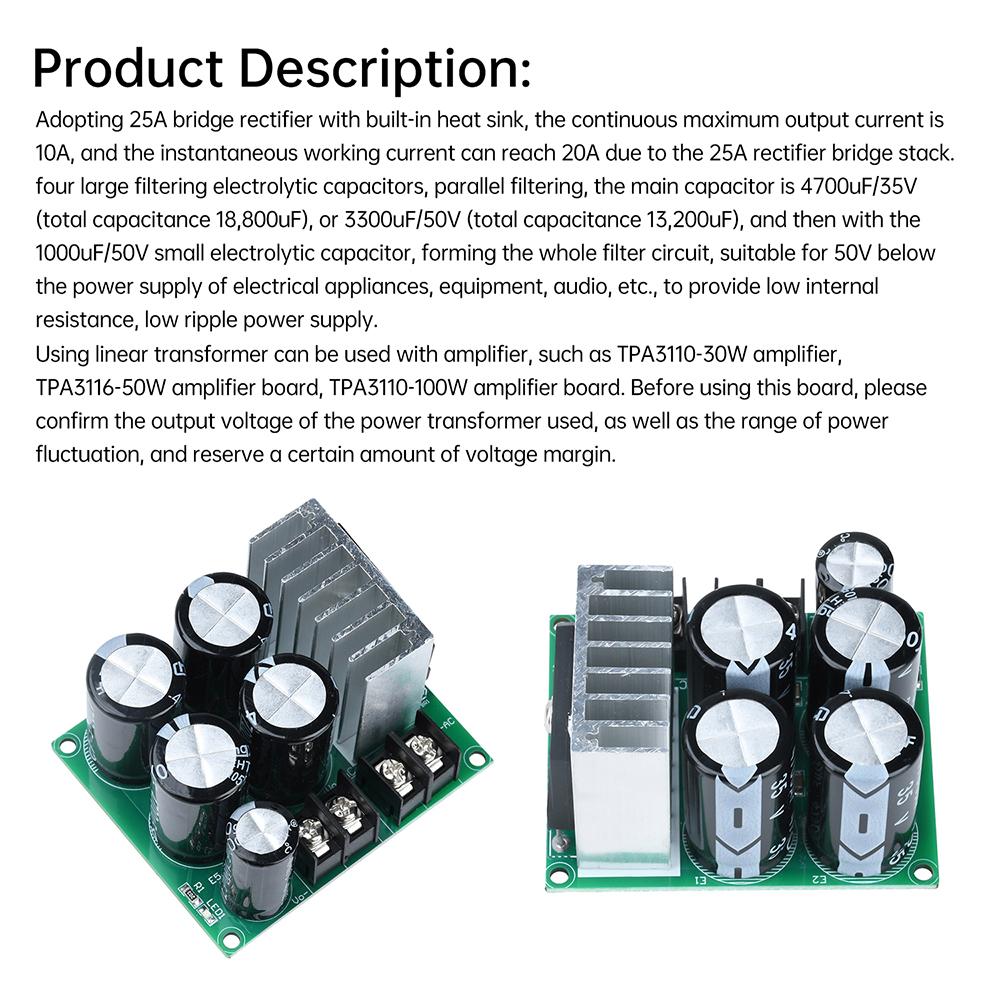

Adopting 25A bridge rectifier with built-in heat sink, the continuous maximum output current is 10A, and the instantaneous working current can reach 20A due to the 25A rectifier bridge stack. four large filtering electrolytic capacitors, parallel filtering, the main capacitor is 4700uF/35V (total capacity 18800uF), or 3300uF/50V (total capacity 13200uF), and then with the 1000uF/50V small electrolytic capacitors, composed of the whole filter circuit, suitable for 50V below the power supply of electrical appliances, equipment, audio, etc., to provide low internal resistance, low ripple power supply.
Using linear transformer can be used with amplifier, such as TPA3110-30W amplifier, TPA3116-50W amplifier board, TPA3110-100W amplifier board. Before using this board, please confirm the output voltage of the power transformer used, as well as the range of power supply fluctuations, and reserve a certain amount of voltage margin.
Package include:
Module x1
label:yes
