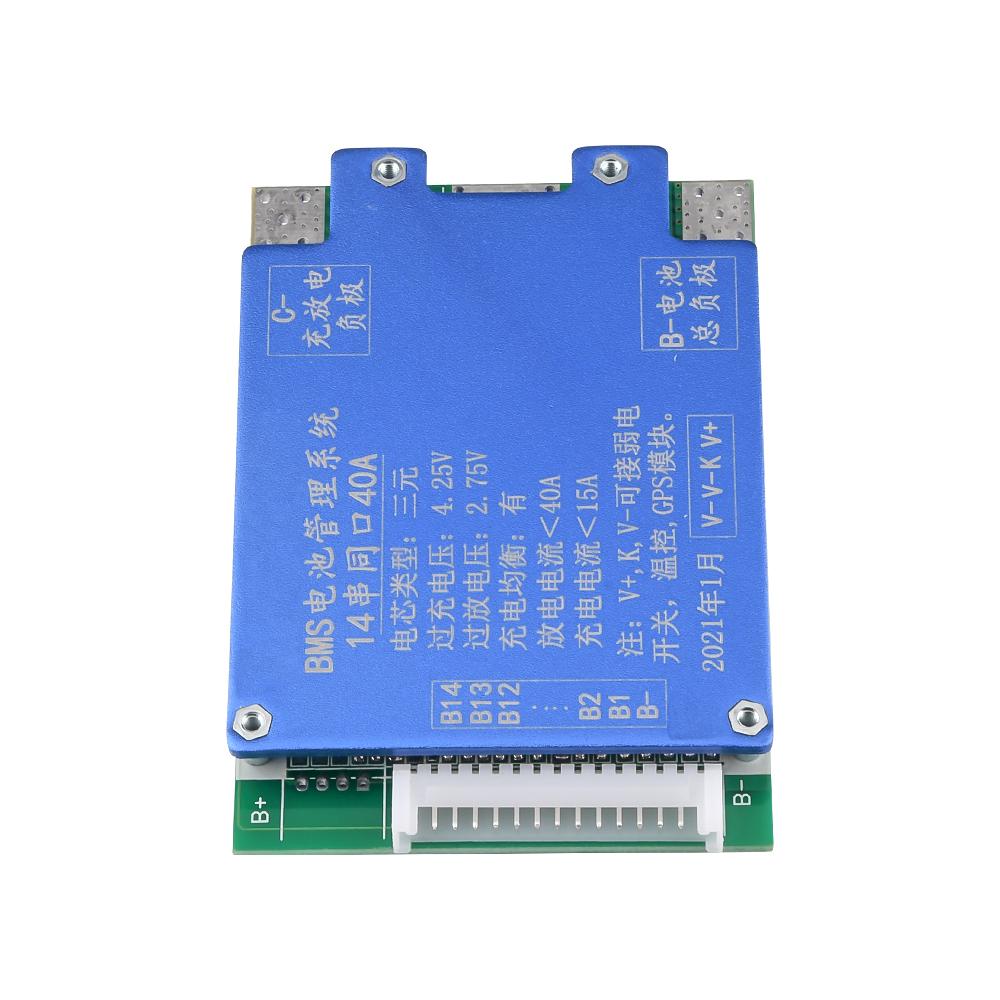

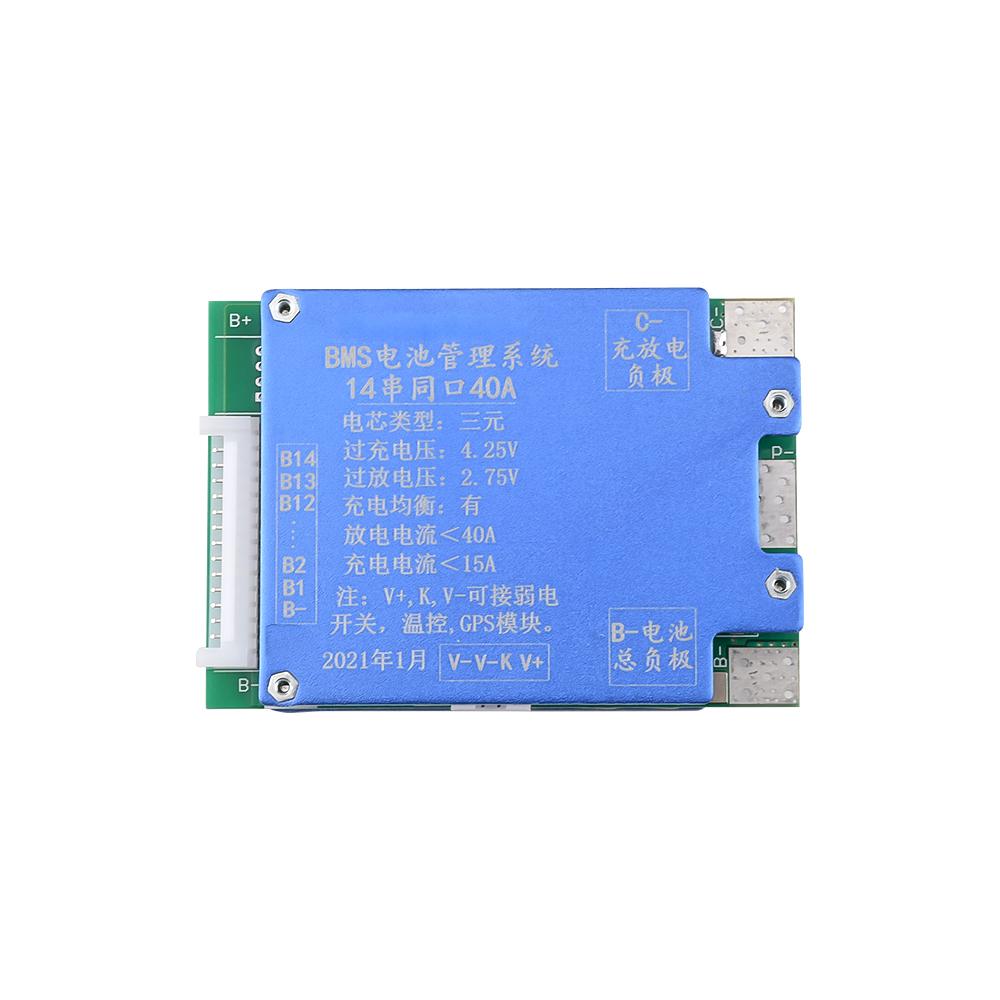

14S 40A 52V Ternary Lithium Battery Charging Protection Module Same Port Active Equalizer Board Smart BMS

Charging Current : 40A Usage Scenario : Power BMS,Energy Storage BMS,3C Digital BMS Certification : CE Balance Function : Active Balanced BMS Handware or Smart : SMART BMS Charge and Discharge Port : Common Port BMS Type : LI-ION Battery BMS Origin : Mainland China Brand Name : occkic Function : Overcharge Protection,Over Discharge Protection,Overcurrent Protection,Short Circuit Protection

Product Features: Nine protection to filter the danger 1:Overcharge Protection: Prevents overcharging of the battery 2:Equalization protection: Voltage balance makes battery life longer. 3:Moisture protection: Three-proof silicone prevents moisture. 4:Over-discharge protection: Prevent the battery from over-discharging. 5:Over-current protection: prevent the battery current from being too large 6:Short-circuit protection: automatic protection in case of short-circuit. 7: GPS port: with Bluetooth GPS port 8: Static electricity protection: three-proof silicone static electricity protection 9: Weak switch: can be connected to the weak switch protection

Applicable Battery Nominal ternary battery: 3.7V Protection board specifications: 14 series ternary 20A 14 series ternary 40A Controller current limitation: within 15A within 30A

Saintyear parameters Over-charging protection to prevent over-charging of the battery Detection voltage: 4.25±0.025V Detection delay time: 1000±50 OMS Release Voltage:4.15±0.05V Over-discharge protection Prevents over-discharge of battery Detection voltage: 2.8±0.1V Detection delay time:1000±50OMS Discharge Voltage:3.0±0.1V Equalize Voltage Voltage balance for longer battery life Detection Voltage:4.15±0.025V Detection delay:NA Equalization current:42MA Over-current protection Prevents excessive battery current Detection Voltage:7OMV Detection delay time:1000±50OMS Current protection: 70±10A Short-circuit protection Automatic protection in case of short-circuit. Trigger condition: external load short circuit Detection delay: 300US Disarm condition: Disconnect the load

Charge activation Temperature control protection Over-temperature protection keeps the battery stable and safe. Charging working temperature: customizable Discharge operating temperature: customizable Discharge condition:Recovery within working temperature Self-dissipation Self-dissipation is stable and safe Working power consumption:≤35UA Dormant over-discharge power consumption:≤10UA Operating temperature range:-30/+80°C

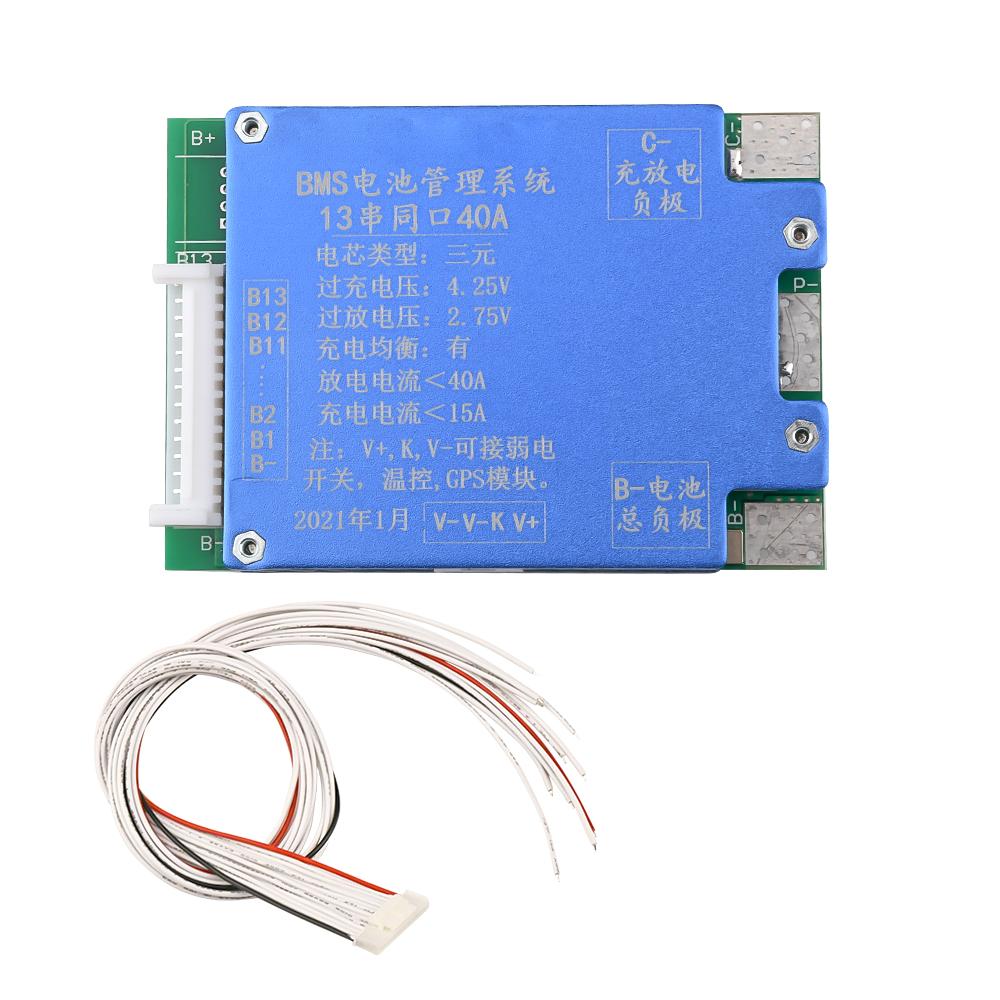

Product List: 1X protection board 1X cable label:yes
