【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
------------------------------------------------------------------------------------------------------------------
• Number of simultaneous voices: Monophonic • Type: Analog
• Number of oscillators: 1 • VCF: 1 low-pass filter
• Envelope: 1 • MIDI: MIDIIn/Thru (1 each, 5-pin DIN)
• USB: (MIDI) USB 2.0, Type B • Headphone output: 3.5mm stereo mini jack x 1
• Line output: 1/4 inch TRS x 1 • CV output: +1V + 5V (1 volt/oct)

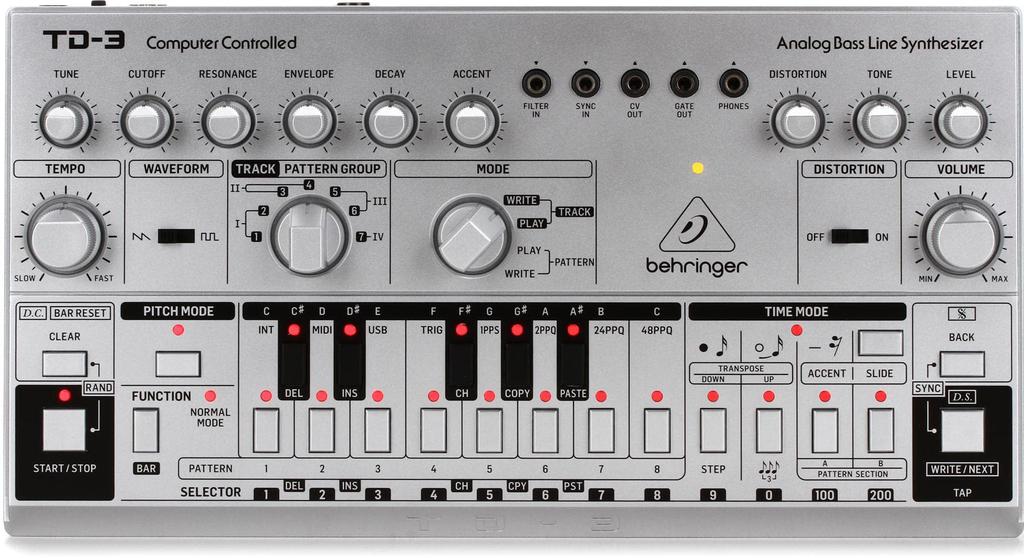

- Analog bassline synthesizer with true analog circuitry for superior bass sound and groove.
- Faithfully reproduces the original circuit using matched transistors.
- A pure analog signal circuit with authentic VCO, VCF, and VCA.
- Sawtooth and square wave VCO with transistor waveform shaping circuitry
・A 4-pole low-pass resonance filter with cutoff, resonance, envelope, decay, and accent controls.
• A user-friendly 16-step sequencer with 7 tracks and 250 user patterns.
• Advanced arpeggiator with a wide range of patterns
- Distortion circuit modeled after the DS-1* adds spice and edge to the sound.
- 16-voice poly-chain allows for the combination of multiple synthesizers, achieving a maximum of 16 simultaneous voices.
