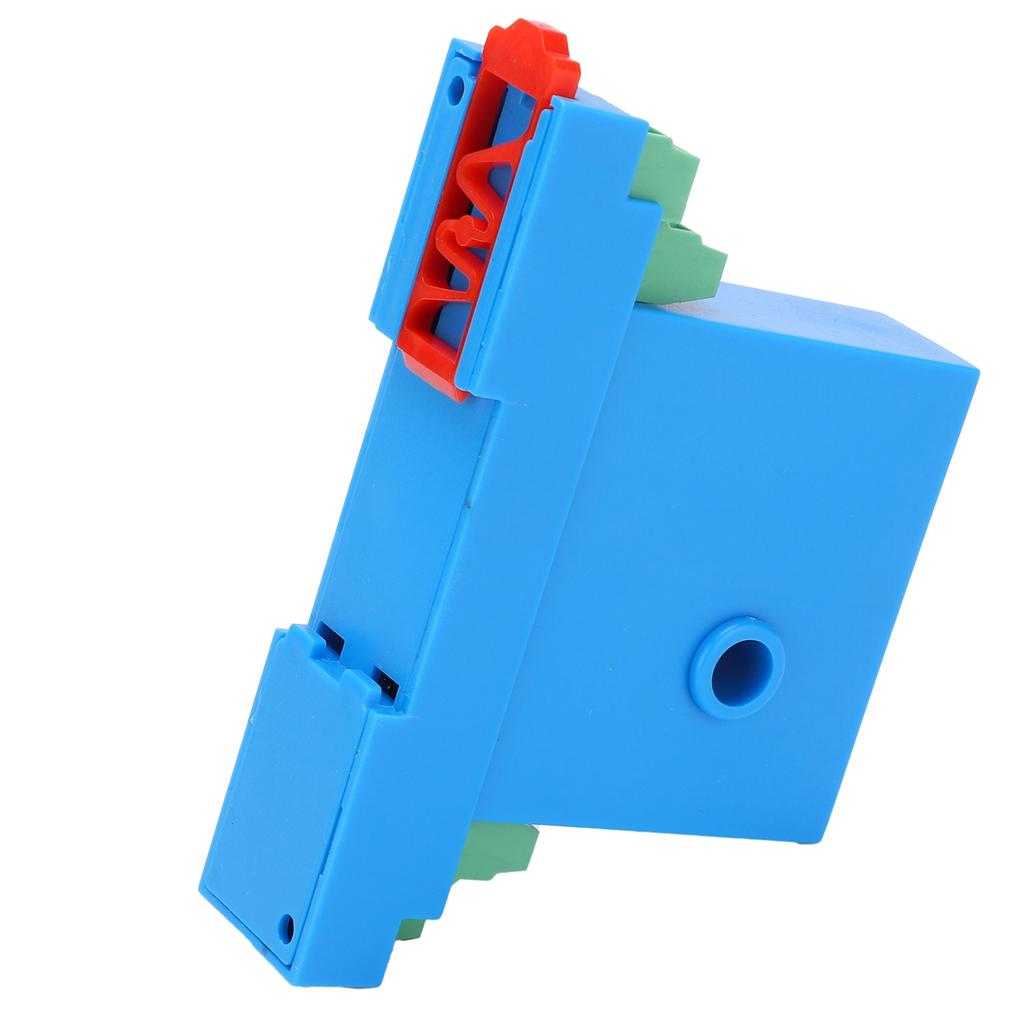

AC Current Transmitter 4-20mA Output 0-50A Hall Effect Sensor with 30x Overload Capacity 2.5KV Isolation for Power Monitoring Systems

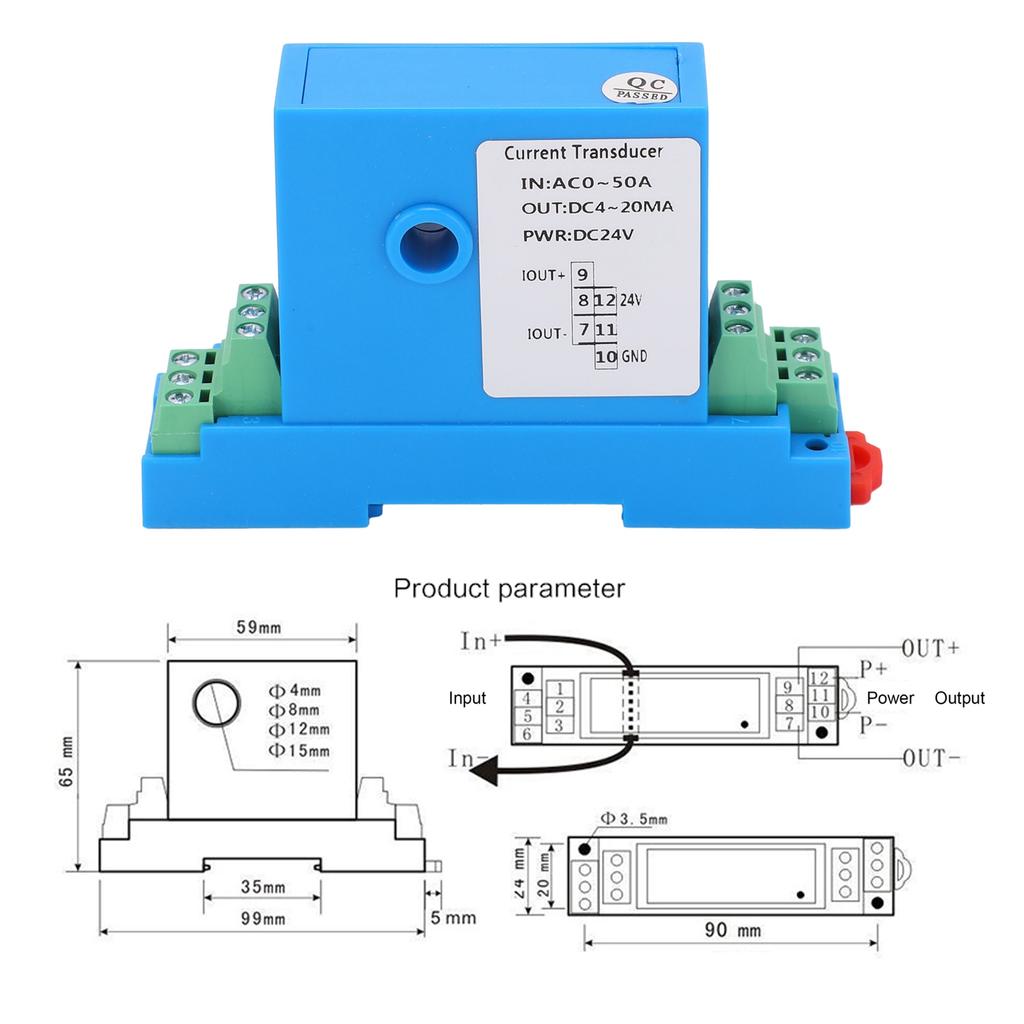

The measurement circuit is isolated from the incoming signal. Hall‑type current conversion can withstand 30 times the nominal input, prevents instantaneous high current access and burns out the internal components of the sensor The product can isolate the detection signal and the output signal, effectively filter the noise in the signal, greatly improve the signal‑to‑noise ratio and signal stability of the product, and effectively enhance the product s anti‑interference ability The primary and secondary sides of the hole current transmitter are highly insulated and isolated, possess high accuracy, small size, low power consumption, wide frequency response, and anti‑interference characteristics Item Type: AC Current Transmitter Material: ABS Power Supply: 24V Installation : Standard rail + flat screw fixation Product Use: Used to measure AC current, especially for power frequency 50Hz sine AC current Rated Current: AC0-50A Rated Output: 4-20mA Load Capacity: Voltage Output: 5mA; Current Output: 6V Accuracy: 0.5% Overload Capacity: 30 Times the nominal input Isolation withstand Voltage: 2.5KVCelsius50Hz, 1Min Offset Voltage: less than 10mV Temperature Drift: less than 500PPMCelsius celsius Linearity: 0.1% Frequency Bandwidth: 20-5KHz Current Consumption:
