BSIDE 3in1 Handheld Graph Multimeter Oscilloscope Signal Source 3.98inch TFT IPS Display Voltage




Açıklama

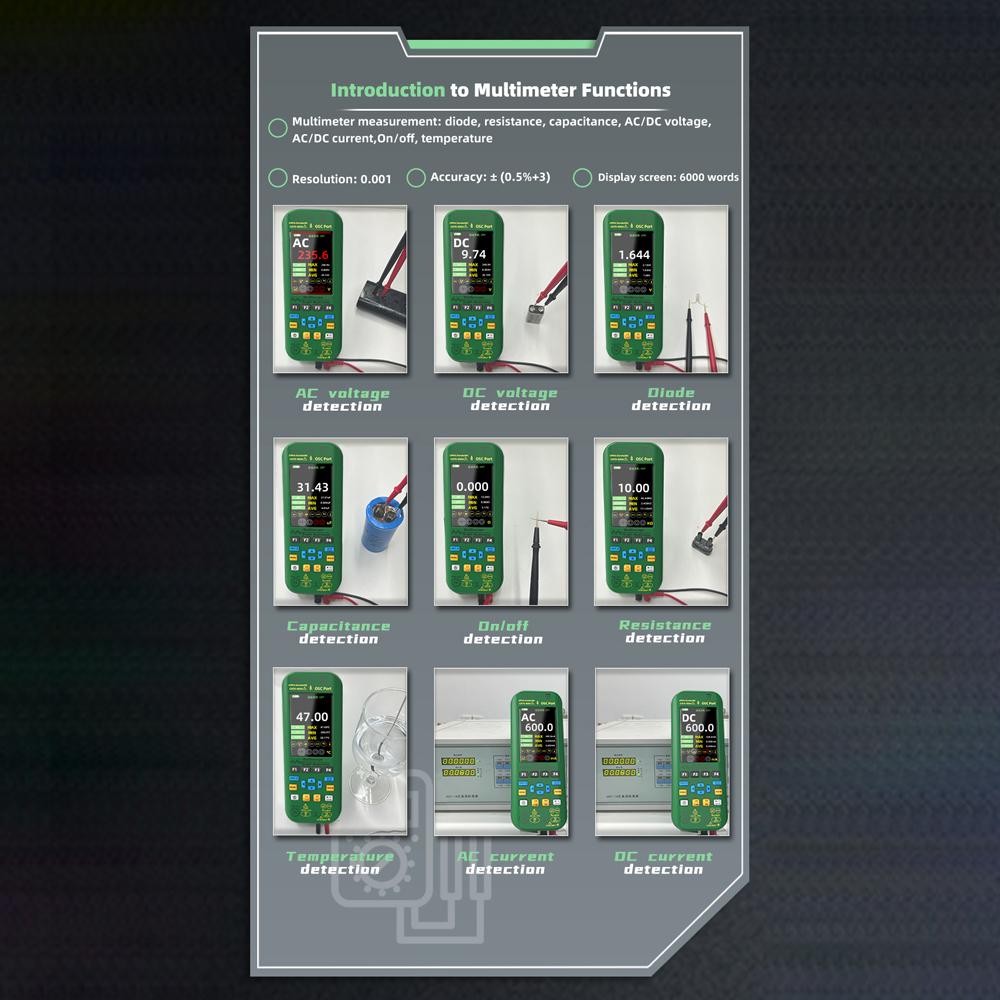

This product is an example of a combination of an oscilloscope, a signal generator, and an autorange multimeter. It can simultaneously measure a variety of electrical parameters or capture waveforms, and display the electrical parameters or waveforms of electrical signals. Multifunctional design, with autoranging, 6000 count true RMS measurement, data hold, and automatic shutdown functions. Supports voltage, current, resistance, capacitance, diode, continuity test. It can easily handle measurement in various fields, widely used in the fields of testing and debugging electronic circuits, troubleshooting and repairing electronics, communications, computers, etc.

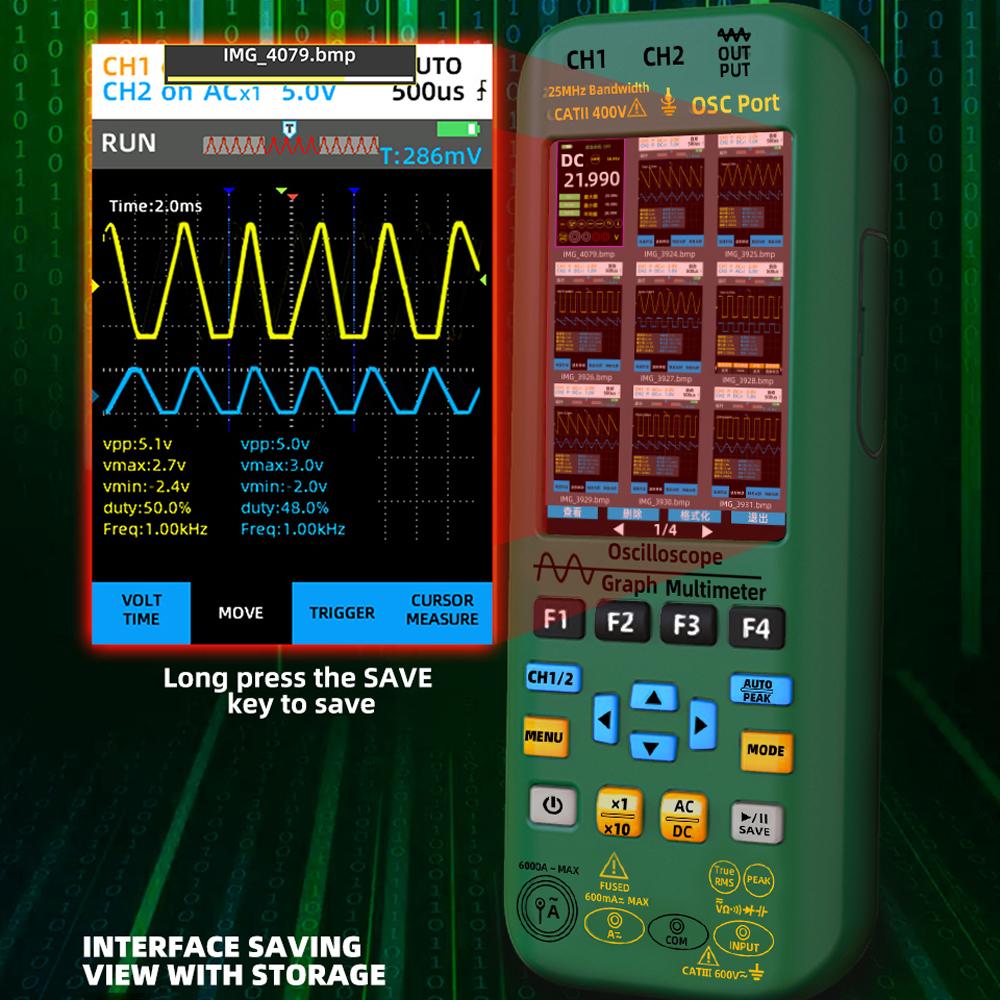

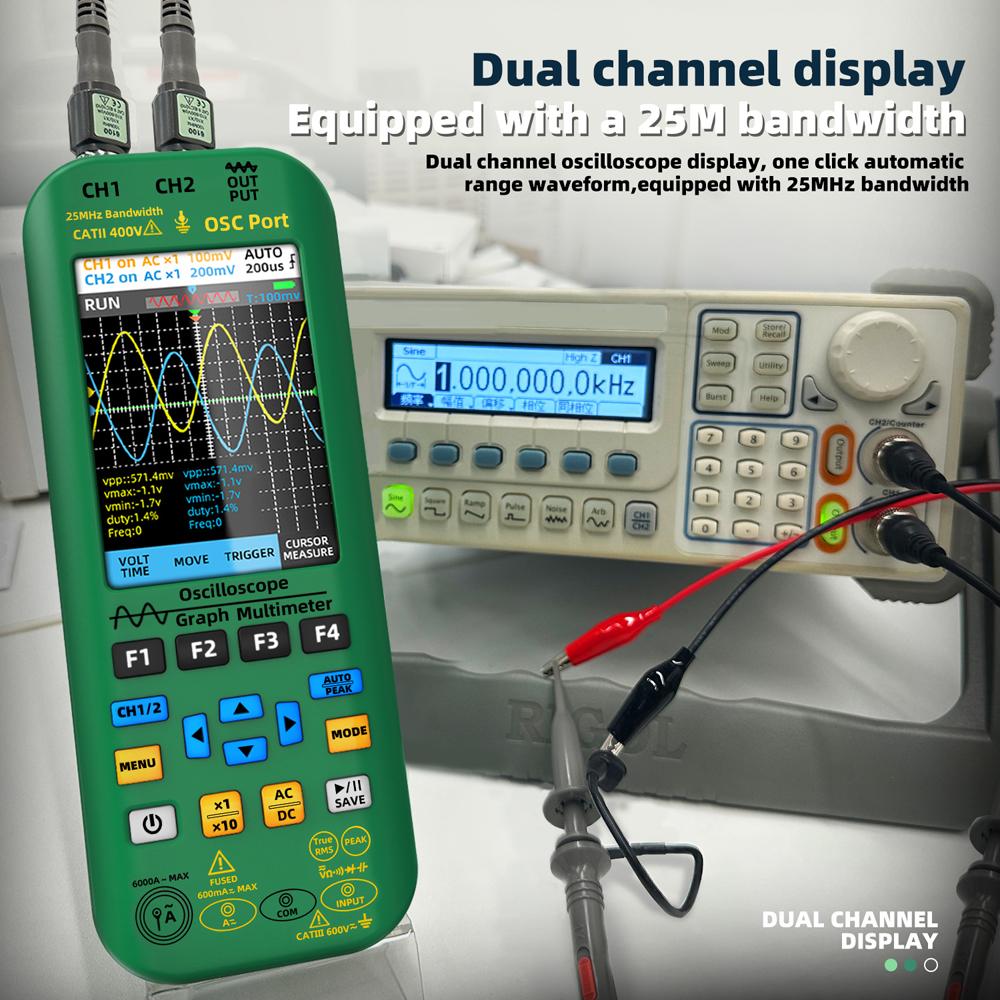

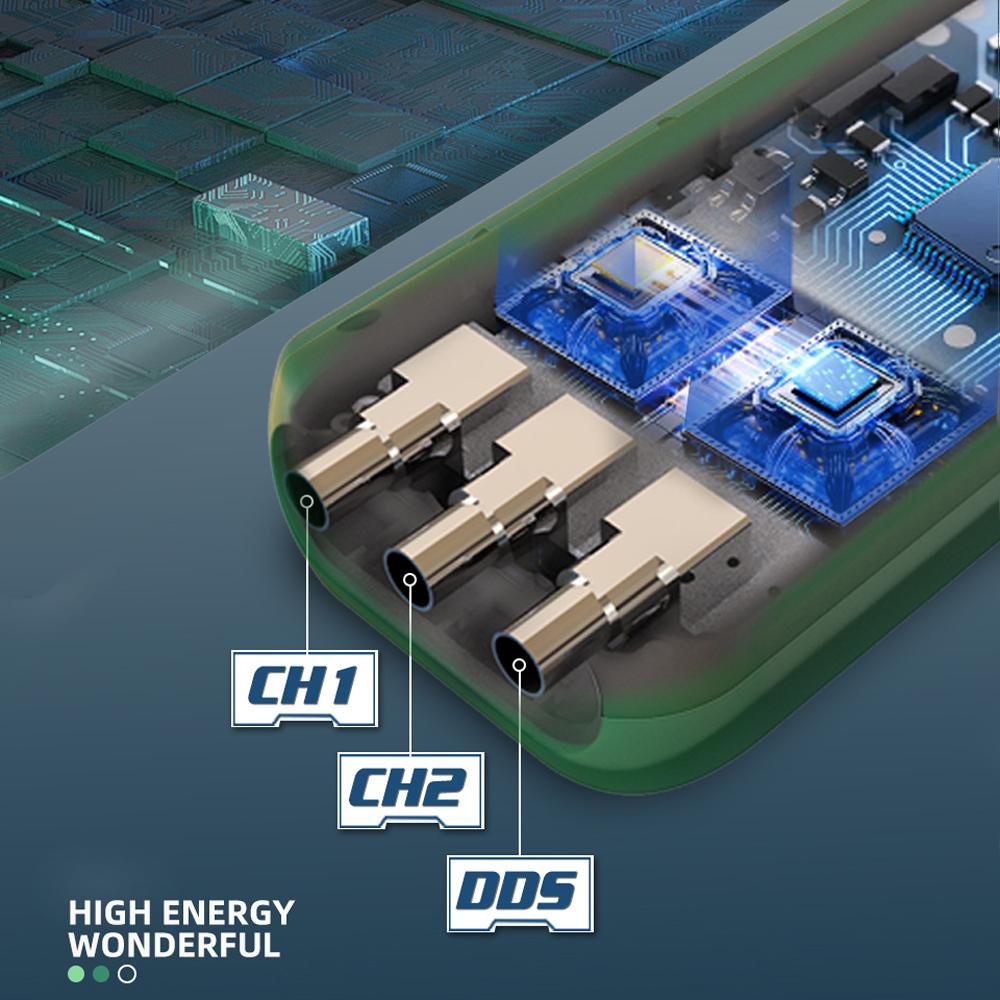

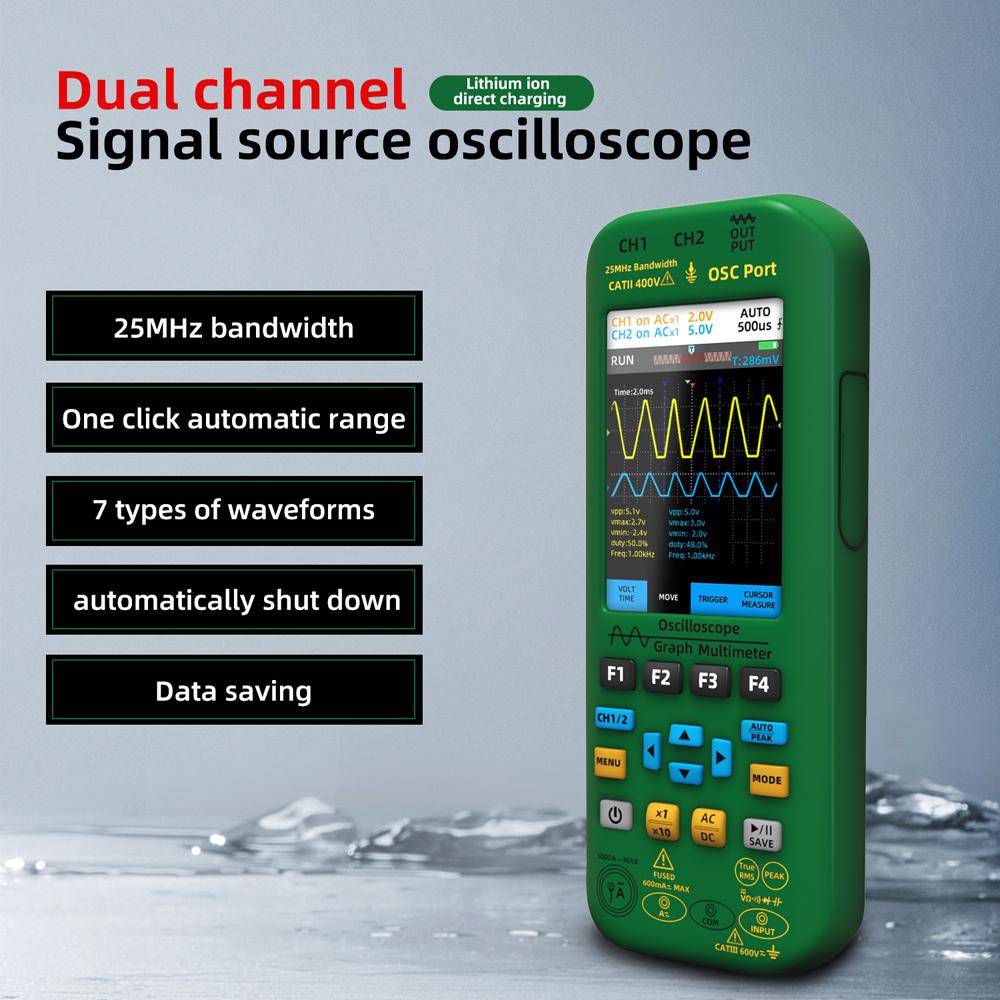

Features: 3in1 Design & Comprehensive Measurement: Integrates the 25MHz bandwidth oscilloscope, 6000 count multimeter, and single channel signal generator functions into one unit. It Features a 3.98inch TFT IPS display, enabling multifaceted and precise electronic signal detection and analysis. This versatile design fulfills both professional testing requirements and the diverse needs of teaching experimentation. Oscilloscope Function: With 25MHz bandwidth, 208MSas sampling rate, and three waveform trigger modes (Auto, Normal, Single) for more accurate signal detection. The oscilloscope will automatically recognize the waveform type and adjust the control mode to display the waveform of the input signal accurately. Support manual setting of predicted waveform voltage, time base, cursor position, trigger, coupling mode, probe attenuation, duration, and other parameters. Support cursor measurement, language setting, auto shutdown, factory settings restoration, baseline calibration, etc. Easy to manage oscilloscope imaging, which can be connected to the computers via USB cable for secondary analysis, making professionalism more convenient. Support savingviewingdeleting imaging to ensure professional and convenient data management and help in signal processing and troubleshooting. Signal Source Function: Arbitrary signal waveform measurement of sinewave, squarewave, positivewave, pulse signal, sinusoidal signal, sawtoothwave, arbitrarywave, noise, direct current, etc. This offers high flexibility and practicality for emulating various signal environments, assessing system responses, and enhancing teaching demonstrations. Multimeter Functions: Supports DCvoltage, ACvoltage, current, resistance, capacitance, temperature, diode, continuity, and onoff measurements. With valert and onoff buzzer functions, it is a useful tool for electronic overhauling, maintenance debugging, and teaching research. Premium Material & Digital Display: The compact, lightweight, and portable body design, makes it easy to carry around. Protective silicone coating is resistant to slip, drop, and impact, with a comfortable hand feel. The changes in various measurement parameters are captured and displayed on the 480*320 3.98inch TFT IPS display in realtime, forming a clear and concise data trend graph, making data analysis more intuitive and accurate. Rechargeable Battery & Wide Applications: The builtin 2pcs highcapacity lithium battery provides longlasting power support. Whether for laboratory research, teaching demonstrations, or DIY maintenance, it is a practical electronic measurement tool for you to use. Suitable for testing and debugging electronic circuits, troubleshooting and repairing electronics, communications, computers, etc.

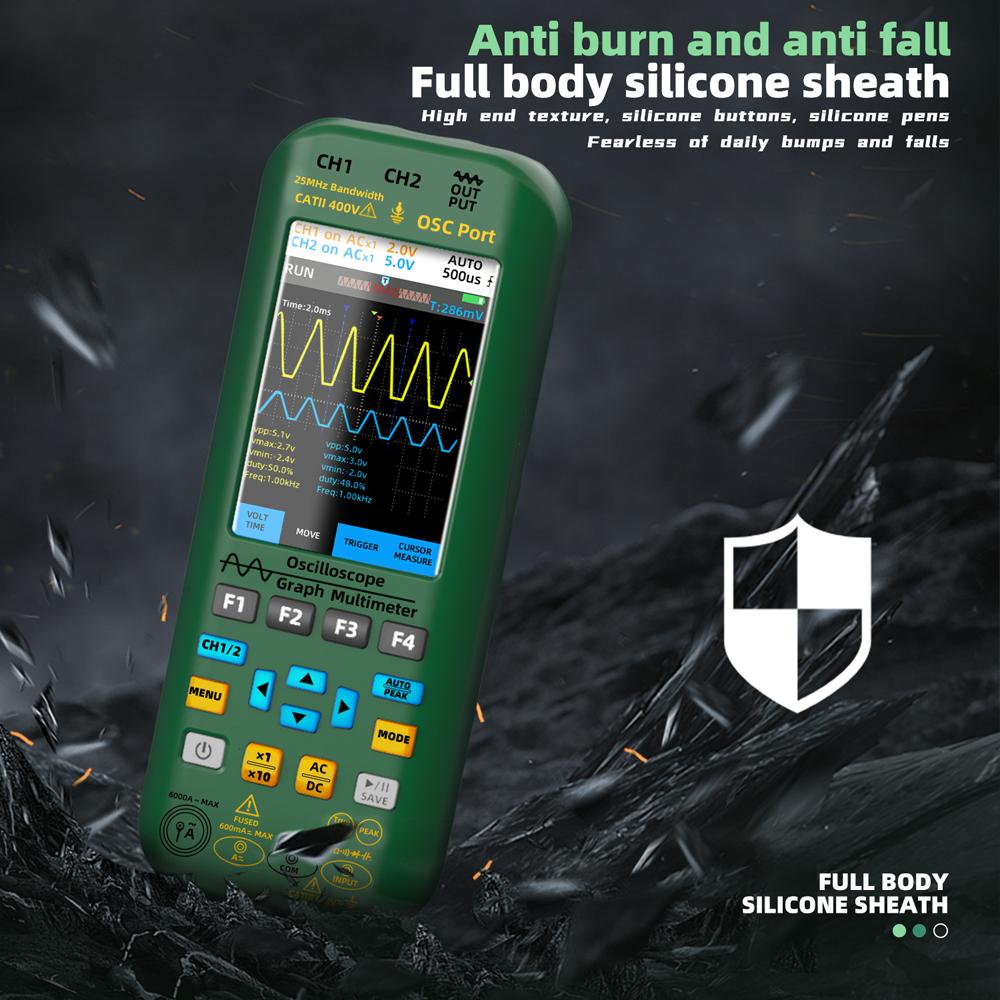

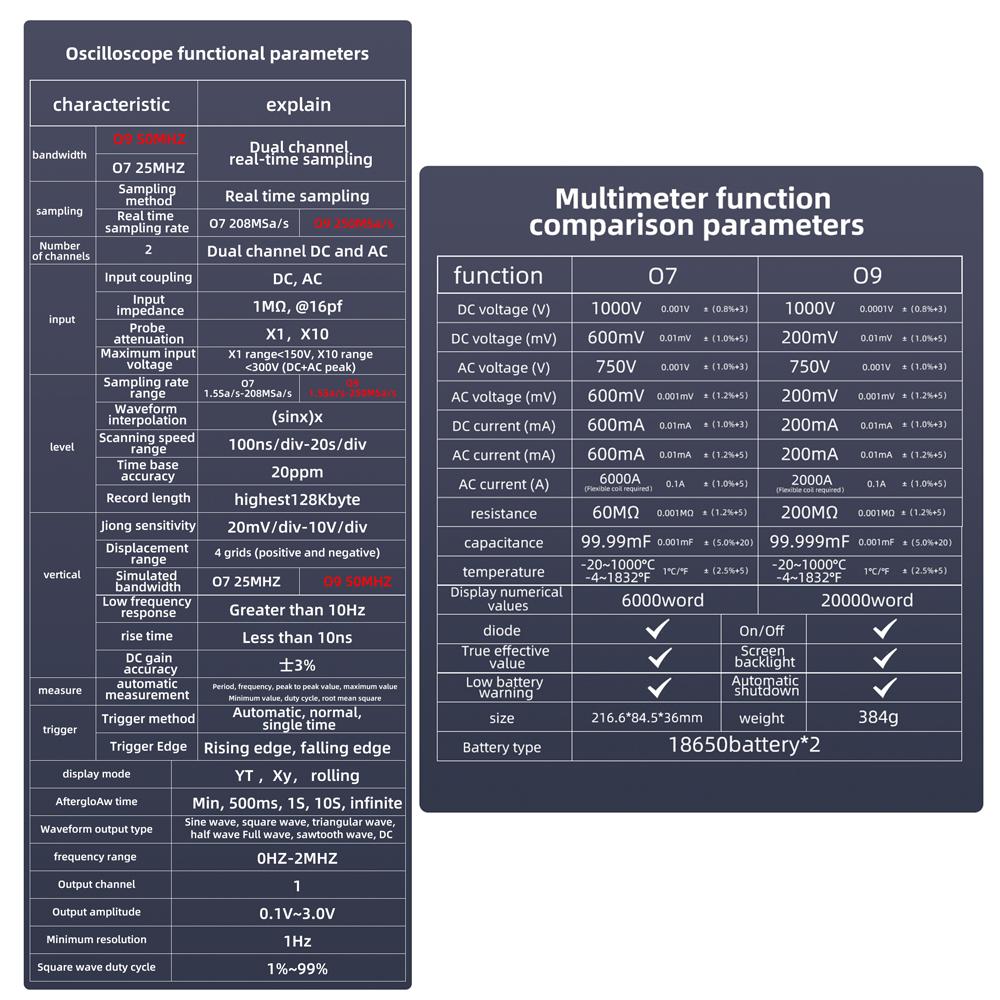

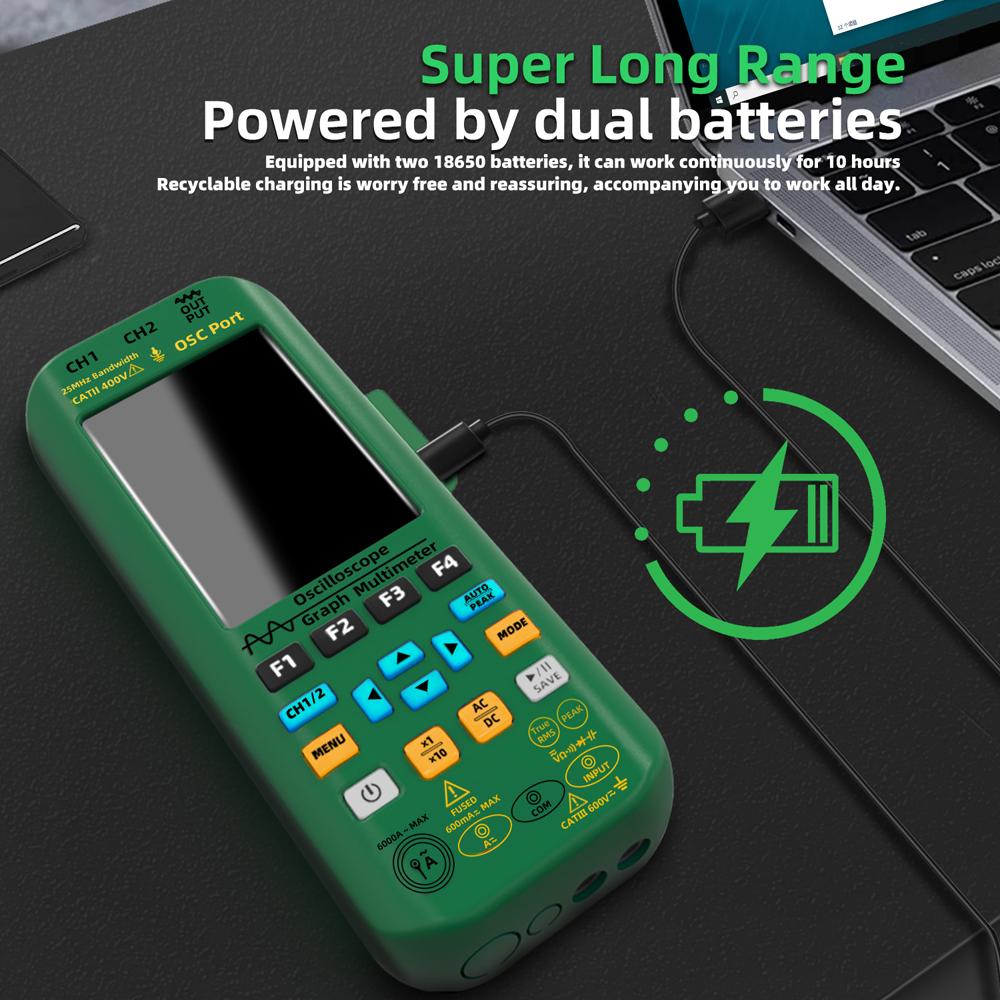

Specifications: Name: 3in1 Multimeter Material: plastics+silicone+glass Basic Parameter Battery: 2 * builtin 6000mAh battery (included) Screen size & resolution: 3.98 Inch (480*272 pixels) IPS display True RMS measurement: 6000 count Data hold: √ Screen backlight: √ Low battery reminder: √ Automatic shutdown: √ Working environment: 040 celsius , less than 75%RH Storage environment: 20 celsius to 60 celsius , less than 80%RH Item size: 216.6 * 84.5 * 36mm 8.53 * 3.33 * 1.42in Item weight: 477g 1.05lb Package size: 240 * 128 * 73mm 9.45 * 5.04 * 2.87in Package weight: 945g 2.08lb Multimeter DCvoltage: 6.000V60.00V600.0V1000V, + (0.8%+3); 60.00mV600.0mV, + (1.0%+5) ACvoltage: 6.000V60.00V, + (1.0%+3); 600.0V750V, + (1.2%+5); 60.00mV, + (1.2%+5); 600.0mV, + (1.0%+3) AC voltage frequency response: 40Hz1kHz DCcurrent: 60.00mA600.0mA, + (1.0%+3) ACcurrent: 60.00mA600.0mA, + (1.2%+5) Flexible current clampAC Current(A): 600.0A6000A, + (1.0%+5) Resistance: 600.0 Ohm , + (1.2%+5); 6.000K Ohm 60.00K Ohm 600.0K Ohm , + (1.0%+3); 6.000M Ohm 60.00M Ohm , + (1.5%+5) Capacitance: 999.9n, + (5.0%+20); 9.999uF999.9uF, + (4.5%+5); 99.99mF, + (5.0%+10) Temperature: (20~1000 celsius )(4~1832 Fahrenheit ), + (2.5%+5) Diode: √ Connectivity: √ Signal Generator Channel: Single channel Frequency: 02MHz Channel: 1 Amplitude: 0.1V3.0V Squarewave duty cycle: 199% Signal type: sinewave, squarewave, sawtoothwave, halfwave, fullwave, direct current signals, direct current Oscilloscope Channel: Dual channel Analogue bandwidth: 25MHz Realtime sample rate: 208MSas Input coupling: Direct CurrentAlternating Current Storage depth: max 64kByte Input impedance: 1M Ohm ,@16pf Probe attenuation: 1x10x Maximum input voltage: X1 less than 150V, X10 less than 300V Sampling rate ranges: 1.5Sas208MSas Waveform interpolation: (sinx)x Sweeprange: 100nsdiv20sdiv Displacement ranges: 4 frames (positive and negative) Analogue bandwidth: 25MHZ Low frequency response: more than 10HZ Rise time: less than 10ns Direct current gain accuracy: + 3% Automatic measurement: period, frequency, peaktopeak, maximum value, minimum value, duty cycle, root meansquare Trigger mode: automaticnormalsingle Trigger edges: risingfalling edges Signal generator output: squarewave, sawtoothwave, halfwave, fullwave Afterglow time: Min, 500ms, 1s,10s, Unlimited Packing List: 1 * 3in1 Meter 2 * Probe 1 * Multimeter Pen 1 * Clip Probe 1 * Cable 1 * EVA Bag
