Specifications:
1. Contact diameter x number 2.7x2
2. Diameter range 8mm to 12mm
3. Cable specification 14-20 AWG / 2.5m to 4m
4. Rated current (A) 20A
5. Operating voltage (AC.V.rms) 500V
6. Contact resistance Less than1 momega
7. Temperature rise 20A contact temperature below 30 Celsius, 25A 40 Celsius ↓, 30A 50 Celsius ↓
8. Withstand voltage (AC.V) 1 minute 2500V
9. Insulation resistancebigger than 500 Momega
10. Protection level IP67
11. Shelf life Greater than or equal to500 times
12. Working temperature -40 Celsius to 80 Celsius
13. Connection mode Plug in / unplug the connector
14. Assembly ladder solder
15. Housing, the insulating parts Powerful engineering plastics
16. Hardware zinc alloy (pearl hard chrome)
17. Copper Needles Copper Alloy (Gold plated 4U)
18. Waterproof circle silica gel
19. Flammability rating UL94-V0
Properties:
1. 2 cores in line with the diversity of industrial demand, signal and power compatible.
2. Socket and internal components zinc alloy material, with complete electromagnetic and radio frequency interference protection.
3. Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, effective response to temperature changes in the current.
4. PBT material shell, stable electrical performance, high strength and resistance to pressure, high temperature resistance, explosion protection, corrosion protection.
5. Unique docking design, a solid line extends infinitely long
6. 4-hole mounting, solid, flawless, thread-like transposon installation, suitable for round openings for industrial installation.
7. 20A rms rated current
8. Protection level: IP67
Package:

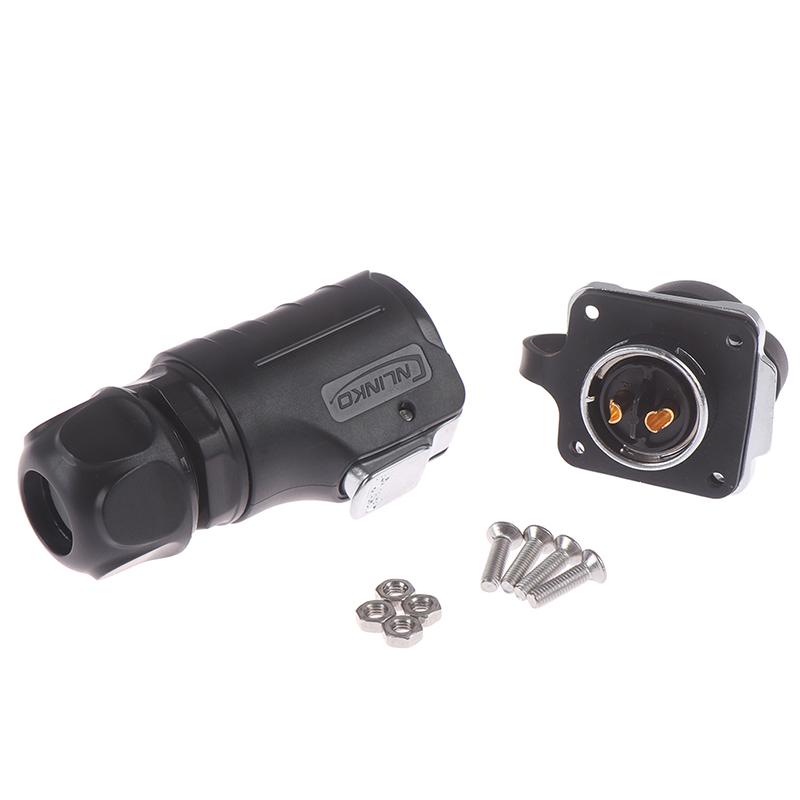

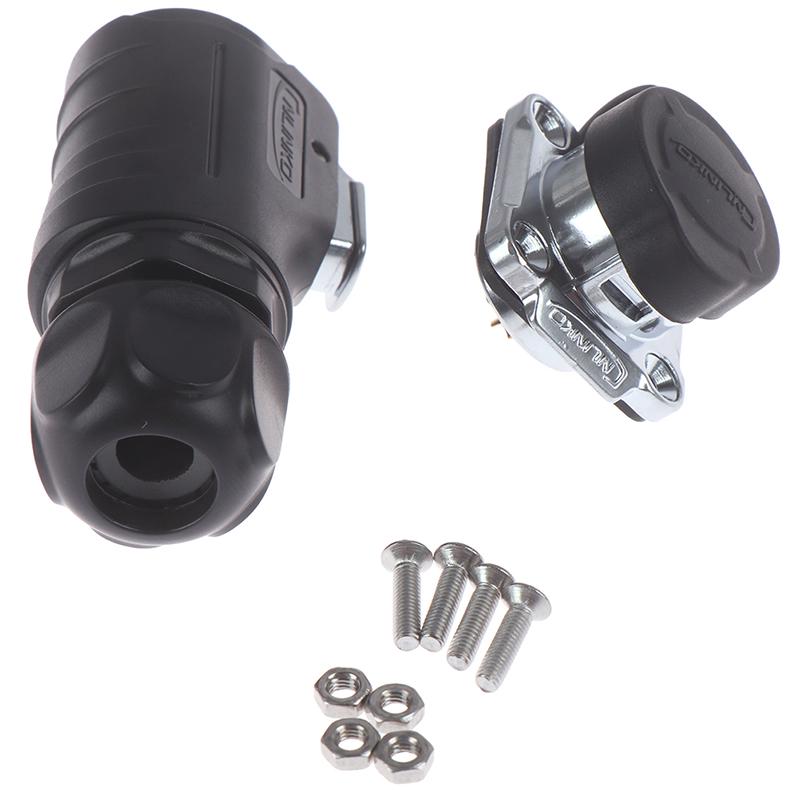

1 * Plug: LP-20-C02PE-01-001
1 * Socket: LP-20-J02SX-01-001
