About this item:
1. The product has a five-level adjustment switch, and the temperature can be adjusted freely, keeping warm in winter and bidding farewell to the cold.
2. Equipped with an intelligent chip, it automatically cuts off standby power when the voltage is too high or too low, making it safer to use.

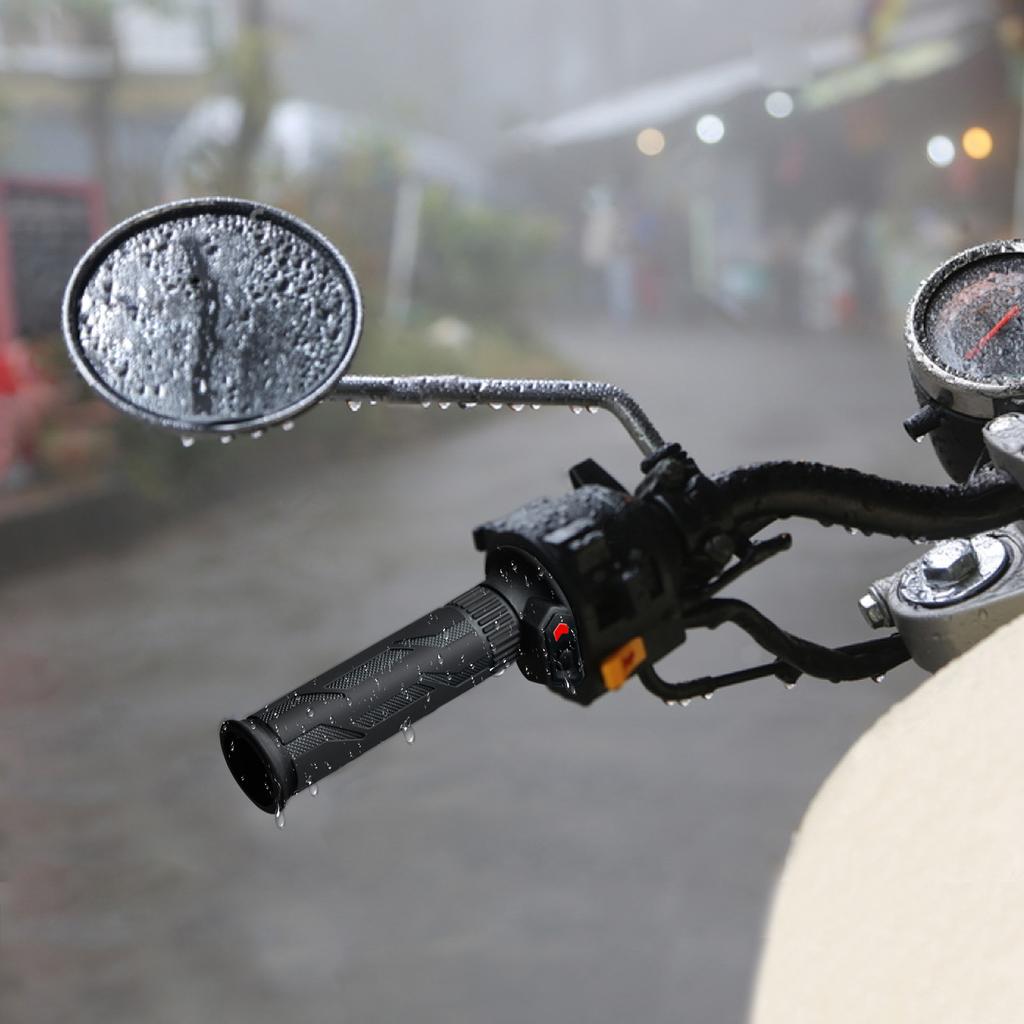

3. High strength waterproof design, not afraid of wind and rain, can also be used normally in rain and snow

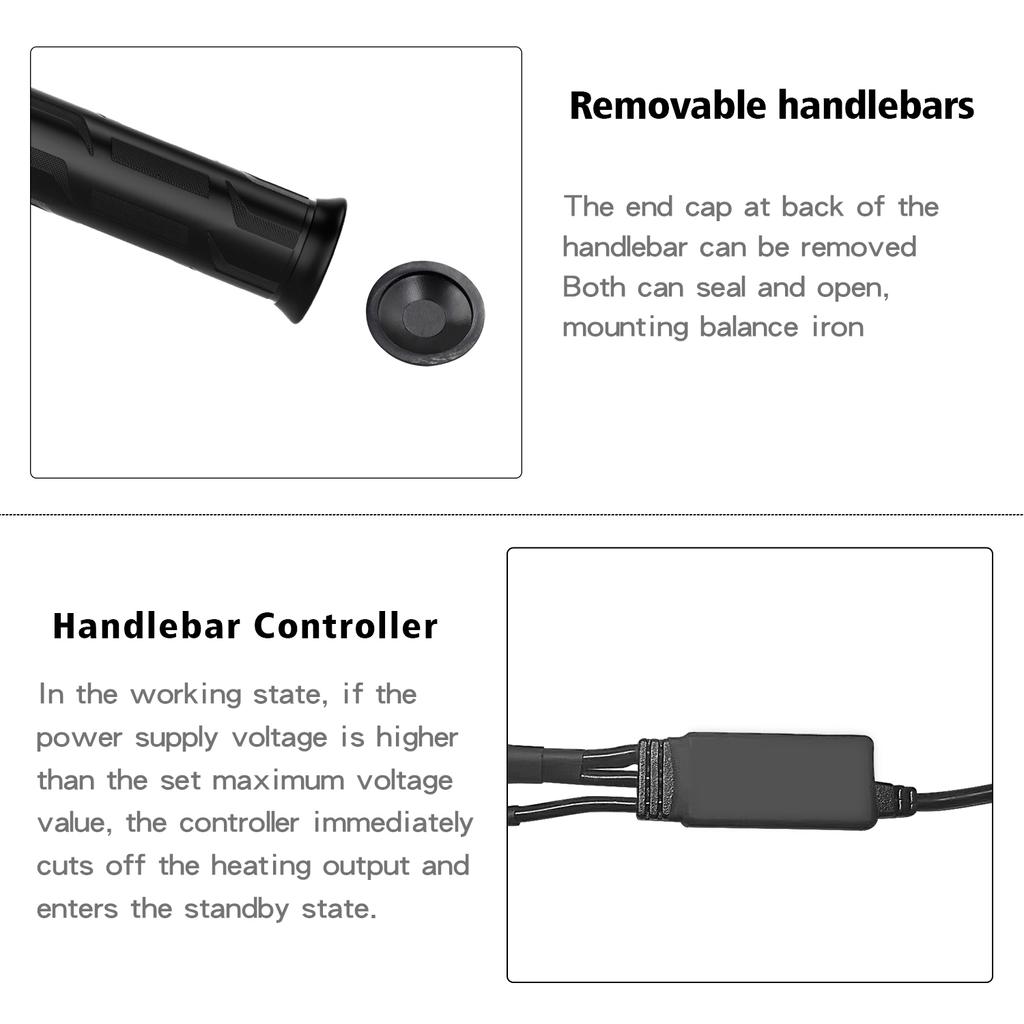

The plug at the end of the handle is detachable and can be sealed or passed through the mouth, making it more convenient to use freely.

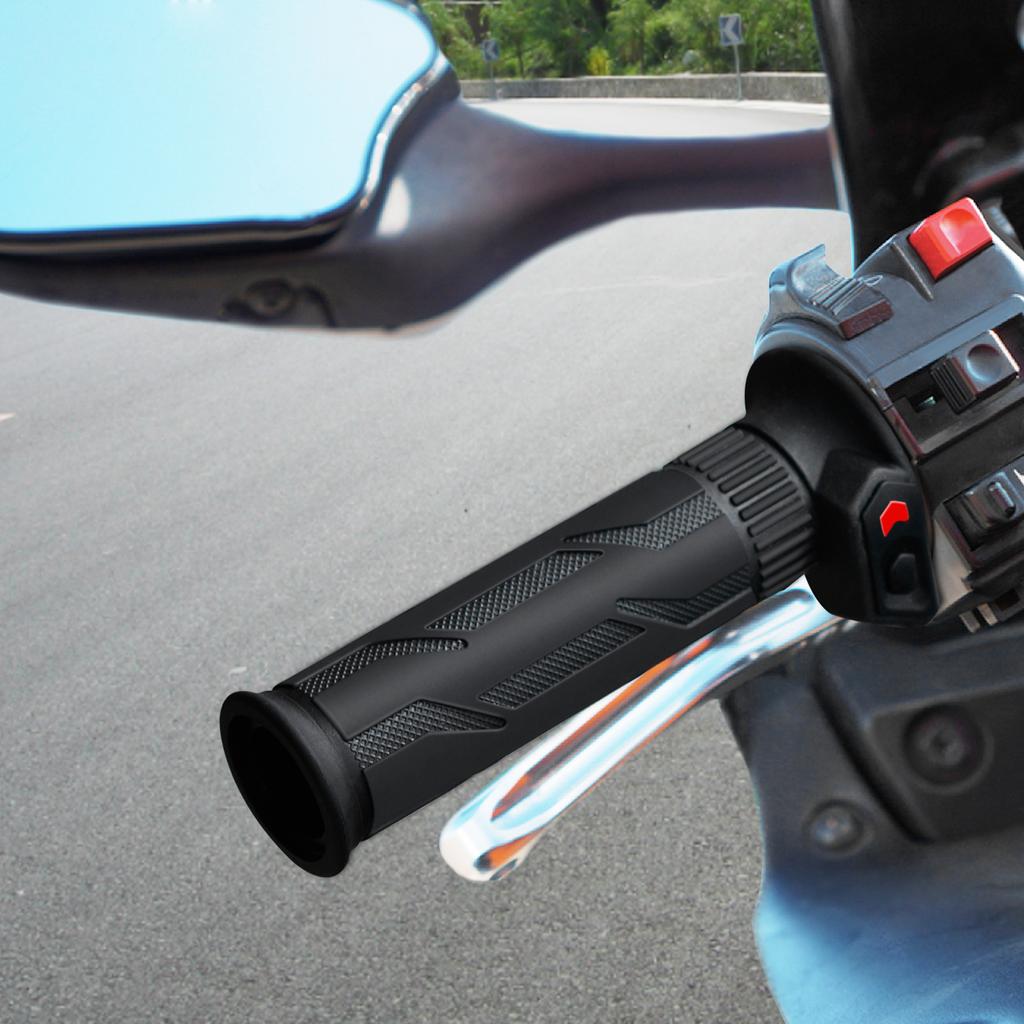

5. Can be installed on DC12V motorcycles, scooters, beach bikes, and three wheeled motorcycles, with a wider range of applications
Product Instructions:
【1】 The red line is the positive pole, the black line is the negative pole, and the yellow line is the ACC line. Please do not connect them incorrectly, otherwise it may cause product damage
【2】 Power on the controller, the indicator light flashes twice and enters standby mode. [Note: The color of the indicator light flashing is green to indicate normal operation, and blue to indicate that the protection function is not working (controller fault), but it can still heat up normally.]
【3】 In standby mode, press the button on the cover. If the power supply voltage is lower than the starting voltage of the electric heating, the red indicator light will flash a few times to enter standby mode.
【4】 In standby mode, press the button on the cover. If the power supply voltage is higher than the electric heating start voltage, the system will enter rapid heating, causing the cover to quickly heat up. After a period of time, it will enter stable heating.

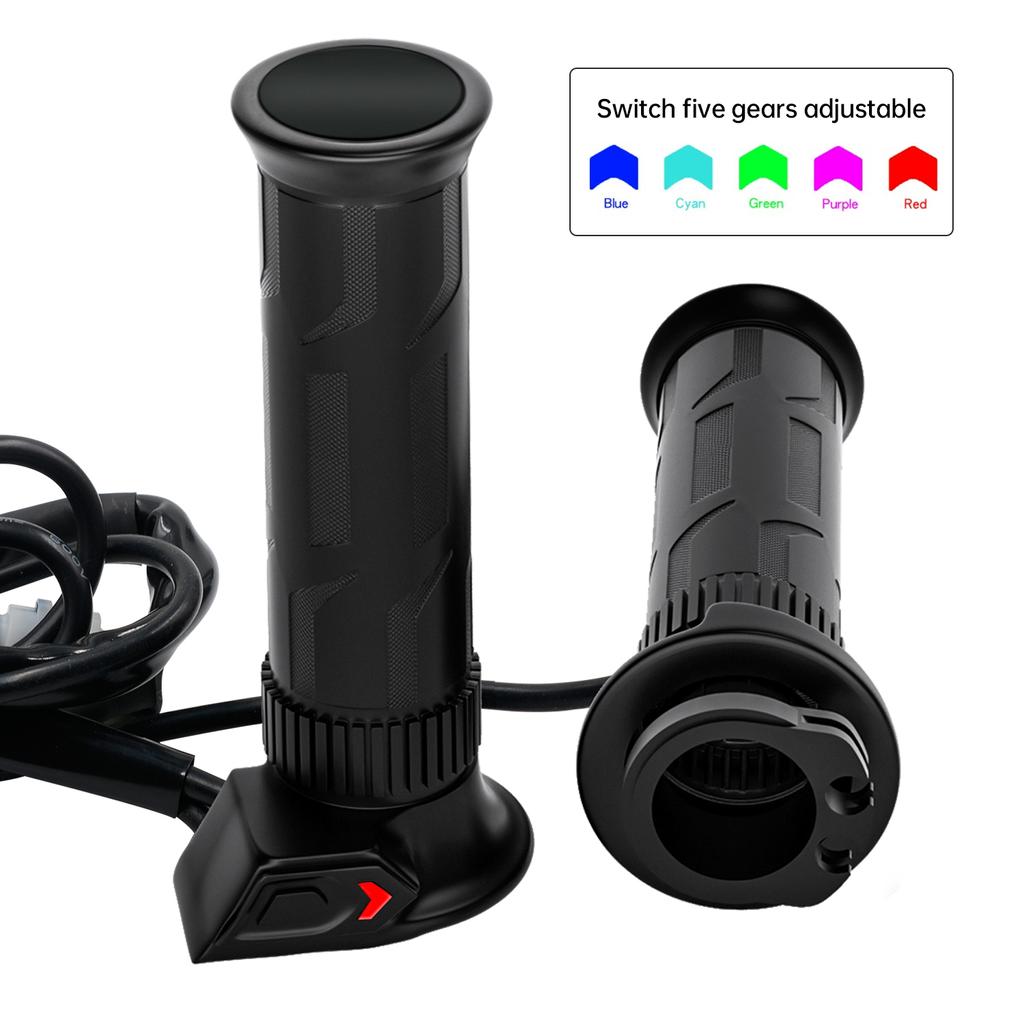

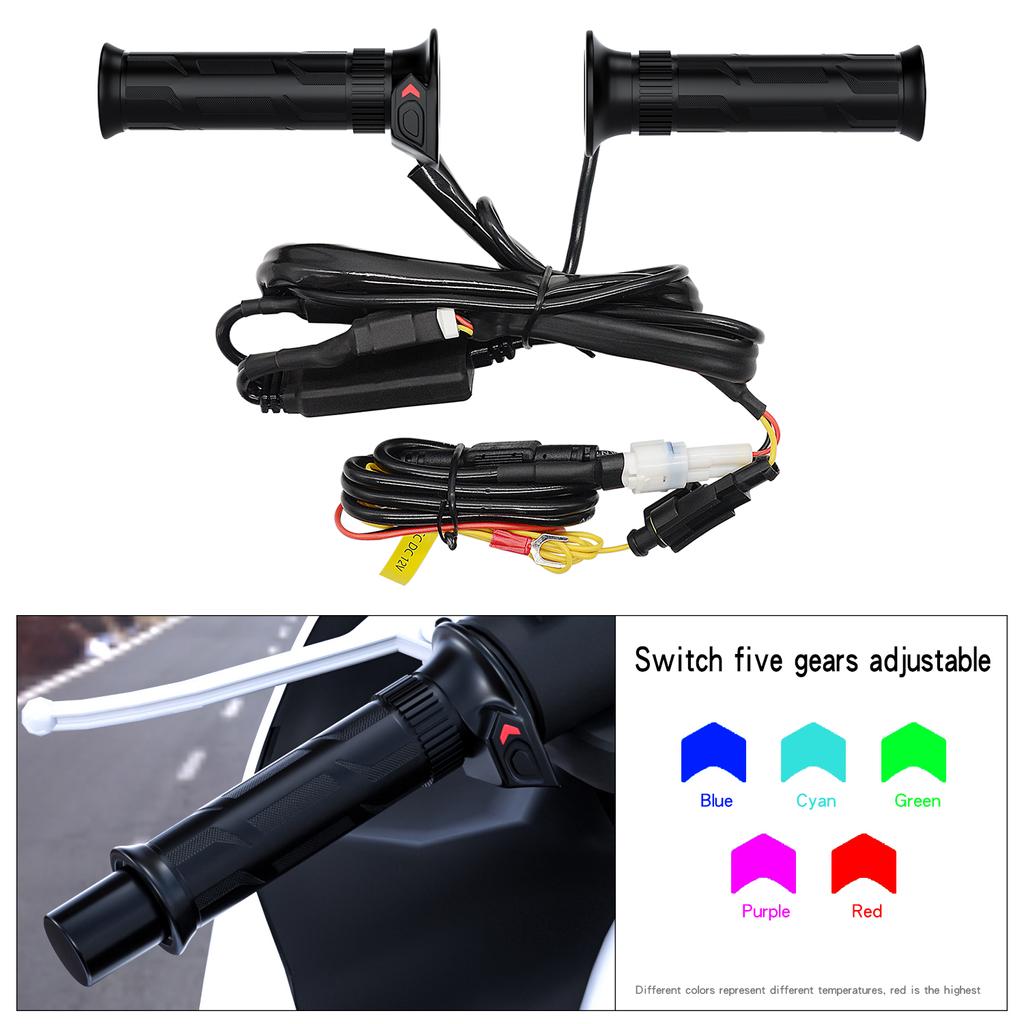

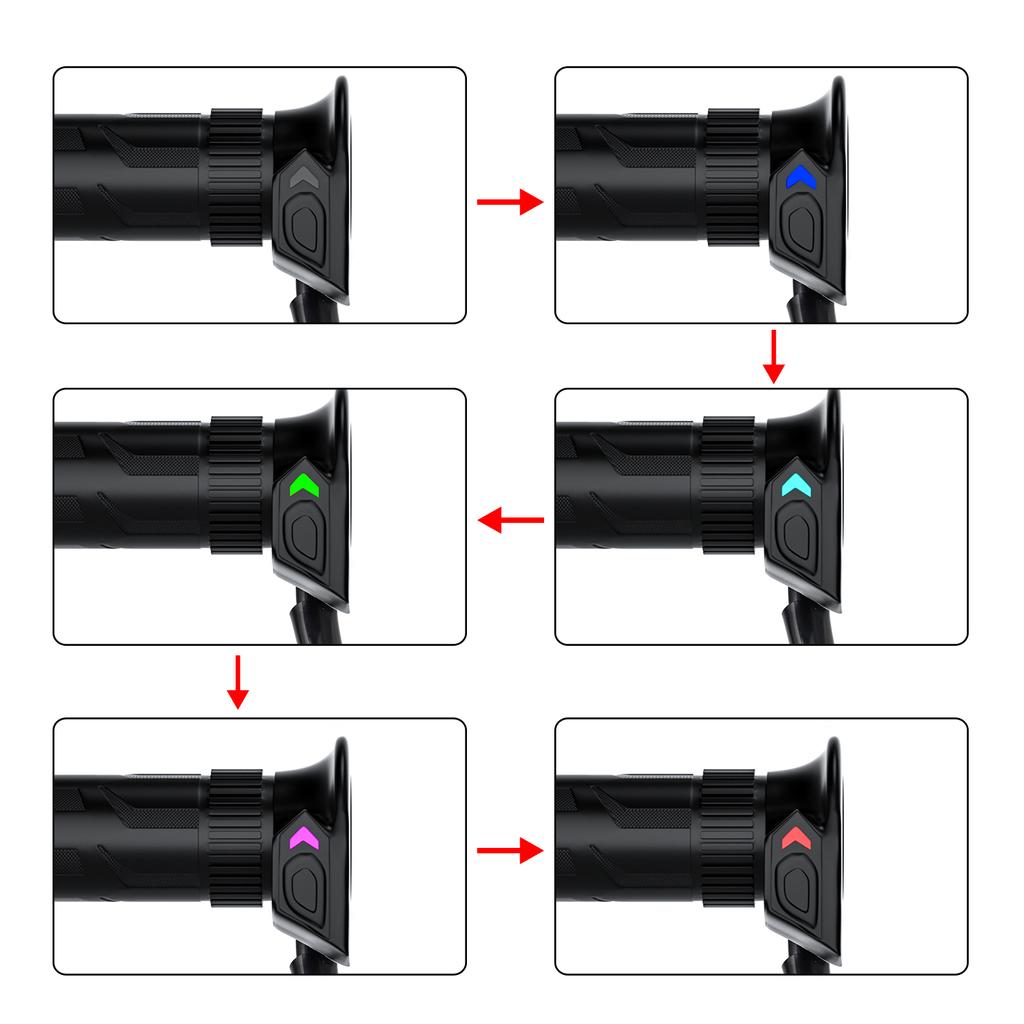

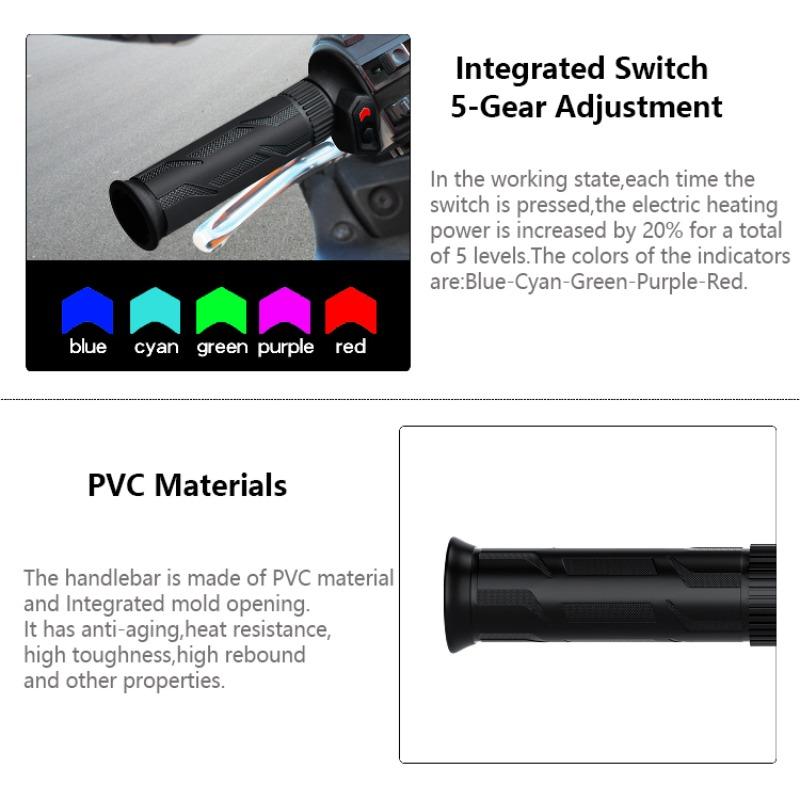

【5】 In working mode, every time the button is pressed, the electric heating power increases by 20%, with a total of 5 levels. The indicator light colors are blue blue green purple red in sequence.
【6】 In the working state, if the power supply voltage is lower than the electric heating starting voltage, the corresponding gear indicator light will flash. If it remains lower than this voltage for 7 seconds, the controller will cut off the electric heating output and enter standby mode. If the normal voltage is restored within 7 seconds, the indicator light will remain on and enter normal operation.
【7】 In the working state, if the power supply voltage exceeds the set maximum voltage value, the controller immediately cuts off the heating output and enters standby mode.

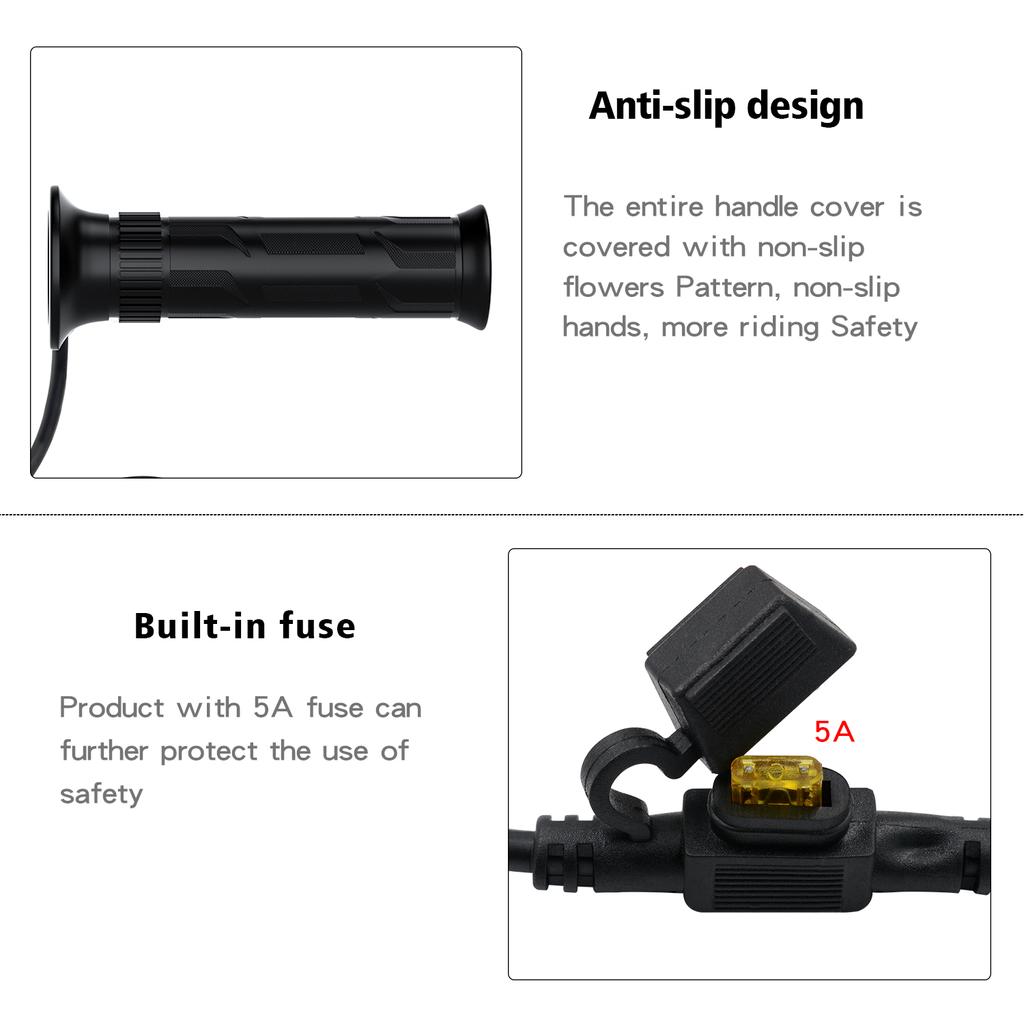

【8】 Has surge protection and reverse connection protection; It has ACC control function.
Specifications:

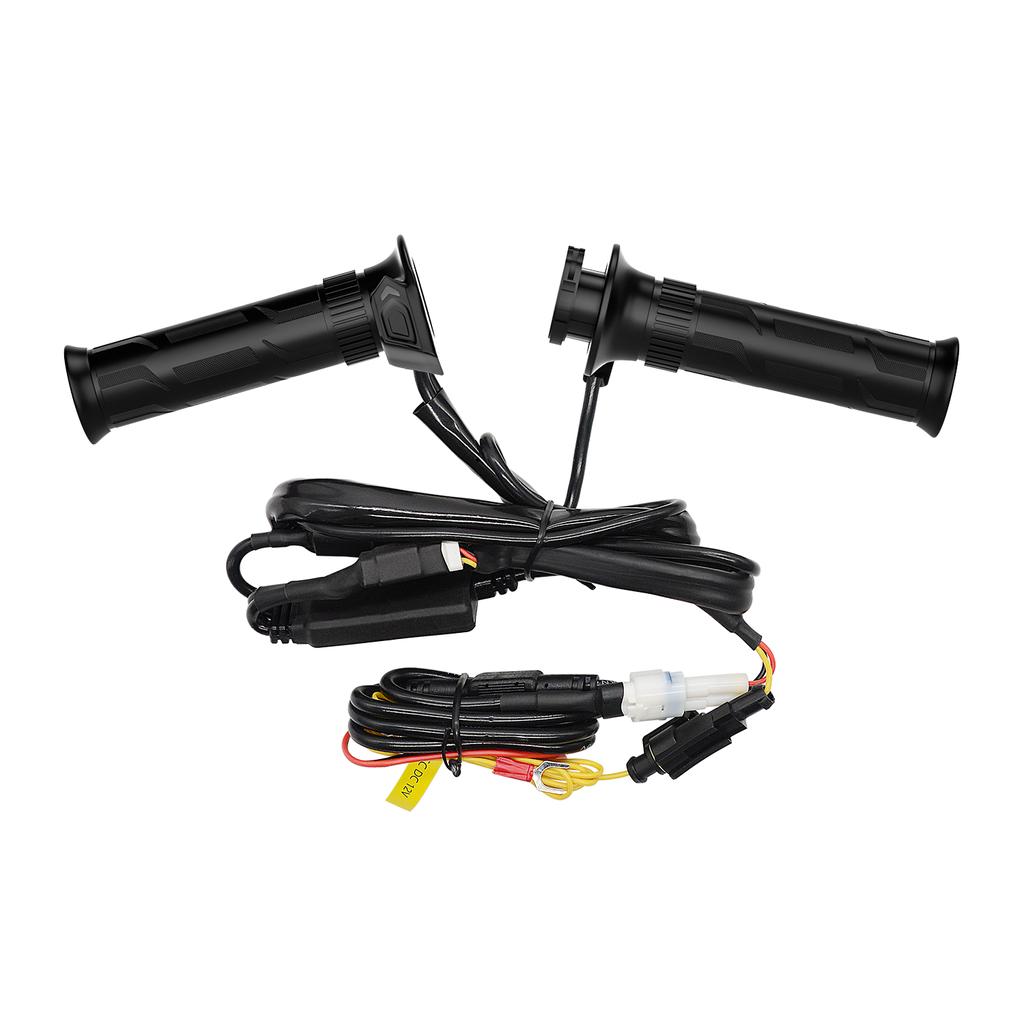

Product Name: 19 5-speed heated high-end luxury electric handlebars with indicator lights
Product Model: CSZH-990F1
Net weight of product: 365g
Product gross weight: 441g
Packaging method: kraft paper box packaging
Packaging size: 20.5x13.5x6cm
Product Material: PVC

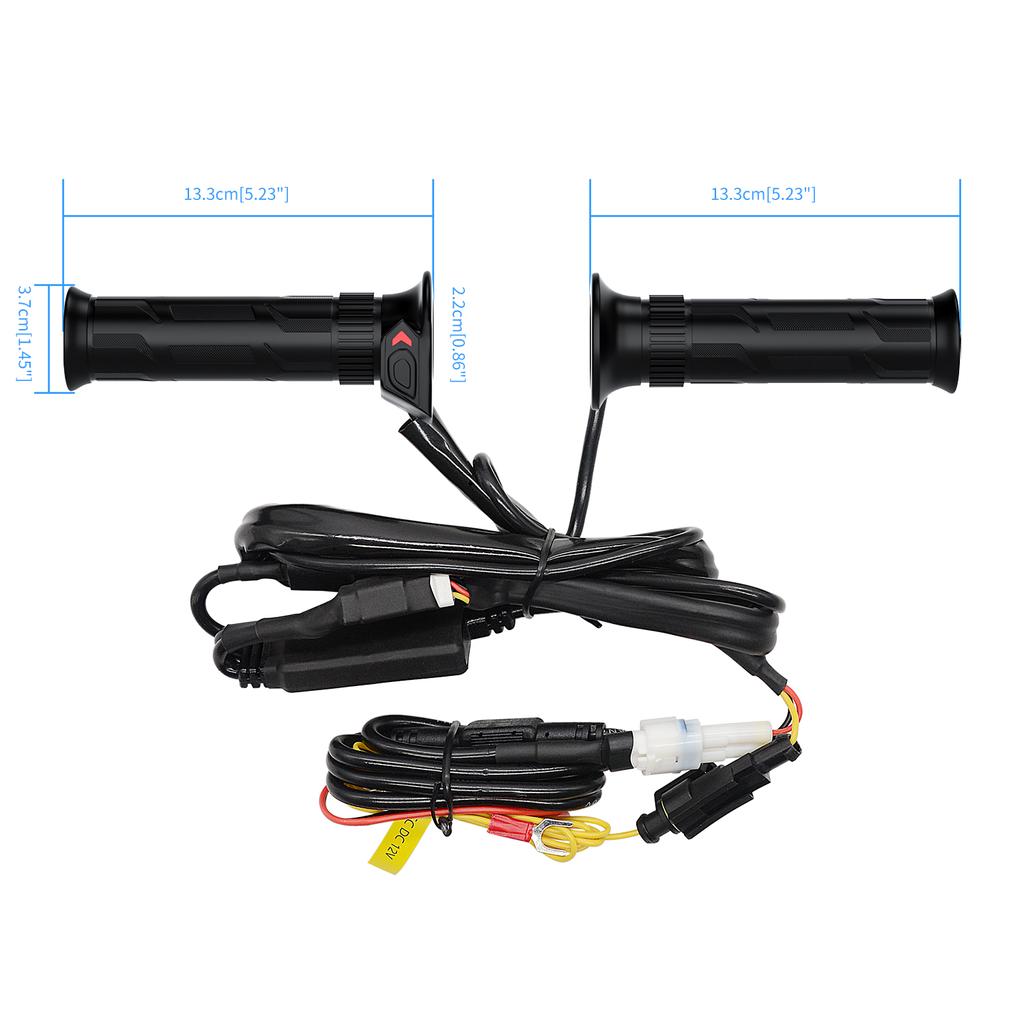

Product size: 133 * 37mm
Input voltage: DC9V-18V
Working voltage: DC12V-16V
Output power: 6.5W-40W
Working ring mirror temperature: -20 ° C -+50 ° C

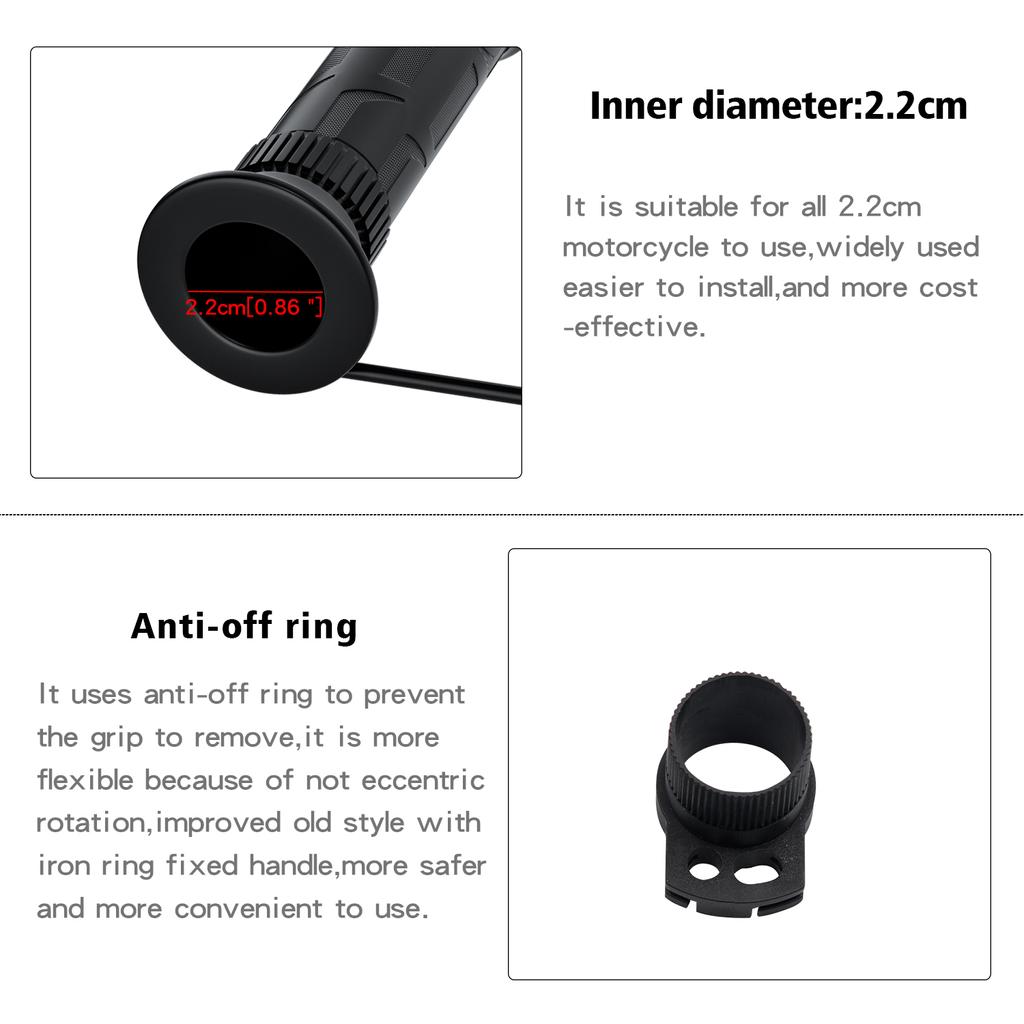

Applicable pipe diameter: 22mm diameter
Switch type: 5-speed finger light switch
Scope of application: Suitable for installation and use of DC12V scooters, motorcycles, beach bikes, and three wheeled motorcycles
Protection voltage: When the voltage is below (12 ± 0.2) V, the heating handle will turn off the output and the controller will enter sleep mode

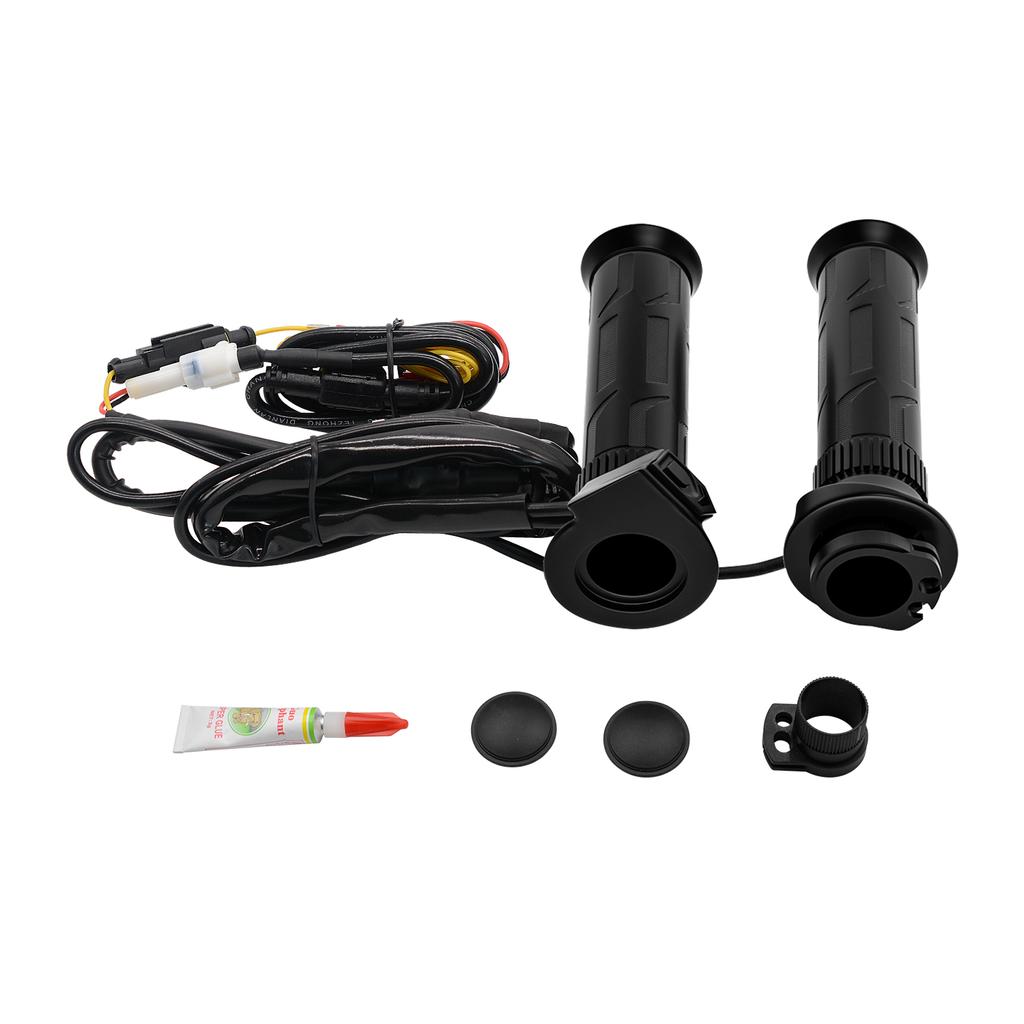

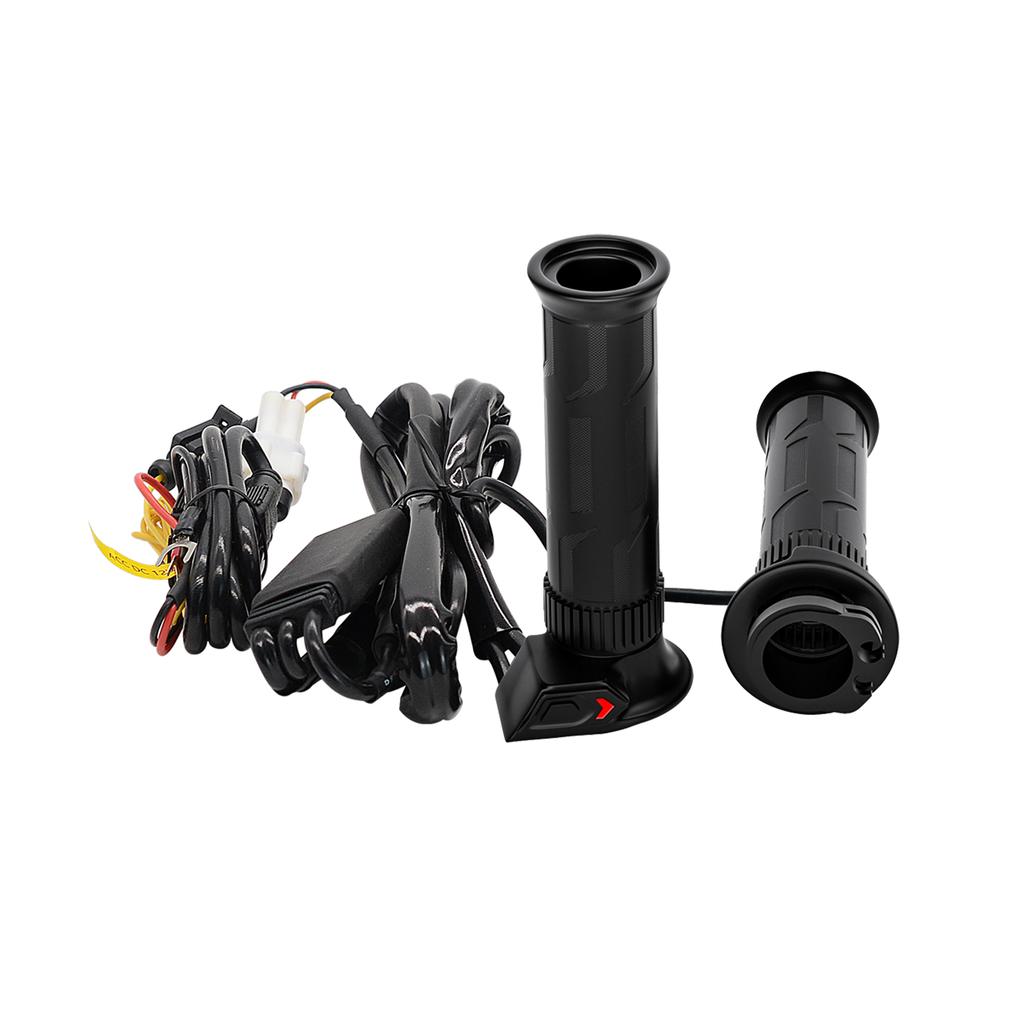

Product accessories: 1 glue, 4 throttle core, 2 handlebar plugs
