Feature:
1. [High Performance Processor] This brushless ESC uses 32 bit for STM32G071 processor, operates at a frequency of up to 64MHz and supports PWM frequencies of up to 128KHz for efficient control.
2. [Superior Heat Dissipation] Featuring high power MOSFETs and CNC metal heat sink, this electronic speed controller ensures effective heat dissipation even under heavy current loads, delivering stable performance.
3. [Multiple Motion Modes] The ESC supports various motion modes including unidirectional, bidirectional, and braking for versatile control options.
4. [Advanced Protecting Features] Offers low voltage, temperature, stall, and current protecting to guard the motor and ESC from damage during operating.
5. [Signal Compatibility] Automatically detects throttle signals upon power on, supporting all Dshot signals as well as PWM, Oneshot, and Multishot signal protocols.
6. [Visual Programming Tool] Supports adjusting motor timing, throttle calibration, current detection, motor rotation, telemetry signals, and more.
7. [Customizable RGB LED] Onboard RGB LED, allows for customization of multiple LED colors, adding a visually appealing touch to your setup.
8. [Wide Application] Ideal for use in agricultural drones, multi rotor UAVs, RC model boats, RC cars, and other remote control modeling applications for a wide range of uses.
Specification:
Item Type: Brushless ESC
Material: PCB
Model: 28120 (AM32)
Processor: for STM32G071
Input Voltage: DC 733.6V (28S Lipo)
Continuous Current (Great Heat Dissipation): 120A
Maximum Current (Great Heat Dissipation): 150A
Support Firmware: AM32
Signal Protocol: Dshot (All), PWM, Oneshot, Multishot, etc.
Programming Parameter Adjustment: Support
Throttle Calibration: Support
Timing Angle Setting: Support
Current Detection: Support
Telemetry Signal: Support
Motor Steering Settings: Support
RGB LED Color Lights: Support
Application Scenarios: Suitable for multi axes drones, fixed wing aircraft models, multi rotor drones, plant protecting machines, model ships, RC model cars, and rock crawlers.
.

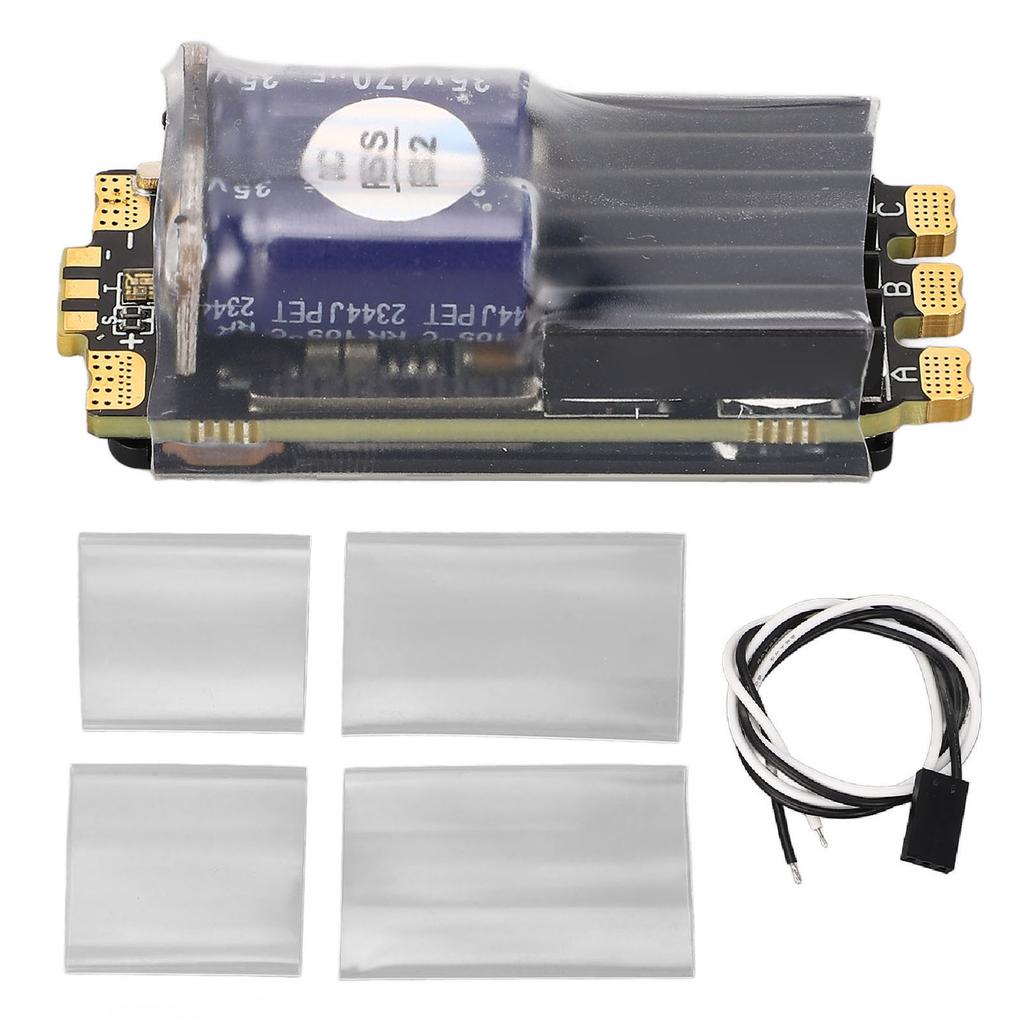

Package List:
1 x Brushless ESC
1 x 2P Signal Wire
4 x Sleeve[High Performance Processor] This brushless ESC uses 32 bit for STM32G071 processor, operates at a frequency of up to 64MHz and supports PWM frequencies of up to 128KHz for efficient control.
[Superior Heat Dissipation] Featuring high power MOSFETs and CNC metal heat sink, this electronic speed controller ensures effective heat dissipation even under heavy current loads, delivering stable performance.
[Multiple Motion Modes] The ESC supports various motion modes including unidirectional, bidirectional, and braking for versatile control options.
[Advanced Protecting Features] Offers low voltage, temperature, stall, and current protecting to guard the motor and ESC from damage during operating.
[Signal Compatibility] Automatically detects throttle signals upon power on, supporting all Dshot signals as well as PWM, Oneshot, and Multishot signal protocols.
