Feature:
1. Clear Display: Provide clear display of automatic level control voltage, modulation level, standing wave ratio and power supply voltage
2. High Performance: Made with fine workmanship, provide high performance and super stability, easy to operate
3. Aluminum Alloy Shell: The aluminum alloy shell is more textured, not easy to fall or collision, with high quality and excellent durability
4. Easy To Operate: This external SWR power meter is easy to operate, you just need to follow with instructions
5. Accurate Measurement: Standing wave ratio receive display meter provide accurate measurement and clear readings, very practical
Specification:

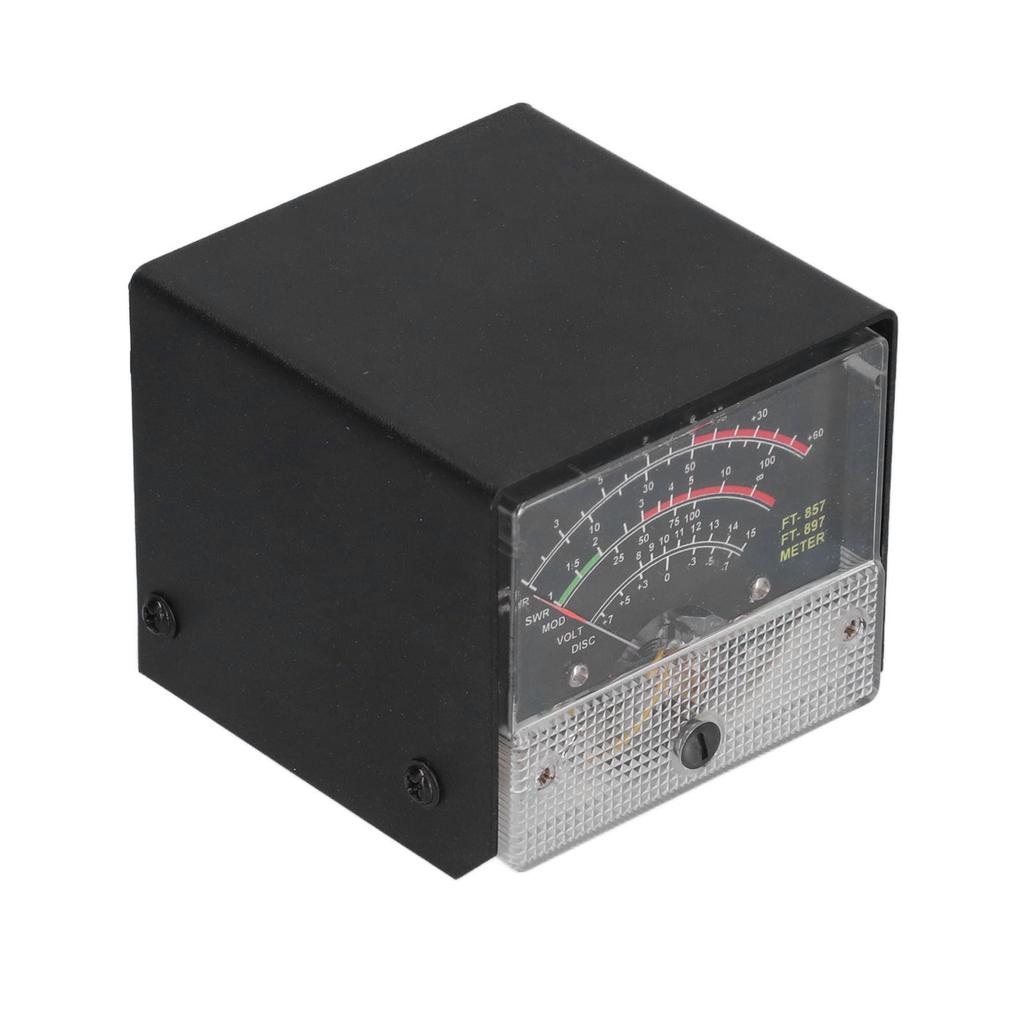

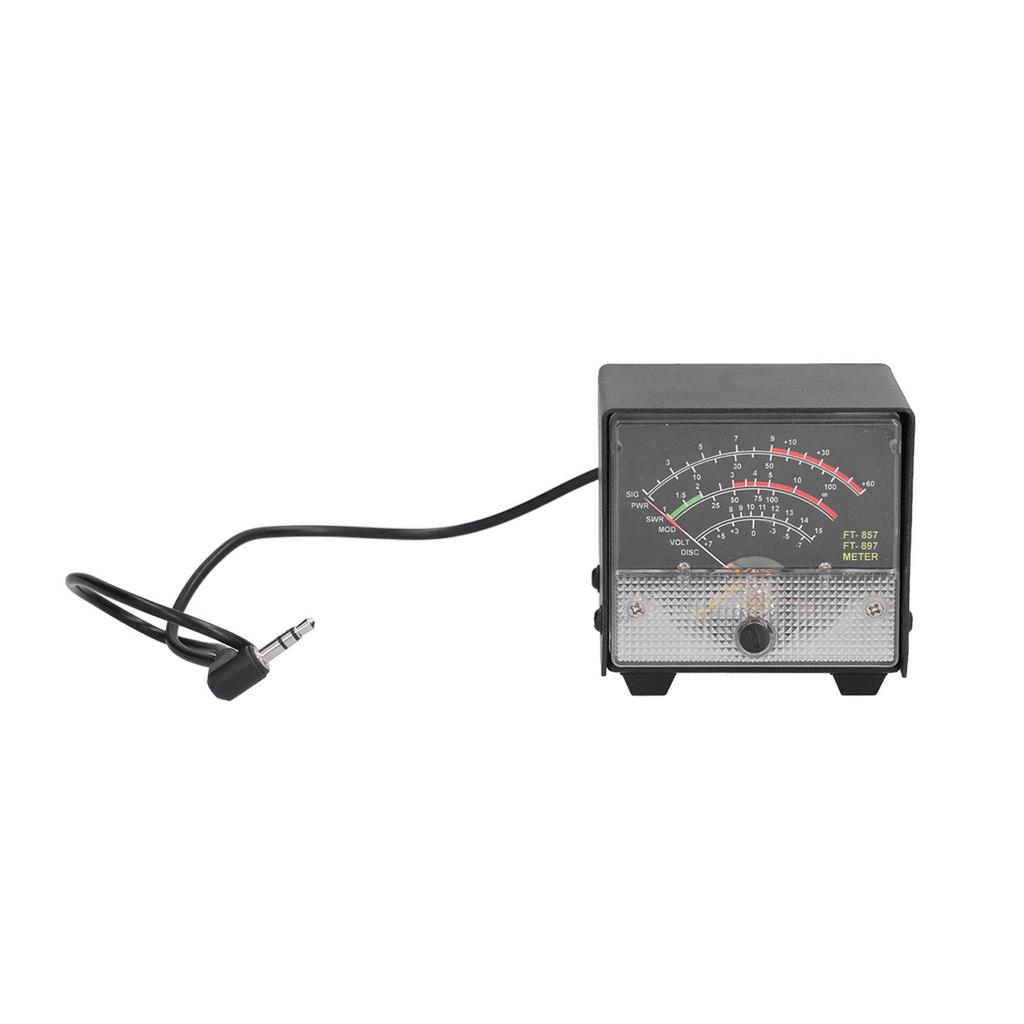

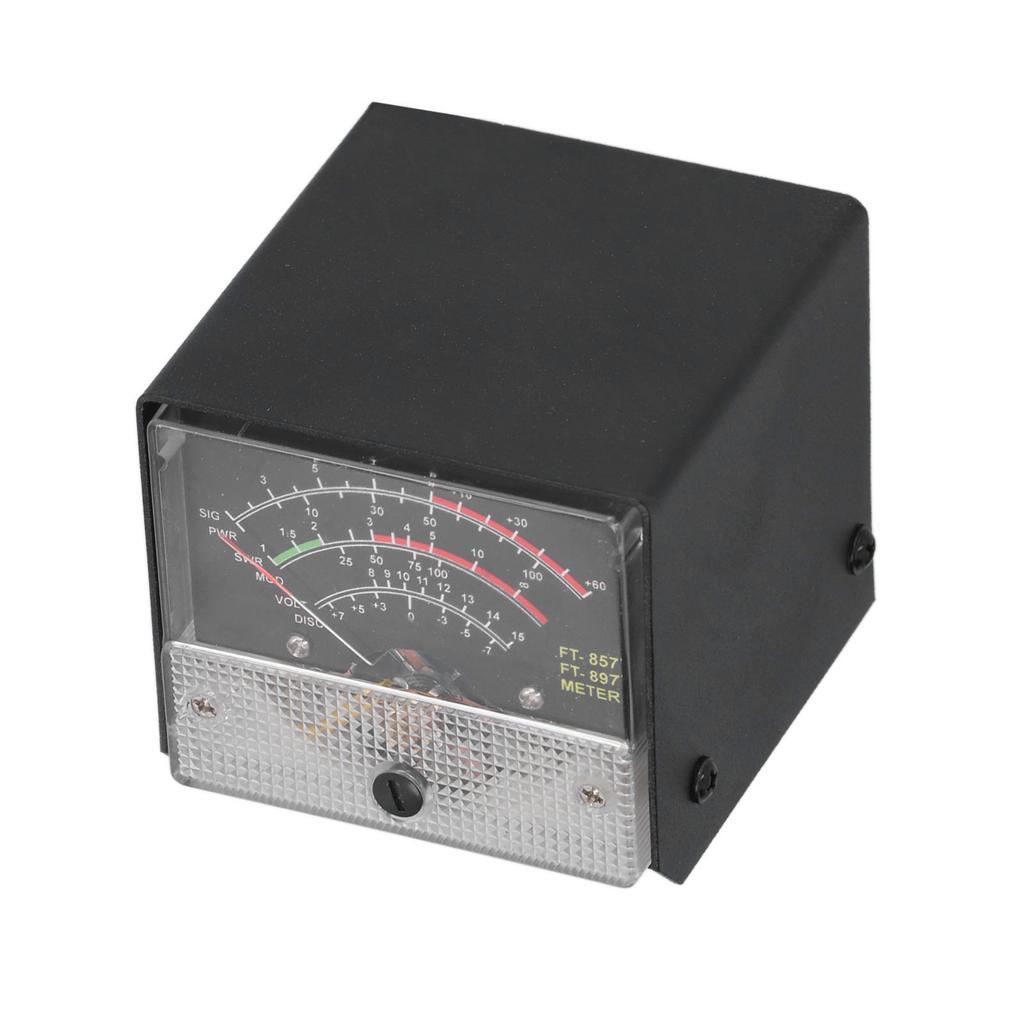

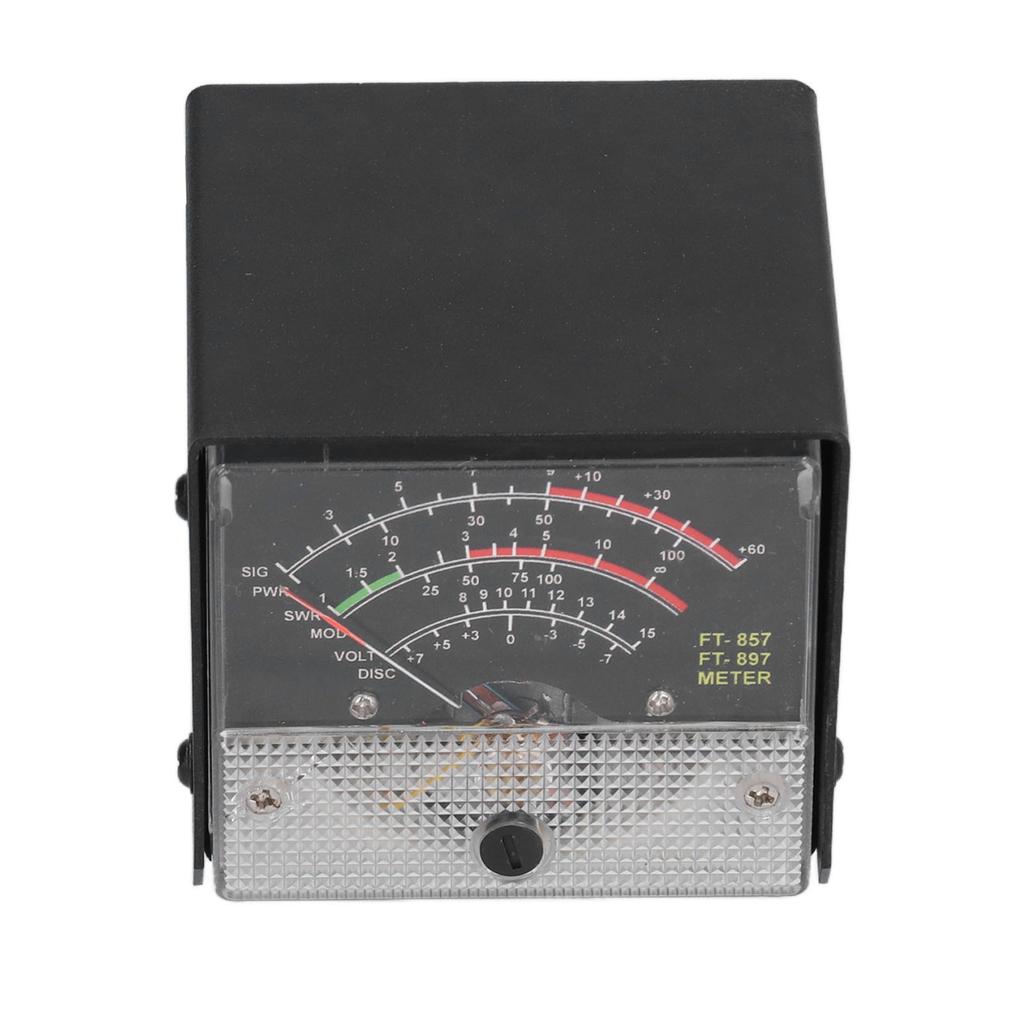

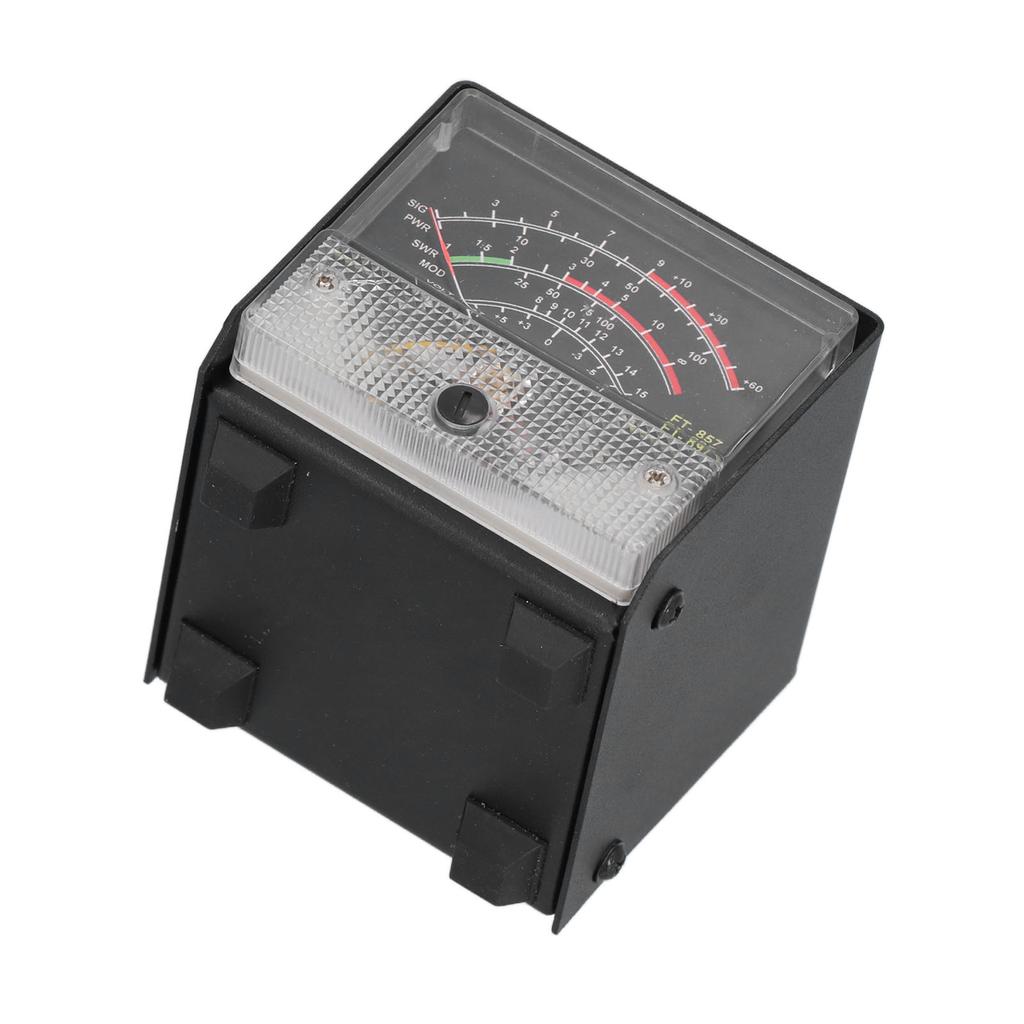

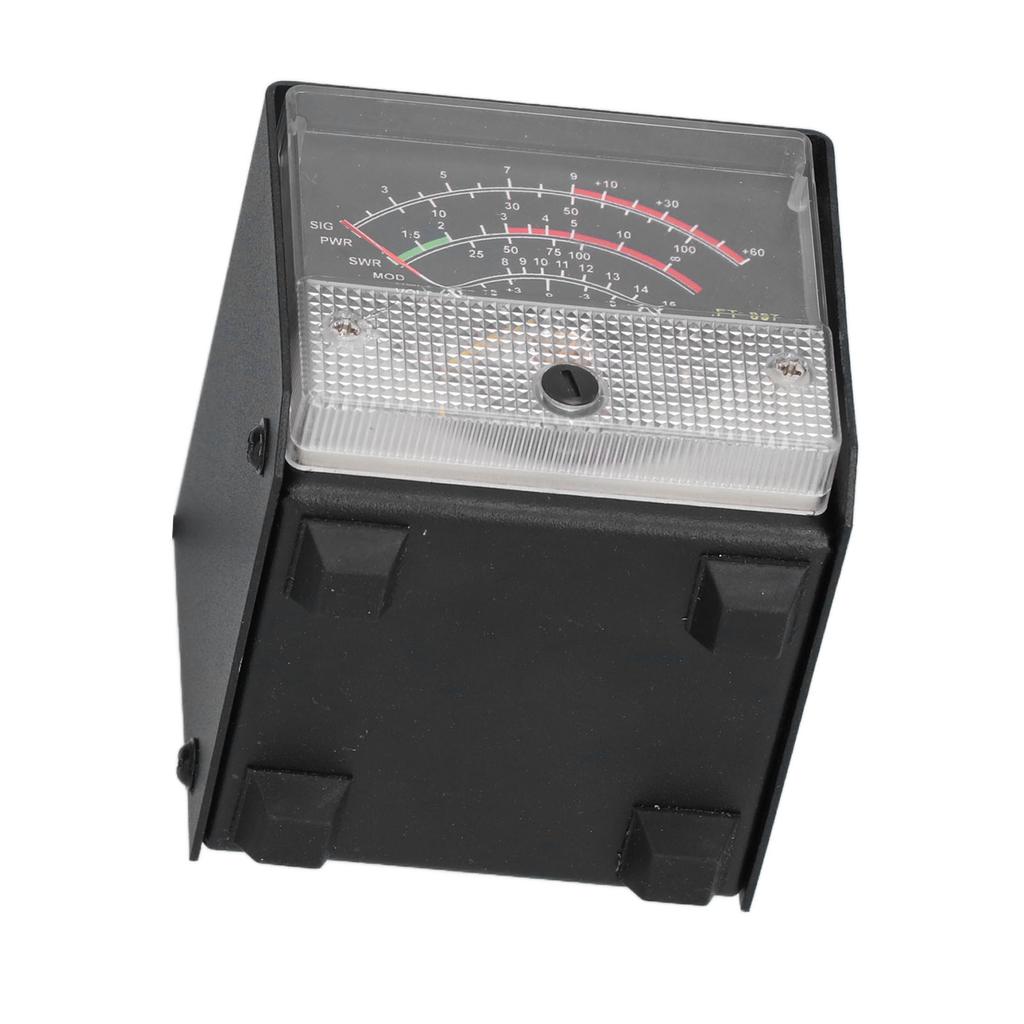

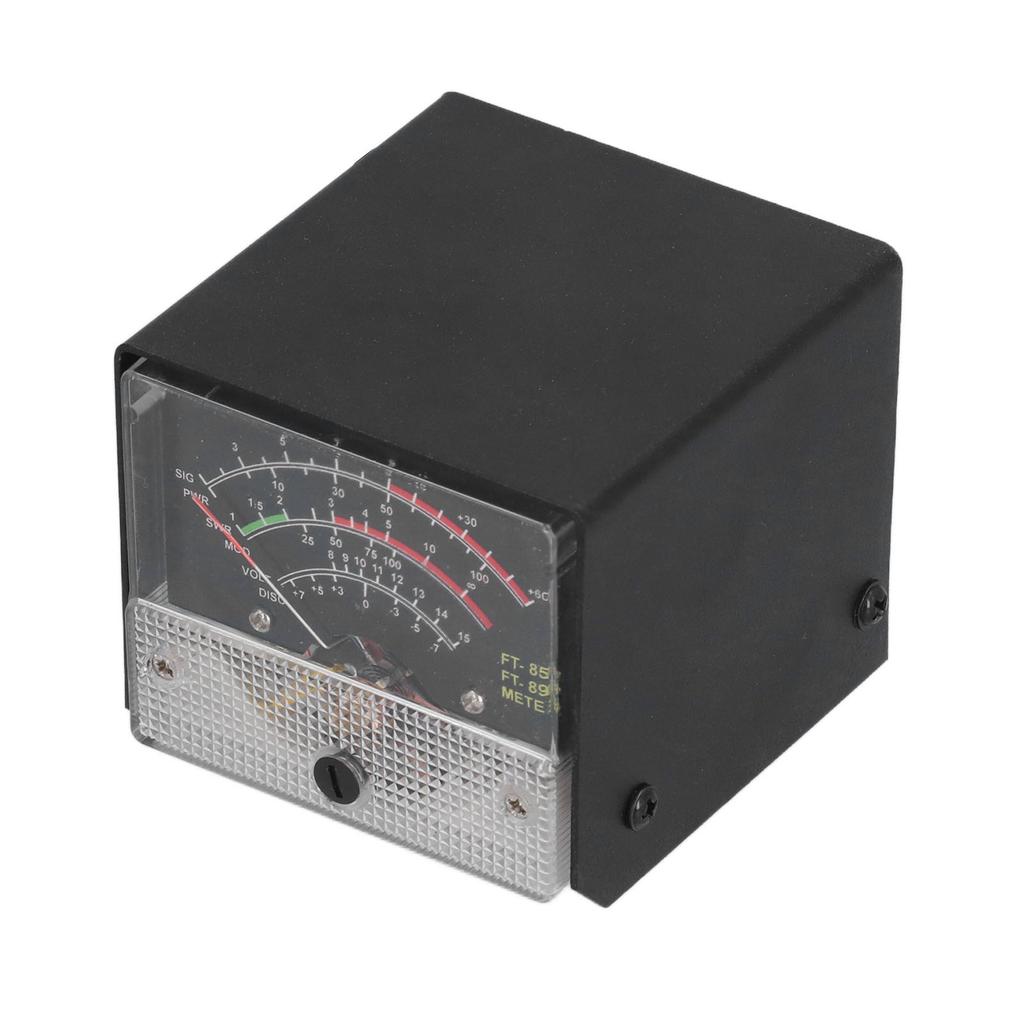

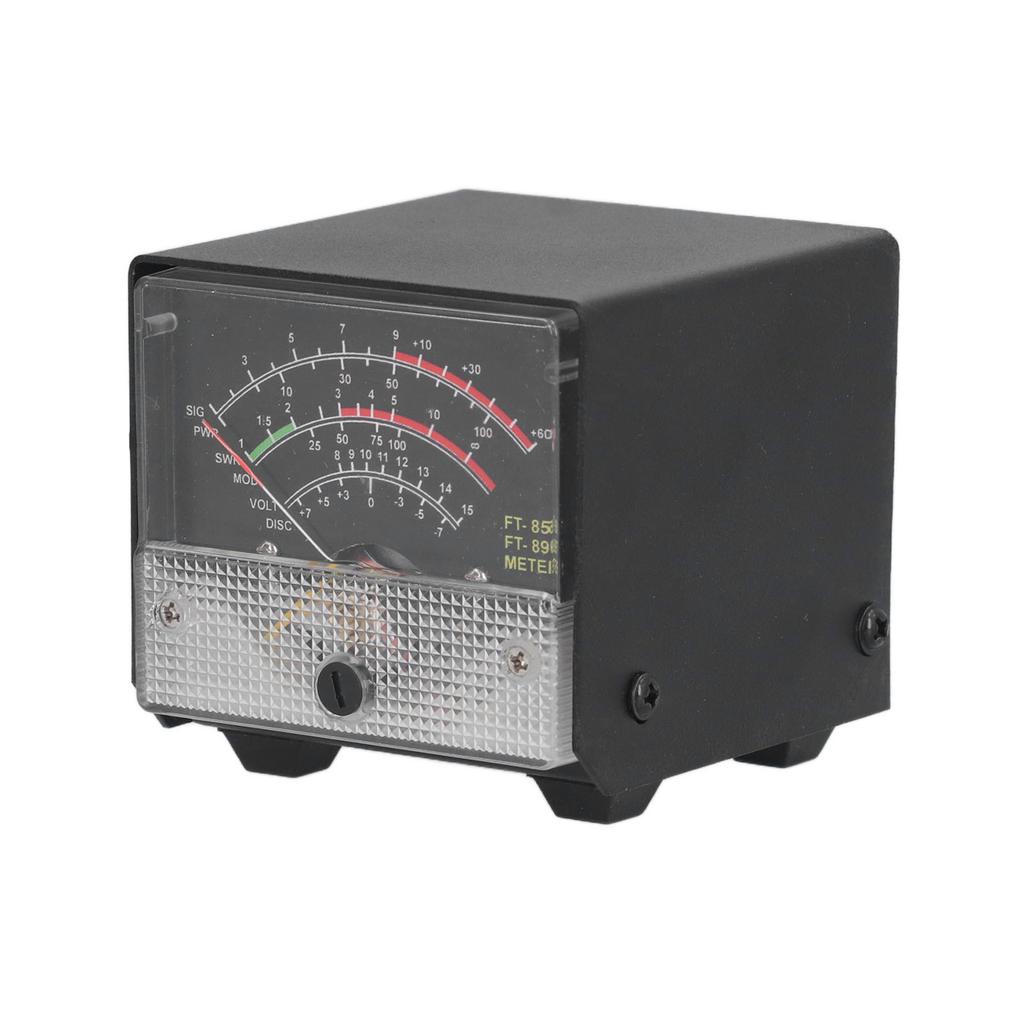

Item Type: SWR Power Meter
Material: Aluminum alloy + ABS
Purpose: Power meter
Receive Display Settings:
1. Press[FUNC]key to enter the setting menu and enable the extended menu.
2. Turn[SELECT]to call up the setup menu item No060 [MTR ARX SEL].
3. Rotate[DIAL]to Select External Instrument Display:
SIG: Input signal strength display
CTR: Discriminator Center Meter
VLT: Battery voltage
NA: Blank
FS: Buckle on the meter 1mA full scale output signal to calibrate the standard external meter
OFF: Turn off the meter.
4. Press[FUNC]key to save the setting and exit the setting menu.
Transmit Display Settings:
1. Press[FUNC]key to enter the setting menu and enable the extended menu.
2. Turn[SELECT] to call up the setup menu item No061 [MTR ATX SEL].
3. Rotate[DIAL]to Select External Instrument Display:
PWR: Transmit power display
ALC: Automatic level control voltage display
MOD: Modulation level display
SWR: SWR display
VLT: Display power supply voltage
NA: Blank
OFF: Turn off the meter.
The Calibration Method Is As Follows:
1. Press[FUNC]key to enter the setting menu and enable the extended menu.
2. Turn[SELECT]to call up the setup menu item No060 [MTR ARX SEL].
3. Rotate[DIAL]to select FS.
4. Use a small flat head screwdriver to adjust the back of the calibration adjustment hole to make the pointer of the meter head to full scale.
5. The calibration is complete..
Package List:
1 x SWR Power Meter
Note:
1. If the menus with numbers 60 and 61 are not found, these two single selection concealed menus are used. Long press the F key to open the menu settings, the first menu is set to ON, press the F key to open, exit, save, and hide the menu.2. The instrument has been calibrated when it leaves the factory, but it is not ruled out that the static pointer does not return to zero due to turbulence. In this case, the instrument can adjust the self zero screw calibration on the side of the mask.Clear Display: Provide clear display of automatic level control voltage, modulation level, standing wave ratio and power supply voltage
High Performance: Made with fine workmanship, provide high performance and super stability, easy to operate
Aluminum Alloy Shell: The aluminum alloy shell is more textured, not easy to fall or collision, with high quality and excellent durability
Easy To Operate: This external SWR power meter is easy to operate, you just need to follow with instructions
Accurate Measurement: Standing wave ratio receive display meter provide accurate measurement and clear readings, very practical
