Feature:

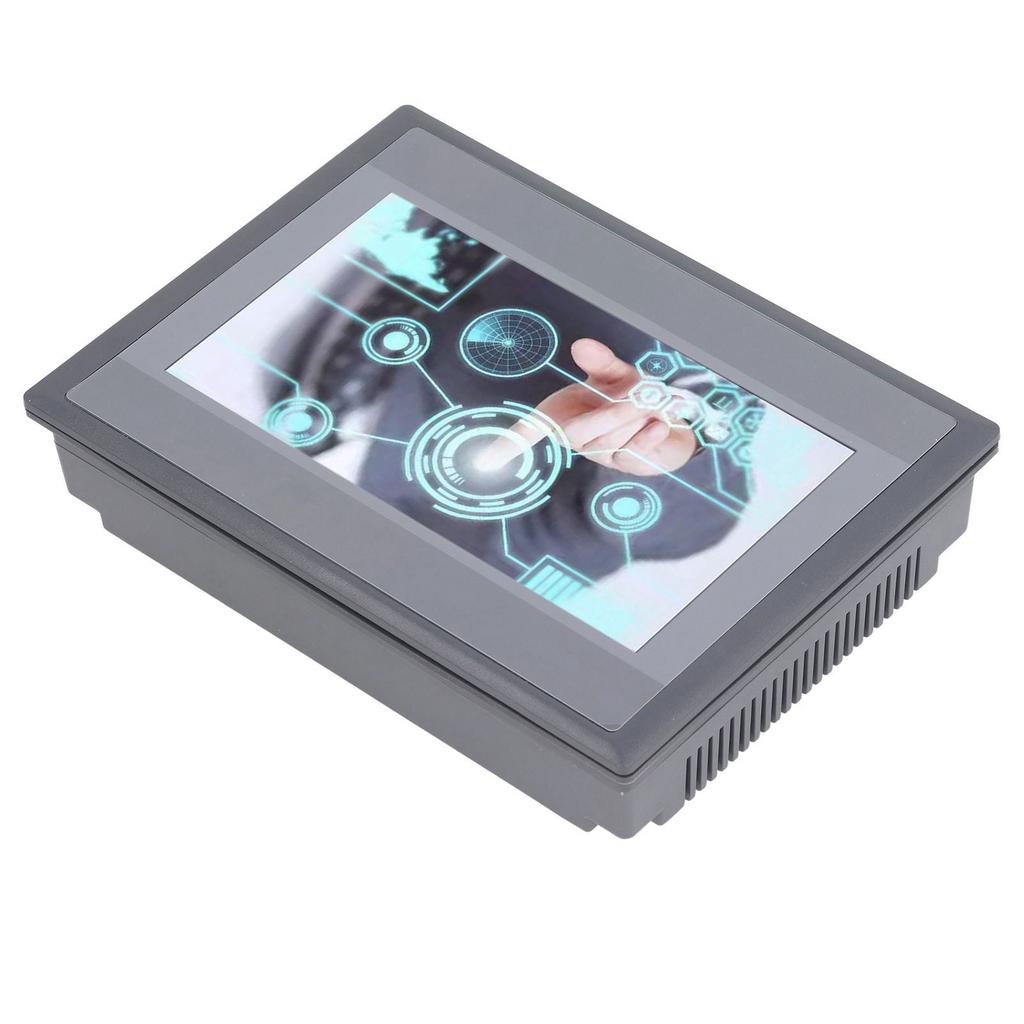

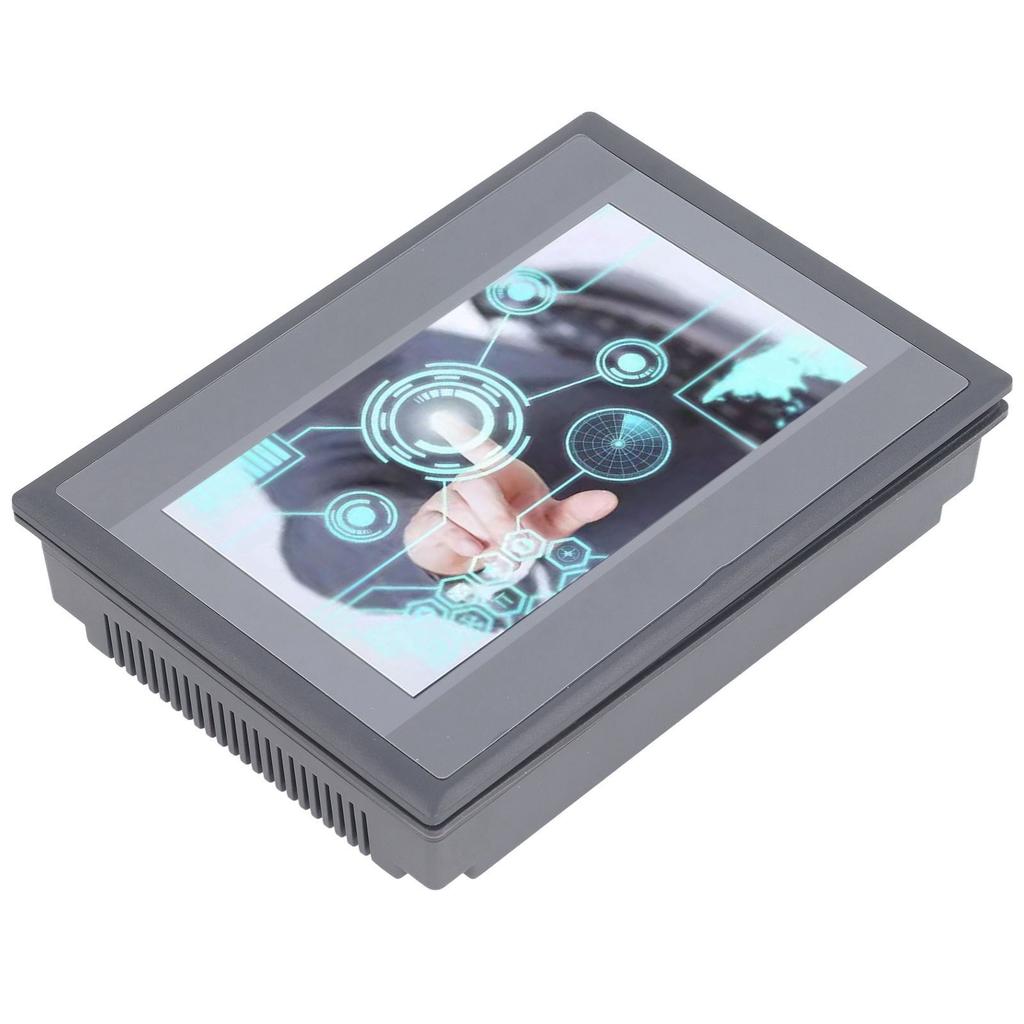

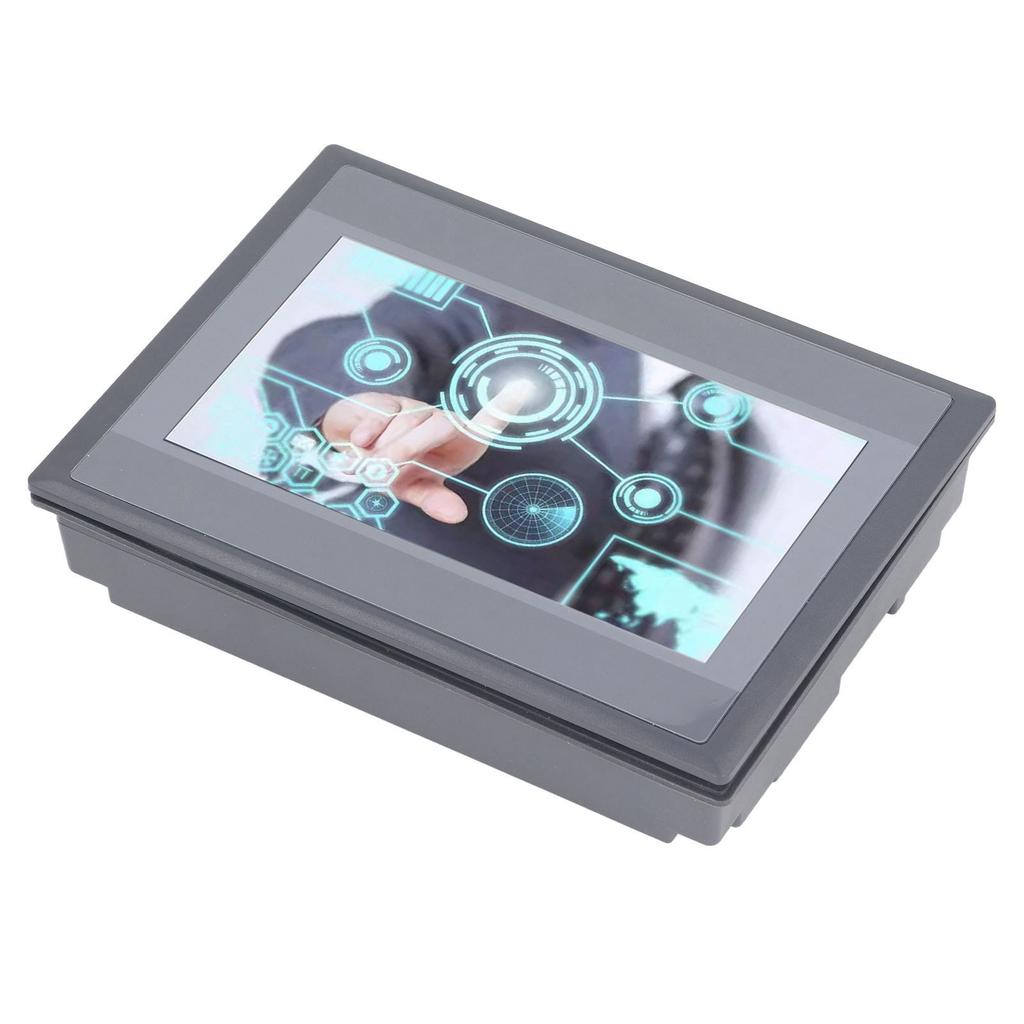

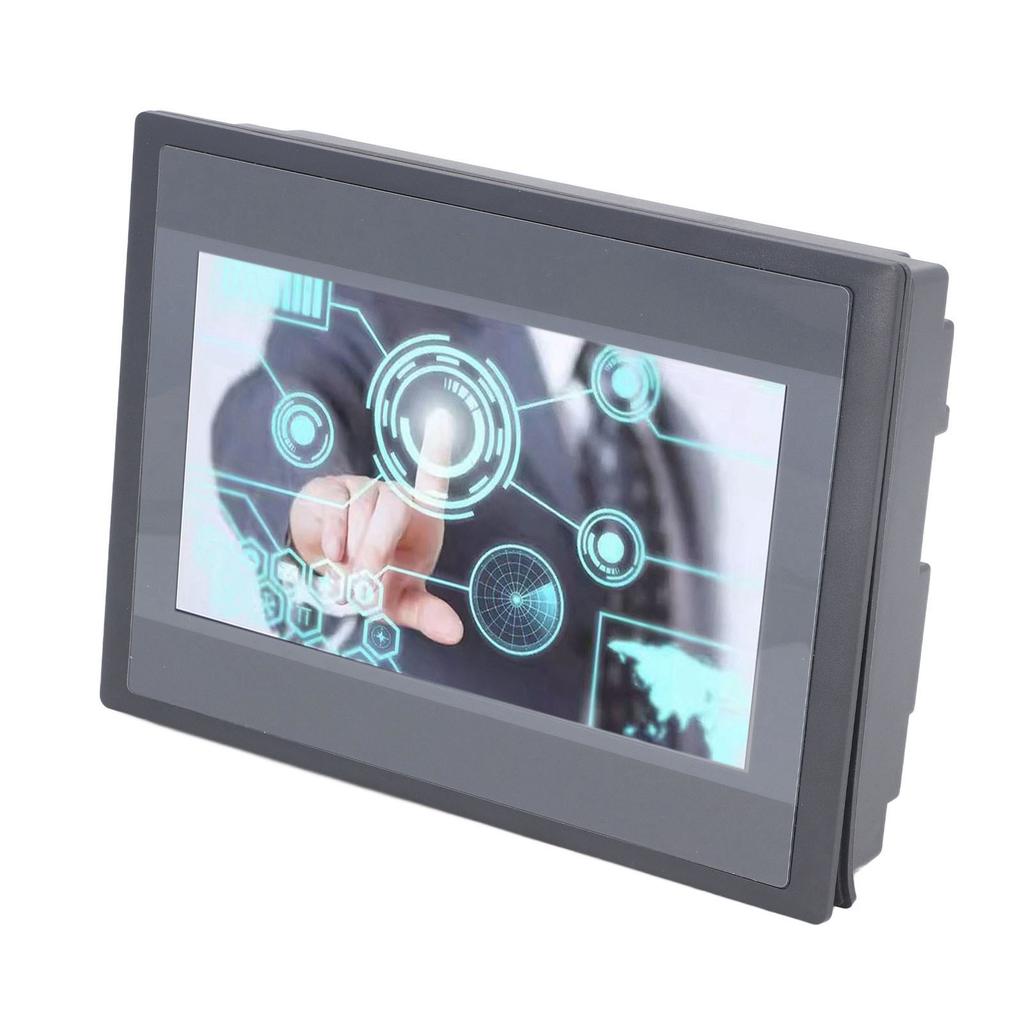

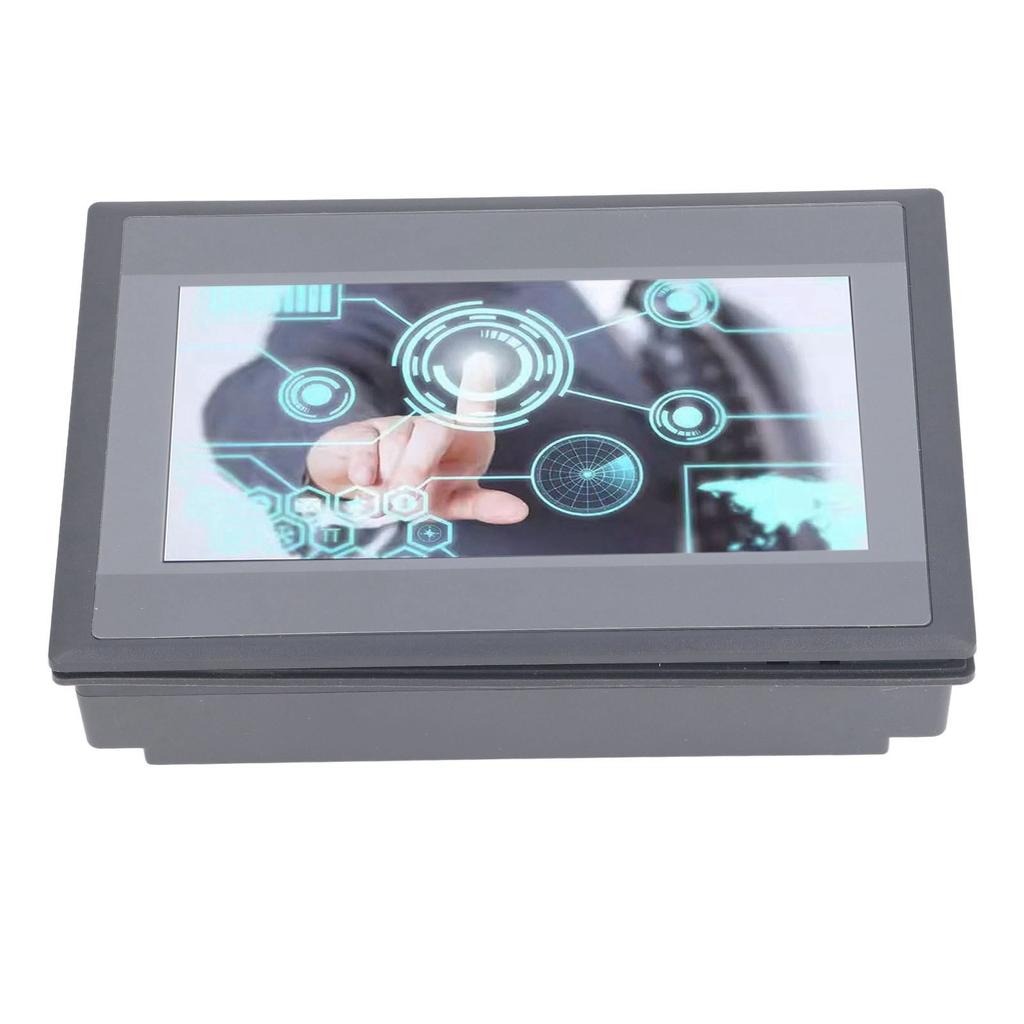

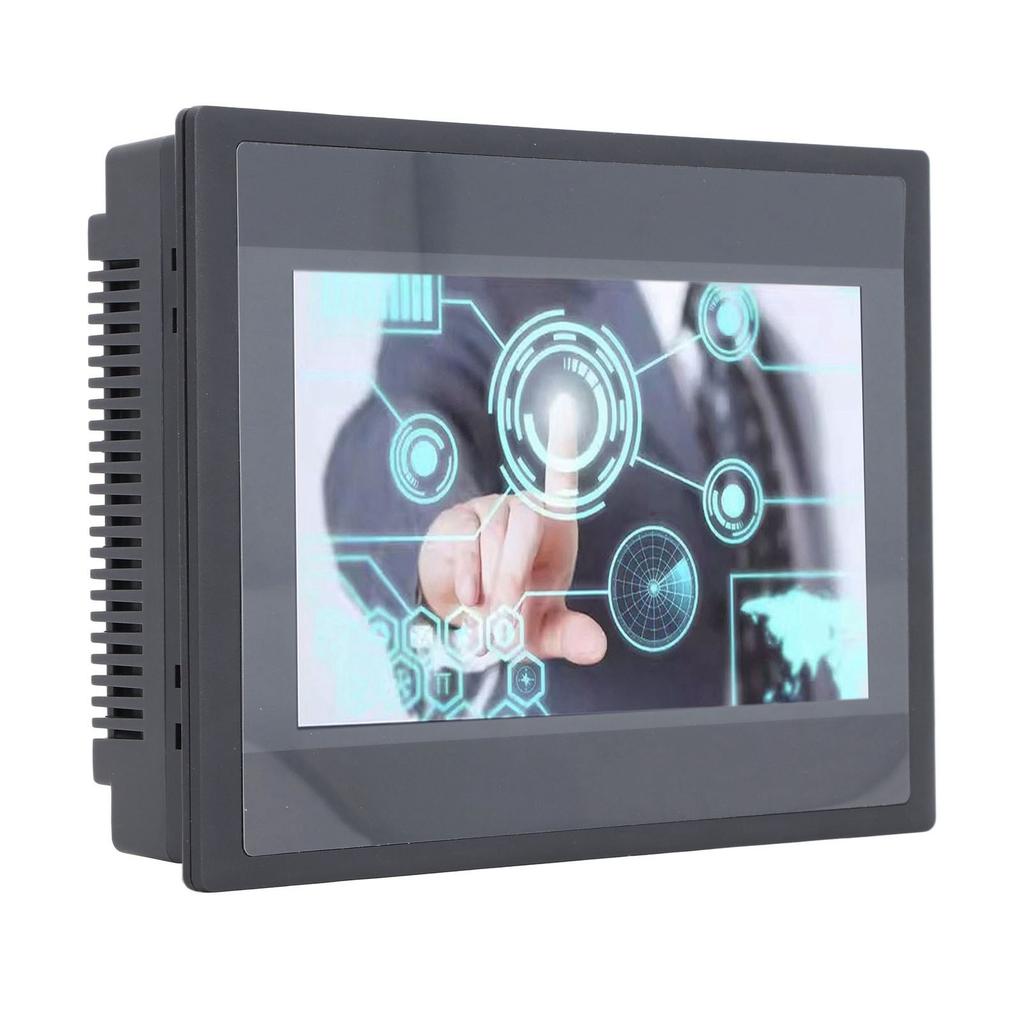

1. Premium Design: The HMI touch screen adopts 32 bit 240MHz ARM9 and 128M NAND FLASH memory with a download speed of 38.4KB, mainly used for various PLCs or intelligent controllers with communication ports, compatible with FX3U?204048MRT.
2. Clear in Display: 7in TFT LCD screen with 800 x 480px resolution, 400cdm2 brightness with backlight display, easy to observe.
3. Wide Application: This is a small human machine interface mainly used for various PLCs or intelligent controllers with communication ports. Touch screen has low power consumption, fast operation speed, and stable performance.
4. High Accuracy: The touch screen is equipped with an ARM9 processor, resulting in high touch accuracy. The front panel complies with lP65 flat panel installation, and the rear shell of the body complies with IP20.
5. Easy Installation: The opening size is 190mm x 136mm, equipped with screws and fixing accessories, can be installed directly.
Specification:
Item Type: HMI Touch Screen
Model: WS7020R
Output Type: Relay
Switching Points: 12 in and 8 out
Power Supply Voltage: DC 24V, with a working range of + 15percent .
Output Current: 5A
Rated Power: <2.5W
Permissible Power Loss: <5mS
Display Screen: 7in TFT LCD Screen
Resolution: 800 x 480px
Color: 260,000
Brightness: 400cdm2
LED Lifespan: 20,000 Hours
Touch Screen: 4 wire industrial resistance touch screen, with 4H surface hardness.
CPU: 32 bit 240MHz ARM9
Memory: 128M FLASH
Programming Software: For winsun HMI_ Setup_ V2.0
Ethernet: No
Analog Input: 3AD 010V and 3AD 420mA
Analog Output: 2DA 010V
Pulse Output: No
High Speed Counting: 6 way 3K, can change up to 6 way 60K, supporting 3 way AB phase.
Pulse Output: No
Communication Port: 1pc 232 serial port, 1pc 485 wiring terminal.
Clock: Supporting
Memory Capacity: 8,000 steps.
Download Speed: 38.4KB
PLC Series: Compatible with FX3U series.
Programming Software: Compatible with for Mitsubishi PLC programming software for GX Device lower or for GX works 2.
Program Download: USB
USB Drive: Supports USB drive download and data upload and download.
Serial Communication Port: The COM communication serial port is a 9 pin D type male socket, and COM1 supports RS232, RS485, or RS422 communication.
Power Protection: Equipped with lightning surge protection.
Opening Size: Approx. 190 x 136mm 7.48 x 5.35in
Overall Size: Approx. 199 x 144 x 59mm 7.83 x 5.67 x 2.32in.
Package List:

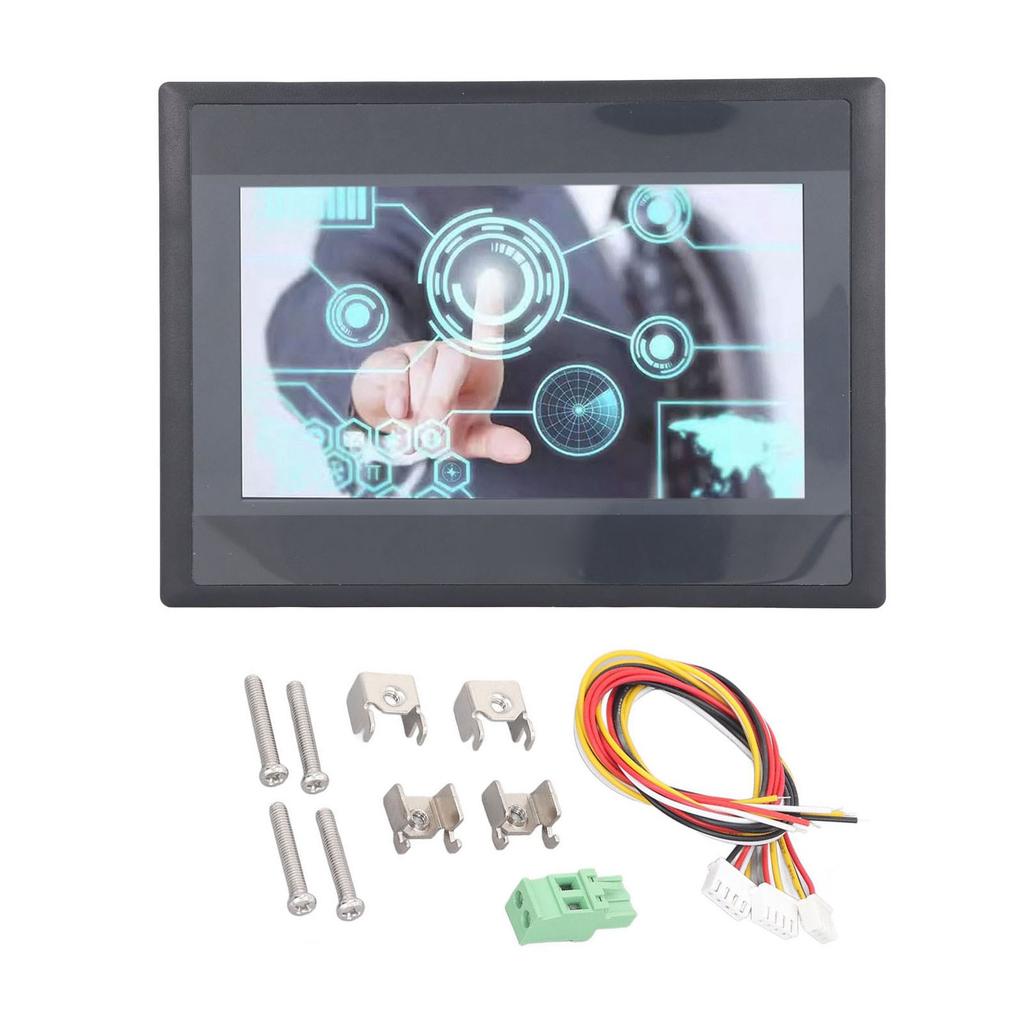

1 x HMI Touch Screen4 x Installation Screw4 x Fixing Bracket1 x Terminal3 x Connecting CablePremium Design: The HMI touch screen adopts 32 bit 240MHz ARM9 and 128M NAND FLASH memory with a download speed of 38.4KB, mainly used for various PLCs or intelligent controllers with communication ports, compatible with FX3U?204048MRT.
Clear in Display: 7in TFT LCD screen with 800 x 480px resolution, 400cdm2 brightness with backlight display, easy to observe.
Wide Application: This is a small human machine interface mainly used for various PLCs or intelligent controllers with communication ports. Touch screen has low power consumption, fast operation speed, and stable performance.
High Accuracy: The touch screen is equipped with an ARM9 processor, resulting in high touch accuracy. The front panel complies with lP65 flat panel installation, and the rear shell of the body complies with IP20.
Easy Installation: The opening size is 190mm x 136mm, equipped with screws and fixing accessories, can be installed directly.
