Feature:
1. PLC TOUCH SCREEN ALL IN ONE: Powered by a 32 bit 240MHz ARM9 processor with 128MB NAND FLASH memory and a 38.4KB download speed.
2. 4.3IN TFT LCD DISPLAY: Featuring a resolution of 480 x 272Px, 260,000 colors, and a brightness of 400 cdm2 with backlighting, providing easy status monitoring.
3. VERSATILE APPLICATION RANGE: Ideal for various PLCs or intelligent controllers with communication ports. Low power consumption, fast operation, and stable performance.
4. HIGH TOUCH ACCURACY: Equipped with an ARM9 processor, ensuring high touch accuracy. Front panel meets IP65 (flat panel installation), and the rear shell complies with IP20.
5. EASY INSTALLATION: With an opening size of 130mm x 80mm and included screws and mounting accessories, the screen can be easily installed in any application.
Specification:

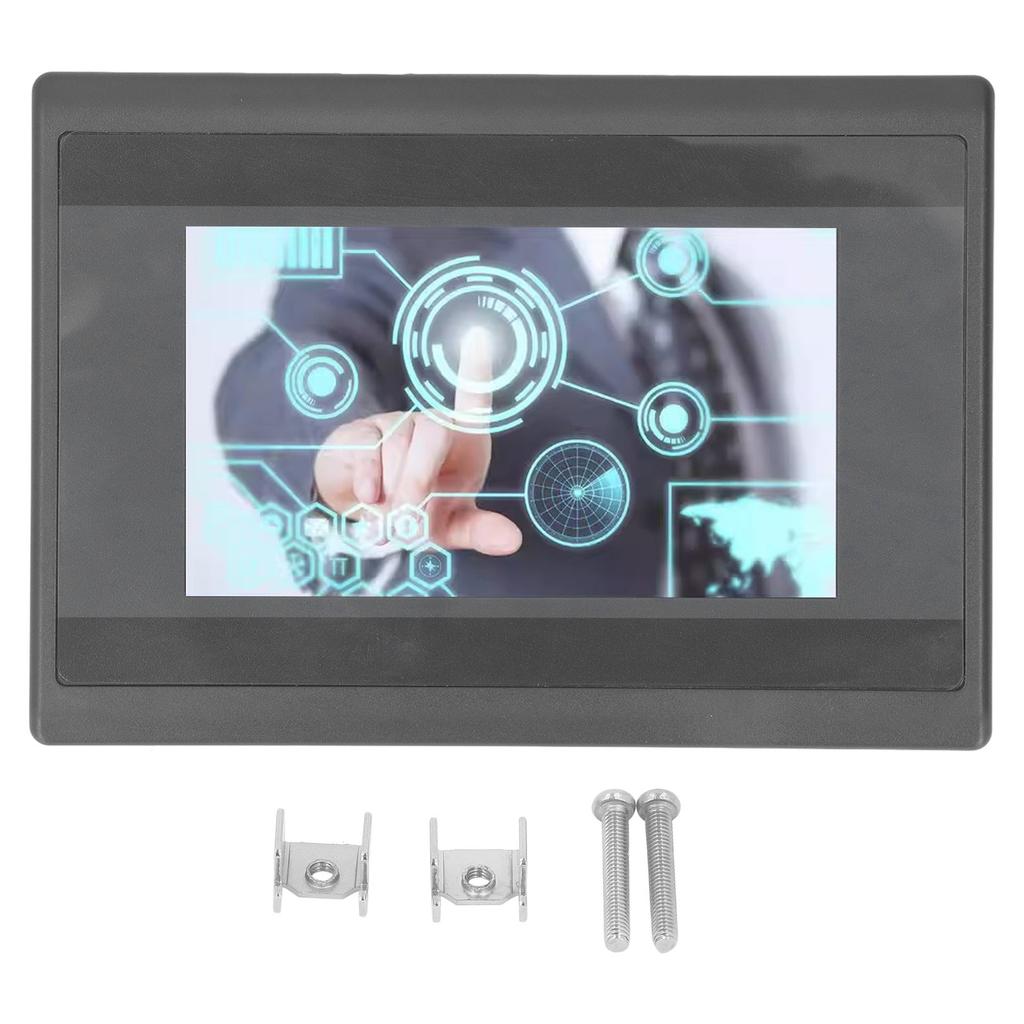

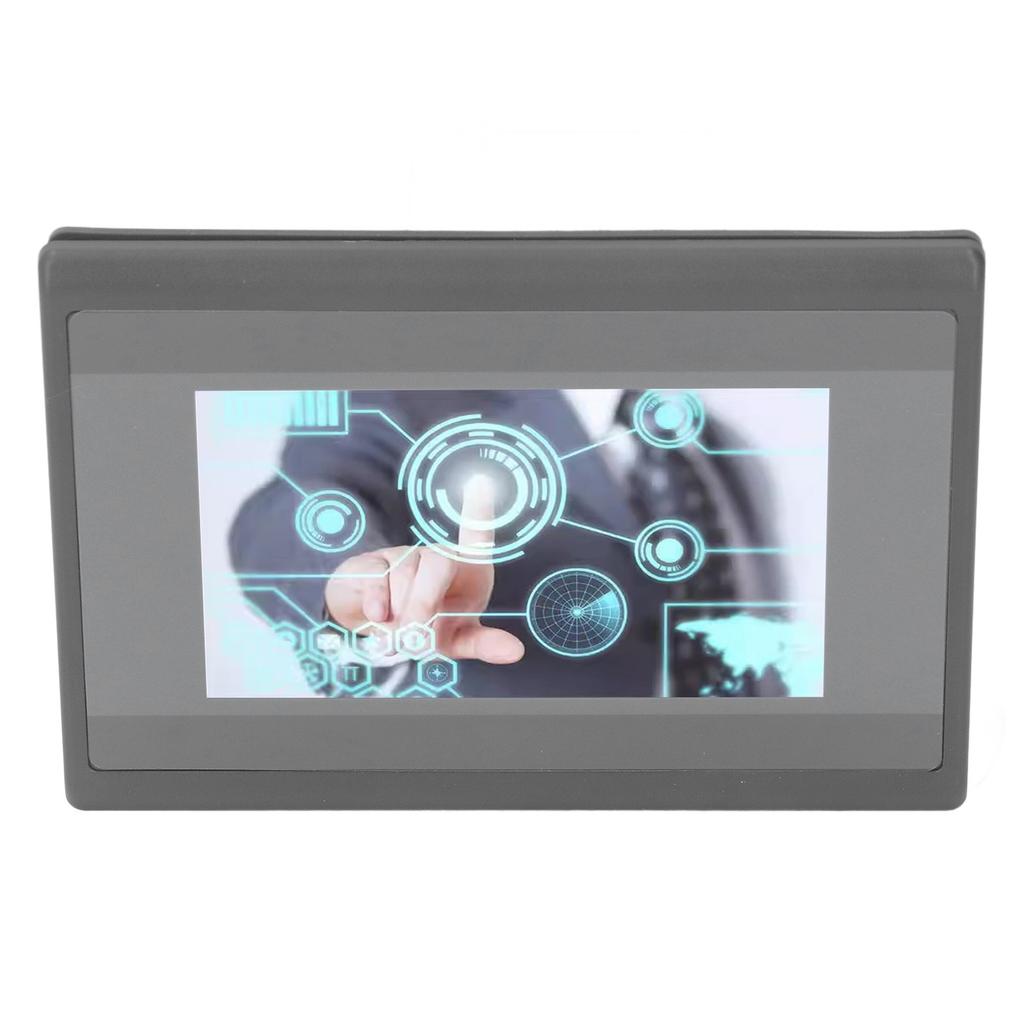

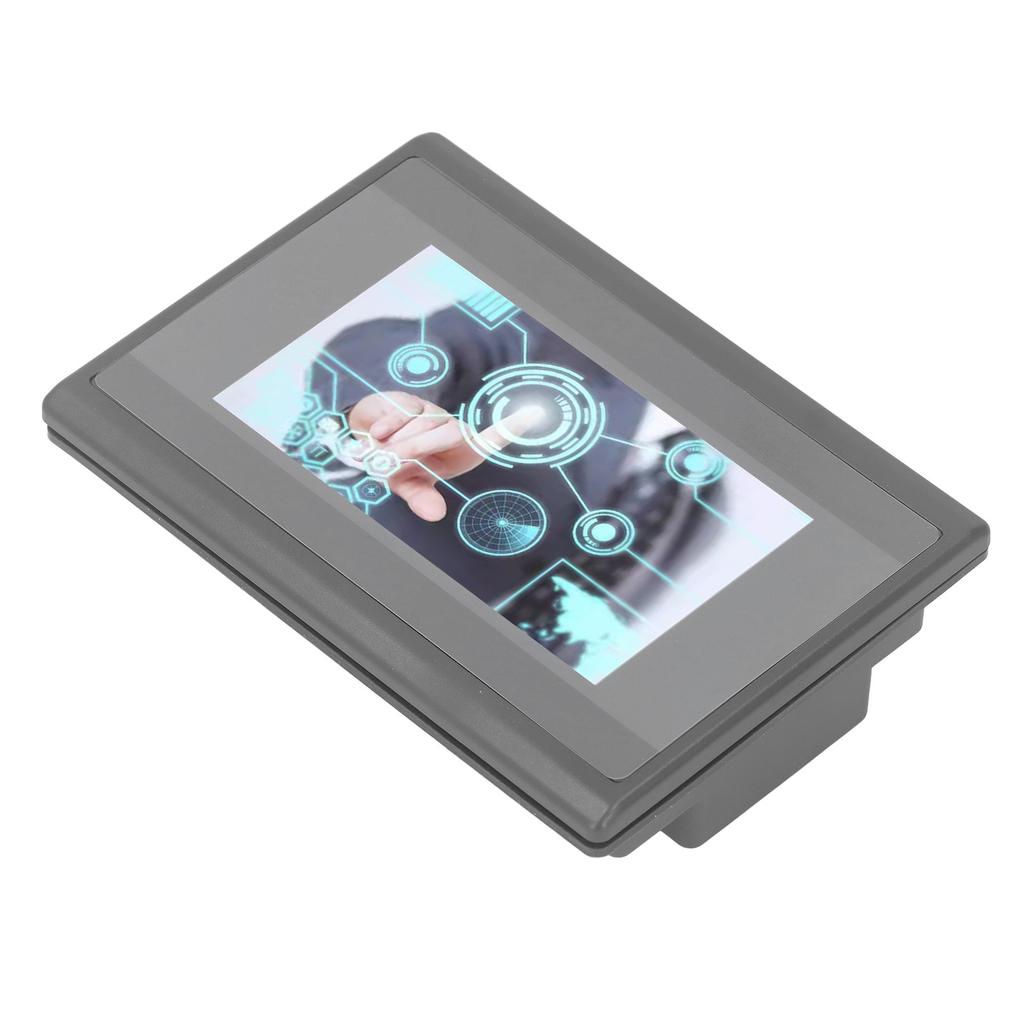

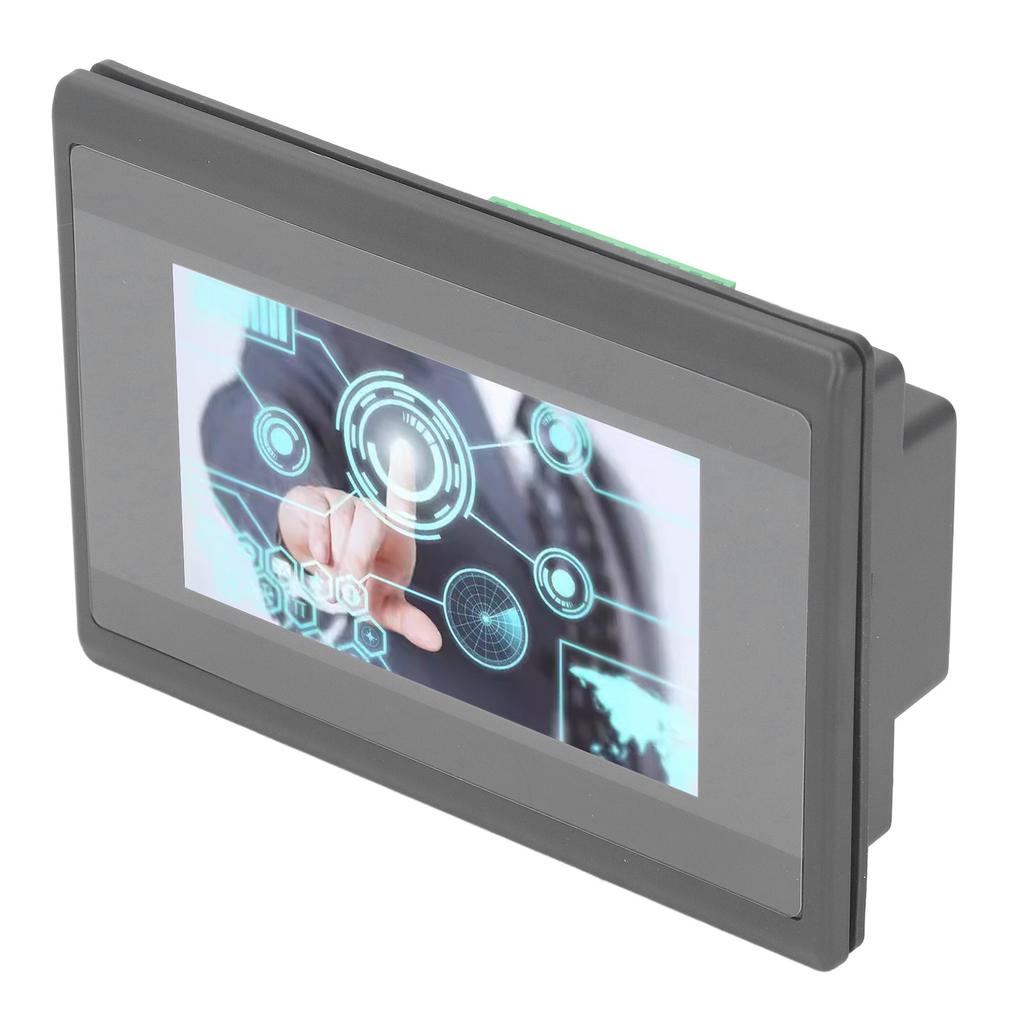

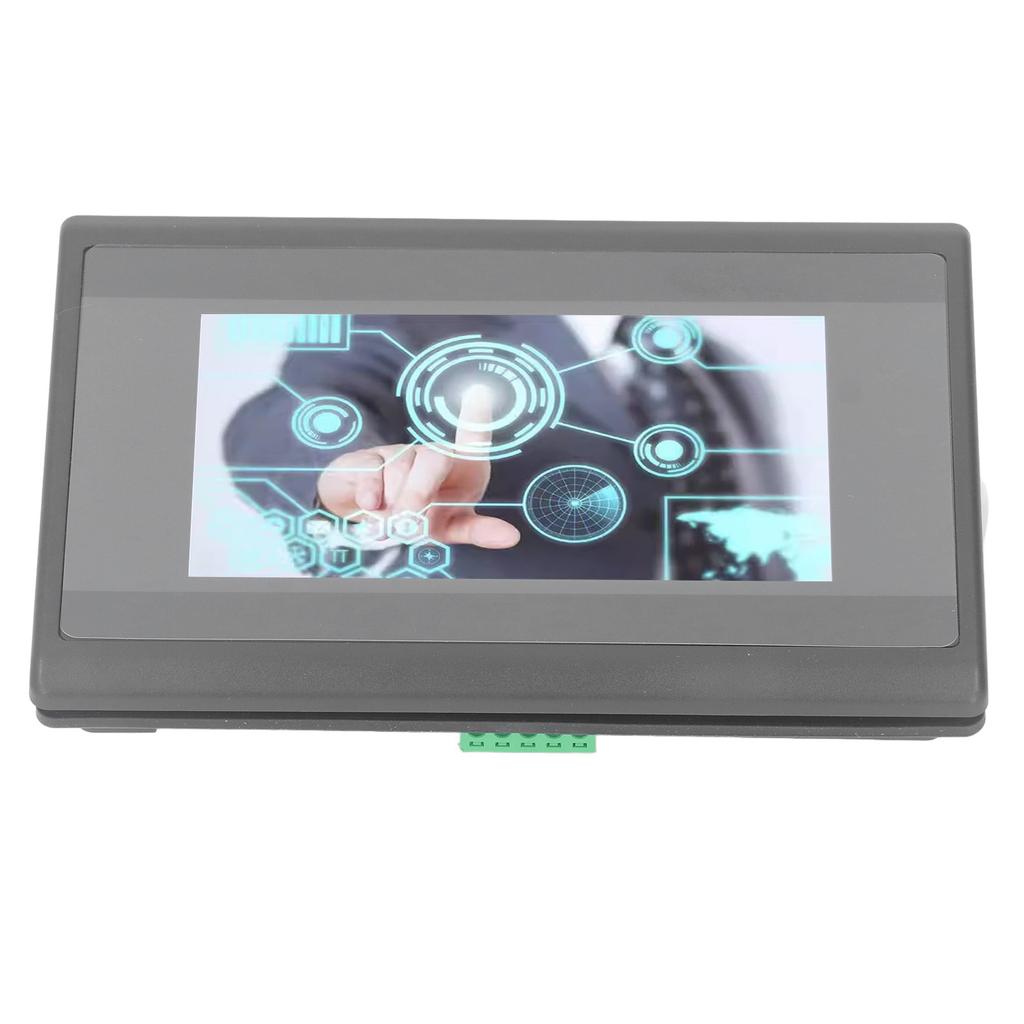

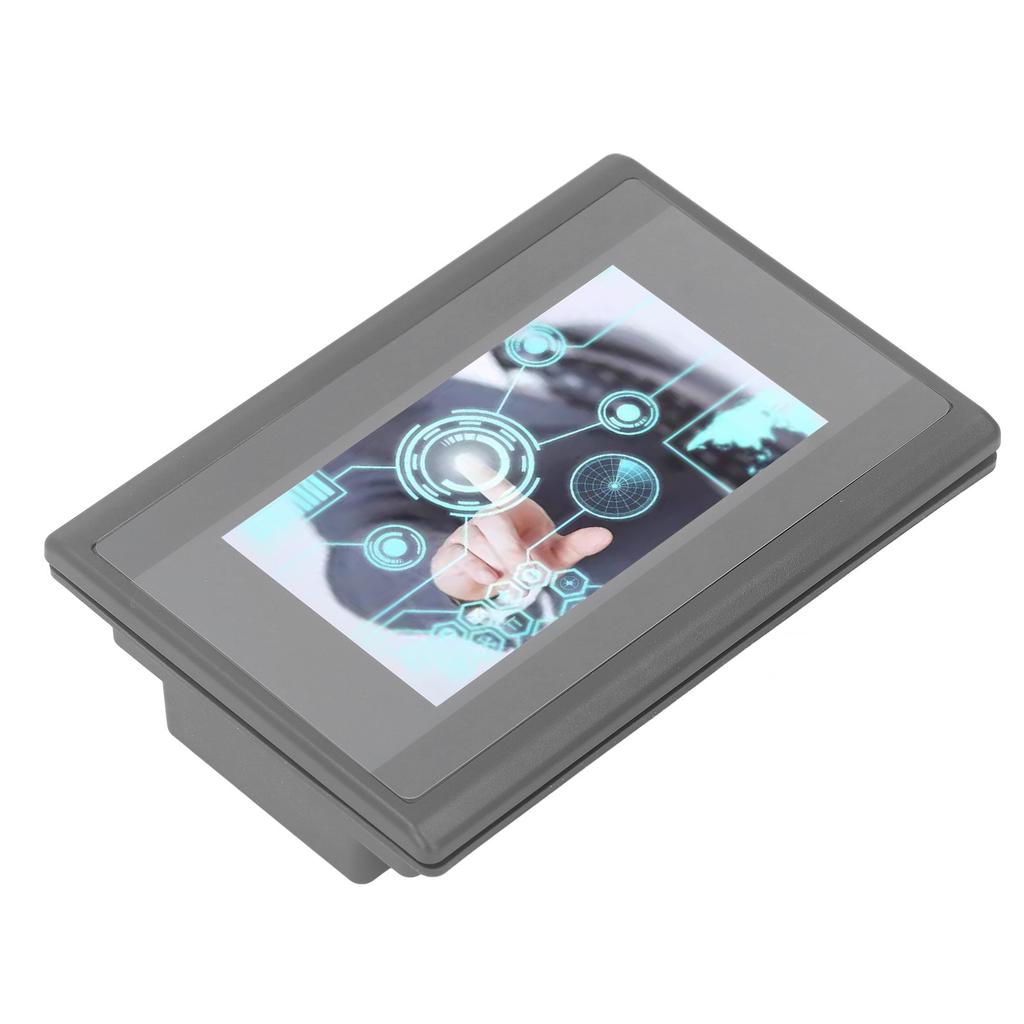

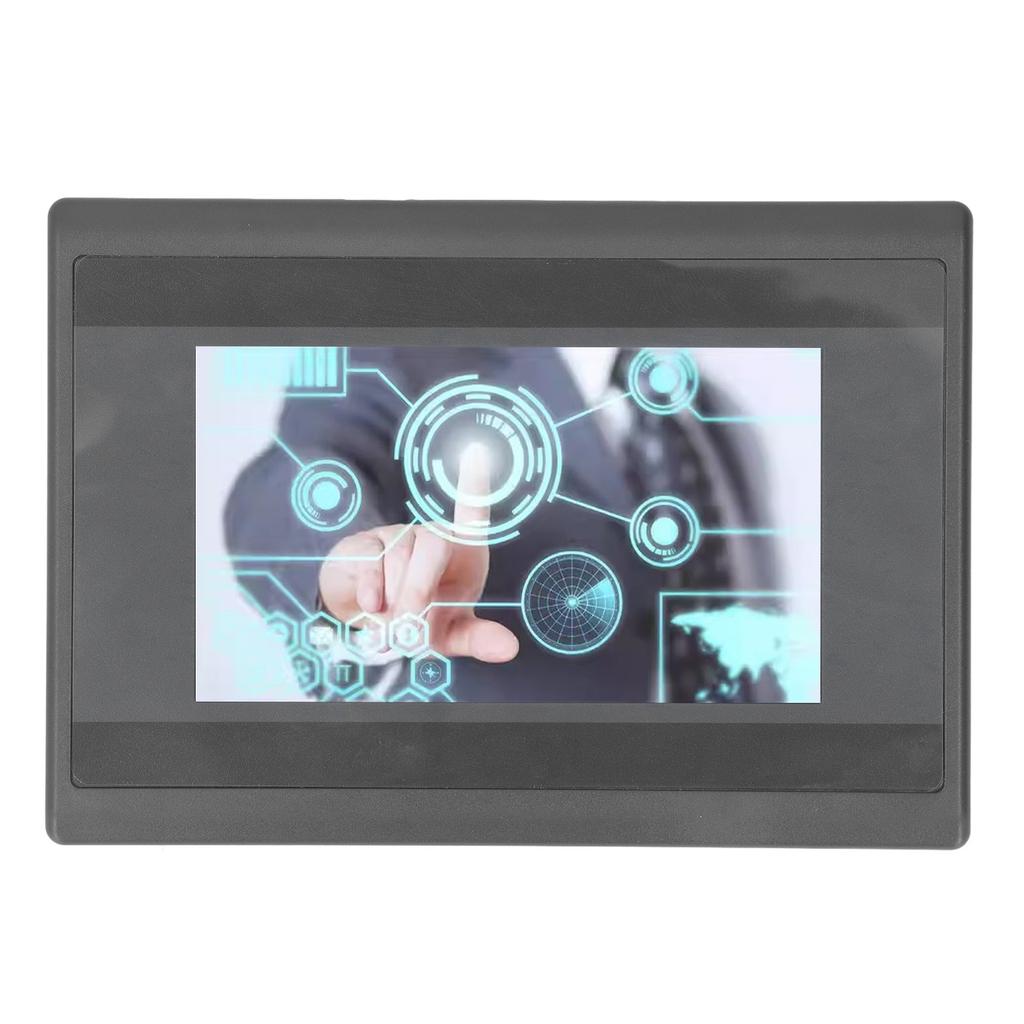

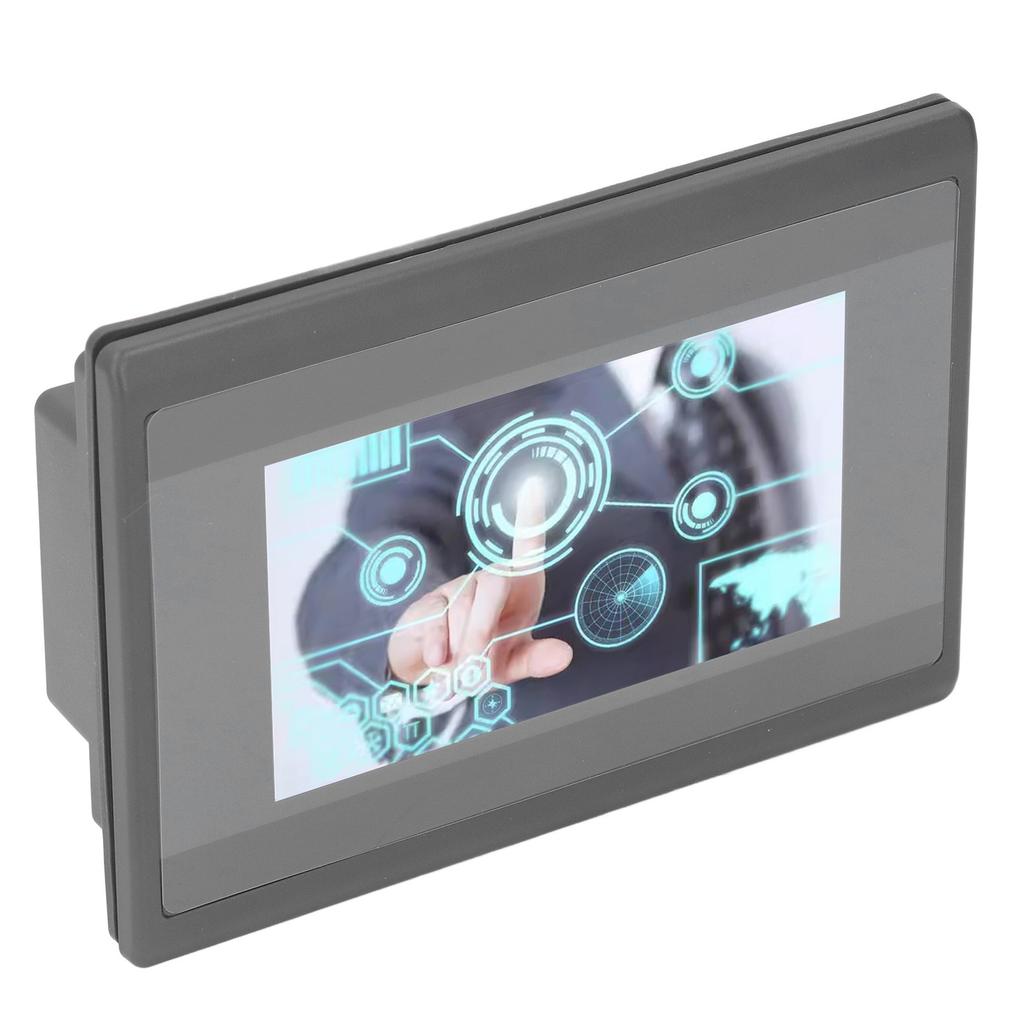

Item Type: 4.3in HMI PLC Touch Screen
Mode: WS4320T
Material: ABS
Output Type: Transistor
Switch Quantity Points: 12 in 8 out
Supply Voltage: DC24V, operating range +15percent
Output Current: 1A
Display: 4.3in TFT LCD screen
Resolution: 480 x 272Px
Color: 260,000
Brightness: 400 cdm2
Backlit: LED
LED Life: 20,000 hours
Touch Screen: 4 wire industrial resistance touch screen (surface hardness 4H)
CPU: 32 bit 240mhz ARM9
Memory: 128M NAND FLASH
Programming Software: For Win HMI Setup V2.0
Ethernet: None
Analog Input: Default 3AD 010V, can be changed to 3AD 420mA or 3NTC 10K
Analog Output: None
Pulse Output: 2 channels 100K
High Speed Count: 2 channels 3K
Pulse Output: None
Communication Port: 1 232 serial port, 1 485 (terminal)
Clock: Supported
Memory Capacity: 8000 steps
Download Speed: 38.4KB
PLC Series: Compatible with FX3U series
Programming Software: Compatible with for Mitsubishi PLC programming software for GX Deve loper or for GX works 2
Program Download Method: Usb download
Usb Flash Drive: Supports USB flash drive download and data import and export
Serial Communication Port: COM communication serial port is 9 pin D type public seating, COM1 supports RS232 or RS485 or RS422 communication (can be customized double serial port, only support RS485 communication)
Power Protection: Lightning surge protection
Opening Size: Approx. 130 x 80mm 5.12 x 3.15in
Machine Size: Approx. 140 x 98 x 36.7mm 5.51 x 3.86 x 1.44in.
Package List:
1 x PLC Touch Screen Integrated Machine 2 x Mounting Screws 2 x Fixed Support PLC TOUCH SCREEN ALL IN ONE: Powered by a 32 bit 240MHz ARM9 processor with 128MB NAND FLASH memory and a 38.4KB download speed.
4.3IN TFT LCD DISPLAY: Featuring a resolution of 480 x 272Px, 260,000 colors, and a brightness of 400 cdm2 with backlighting, providing easy status monitoring.
VERSATILE APPLICATION RANGE: Ideal for various PLCs or intelligent controllers with communication ports. Low power consumption, fast operation, and stable performance.
HIGH TOUCH ACCURACY: Equipped with an ARM9 processor, ensuring high touch accuracy. Front panel meets IP65 (flat panel installation), and the rear shell complies with IP20.
EASY INSTALLATION: With an opening size of 130mm x 80mm and included screws and mounting accessories, the screen can be easily installed in any application.
