Quantity : 1
Hign-concerned Chemical : None
Package : SMD
Model Number : Isolated Switch Module
Dissipation Power : ...
Supply Voltage : 5-12v
Application : LED
Type : Module
Origin : China
Condition : New
Operating Temperature : -25+80

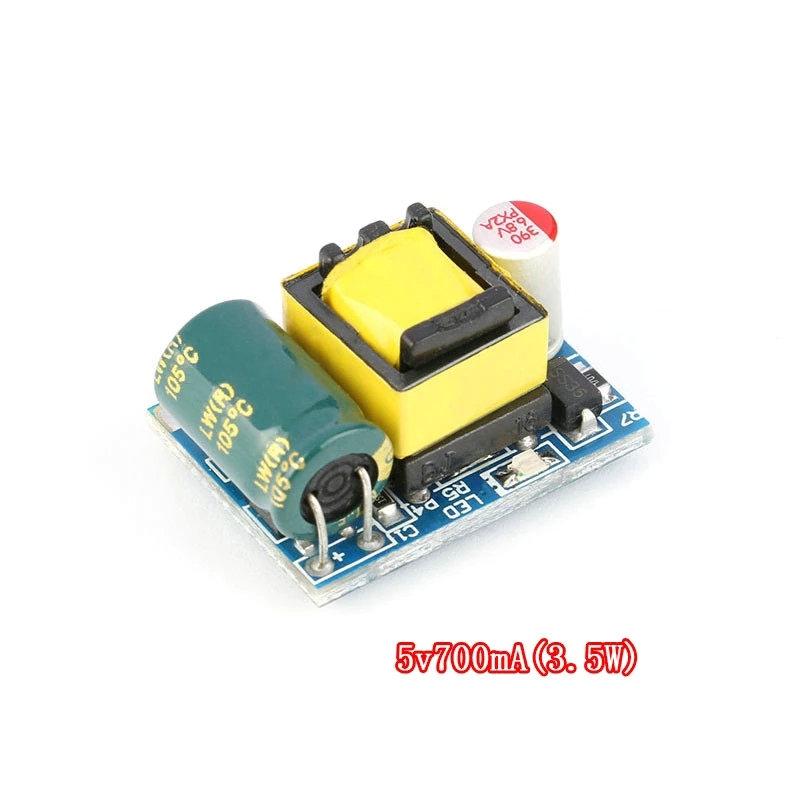

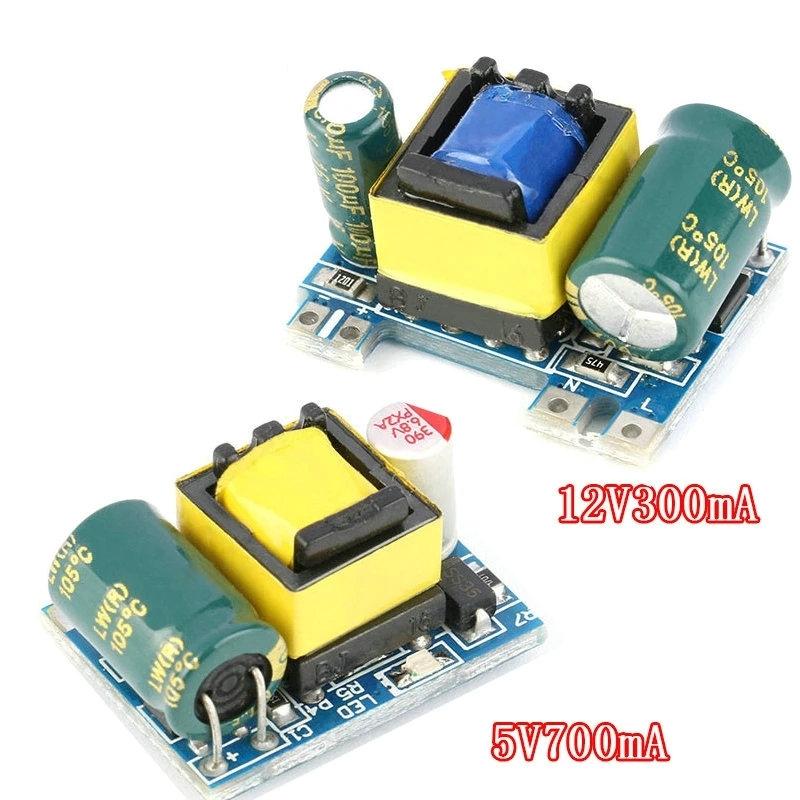

5V700mA
Product Features
1. Output indicator: green2. Full load power: <4W3. No-load power: <0.05W4. Working temperature: -20~705. Test resistance: 7 ohms (4.9V) for 5V6. Output power: 3.5W, efficiency is about 80%7. Input voltage range: AC50V-277V DC70V-390V8. Output current: 5VmA-700mA, enters constant current mode when fully loaded9. Output protection: overvoltage, overcurrent, overtemperature, short circuit protection, etc.10. Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of small current and large current11. Output voltage: 5V+-0.15v no load and full load, light load minus 0.1V, rebound when heavy load, 50% load ripple 60mV12. Capacitance temperature is 105° 10,000 hours, more than 5 years at 70°, and about 20-50 years at room temperature (not recommended for use above 70°).

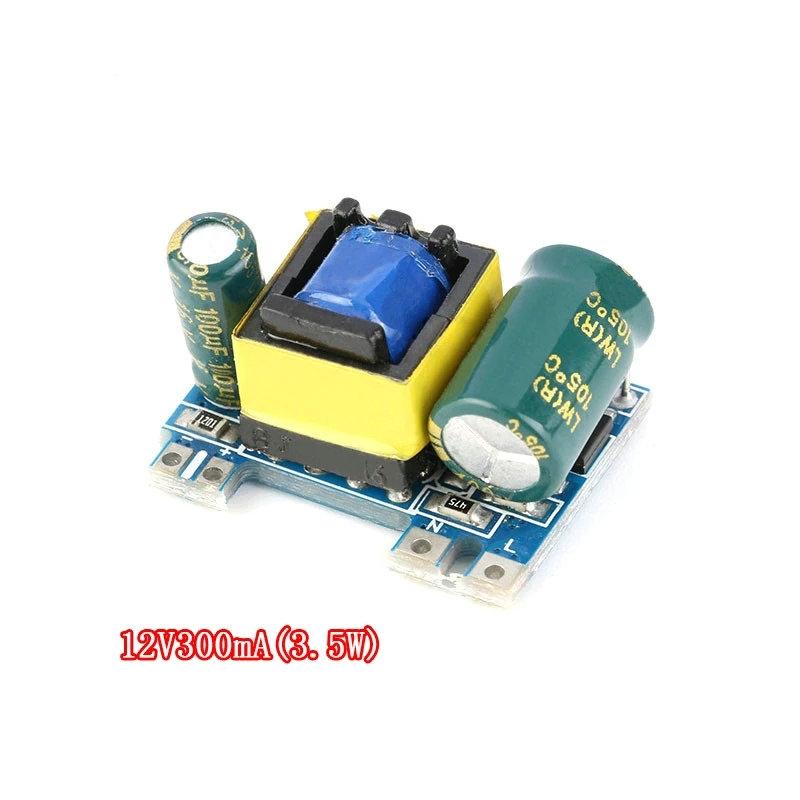

12V300mAProduct Features1. Output indicator: green2. No-load power: <0.05W3. Full load power: <4W4. Working temperature: -20~705. Test resistance: 40 ohms (12V) for 12V6. Output power: 3.5W, efficiency is about 80%7. Input voltage range: AC50V-277V DC70V-390V8. Output current: 12VmA-300mA, enters constant current mode when fully loaded9. Output protection: overvoltage, overcurrent, overtemperature, short circuit protection, etc.10. Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of small current and large current11. Output voltage: 12V-0.05v+0.3v no load and full load, light load minus 0.1V, rebound when heavy load, 50% load ripple 100mV12. Capacitance temperature is 105° 10,000 hours, more than 5 years at 70°, and about 20-50 years at room temperature (not recommended for use above 70°).
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
