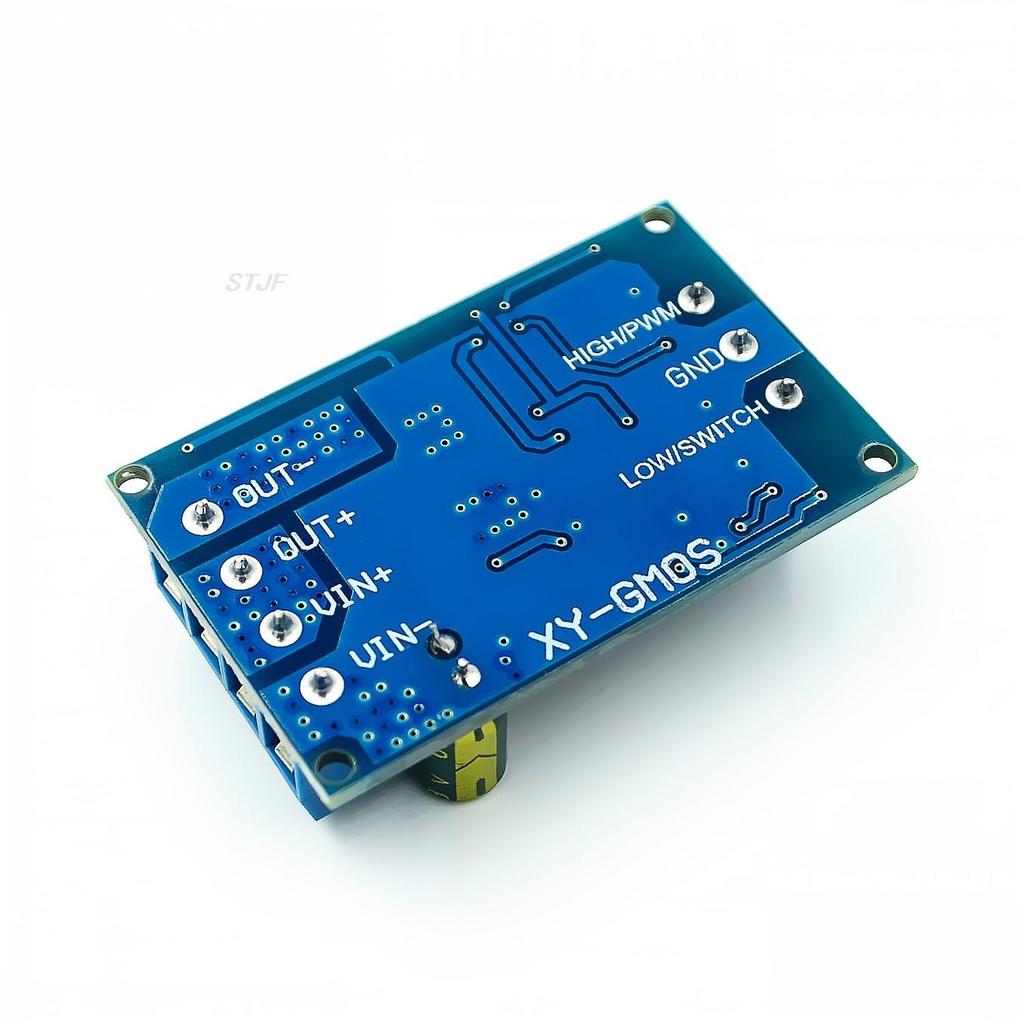

1. Only one signal can control the module at the same time, and two or more signals cannot be used to control the module at the same time;
2. High level trigger voltage range: DC3.0V~24V, that is, MOS tube conduction when the signal is 3.0V~24V, lower than 0.6V, that is, 0V~0.6V. MOS tube is turned off, and signal voltage must not be between 0.6V~3.0V.
3. Low level trigger voltage range: DC 0V~0.6V, that is, when the signal voltage is 0V~0.6V, the MOS tube is on, higher than 3.0V, the MOS tube is off, the signal voltage must not be between 0.6V~3.0V, in that case, MOS is not fully open, high-power MOS will be burned.
Product parameters and application:
1: Working voltage: DC 4V--60V;
2: Trigger signal source: high level trigger (DC3.0V--24V), low level trigger (DC 0.0V~0.6V), switch control, can be connected to SINGLE-chip IO port, PLC interface, DC power supply, etc., can be connected to PWM signal, signal frequency 0-- 2.5KHz support.
3: Output capacity: DC DC 4V--60V, constant current 10A at room temperature, power 600W! Under the condition of auxiliary heat dissipation, the current can reach 15A.
4: Application: The output end can control high-power equipment, motor, bulb, LED belt, DC motor, micro pump, solenoid valve, etc., can input PWM, control motor speed, lamp brightness, etc.

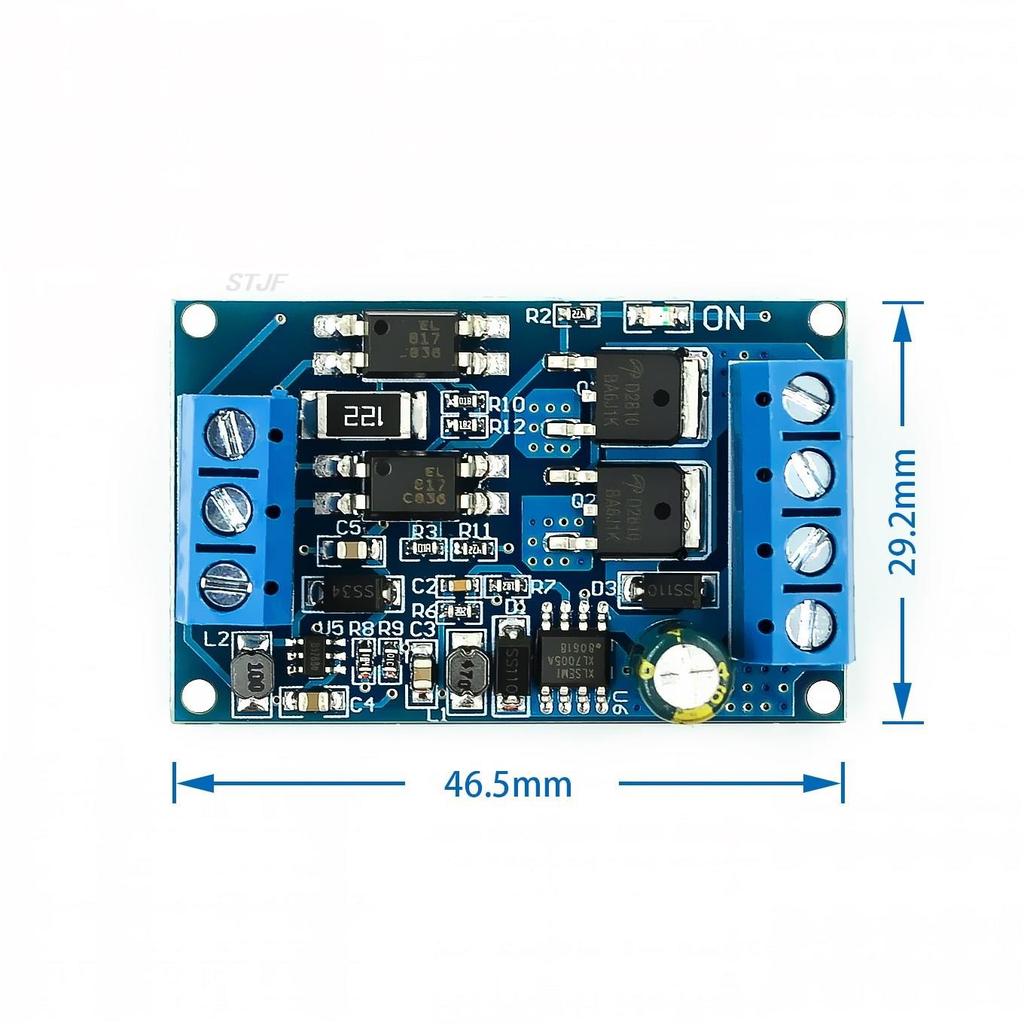

5: Service life: infinite switch; Operating temperature: -40-85 ℃; Size: 4.6 * 2.9 * 1.5 cm

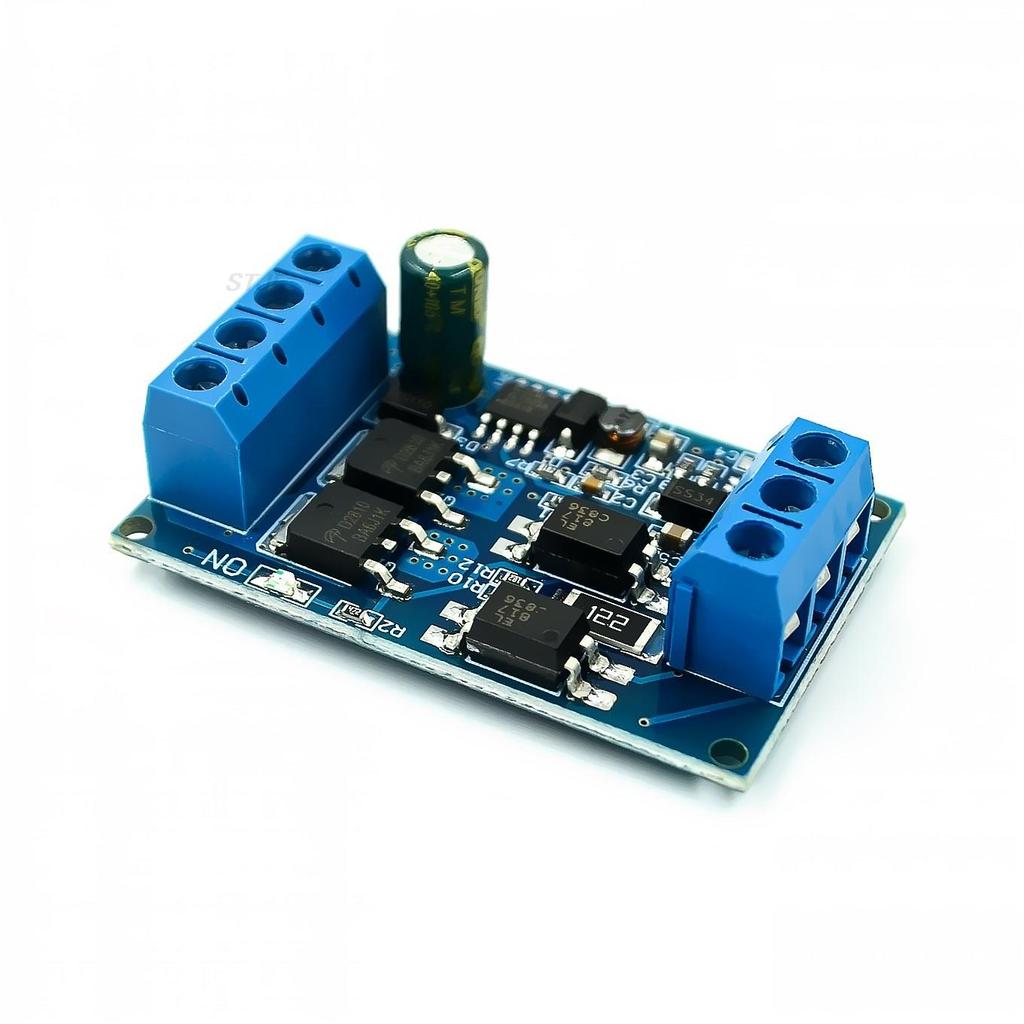

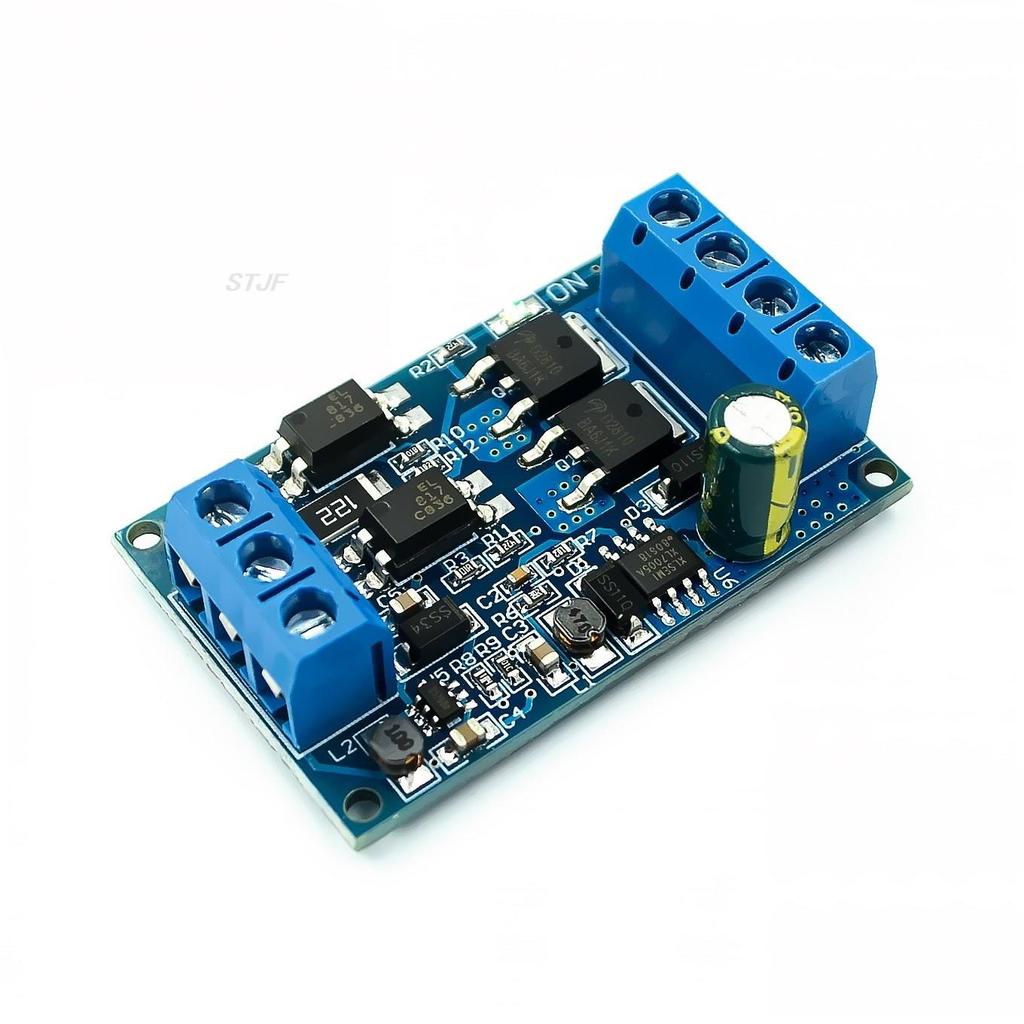

High-voltage and high-power MOS field effect tube trigger switch drive module PWM regulating electronic switch control panel
Module Highlights:
1. This module supports high level trigger, low level trigger, switching volume control and PWM control;
2. Original imported dual MOS shunt active output, lower internal resistance, larger current, strong power, room temperature 10A, 600W, to meet the use of most equipment;
3. Support ultra-wide voltage: DC 4V~60V;
4. Easily realize the control of high-power equipment.
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
