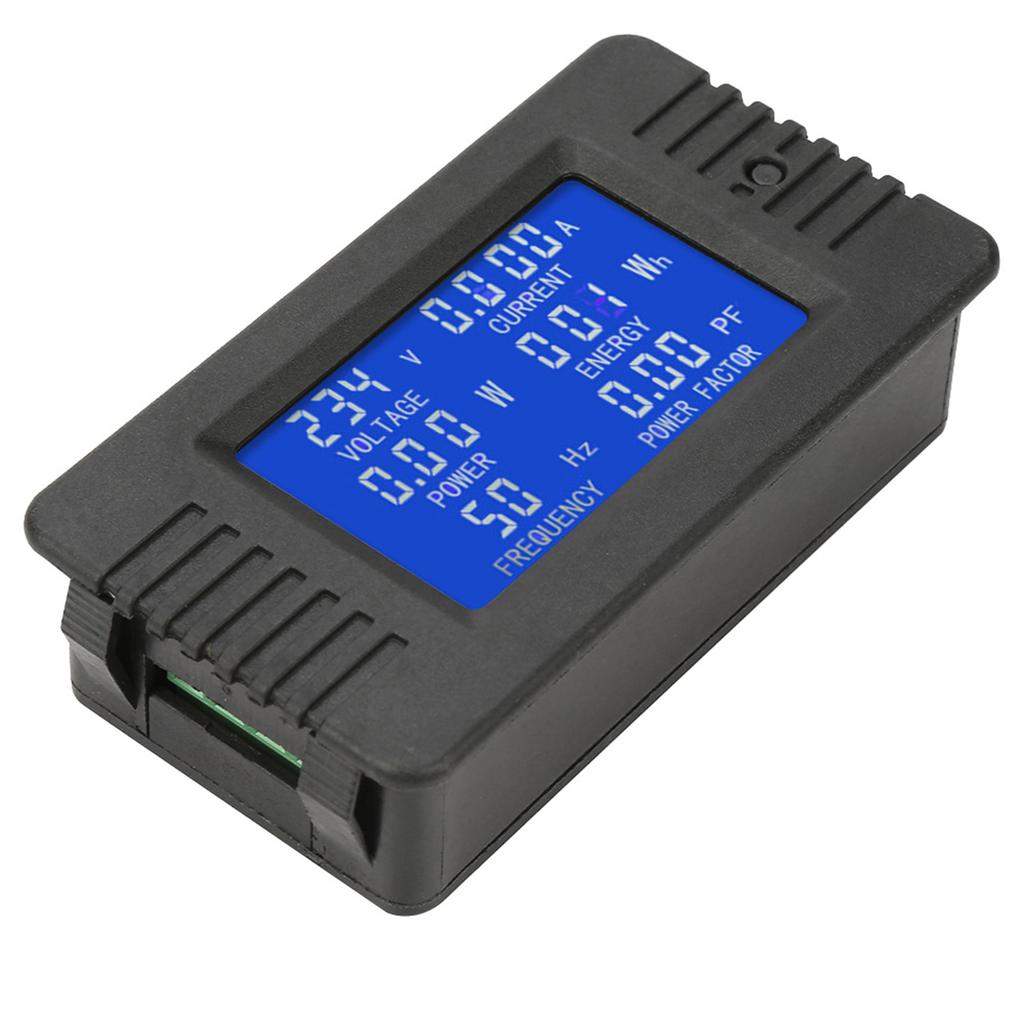

Features:

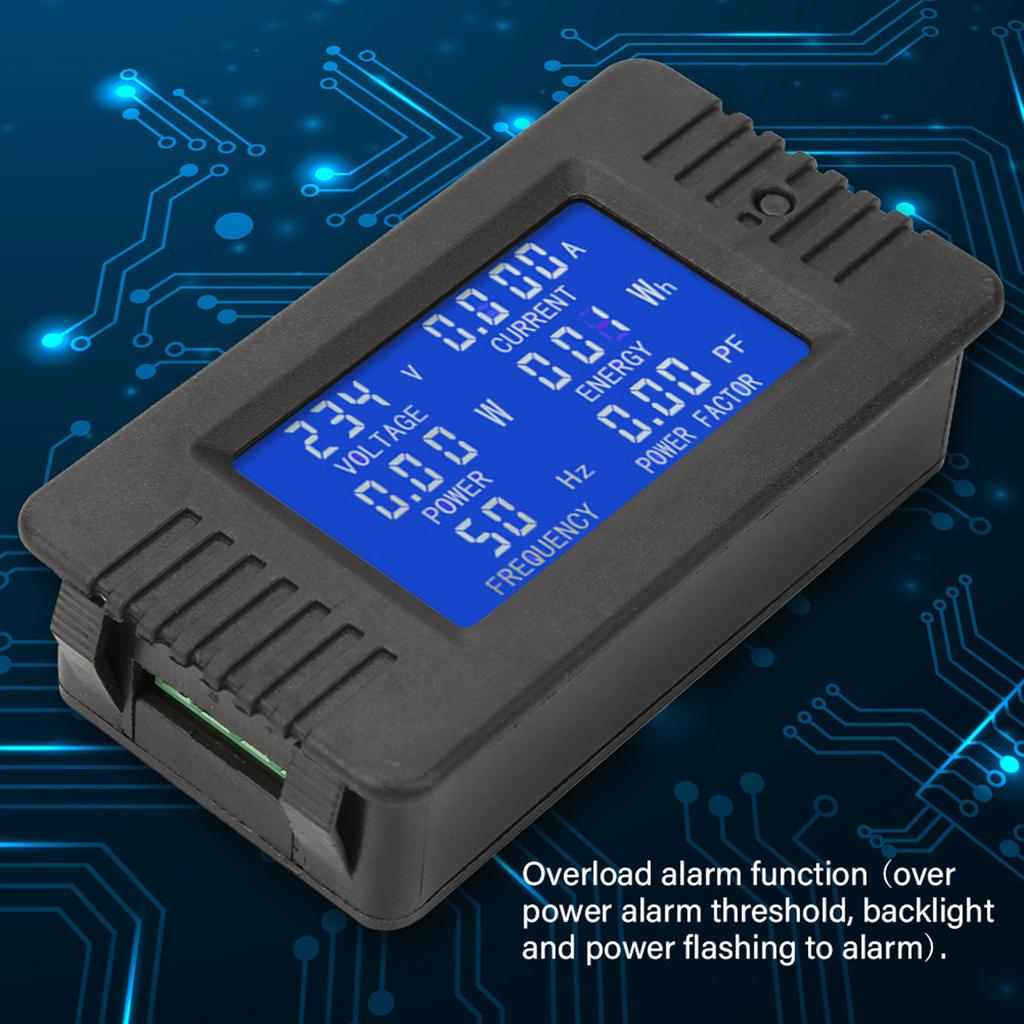

Overload alarm function (over power alarm threshold, backlight and power flashing to alarm).
Power alarm threshold preset function (can set power alarm threshold).
The energy can be reset use the key.
Store data when power off.

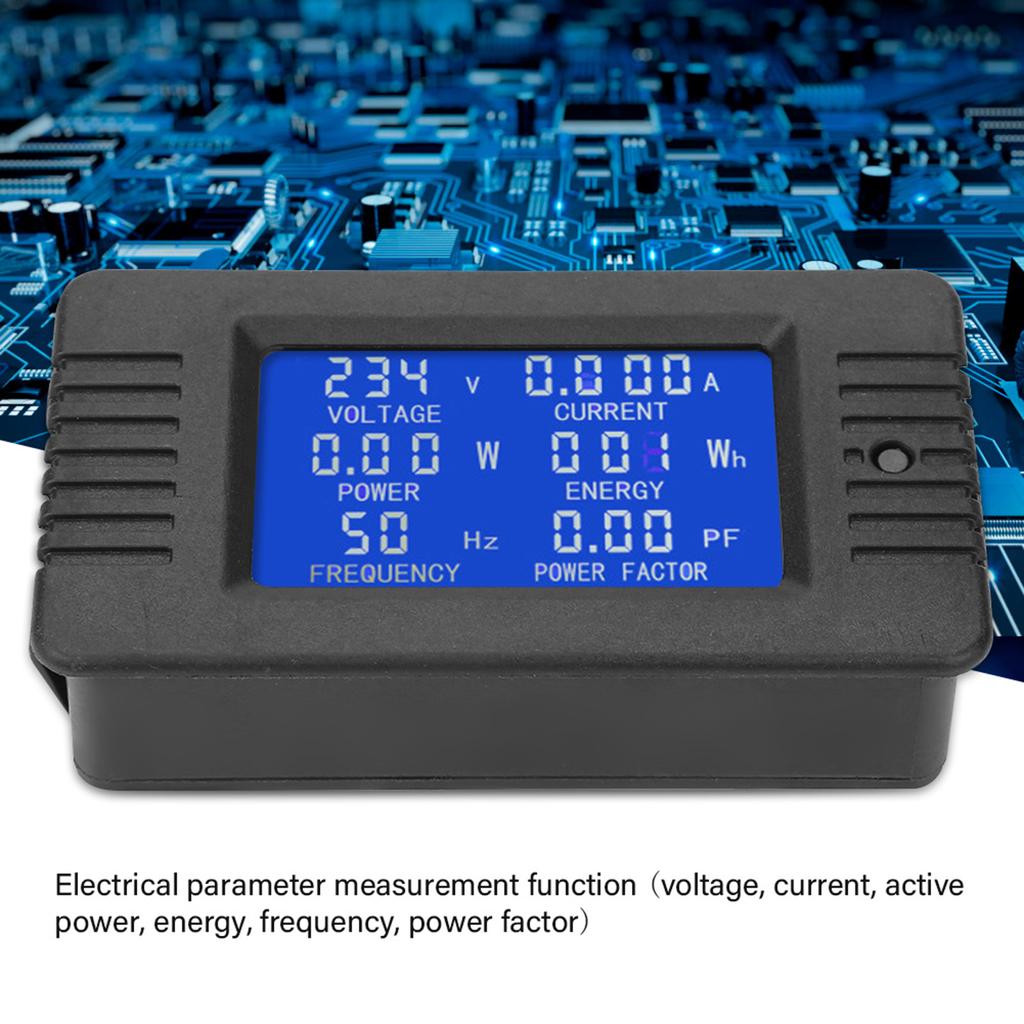

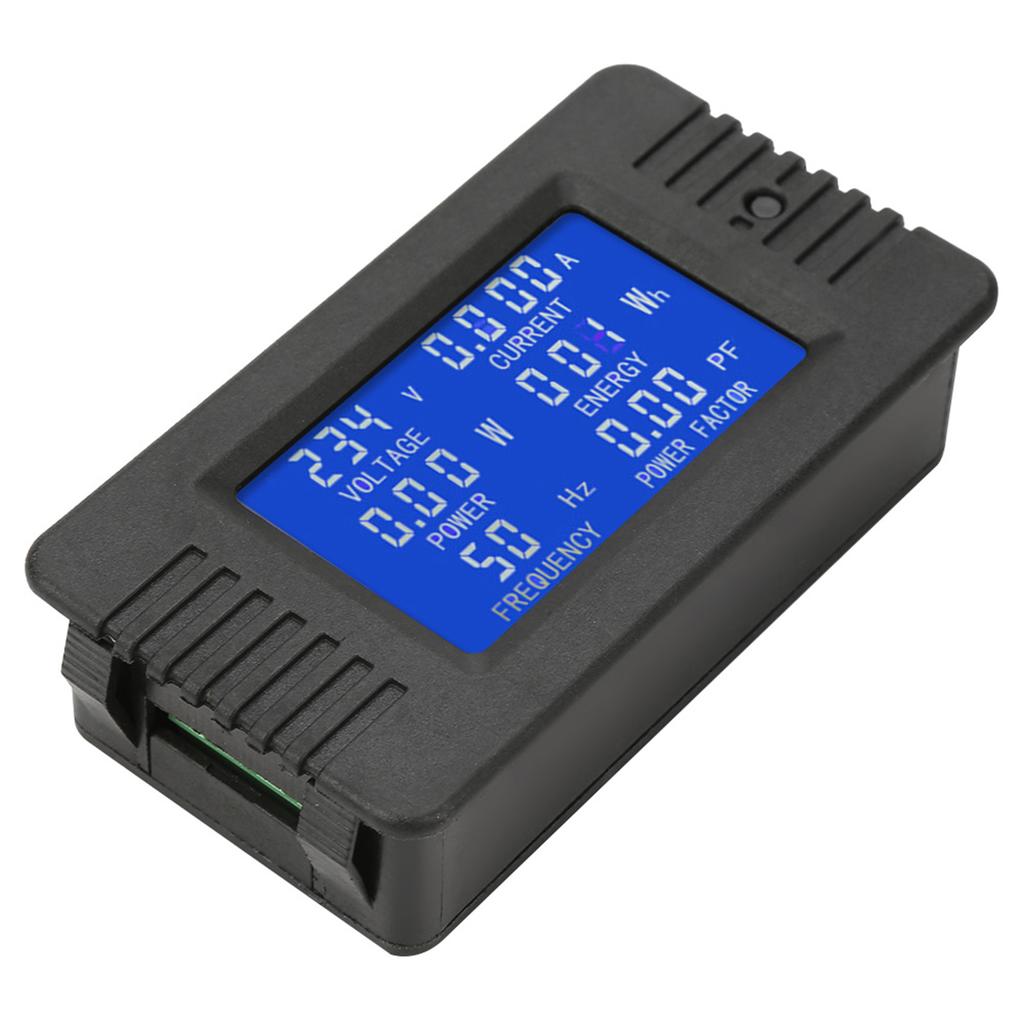

Large screen LCD
Backlight function.
Specification:
Brand:PEACEFAIR
Model:PZEM 020
Current: 10A
Rated power:10A 2200W
Operating frequency: 45 65Hz
Measurement accuracy: 1.0 grade
Size: 9*5*2.5cm 3.5*2*1in
Weight: Approx.85g 3oz
Package list:
1 * Digital Meter

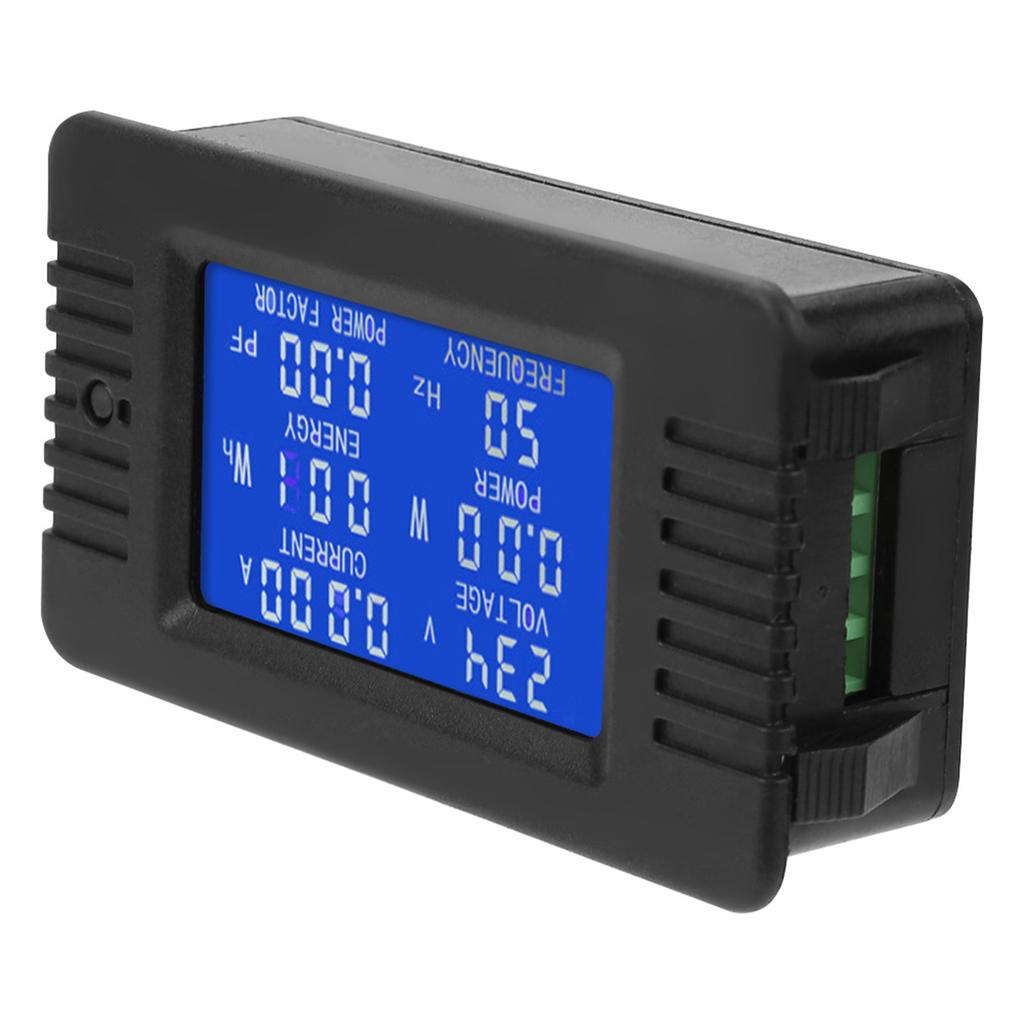

Appearance and Key function
I.Display Interface

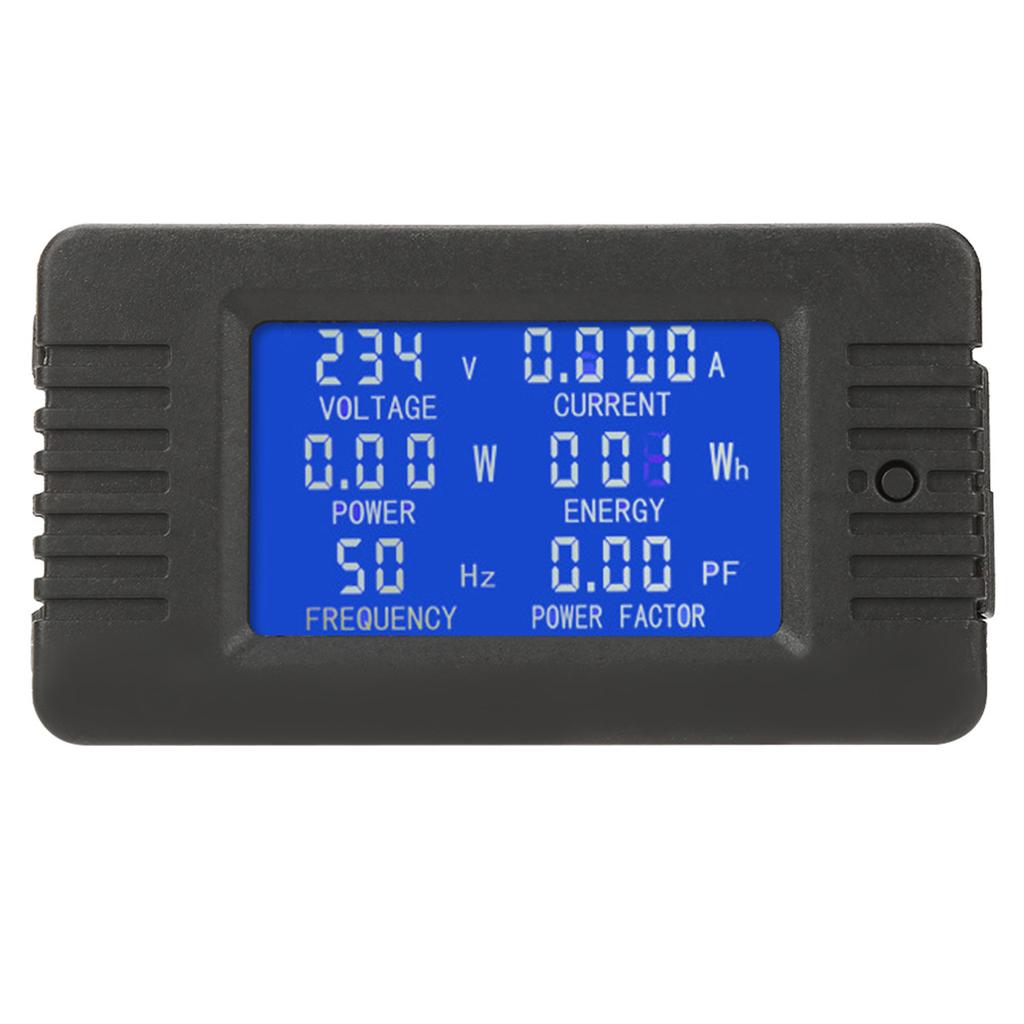

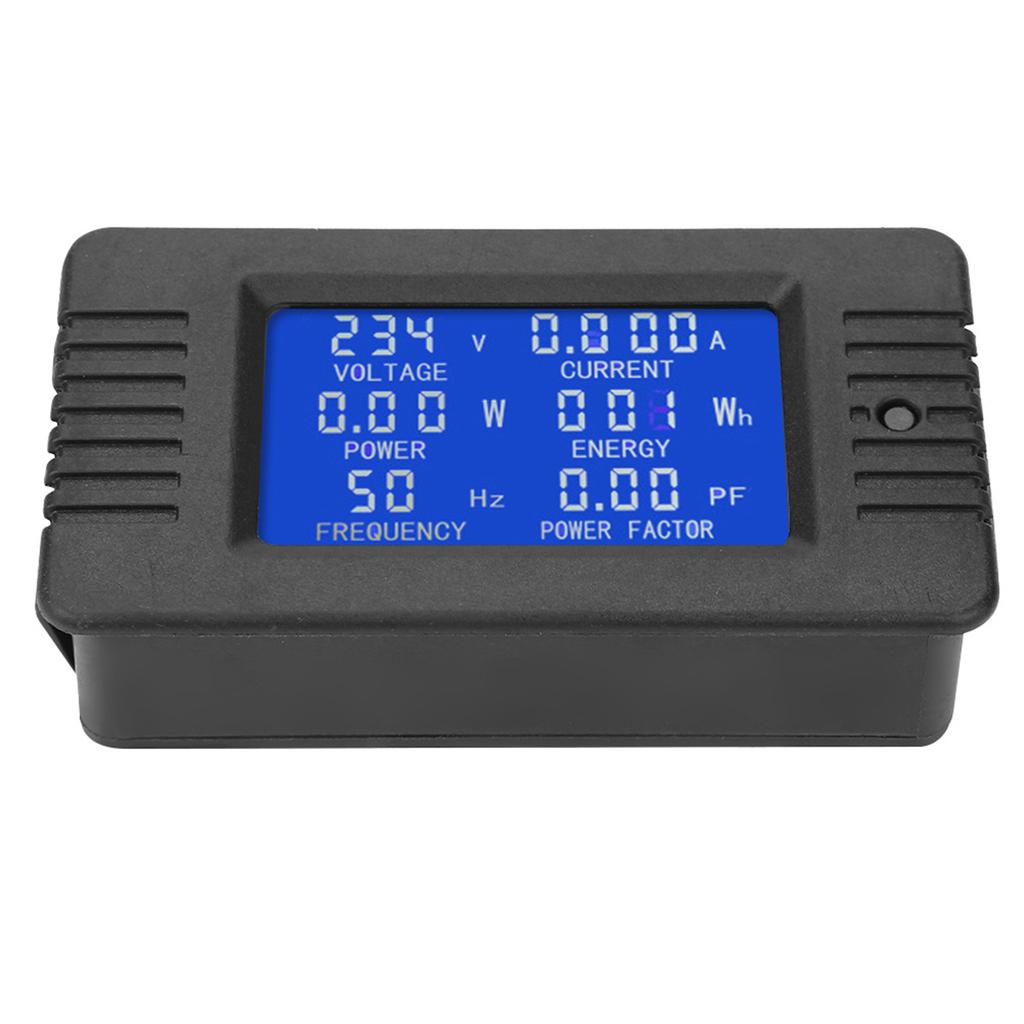

Display interface is large screen LCD, it can display six parameters at the same time.
II.Display format
1. Power: test range: 0 2200W, Starting measure power: 0.2W
less than 10W display format:1.00 9.99W
less than 100W display format:10.0 99.9W
less than 1000W display format:100 999W
more than 1000W display format:1.00 2.30kW
2. Energy: test range: 0 999kWh
less than 1kWh display format:0 999Wh
less than 10kWh display format:1.00 9.99kWh
more than 10kWh display format: 10 999kWh
Display format: 80 260V
4. Current: test range: 0 10A,Starting measure current: 0.001A
Display format: 0.000 10.00
5. Frequency: test range: 45 65Hz
Display format: 45 65Hz
6. Power factor: test range: 0 1PF
Display format: 0.00 1.00PF
Key functions
1. Backlight control
Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off.
2. Reset energy
Step1: Long press the key for 5 seconds until the energy value flash, then release the key.
Step2: Short press the key again, then the energy value is cleared and exit the reset flashing state.
Step3:If there is no operation on the key within 5 seconds, it means the energy value is not cleared and will exit the reset state.
3.
Set power alarm threshold
Step1: Long press the key until the LCD screen display SET CLr , then release the key to enter the setting state
Step2: Power window display the current power alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operating over 3 seconds, it will switch the digit position automatically, the setting method is as same as the above.
Step3: After finish the setting, long press the key over 5 seconds will store automatically and exit, the range of active power threshold is 0.0 2.5kW.
Note:
1. This module is suitable for indoor, please do not use outdoor.
2. Applied load should not exceed the rated power.
3. Wiring order can t be wrong.
.
