Battery Included : No
High-concerned chemical : None
Is Smart Device : No
Model Number : PH-803
With Backlight Or Not : No
Display Type : DIGITAL
Origin : Mainland China
Certification : None

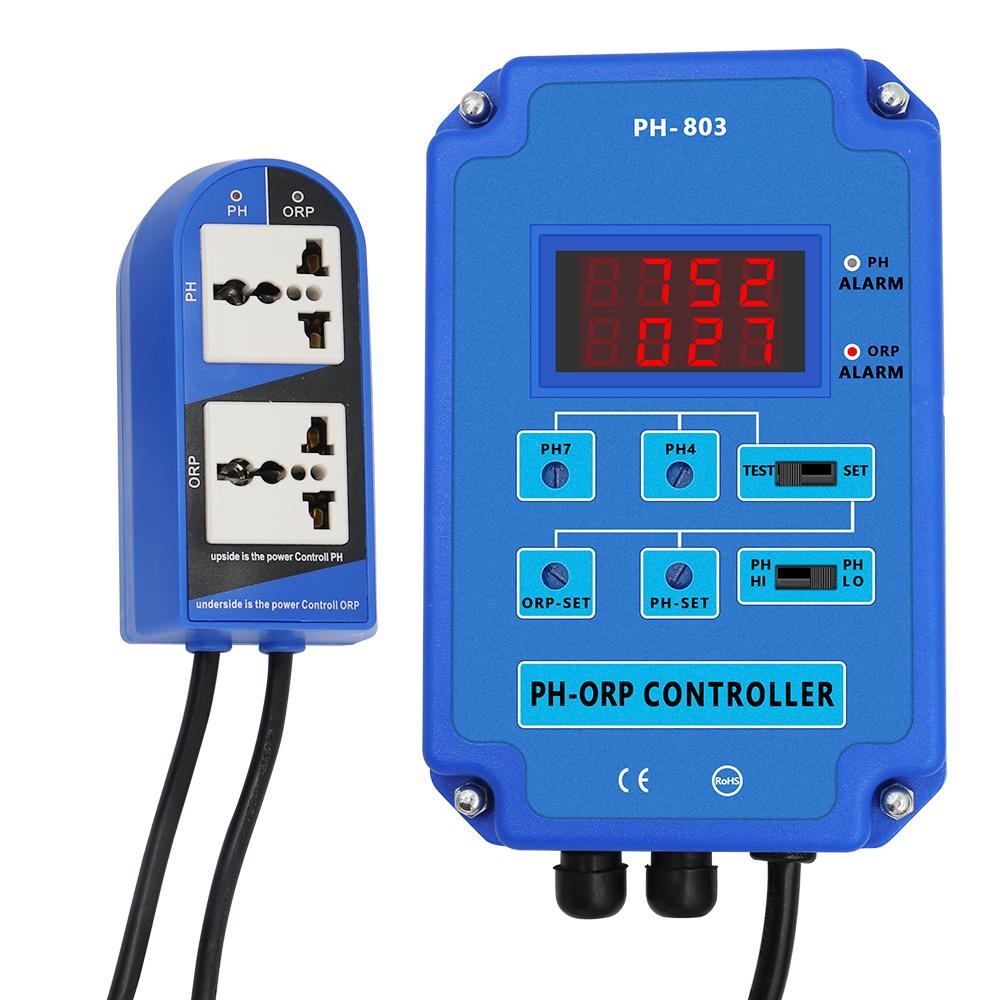

2 in 1 PH ORP Controller Monitor Digital Redox with Output Power Relay Control Electrode Probe BNC for Hydroponics Plants
This 2-in-1 pH & ORP controller and monitor simultaneously measures and displays both pH value and redox value (ORP).

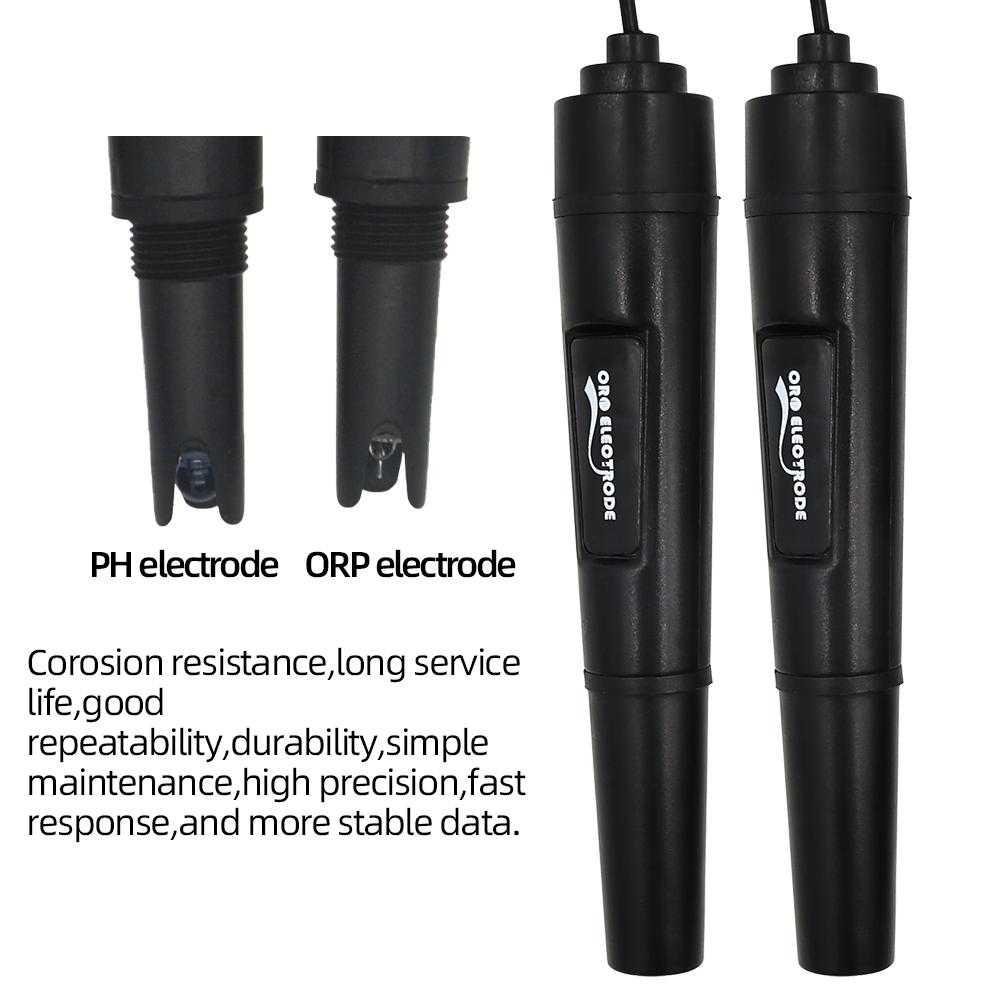

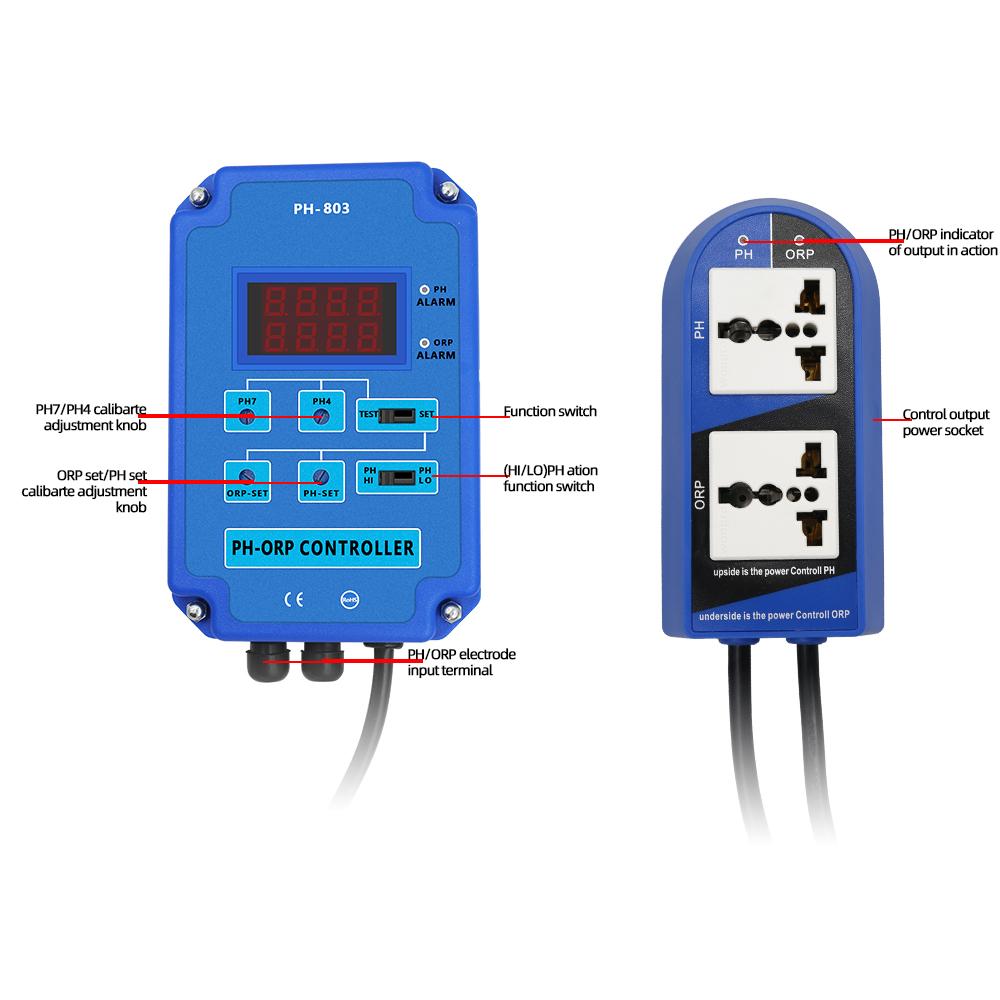

It comes with 2 BNC electrodes (pH and redox) and 2 output power sockets. Both electrodes are detachable, they can be replaced easily at any time. As for the relay output power sockets, you can plug in your own 110V/ 220V device to it, e.g. air outlet stone, O3 ozoniser, oxygen pump, CO2-regulator, electromagnetic valve and other ORP & pH control devices. Simply set the desired Hi/ Low pH/redox values in the controller.
It will turn on your device if the currently measured pH or Redox value is lower than your set value, and it will turn off your device if the measured value is higher than your set value.
Applications & Usage:
Fish hatchery, wine production, swimming pool (bath), laboratories, water conditioning, schools & colleges, floristics, for analysis of fluids (ph-value), ponds, various industrial application, Pisciculture, Koi, Kois, Boilere, Pond, Pool, Spa, swimming pools, pool, analysis of liquids, orchids breed, breeder, hemp, grow, etc.The suitable way for you to keep an eye on the different water parameters in your tank! A MUST to have a perfect way to automate & regulate the control devices in your aquarium to ELIMINATES FATALITY and MAINTAIN a HEALTHY WATER SYSTEM!
Display: double 4 LED, DUAL display reading
Conformity: CE and RoHs
Measuring range
PH: 0.00 ~ 14.00pH
ORP: -1999 ~ 1999mV
Accuracy
PH: plusmn0.1%+0.02PH
ORP: plusmn5mV
Resolution
PH: 0.01pH
ORP: 1mV
Set Range
PH: 3.50 ~ 10.50pH
ORP: -500 ~ 500mV
Relay Contact: 5A for AC 110V or 220V
Environment
Operation Temperature : 0 to 50 degC (32 to 122 degF)
Ambient Humidity : 90 or less than 90 % R. H.
Power Requirement : AC110V plusmn10% 60Hz / AC220V plusmn10% 50Hz
Power Consumption : 2 Watts
Voltage: 110V or 220V
Dimensions: 160 x 102 x 40mm
Weight: 872g
1 x Dual Aquarium Controller for pH & ORP
1 x pH electrode
1 x ORP electrode
2 x Rubber cable holder with suction cap
1 x Metal wall hanger
1 x Mini-screwdriver
1 x English Operation Manual
