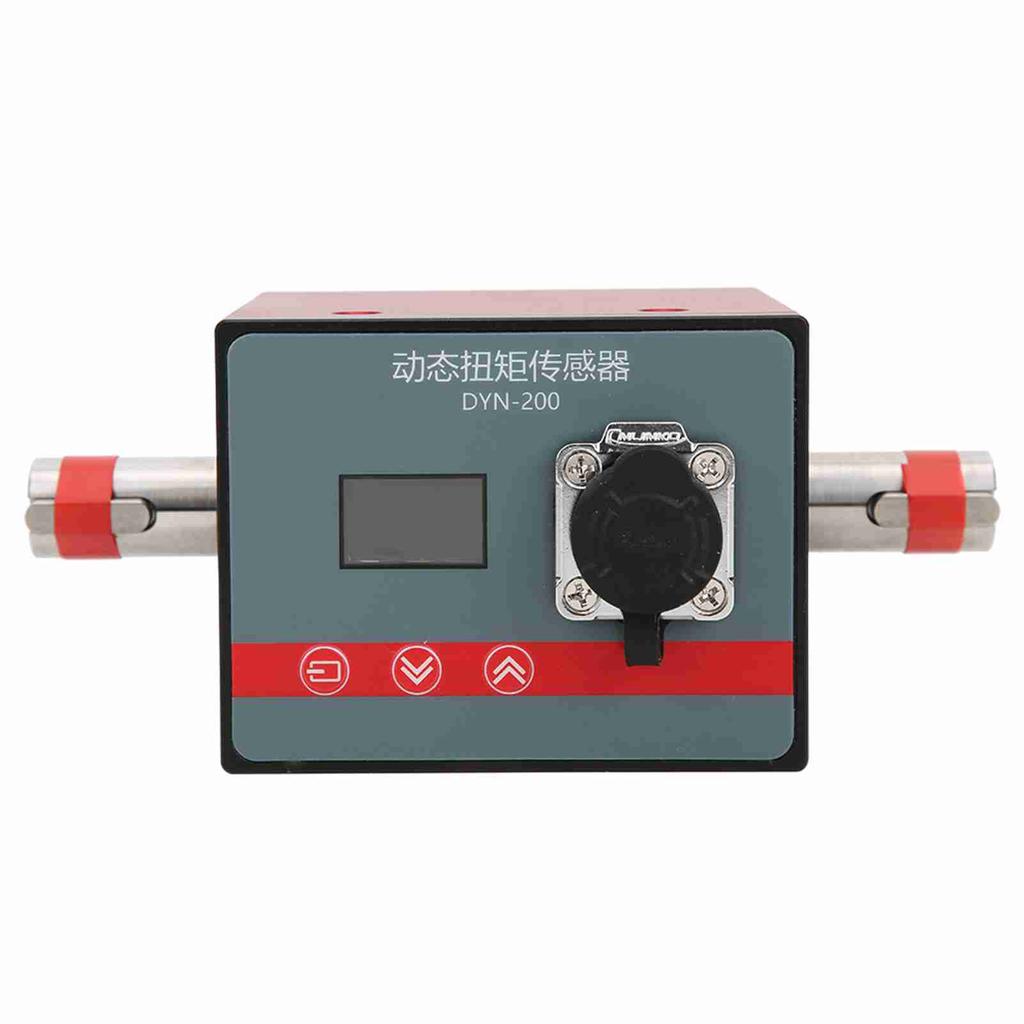

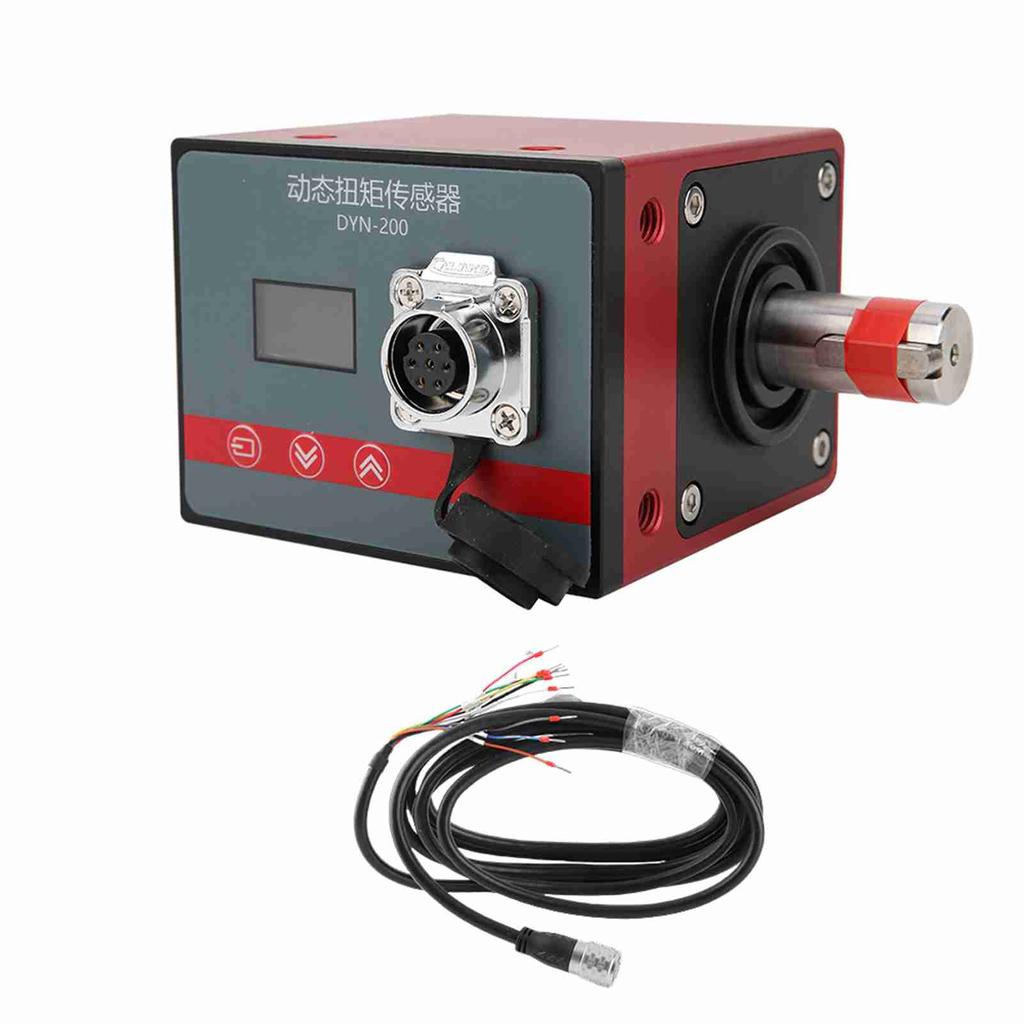

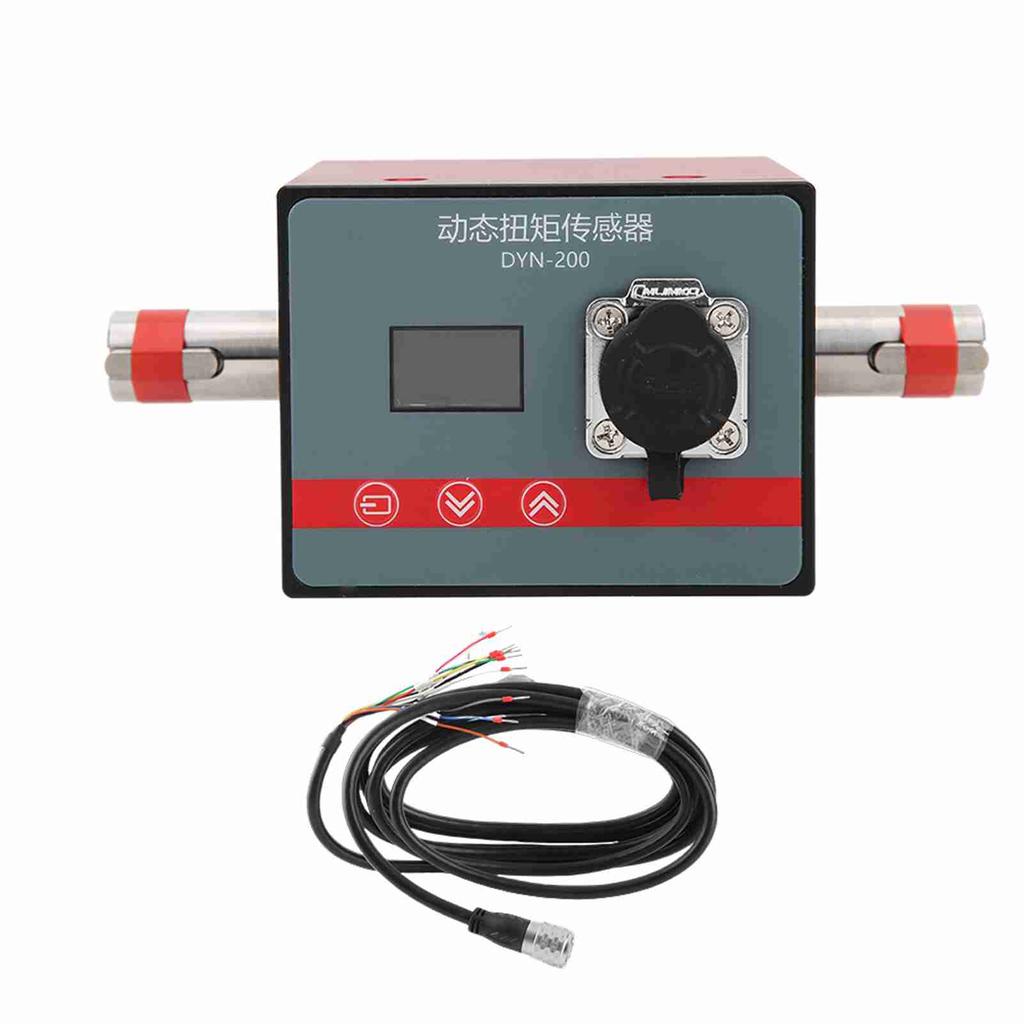

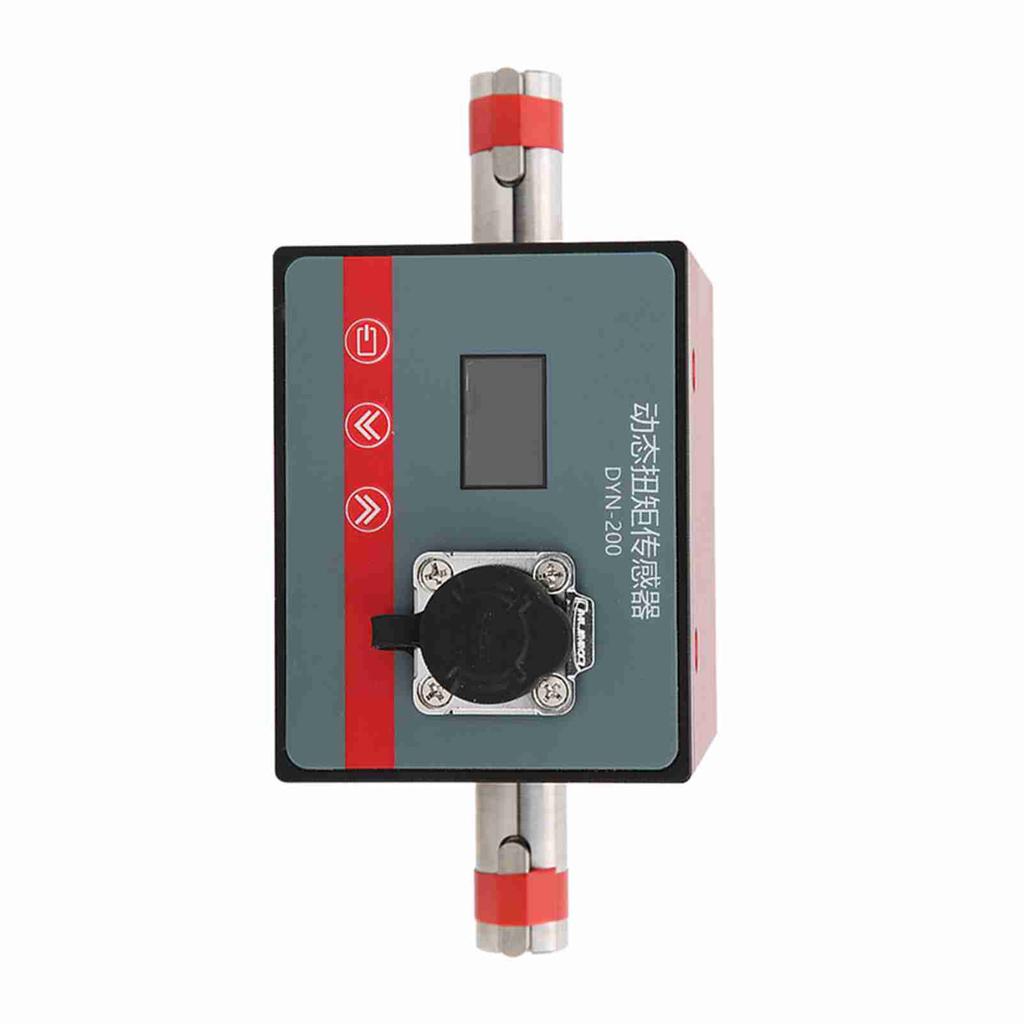

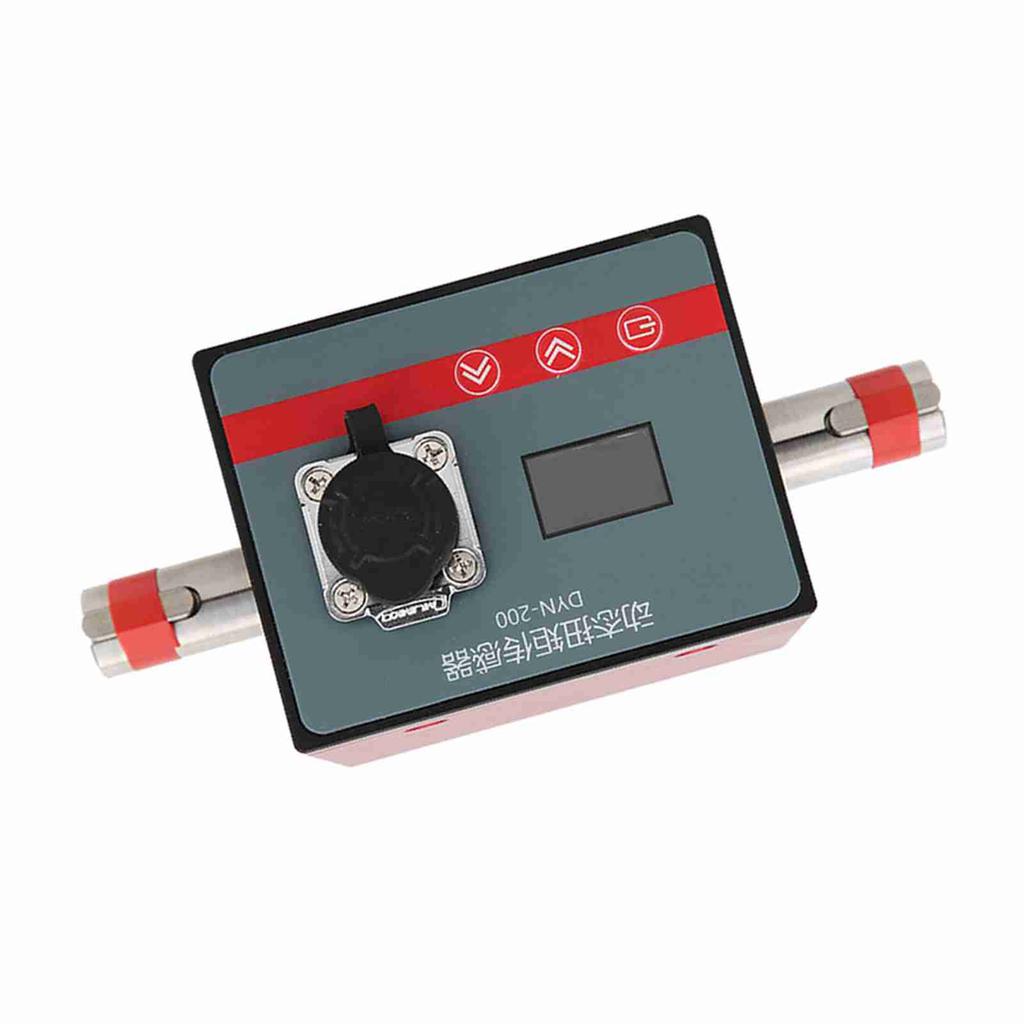

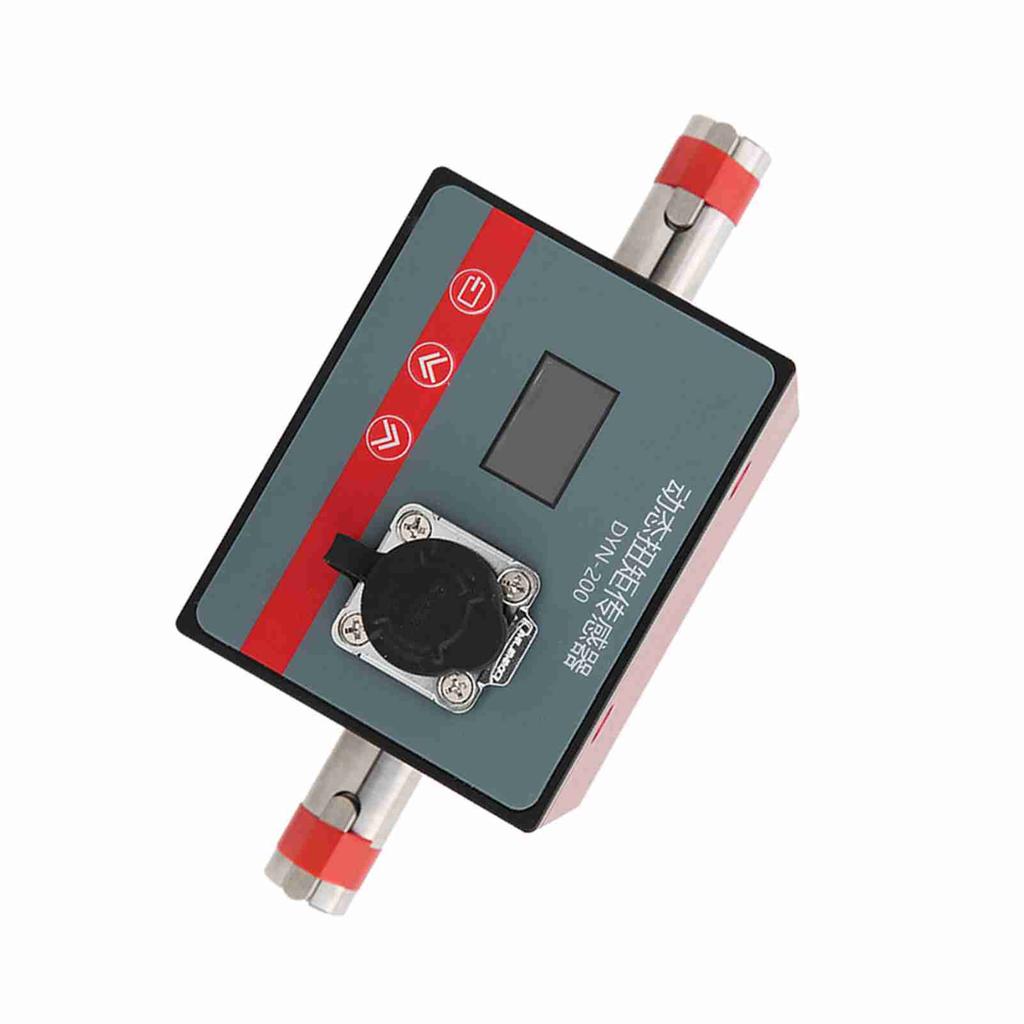

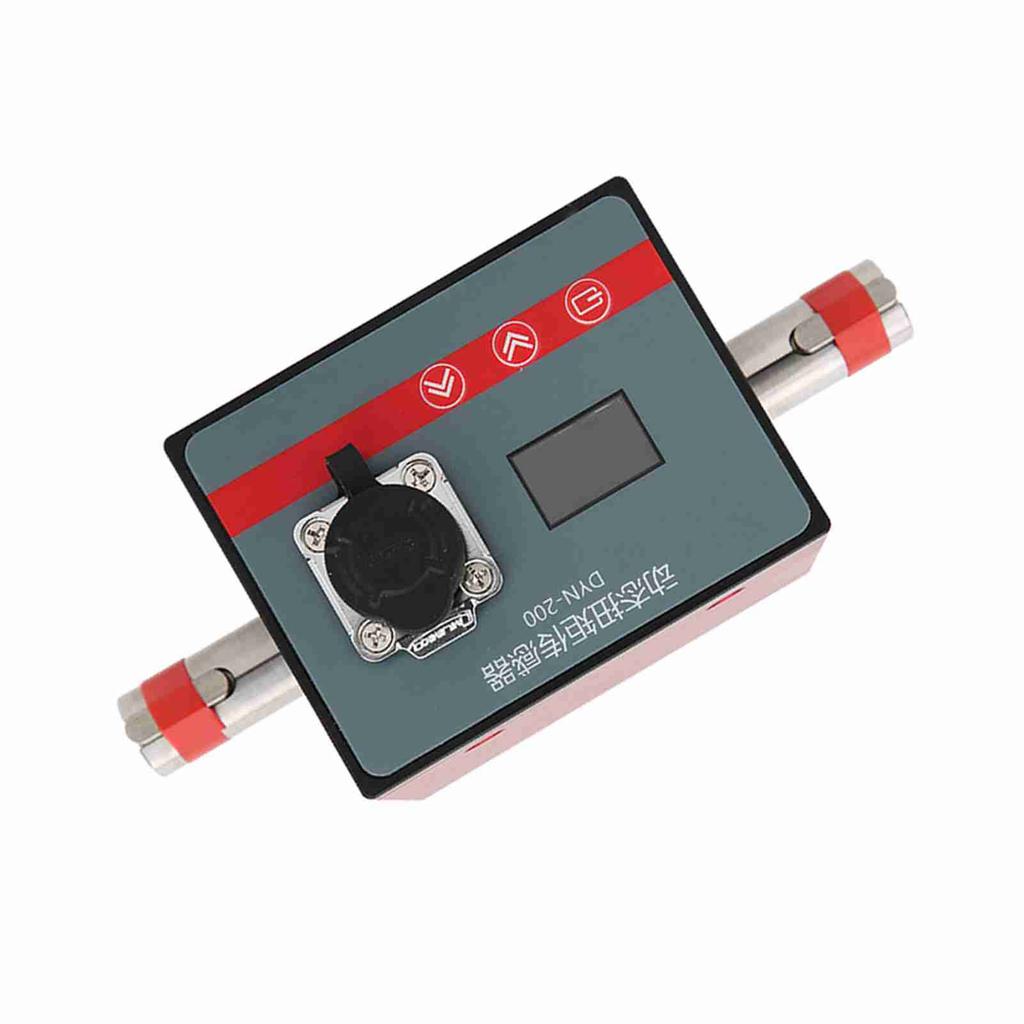

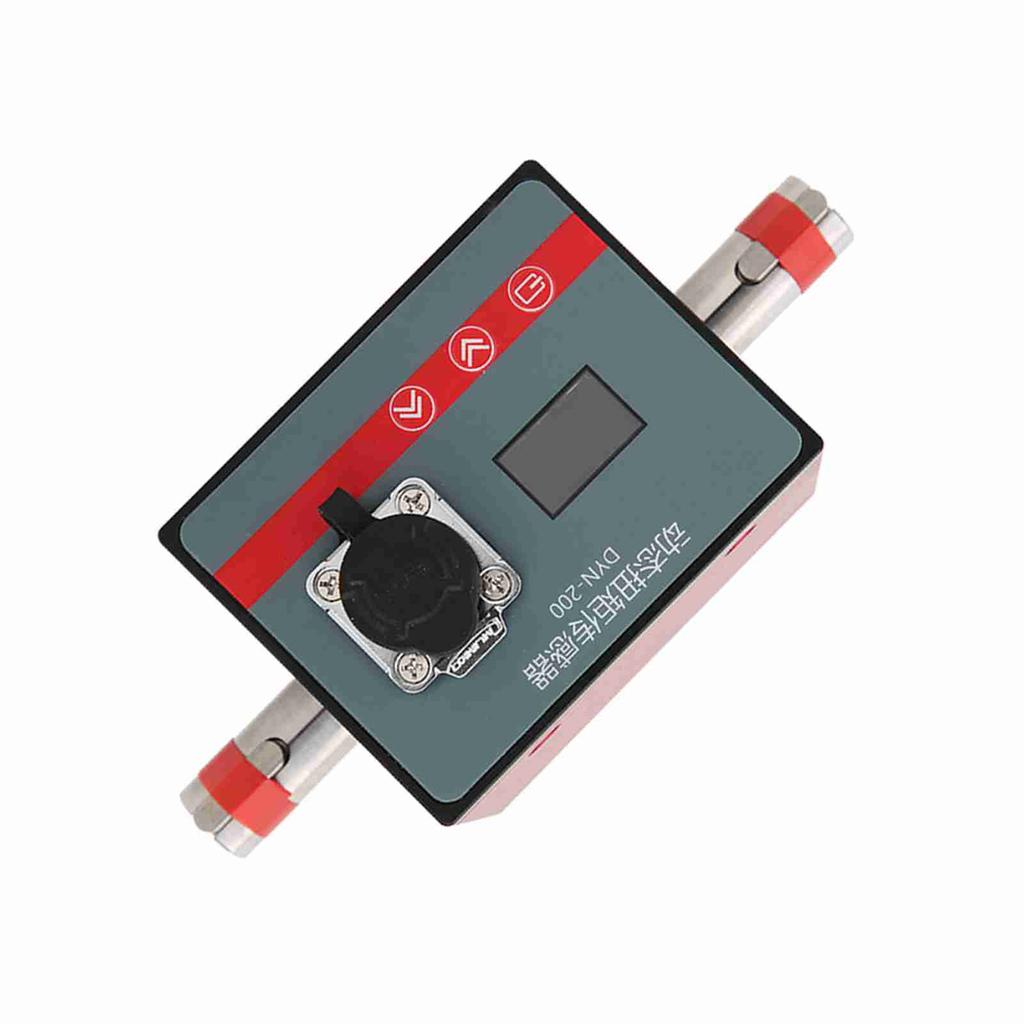

Dynamic Torsion Sensor Rotating Motor Speed with OLED Display DYN 200(20N.M)

Feature: 1. Real time display of the current measured torsion value and speed value, you can directly calculate the current power value 2. Support RS485 communication, support active upload protocol, communication rate up to 500 times per second 3. This sensor supports simultaneous output of transmission current and transmission voltage 4. The sensor comes with OLED display, the resolution is 128 * 64 5. Can carry out simple calibration, clearing, filtering and other operations, allowing the sensor to be overloaded by 200percent 6. The accuracy achieves accuracy of 1 1000 or more, with excellent 0 point stability 7. Non contact, no maintenance, no wearing parts and no life limit Specification: Item Type: Dynamic Torsion SensorRated Capacity: + 20N.m Power Input: DC24V Current Consumption: Below 150mA Torsion Output: + 5VDC; 0 10V; 4 20mA Speed Output: 60 pulses revolution Response Performance: 1kHz Load Resistance: 2k Ohm or more Signal Delay: 0.6ms (50percent response) Allow Overload: 200percent FS Operating Temperature Range: 10 + 50 celsius Non linearity: 0.1percent FS Repeatability: 0.03percent FS Lag: 0.03percent Temperature Effect Of 0 Point: 0.01percent FS C Temperature Effect Of Output: 0.01percent FS C Rated Speed: 10000rpm The Fastest Rotation Speed: 15000rpm Maximum Twisted Angle: 2.60 * 10rad (0.149 degrees ) Moment of Inertia: 0.38kgcm Vibration Natural Frequency (rotor Part): 19.4kHz Torsion Constant: 3.85 * 10Nm rad. Package List: 1 x Sensor1 x Cable
