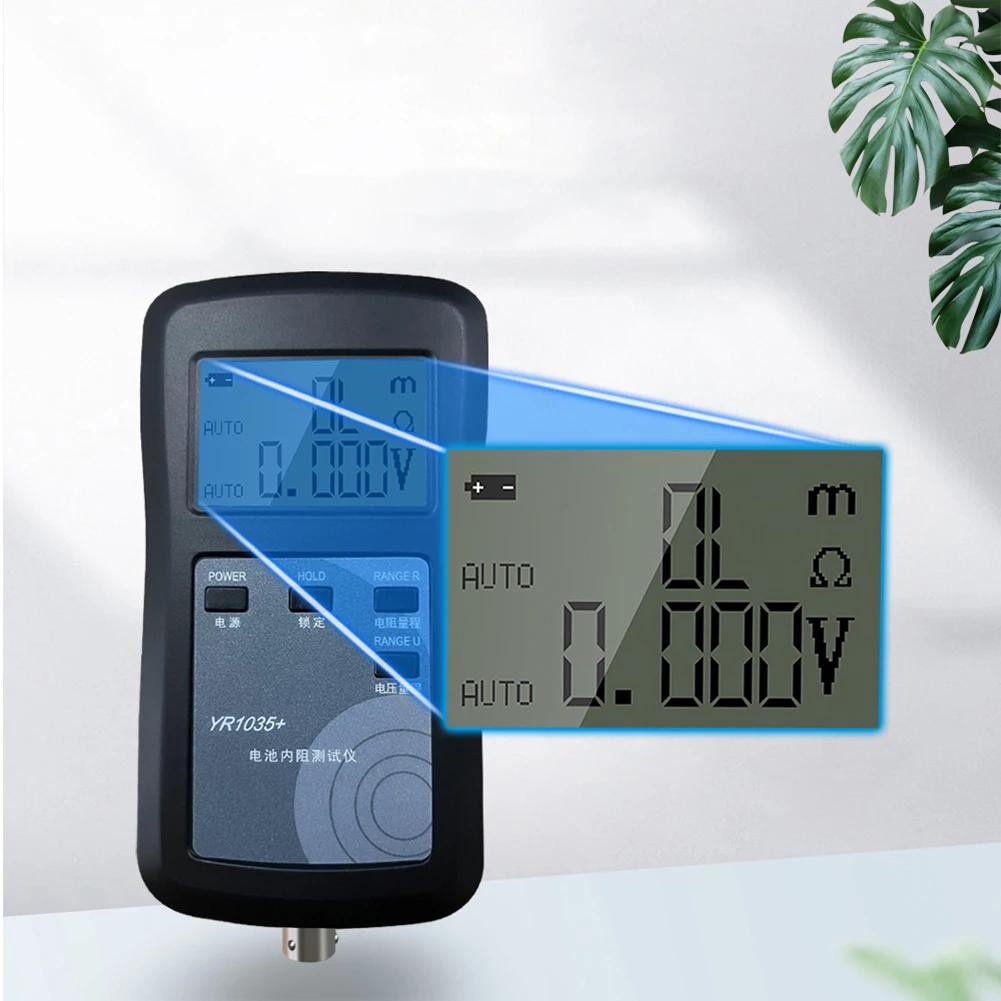

YR1035+ 4-Wire Digital Lithium Battery Internal Resistance Tester High Precision Internal Resistance Test Instrument 100V for Ni-MH Ni-CD Li-ion Battery
Feature:

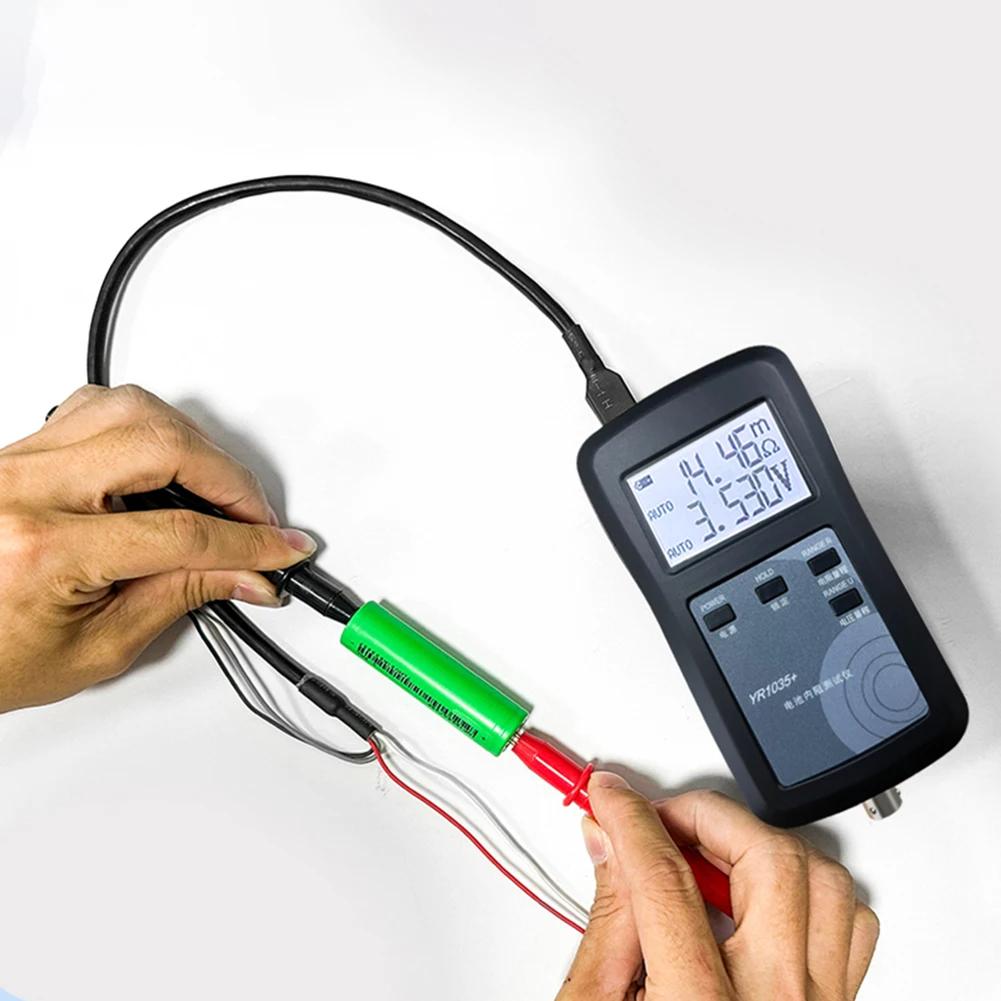

1. Advanced Measurement Technology:This lithium battery internal resistance tester employs a true 4-wire AC sine measurement, effectively suppressing the impact of test leads and contact resistance. This assures you of accurate and reliable readings, making it a vital tool for precise electrical measurements.
2. Functional Interfaces:The internal resistance test instrument comes with two functional interfaces, supporting battery sorting functions. This feature provides a streamlined process for battery management, making it a convenient tool for various electrical tasks.
3. Built-in Battery and Power-Saving:This battery internal resistance meter features a built-in battery and supports mobile power bank charging. With its low power consumption and numerous power-saving options, it ensures long-lasting performance, reducing the frequency of recharging.
4. Wide Range of Resistance Measurements:The battery internal ohm meter supports testing up to 200 ohms, with a minimum resolution of 0.01 milliohms and less than 5 milliohms. By pressing the HOLD button, the ZR function is activated to measure small internal resistances as low as 0.30-0.50 milliohms.
5. Versatile Battery Compatibility:The true 4-wire 1KHz AC sinebattery ohmmeter operates within a range of 0.00001 ohm to 200 ohms. It can test a variety of batteries including lead-acid, lithium-ion, lithium polymer, iron phosphate lithium, alkaline, nickel-hydrogen, nickel-cadmium, button batteries, and more. With the ZR function, measurements below 5 ohms are even more accurate, ensuring precise internal resistance readings.
Specification:
Certification: CE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Material: ABS
Battery: 1 * Lithium battery, 2000mAh (included)
Precision format: ± (precision percentage+least significant digit)
Range: 20m Ω/200mm Ω/2 Ω/20 Ω/200 Ω
Maximum resolution: 0.01m Ω/0.1m Ω/1m Ω/0.1 Ω
Accuracy: 0.7%+7/0.5%+5/0.5%+5+0.5%+5/0.6%+5
Display method: 22.00m Ω (when ZR function is enabled)/22.0m Ω/2200 Ω/22.00 Ω/220.0 Ω
Within the gear range of 5% -95%, when not within this range (less than 5% of the gear range or greater than 95% of the gear range), the error may be greater than the above accuracy.
Voltage measurement: ± (% reading+% range)
Range: 1V/10V/100V
Maximum resolution: 0.00001V/0.00001V/0.001V
Accuracy: 0.15+0.15/0.15+0.10/0.15+0.015
Display mode:. 999999 V/9.9999 V/99.999 V
Positive and negative symmetry error ± (0.012%+5 words)
Temperature drift within normal operating temperature range (10 ℃ -40 ℃) 100ppm/℃
Maximum voltage between any terminals: 100V
Display: Internal resistance number: 2000 counts Voltage number: 99999 counts Updated 4 times per second
Temperature: Working temperature: 10 ℃ -40 ℃, storage temperature: -20 ℃ -60 ℃ Internal resistance temperature coefficient: 0.1 * (specified accuracy)/℃ (<18 ℃ or>28 ℃)
Power consumption:
<60mA (within a range of 200m Ω and above, when the power supply is 3.7V, the backlight is turned off)
<120mA (20m Ω range, backlight turned off when power supply is 3.7V)
＜ 10mA (entering low-power mode)
0mA (shutdown)

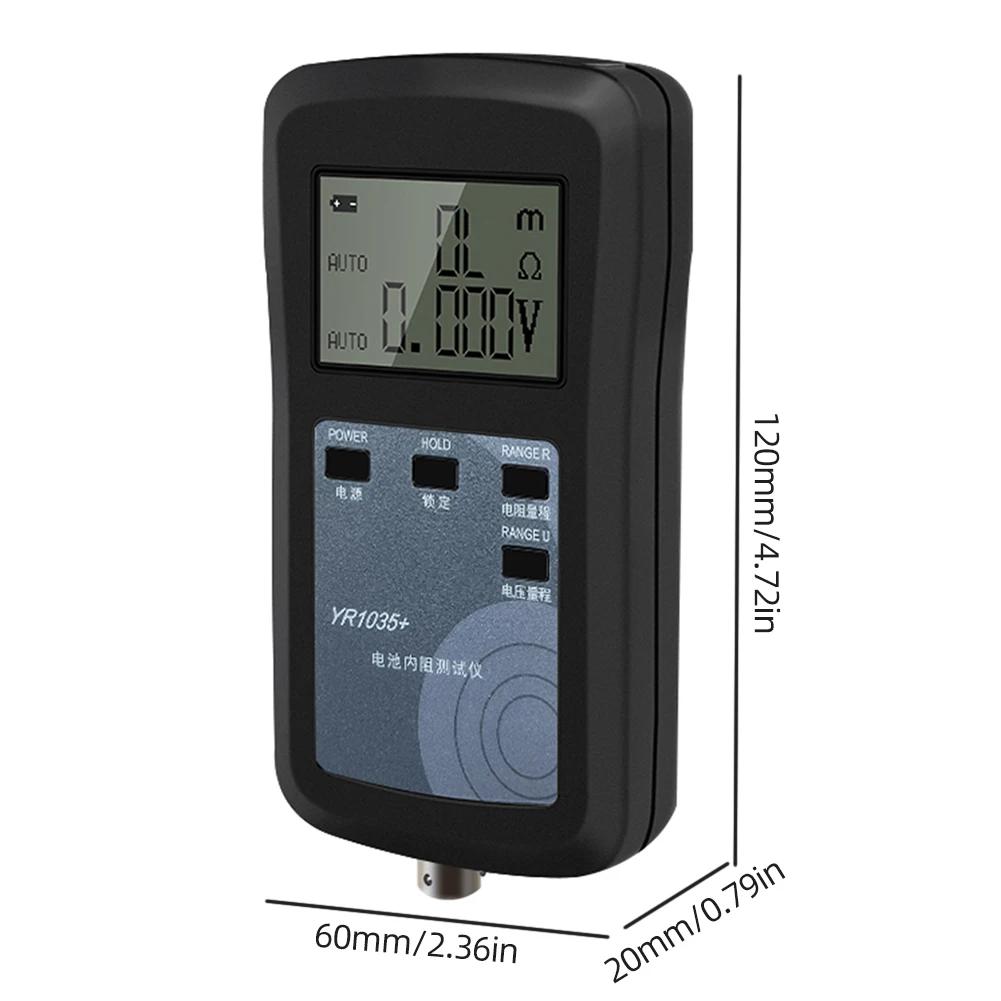

Product size: approximately 120.00x60.00x20.00mm
Product size: 4.72x2.36x0.79inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

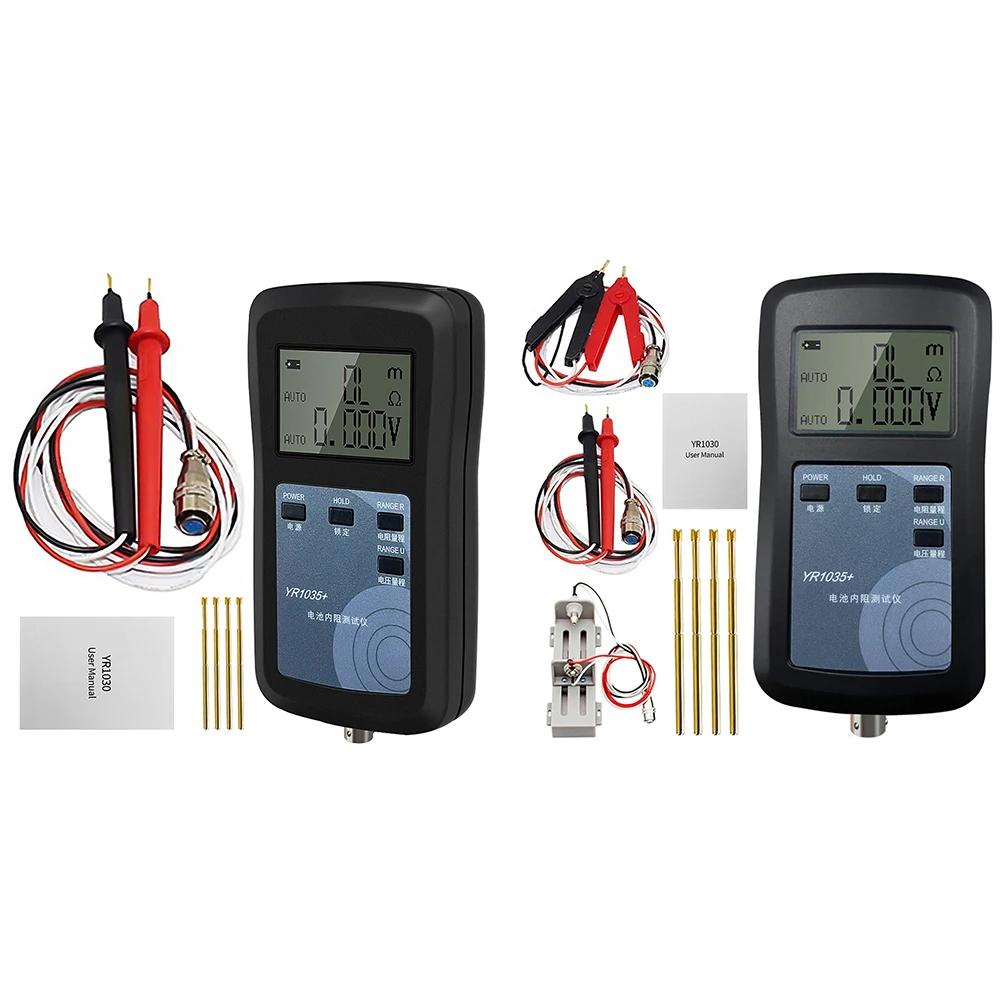

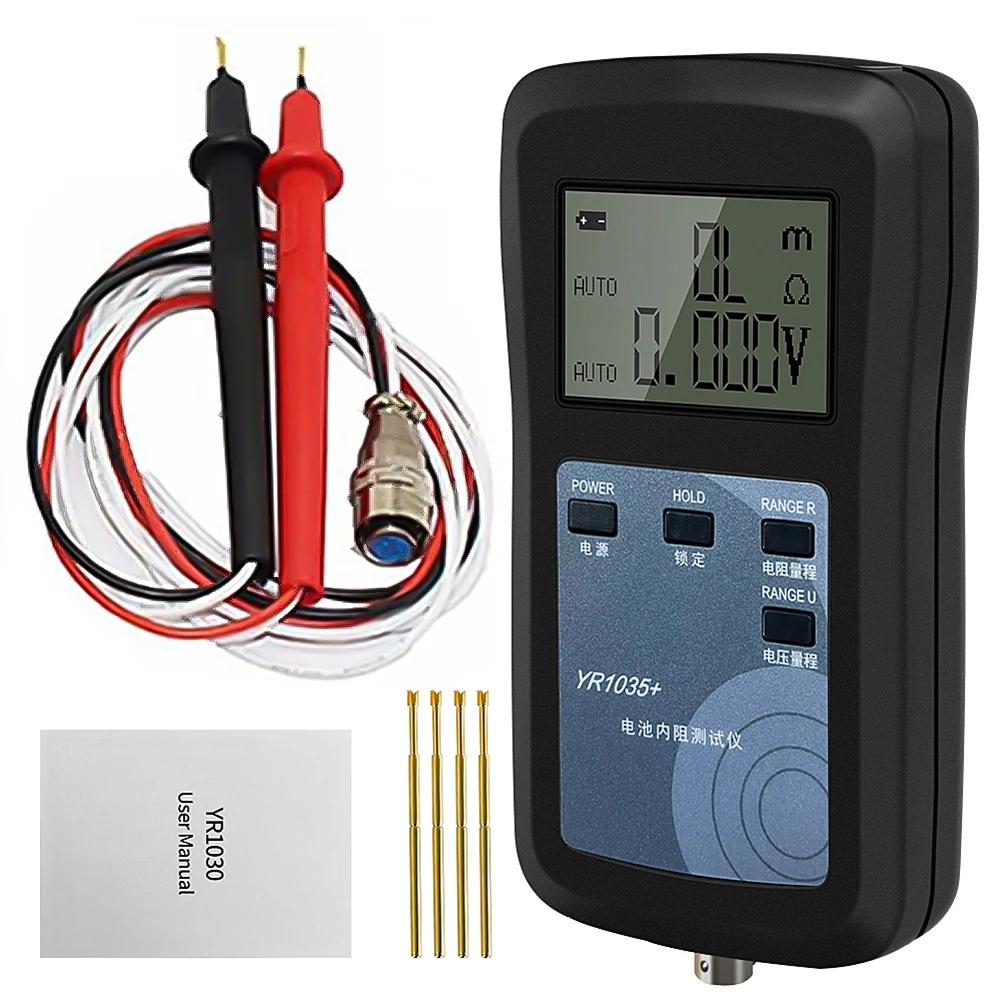

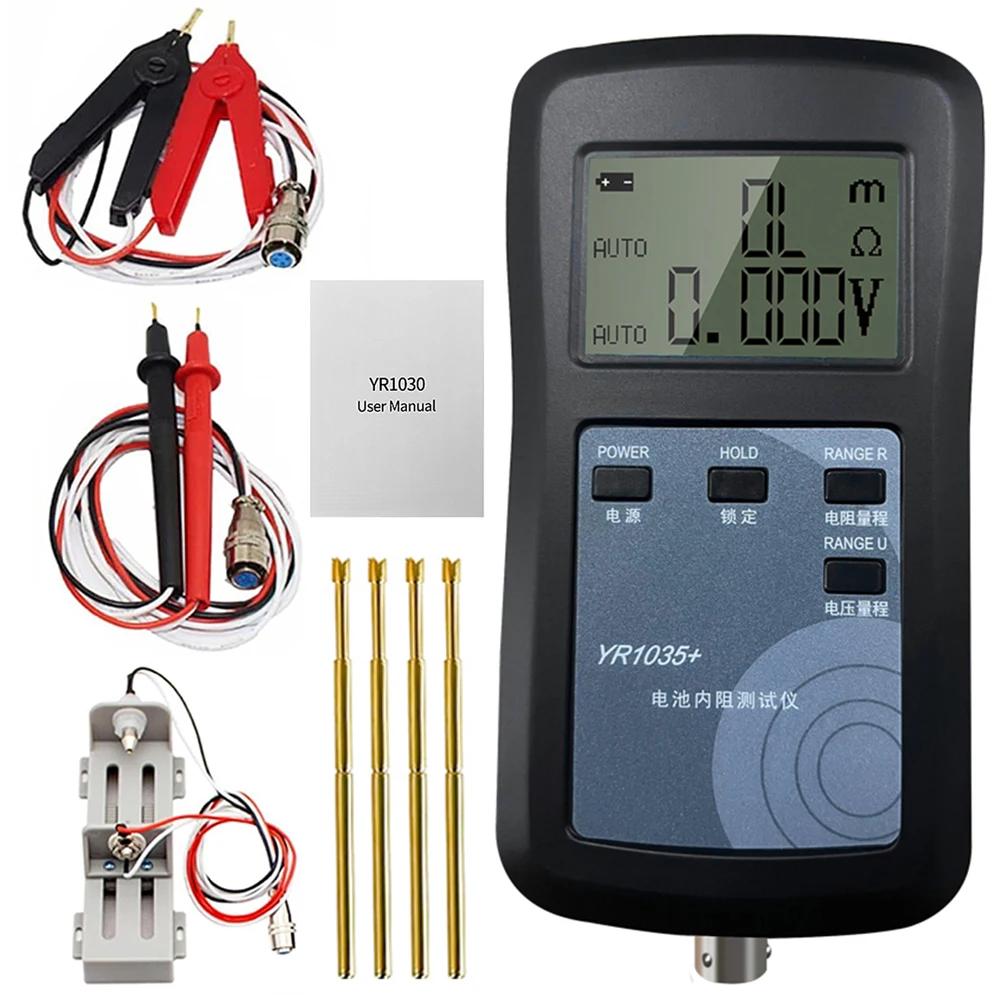

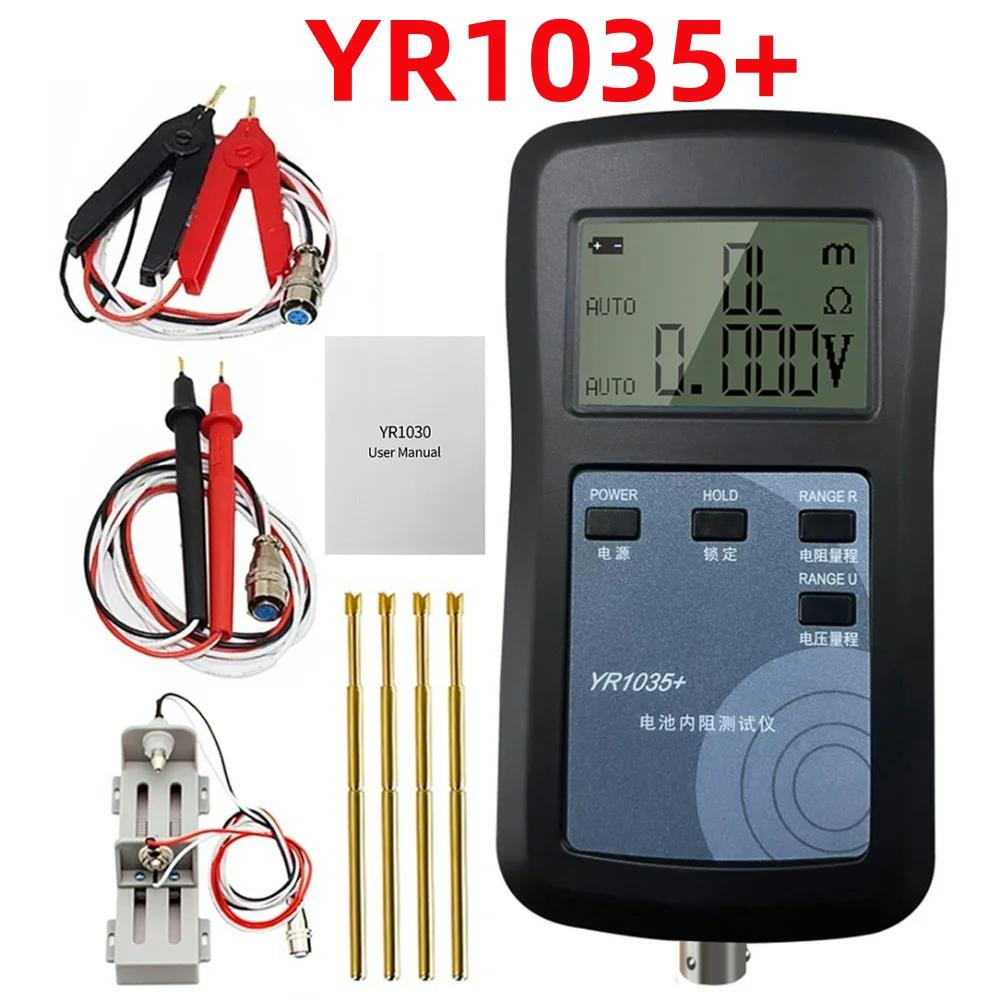

1 x Lithium Battery Internal Resistance Tester Kit
