Current Transformer Smart Energy Meter Energy Management AC 3x230V 400V Multi-User Sharing Real-Time Monitoring

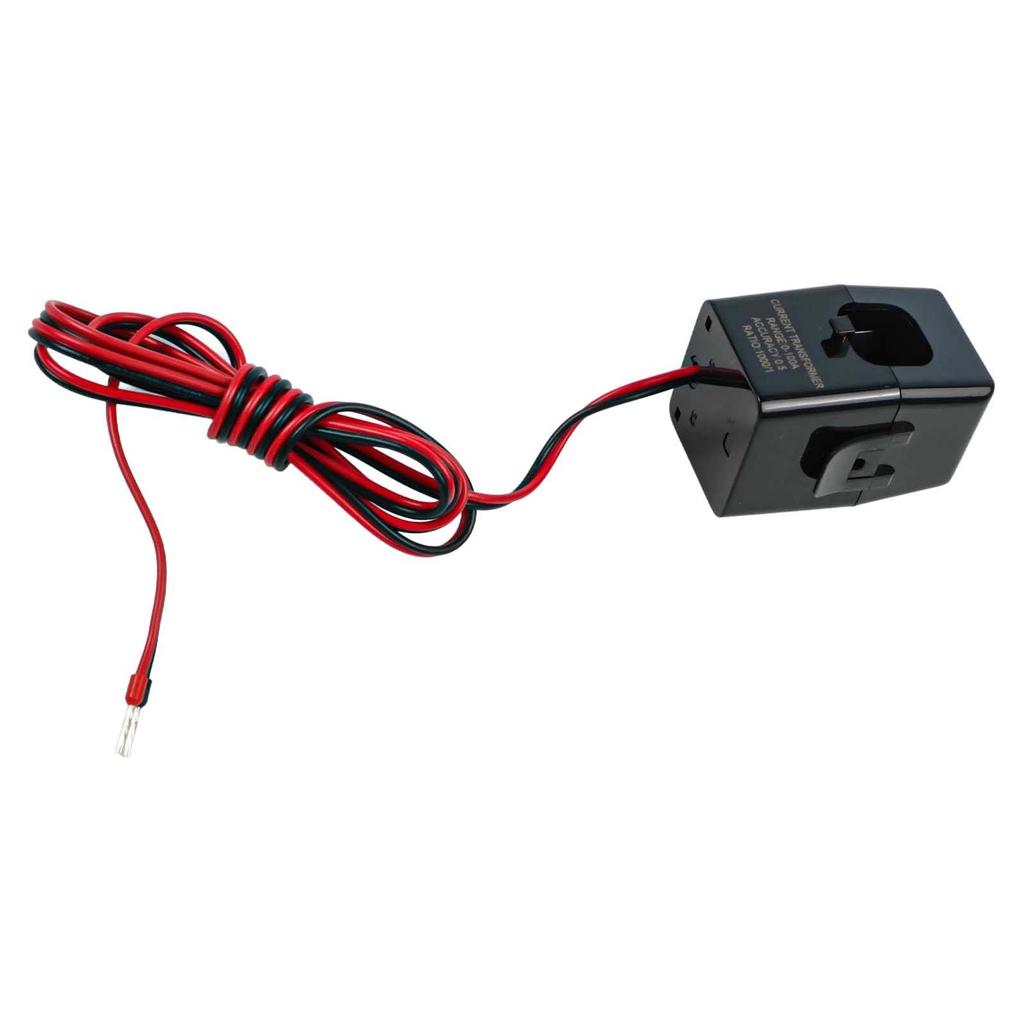

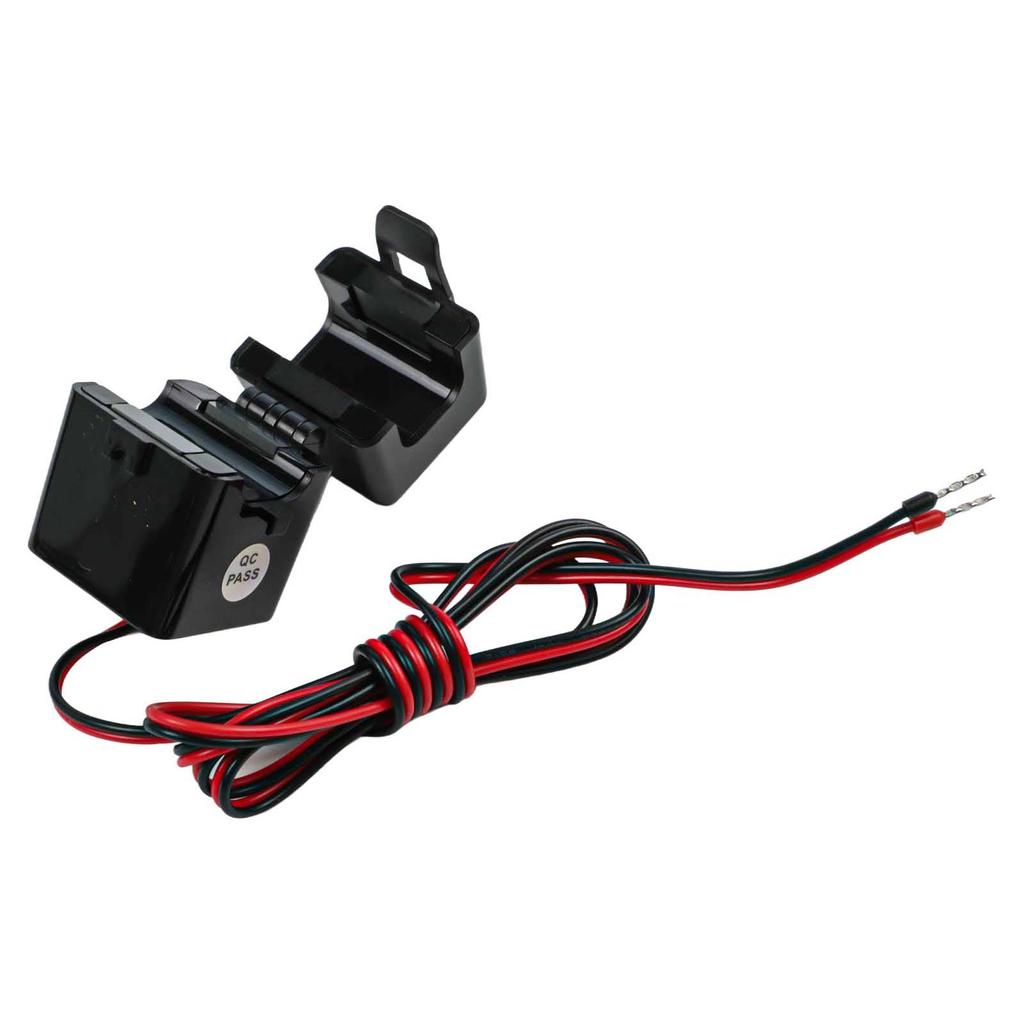

Features: 3-Phase Smart for Energy Monitoring – This 3P4W smart meter is designed for three-phase four-wire circuits (3x230/400V, 50/60Hz) with a rated current up to 100A. It provides precise bi-directional energy measurement, tracking both grid consumption (forward energy) and solar reaction (reverse energy) for residential, commercial, and industrial use. Real-Time Remote Monitoring viafor TuyaSmart App – Access real-time electricity data anytime, anywhere through thefor TuyaSmart App (2.4GHz ). Monitor key metrics including voltage (V), current (A), active/reactive power (kW/kVar), power factor, and total energy consumption for efficient power management. Split Core Current Transformer Design for Easy Installation – Features a high-accuracy (0.5 class) split-core current transformer with a 1000:1 ratio, supporting 0–100A measurement without cutting wires. Best for hassle-free retrofitting in existing electrical systems. Comprehensive Energy Data Tracking – Records total active energy, forward/reverse energy, and real-time power usage. Helps optimize energy efficiency, detect anomalies, and analyze solar power contributions for cost savings. Multi-User Sharing & Smart Alerts – Share device access with family or team members via the app for collaborative energy management. Stay informed with consumption insights to reduce waste and improve sustainability.

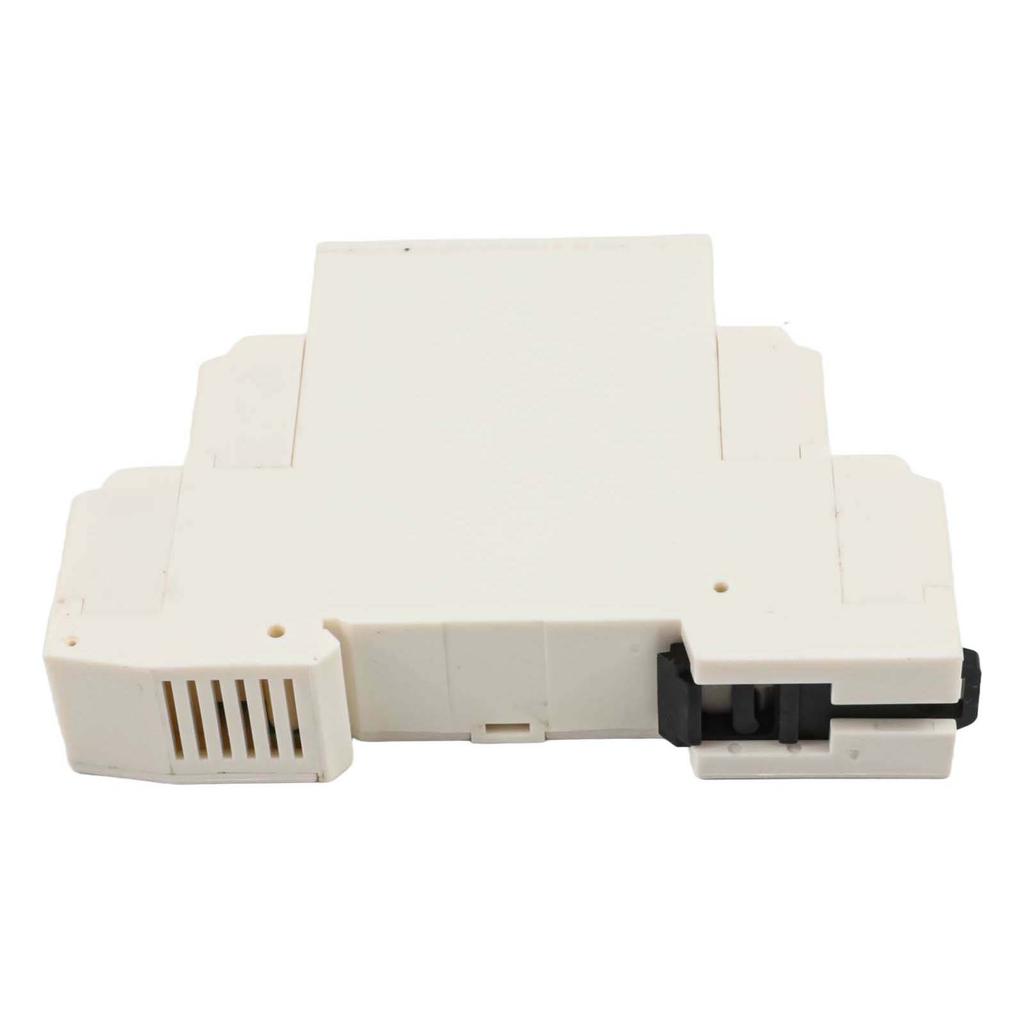

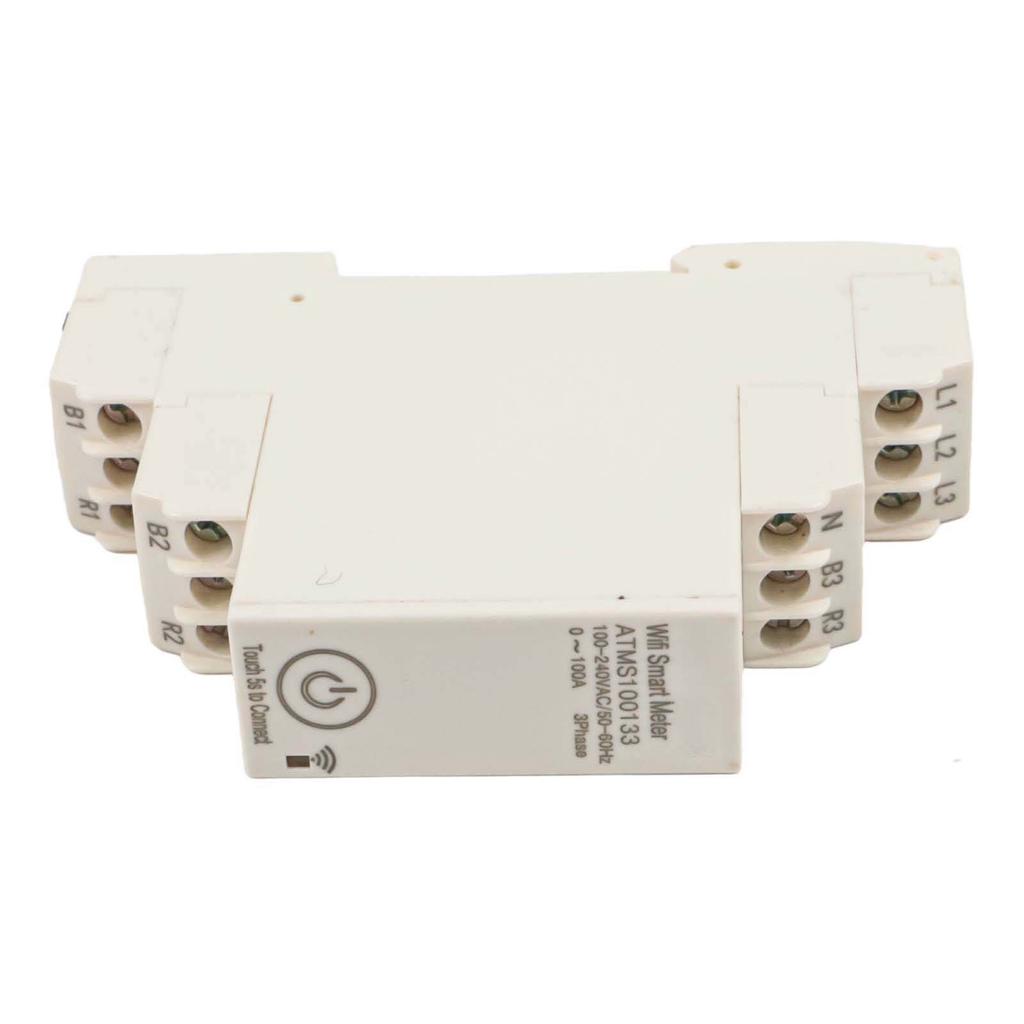

Specification: Part Name: Three-phase smart meter Color: Gray + Black Material: Plastic Size：90*65.5*18mm type: ATMS100133 Nominal voltage: 100-240V AC (50/60HZ) Wiring way: neutral and live wire Operatingrange: (0.8...1.1) Un Rated power: 2.2VA/0.7W Currentrange: 0.02A-100A Frequency: 2.4GHz Poles: 3 phase 4 wire, 4P Rated voltage: AC 3x230V/400V (Normal voltage Un: 180~260V,Operatingrange: 0.8~1.1Un) Rated current: up to 100A (range0~100A) Frequency: 50/60Hz Self-consumption: 2.2VA/0.7W App: forTuyaSmart Ambient temperaturerange: -20℃-+60℃ Mounting: DIN Rail 35 mm (EN 60715) Applicationrange: home, school, dormitory, shopping mall, hotel, factory, .

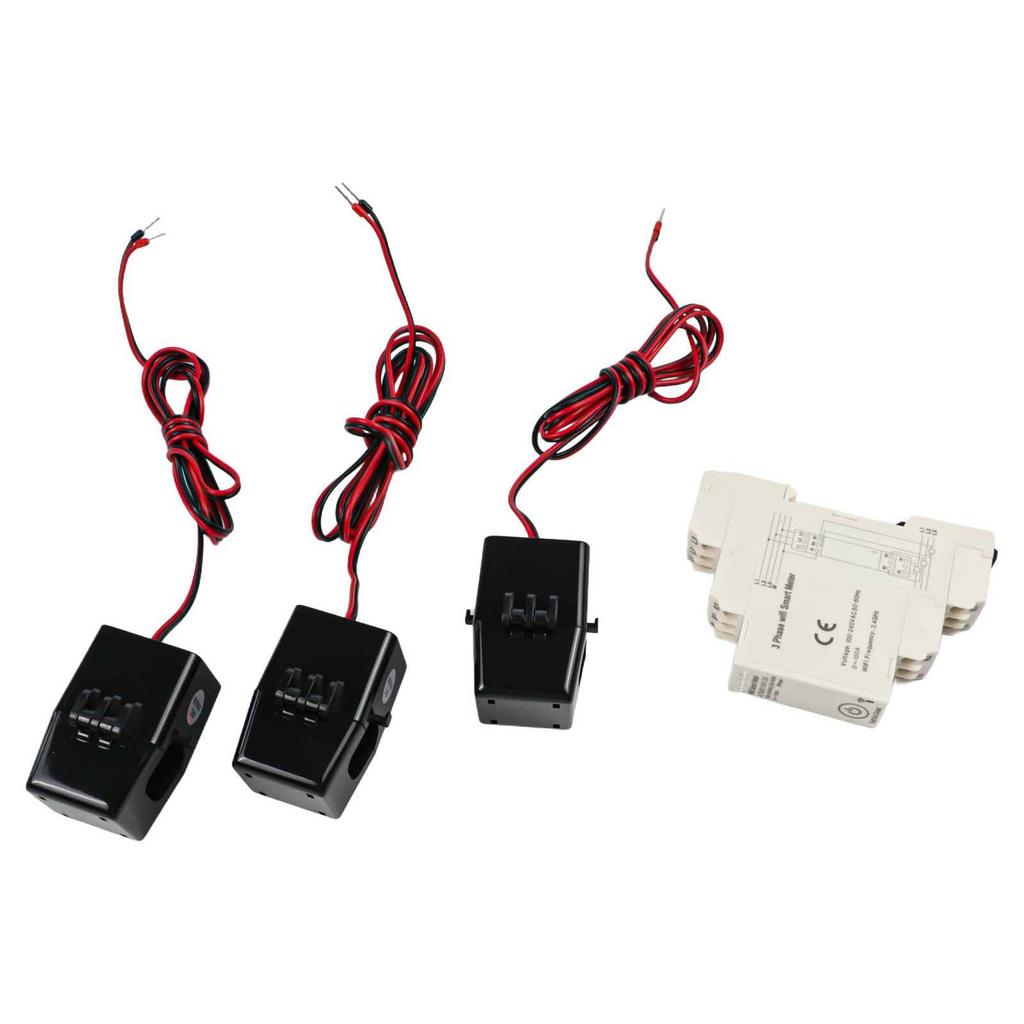

Package Contents: 1*Three-phase smart meter 3*Current Transformer Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
