Features:
High-precision, stability, low noise;
Designed for the home DIY enthusiasts, small and portable, strong power;
Transparent p lexiglass shield, super convection cooling holes;
Large torque ball bearing motor.
Specification:
Material: aluminum alloy and Acrylic
Power: 80W
Voltage: 12-24VDC
Speed: 4000-8000 r / min, 7 grade speed
Size: 355 * 85 * 68 mm
The theoretical maximum turning diameter: 70mm
The theoretical maximum clamping length: 180mm
Chuck clamping range: 0.6-6mm
Power Adapter：
Input: AC110V- 240V~50/60Hz 1.5A max
Output:12/15/16/18/19V 4.5A max; 20/24V 4A max
Wire length:1.1m+1.1m
Precautions:
1.If the user does not have lathe base experience, when used, should follow: low speed, slowly, cautiously and other security operations.
2.The speed can be adjusted in 4000-8000R, cut wood should not exceed 4000, grinding can use higher speed.
3.Drill chuck axis, the axis of the wood, the tailstock center axis of the drill should be in a straight line, or need to adjust the nut.
4.If not a cylinder, the speed should be reduced.
5.Tailstock bearing without lock tight.
6. When using a knife, locking the bottom of screw, location should be away from timber 1-1.5cm.
7.If you do not really understand the operation, it is best to c onsult a professional person.

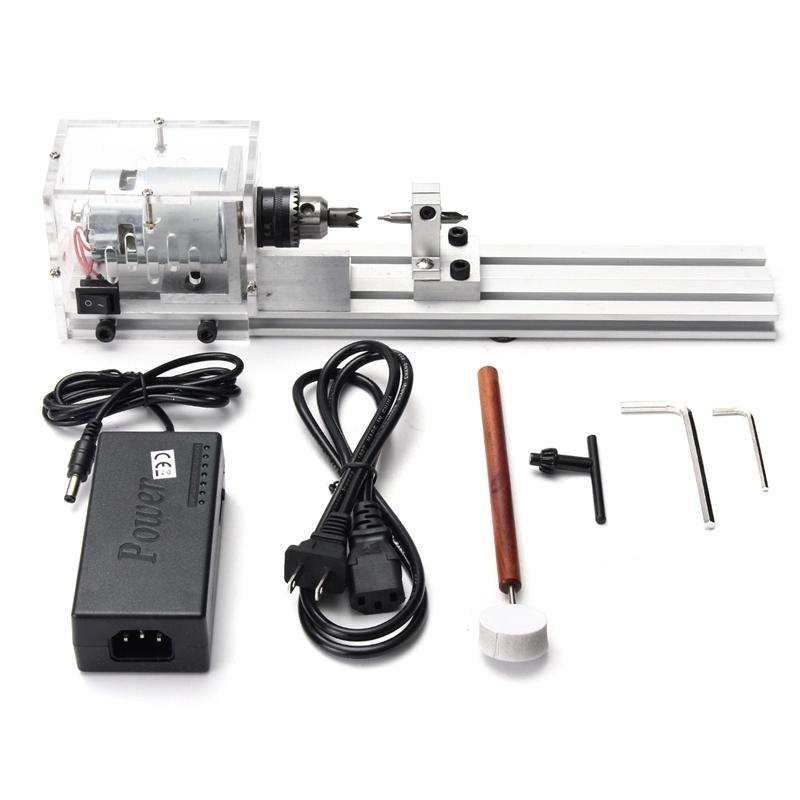

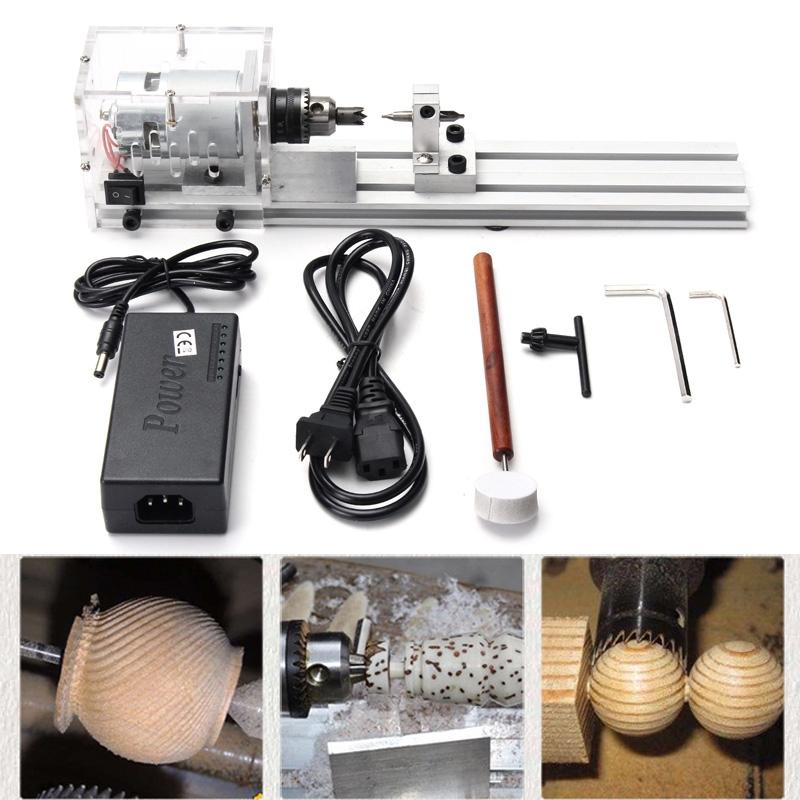

Package include:

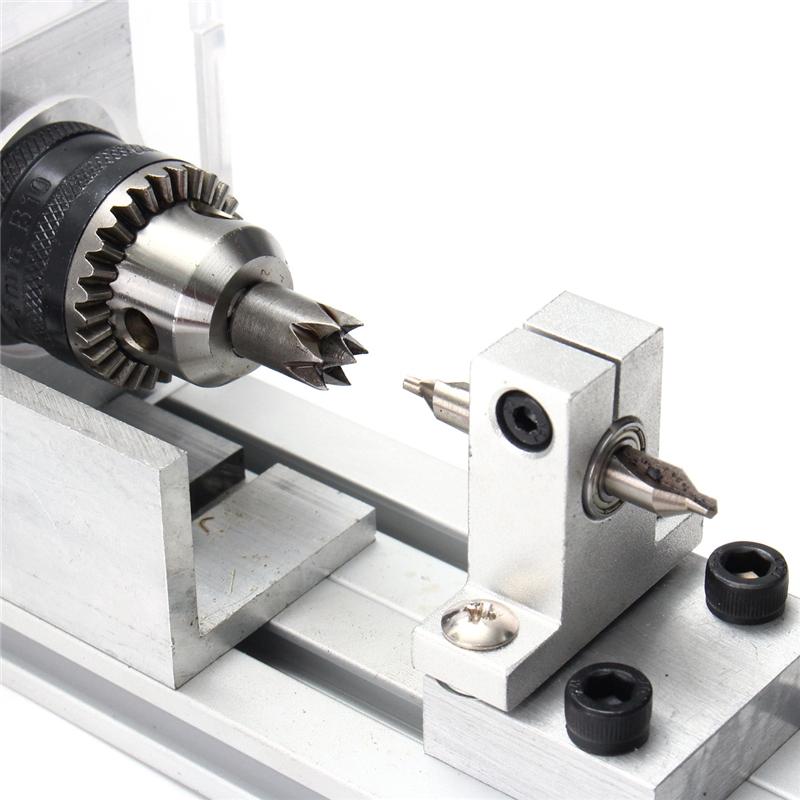

1 x Buddha Beads Lathe
1 x Power Adapter
1 x lathe tool
1 x key type drill chucks
Voltage: 12–24 V
