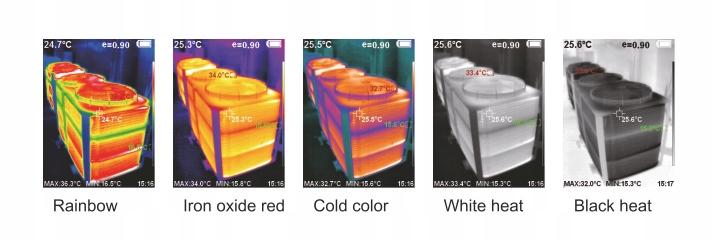

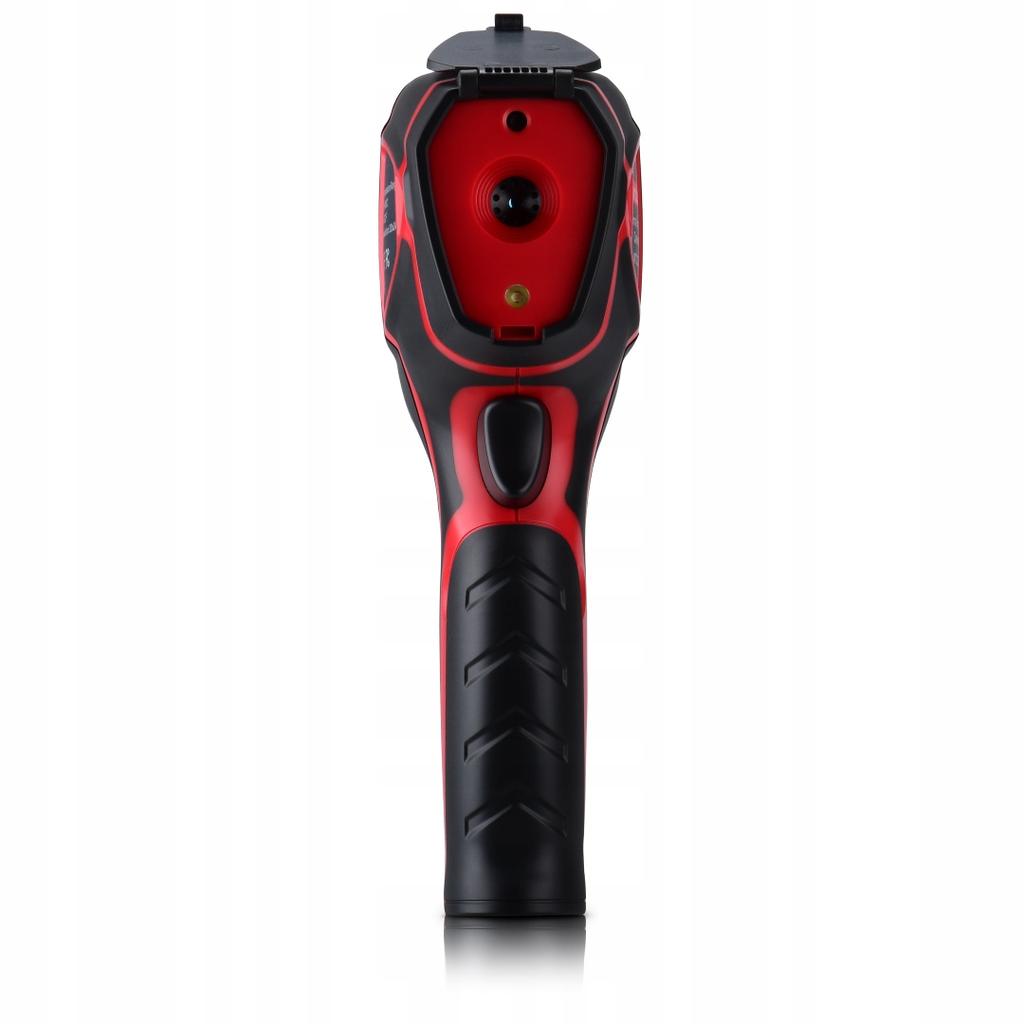

WINTACT WT3320 THERMAL IMAGING CAMERA Advanced device designed for non-contact surface temperature measurement. Resolution 320 x 240 pixels The camera clearly and intuitively displays the temperature distribution of the area captured by the infrared lens. Temperature differences are presented using a wide color palette on the built-in screen. KEY PARAMETERS: Infrared Sensor Resolution – 320 x 240 (76,800 dots) Thermal Sensitivity – less than 70 mK Field of View – 35 x 26 degrees Focus Distance – above 0.50 m Surface temperature measurement range – from –20 to +300°C Measurement accuracy (typical) – +/– 2 C Display size and type – 2.8" TFT (wide-angle) Display resolution – 320 x 240 Built-in memory: 3GB (allows you to save over 20,000 photos in jpg format). Power supply – 2,000 mAh battery Integrated visual camera A traditional non-contact thermometer indicates the temperature of only individual elements, while a thermal imaging camera creates a spatial image of the surface temperature distribution. The camera allows you to non-contactly check the temperature differences of surfaces and objects or irregularities and detect flaws in building materials and construction defects. The center point measurement cursor is used for quick and accurate location to measure the temperature of the target object. For greater differentiation, the product is equipped with a visible light camera. Thermal and visible images are stored in the device and can be read via USB or saved to a computer, which is helpful when generating reports. The thermal camera is convenient and easy to use, and has a number of features that improve work efficiency. A compact, ergonomic design and low weight (323 g) are other advantages of the device. KEY FEATURES: Integrated visual camera shows and saves the real image along with the measurements you have taken. The high measurement resolution of the infrared sensor (up to 76,800 points) provides highly detailed thermal images. The large 2.8” color TFT display ensures good visibility of the measurement results. The Micro USB connector facilitates data transfer to a computer, and the built-in 3GB memory allows you to save from 20 to even 30 thousand photos. Emissivity adjustment - the radiation coefficient can be adjusted to increase the accuracy of measurement of objects with more or less reflective or matte surfaces. The highest and lowest temperature cursor (pointer) can indicate to the user the area with the highest and lowest temperature in thermal images. Selectable color palette: 5 different color palettes to choose from: Rainbow, Iron oxide red, Cold color, White heat, Black heat DISPLAY DESCRIPTION: Set emissivity. Battery level indicator. Selected color palette. Temperature cursor for the center point of the lens. Coldest temperature cursor in the field of view. Time. Maximum and minimum value in field of view. Highest temperature cursor in field of view. Temperature at the center point of the lens. HOUSING DESCRIPTION: Lens cover. Visual camera. Infrared camera. LED illumination. Image capture (shutter) and LED backlight activation button (long press). Battery compartment. DESCRIPTION OF THE HOUSING ELEMENTS: A: Micro USB connector B: Screen C: Keyboard D: Handle APPLICATION EXAMPLES: location leaks, checking the route of heating cables, checking the installation box, e.g. correct marking of pipes, detecting air in the heating system, locating heating pipes in the floor or walls locating window leaks, detecting thermal bridges, detecting wet spots or leaks (moisture) avoiding errors when drilling, e.g. due to damage to heating pipes in the floor or wall, assessing the condition of insulation, detection of loose contacts in distribution cabinets, inspection of electrical installation components, e.g. printed circuit boards of electrical devices, inspection of fuses and contactors, inspection of the load on the electrical installation, detection of overheated cables, detection of draft sources, inspection of window, door and roller shutter insulation. KIT CONTENTS: Wintact WT3320 thermal imaging camera, rigid and handy protective case, USB mains charger, built-in 2000 mAh battery, USB - Micro USB cable (for charging and data transfer), user manual in Polish, lanyard original outer packaging. About the BENETECH brand BENETECH is a manufacturer of advanced measurement and control equipment. A specialized supplier of professional, digital measuring tools and other electronic devices. BENETECH POLAND is the authorized and direct distributor of this brand in Poland and Europe. In the brand catalog you will find, among others: pyrometers and thermal imaging cameras, anemometers (wind gauges), humidity meters and hygrometers, gas and air quality detectors and meters, sonometers (decibel meters) and luxmeters (light meters), laser rangefinders and tachometers, thermometers and manometers, thickness and vibration gauges (vibrometers), electrician's tools and cable detectors, electromagnetic radiation meter, home and industrial electronics devices. At the customer's request, we enclose calibration report from the manufacturer, translated into English. We receive the document electronically a few days later. To avoid delays in order processing, we send the calibration report within approximately 7 business days to the email address provided in the order or assigned to your account. The manufacturer's calibration report is a free, optional document and is therefore not included in this offer.
