Features:

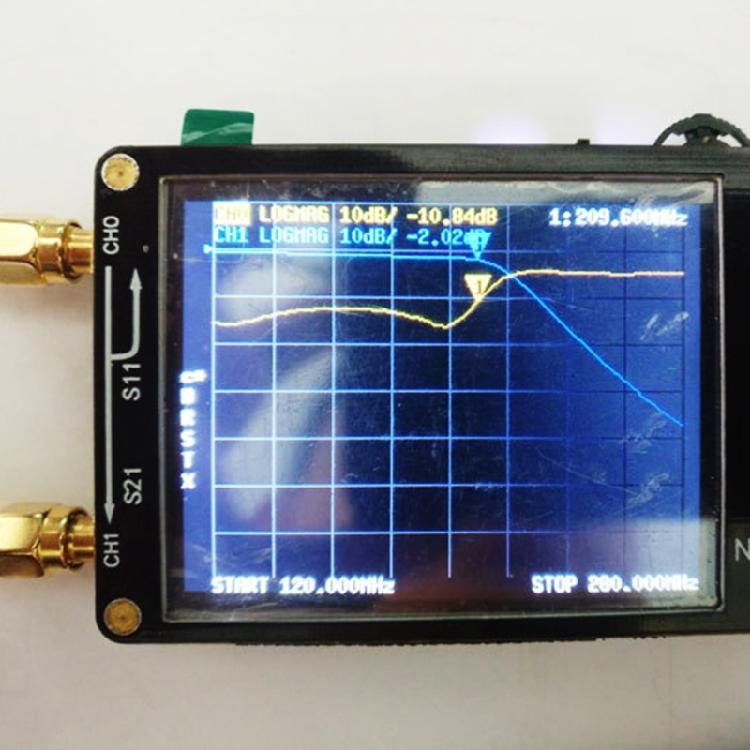

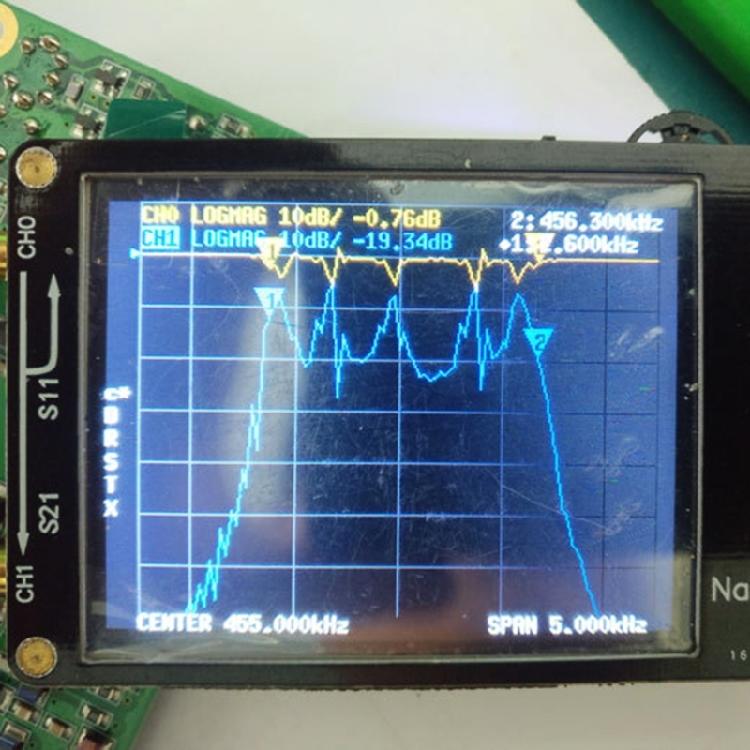

Measuring S Parameters, Voltage- Standing Wave Ratio, Phase, Delay, Smith- Chart.
The metal shield- is designed to reduce the external interference and improve the measurement accuracy.
Small and portable, easy to use, this project aims- to provide an RF- gadget- but useful instrument for enthusiast-.
The PC control- software can export Touchstone- (snp-) files-, which can be used for various radio design and simulation software.

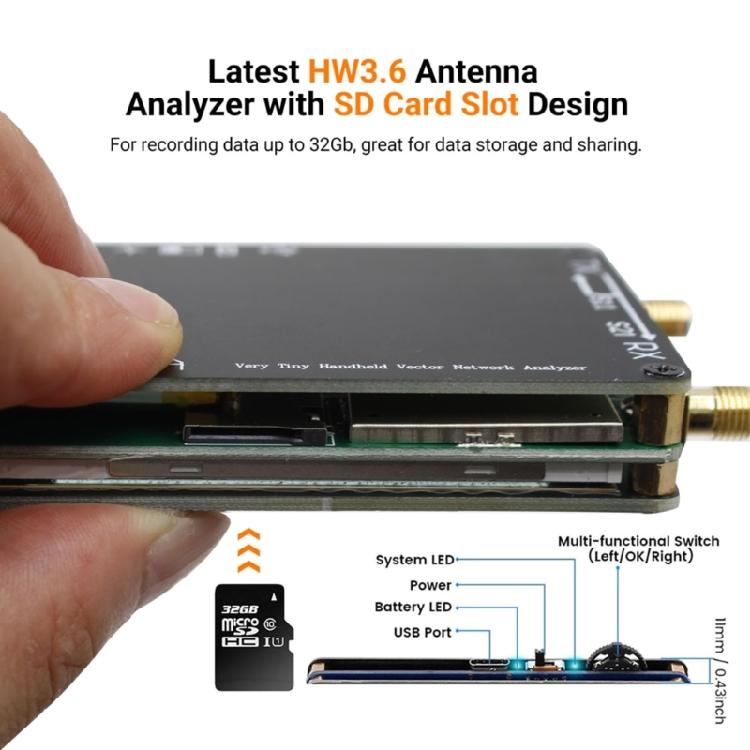

Latest HW3.6 antenna analyzer with SD- card slot design, for recording data up to 32GB, great for data storage and sharing-.
Specifications:
Material: Plastic
Measurement Frequency: 50KHz-1.5GHz
RF- Output: -13dbm(Maximun -9dbm)
Frequency Accuracy: Less Than 2ppm
Frequency Stability: Less Than 0.5ppm
Measuring Range: 70dB(50kHz-300MHz), (50dB(300M-900MHz), 40dB (900M-1500MHz));
Port SWR: Less Than 1.1-
Display: 2.8" TFT- (320x240)
USB Interface: Type-C
Communication Mode-: CDC- (serial-)
Power Supply: USB 5V 120mA, built-in 400mAh battery, maximum charging current 1A-, can be used continuously for more than 4hours
Number of Calibration Points: 101 (Fixed)
Number of Scan Points: 101 (Fixed)
Display Trace: 4, Tag: 4, Settings Save: 5

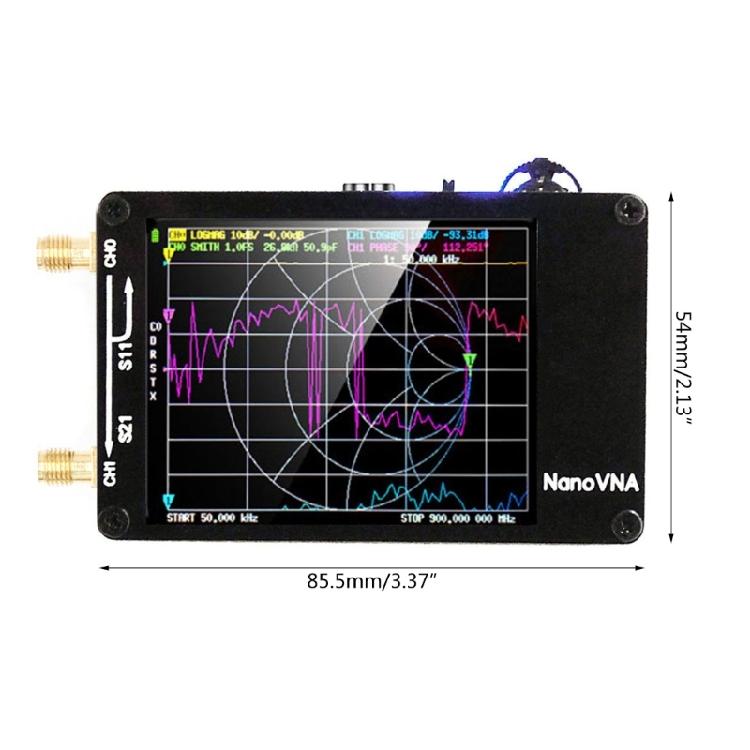

PCB- Size: Approx. 54x85.5x11mm/2.13x3.37x0.43in (No Connector & On off)
Package Includes:
1x Host(including 2.8-inch Touch-Screen, 400mAh Battery)
2x 20cm SMA- male-to-male RG174 RF- Cable
1x SMA- Female to Female Connector
1x SMA- Simple Calibration Sets SHORT
1x SMA- Simple Calibration Piece Set OPEN
1x SMA- Simple Calibration Package LOAD
1x Type-C Data Cable
1x Touch-Pen
1x Pick
1x Connecting Cable from Type-C to Type-C
note:
NanoVNA-H PCB- upgrade-
New features after the update:
Lower power supply- noise, less noise when using harmonics;
Built-in 400mAh battery

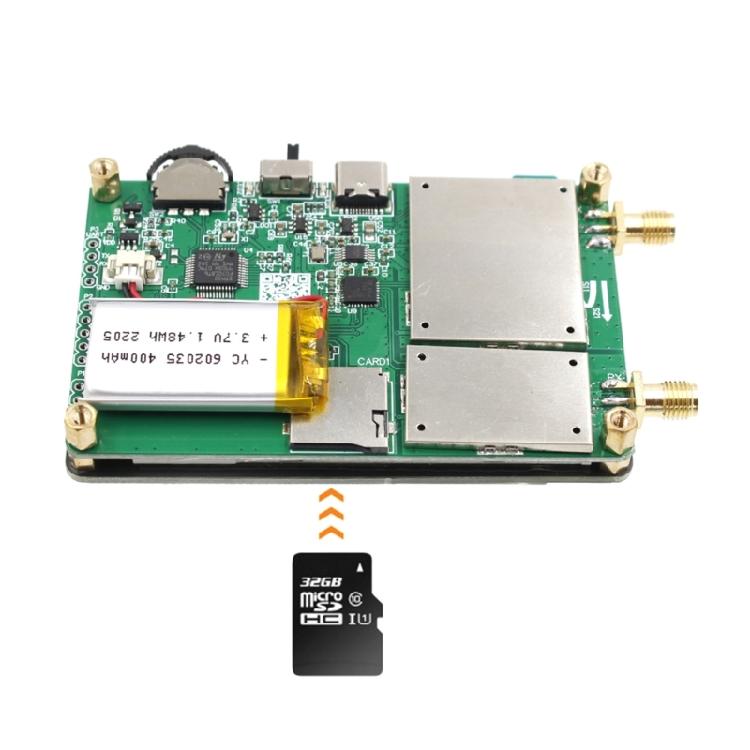

Add a MicroSD- card for storing test data;
Add RTC- support.
Change the port names- to Port1- and Port2

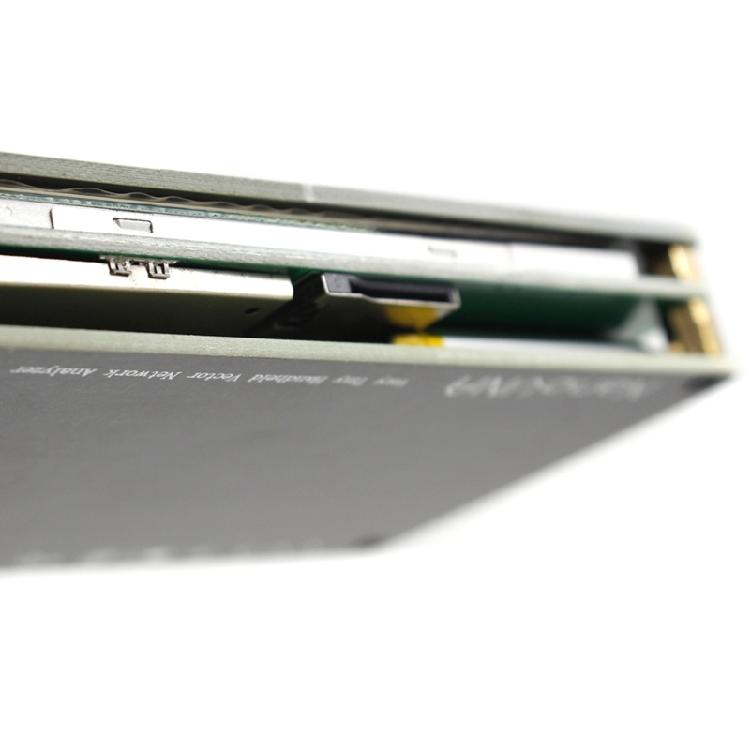

MicroSD- supports up to 32GB and only supports SPI- mode-.
