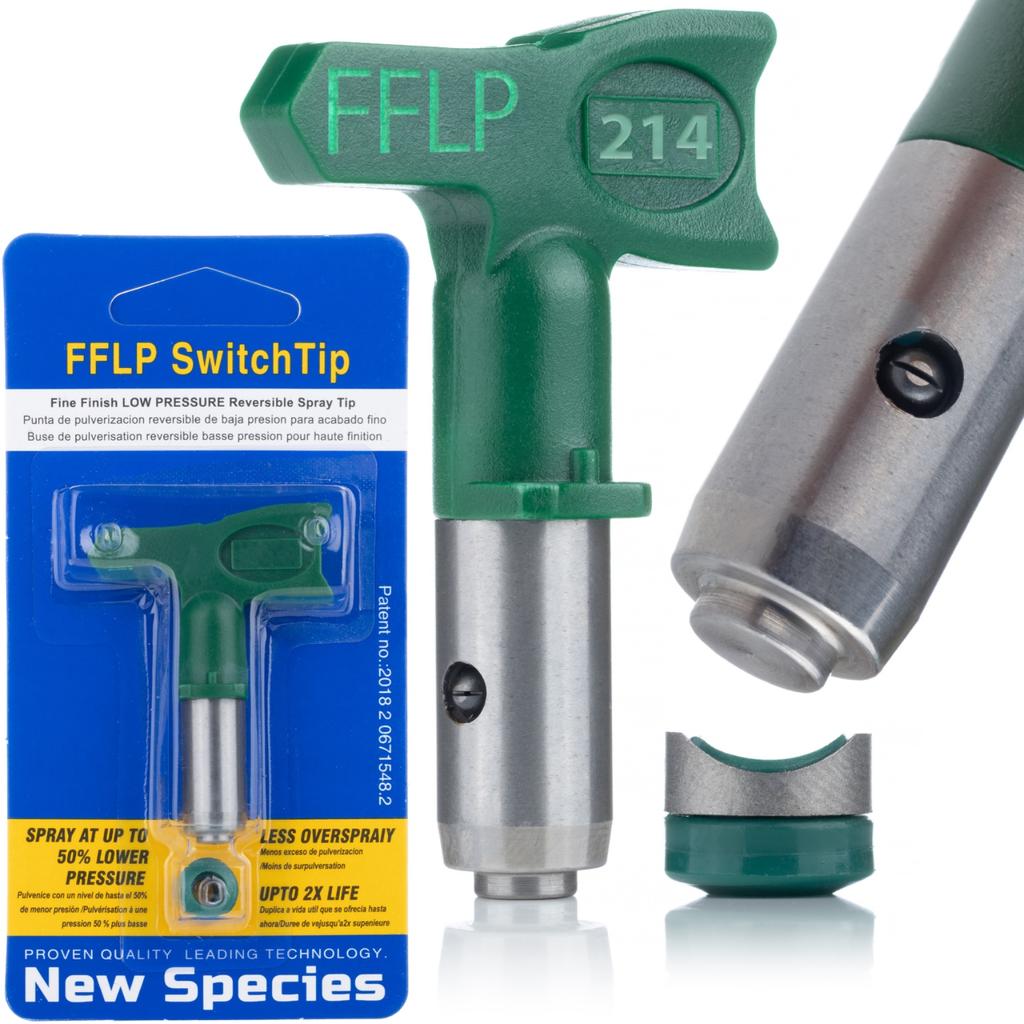

FFLP 214 Low Pressure Spray Nozzle for SprayerThisnew Rosfix FFLPlow pressure spray nozzle series, model 214, is an excellent choice for a variety of painting applications. Designed to deliver the best quality and performance in the industry. Spraying can be done with up to 50% less pressure, ensuring efficient painting without overspray.Model 214with a spray width of 10cm at a distance of 30cm.
Intended use:This nozzle is designed for applying epoxy paints, making it suitable for a variety of painting projects.
Spray width:The nozzle has a spray width of 10cm, allowing for effective coverage of larger areas.Kit includes:The kit includes a FFLP 214 paint nozzle and a nozzle seal. This complete package allows you to start working immediately.
50° Spray Angle:Optimal spray angle for precise and even surface coverage during painting.Maximum Pressure 34.5 MPa / 345 bar:Exceptional pressure power guarantees effective spraying even in difficult conditions, providing versatile applications.
Best Performance in the 80 - 140 bar Range:Optimal tool performance is achieved in the pressure range between 80 and 140 bar, allowing for efficient and economical use of the nozzle, adapted to various painting needs.‼ A special Graco guard (serial number: 246215) is required to use the nozzle. This guard is also available in our offer.‼‼ Other types of nozzles, guards, hoses, and parts for paint sprayers are available in our offer. Breakthrough Low Pressure Technology:An innovative solution for lower pressure applications, revolutionizing the approach to painting.Best Quality and Performance:Designed to deliver the highest quality paint job and maximum efficiency in the industry.
Painting at up to 50% Reduced Pressure:Unique ability to spray even at significantly reduced pressure, enabling more economical and efficient painting processes.
No Overspray:Ensures effective painting without unnecessary paint dispersion, resulting in precision and savings.
Easier Overlapping Pattern Application:Makes applying complex patterns easier, opening up new creative possibilities.
Fast Preparation and Cleanup Process:A tidy and fast workflow thanks to easy handling, reducing both preparation and cleanup time.
Long Life, Up to 2x Longer:Provides exceptionally long life, exceeding standards, resulting in economical and durable use.Best Quality with Minimal Spray Pressures and Low Material Consumption:Guarantees the highest painting quality with low spray pressures and minimal material consumption, increasing process savings and efficiency. Nozzle orifice range for different types of sprayed material:Pigments: 0.009″Stains, Varnishes, Oils: 0.009″ – 0.011″Primer: 0.013″Urethanes, Epoxies: 0.013″ – 0.015″Enamels, Emulsions: 0.015″Acrylics: 0.015″ – 0.019″Latex: 0.017″ – 0.019″Exterior and facade paints: 0.021″ – 0.029″Waterproofing agents: 0.023″ – 0.031″Multicolor paints for construction: 0.023″ – 0.031″Fireproofing: 0.029″ – 0.035″Elastomers: 0.025″ – 0.033″Plaster, plaster: 0.027″ – 0.035″Bituminous masses: 0.055" – 0.065" Choosing the right nozzle is child's play with us! Here are a few steps to help you decide:1⃣ First digit (A)representsnozzle fan width, we'll label it "A." Multiplying the first digit "A" x 5 cm gives you the fan width you want when holding the gun 30 cm from the surface. So mathematically, this can be written as:Stream width = A x 5 cmExample: If the first digit "A" is 5, then the stream width is: Stream width = 5 x 5 cm = 25 cmThis means that holding the gun 30 cm from the surface will produce a stream width of 25 cm.
2⃣ The last two digits (B) -indicate the nozzle orifice size and paint density. The higher the number, the thicker the paint. For example, "517" is a nozzle with a spray width of 25 cm and a nozzle orifice diameter of 0.017 inch.
