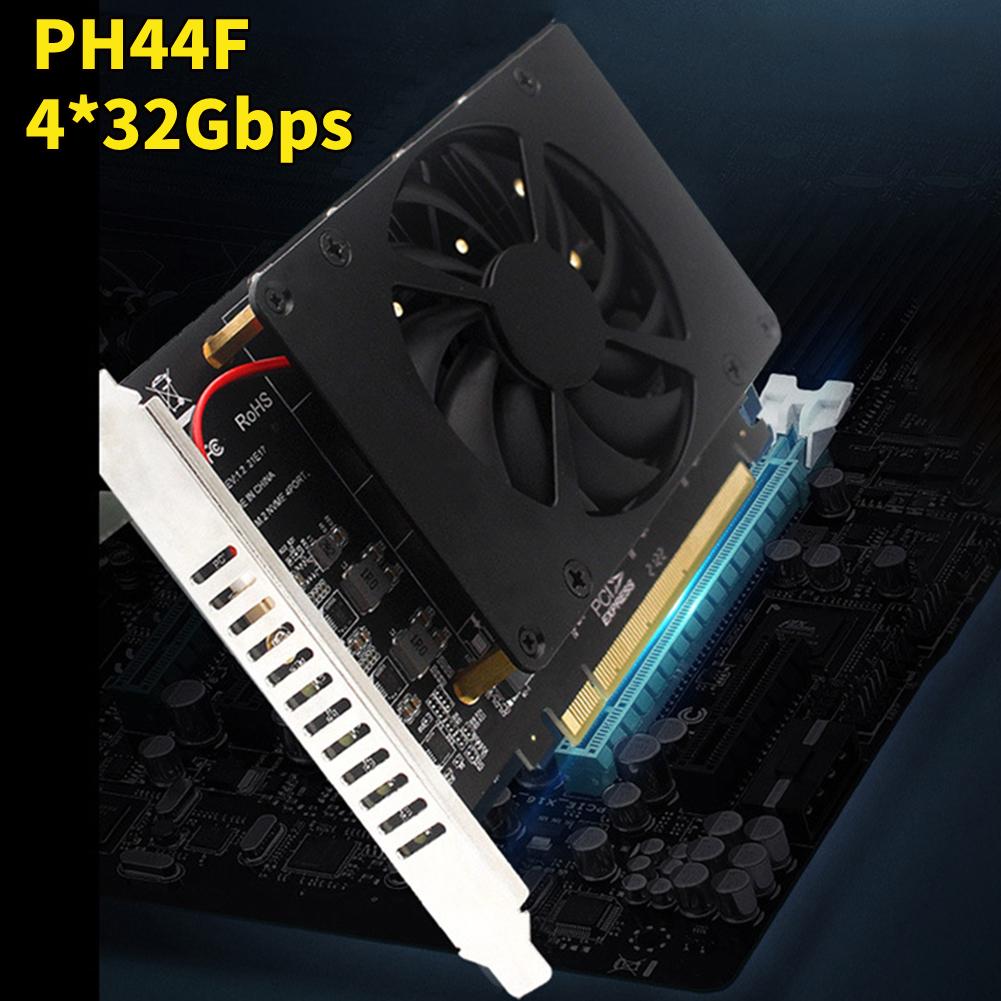

4 Disk PCIe 4.0 X16 Switch To 4 Ports M.2 Adapter Card PCIEX16 NVME M.2 MKEY SSD RAID Expansion Adapter 4 X 32Gbps
Features:
1. High-Speed Data Transfer:With 4 channels and a total transfer speed of up to 128Gbps, this PCIeX16 NVME M.2 MKEY SSD RAID expansion splitter card provides high-speed data transfer and reading/writing capabilities for your computer.
2. Multiple Compatibility:This expansion splitter card is compatible with a wide range of M.2 NVME protocol SSDs and M.2 PCIe devices, offering the flexibility to connect and expand multiple hard drives or devices at the same time.
3. Multiple Requirements Needed:To use this array expansion card, you need to ensure that your motherboard supports PCI-E splitting function, can set PCI-E X4X4X4 or 4X4 mode, and supports PCI-E RAID function. In addition, the CPU must support enough channels.
4. Compact Design:This RAID array expansion splitter card has a compact design, making it easy to install and carry around. The packaging size is 19.5*13*3.2CM.
5. Easy to Use:This 4 disk expansion card 4 x 32gbps comes with clear instructions on how to use it. Please read and follow the instructions carefully to ensure proper installation and usage.
Specification:
Certification: NONE
Origin: Mainland China
Type: Laptop Docking Stations

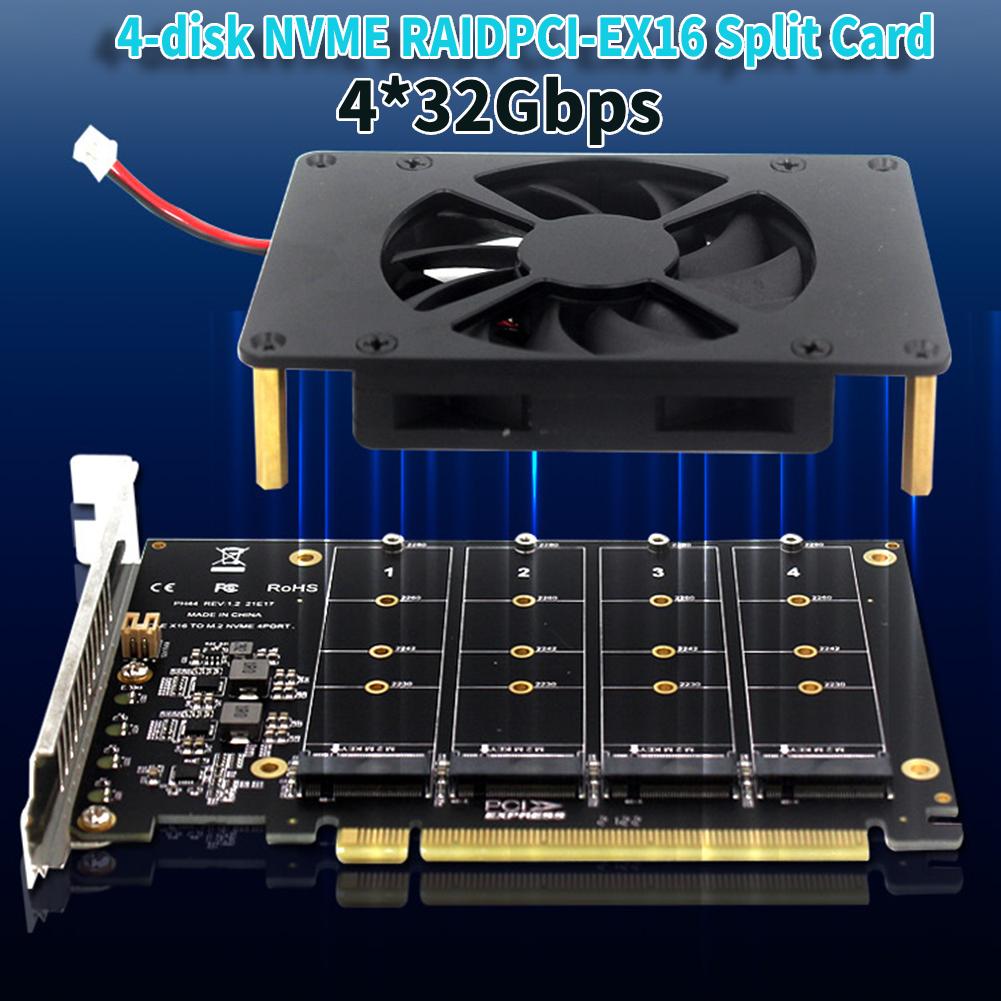

Product name: 4-disk NVME RAIDPCI-EX16 split card
Model: PH44F
Support hard disk: M.2NVME protocol SSD/M.2PCI-E device
Transmission speed: 4*32Gbps
Packing size: 19.5*13*3.2CM /7.68*5.12*1.26in
Instructions for use:
1. The motherboard must support
The motherboard supports the PCI-E split function, and can set the PCI-E X4X4X4 or 4X4 mode;
The motherboard supports PCI-E RAID function;
for ASUS motherboard supports the function of HyperM.2X16 expansion card;
Different motherboards have different numbers of PCI-E splitting channels. Some motherboards have a PCI-E RAID of X8+X4+X4. The 4-bit M.2 card on this motherboard can only support 3 M.2 SSDs or devices, and the 2-bit M. 2 cards can only support 1 M.2 SSD or device, if you want to use this product normally, please choose the motherboard correctly;
Many motherboards share the PCI-E channel. Make sure the motherboard can support the PCI-E splitting function, but cannot recognize so many M.2 SSDs or devices. Please remove other PCI-E devices or replace the slots. Such as graphics card, expansion card, onboard NVME SSD, etc.
Please refer to the link below for ASUS motherboards that support PCI-E splitting
https://www.asus.com/tw/support/FAQ/1037507
For ASRock motherboards that support PCI-E splitting, please refer to the link below
https://www.asrock.com/mb/spec/product.cn.asp?Model=ULTRA%20QUAD%20M.2%20CARD#SupportList
Many server motherboards, X299 and X399 motherboards have a split function,
2. CPU support is required, and the CPU must have enough channels. Generally, low-end CPUs do not have enough PCI-E channels, so they may not be able to support them. When purchasing a CPU, you can refer to the introduction of the motherboard to make the correct
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1x Adaptor Card
1x Fan
1xBaffle
