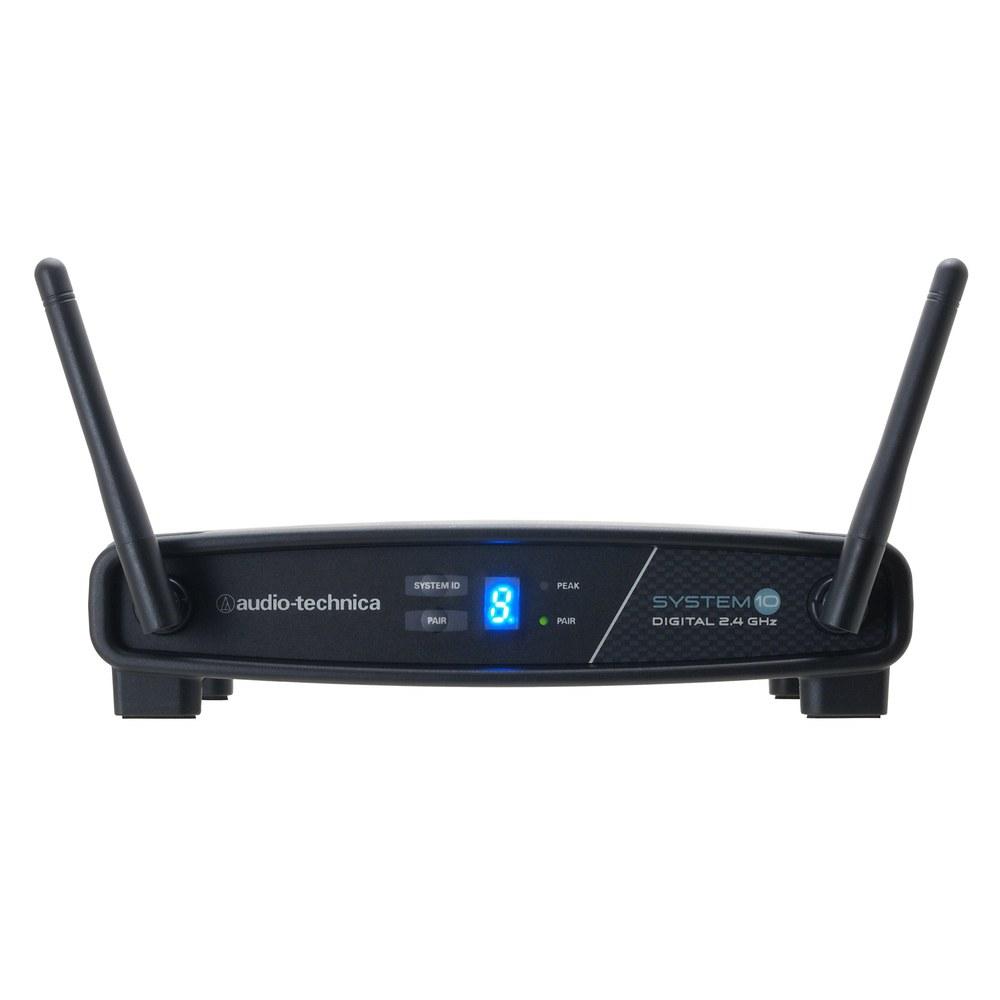

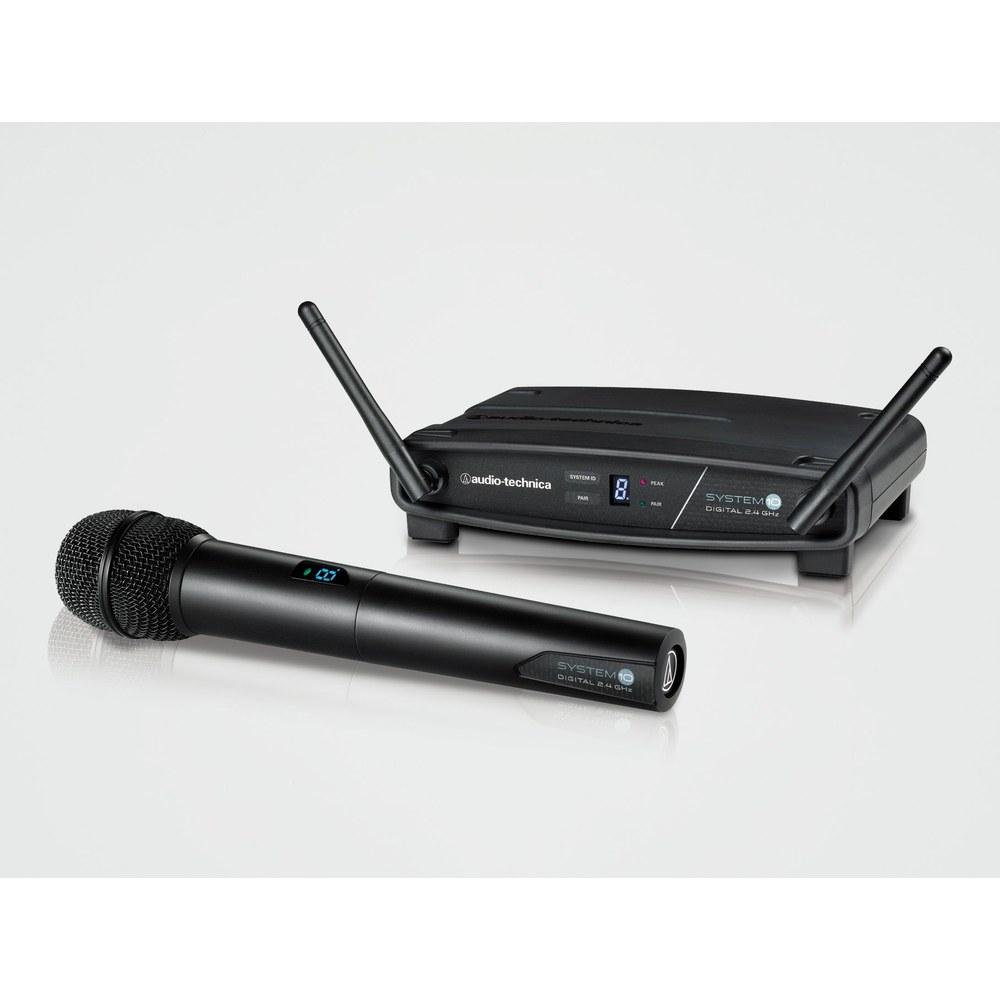

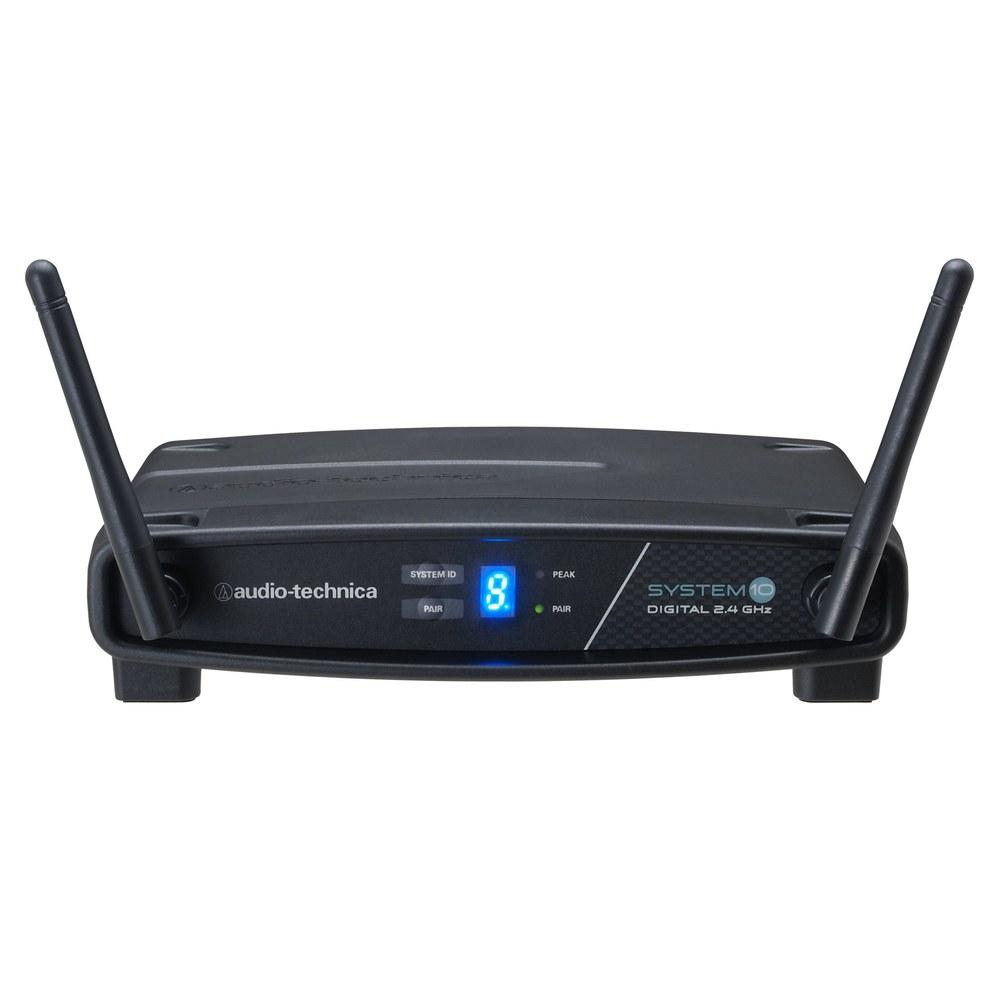

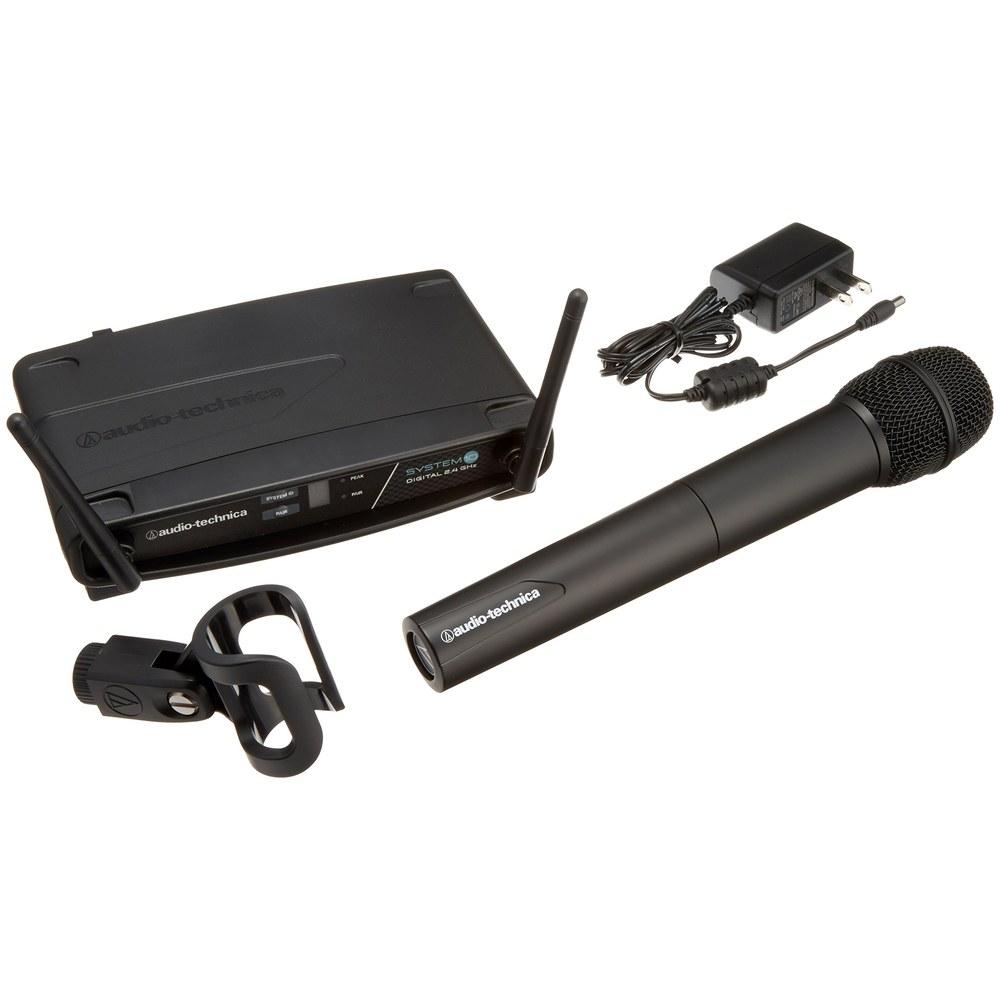

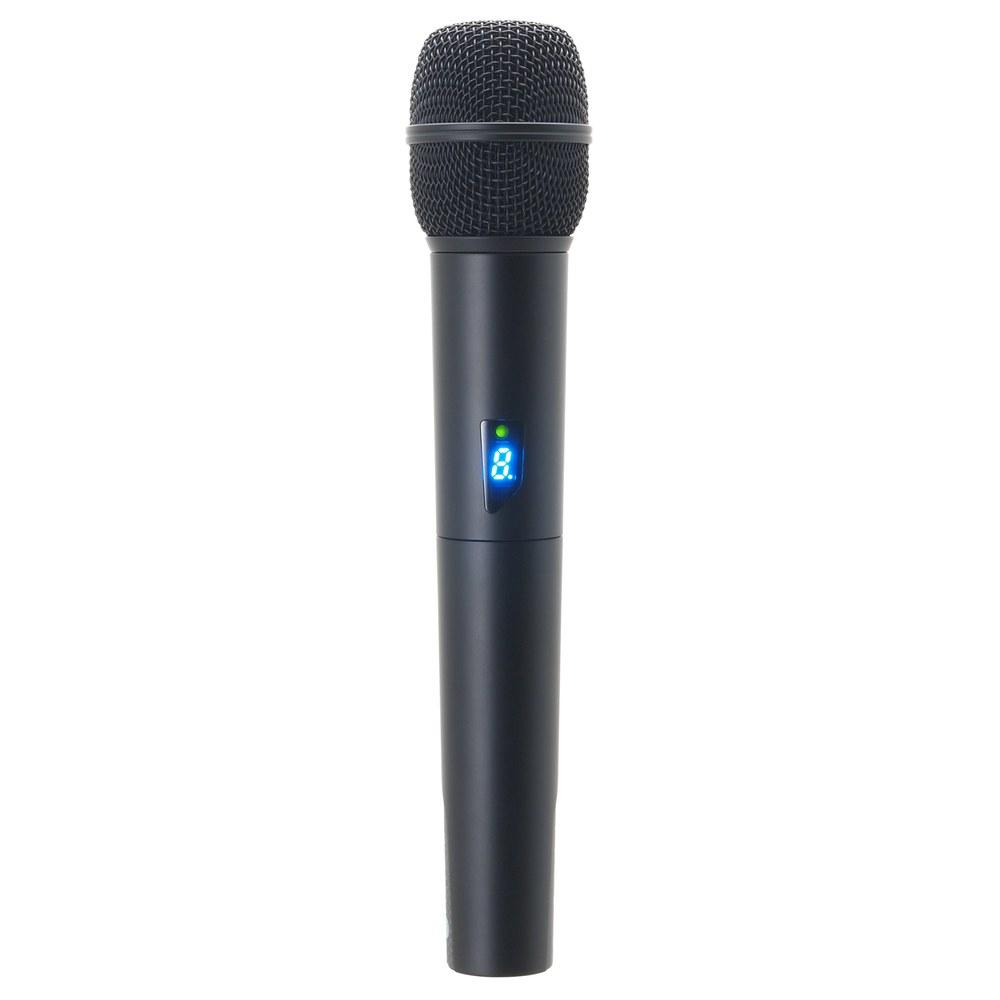

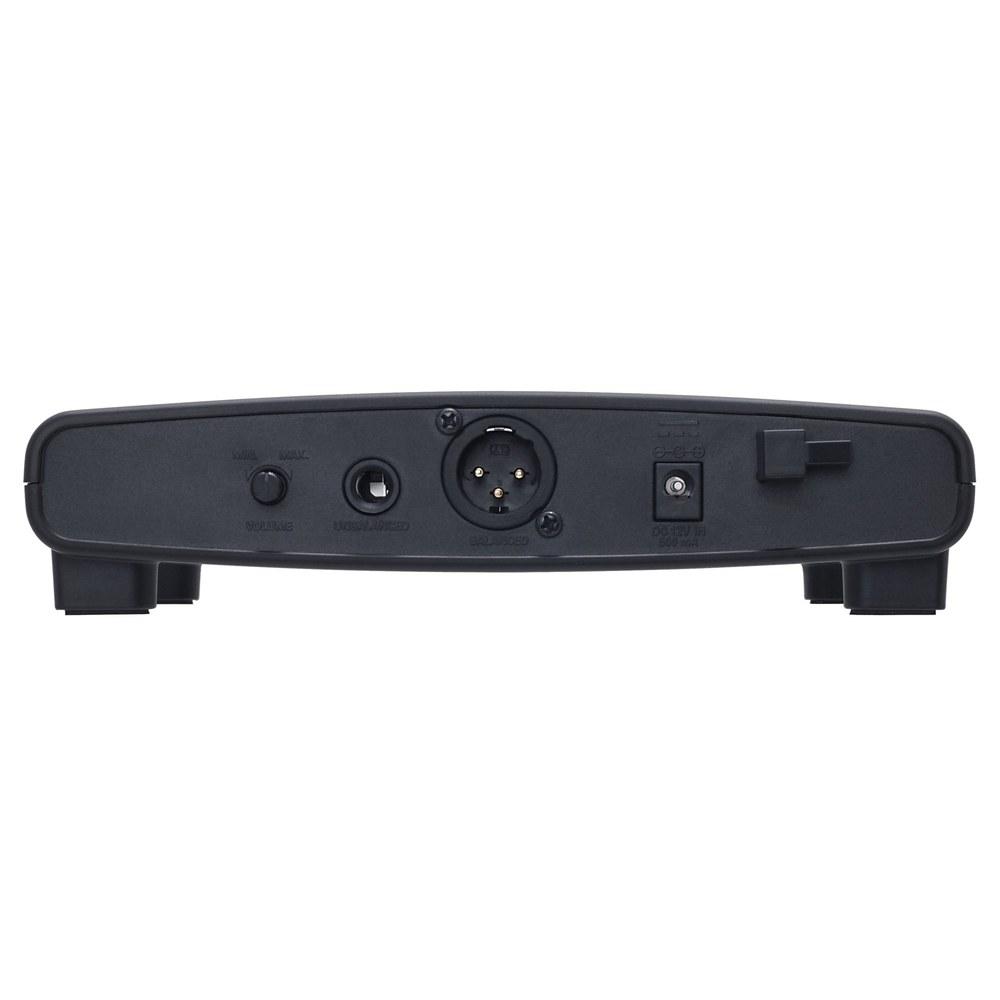

Audio-Technica Handheld Wireless System ATW-1102

[Product Description]

※Note on interference with other devices Devices equipped with Bluetooth, wireless LAN/Wi-Fi, digital cordless phones, microwave ovens, and other equipment operating in the 2.4GHz band may cause audio dropouts due to interference. Similarly, the radio signals from this product may affect these devices. Please keep such devices separated to prevent interference.

●System Specifications - Operating frequency band: 2.4GHz ISM band - Audio dynamic range: 109dB - Total harmonic distortion: less than 0.05% - Communication distance: 30m (line of sight, without interference) - Operating temperature range: 0°C to 40°C - Audio frequency response: 20Hz to 20,000Hz - Audio sampling: 24bit/48kHz ● Receiver: ATW-R1100J - Reception method: Auto channel setting - Maximum audio output level: 0dBV (XLR3 pin male, balanced), 6dBV (φ6.3mm mono jack, unbalanced) - Power supply: DC12V (using the included AC adapter, for Japan only) - External dimensions (excluding protrusions): approximately H46.2×W190×D128.5mm - Weight: approximately 290g ● Microphone Transmitter: ATW-T1002J - Transmit power: 10mW - Power supply: DC3V (2× AAA alkaline batteries or nickel-metal hydride batteries (1900mAh or more)×2) - Operating time: approximately 6 hours *Operating time varies depending on battery type and ambient temperature. - External dimensions (excluding protrusions): approximately φ50×254.8mm - Weight (excluding batteries): approximately 280g ● Included accessories: AC adapter (for receiver)

- Features a newly designed high-quality dynamic unit. Combines a handheld microphone with a high-quality 2.4GHz digital wireless system. Certified with the Telec mark (frequency band: 2.4GHz) - Easy operation requiring no complicated setup. Complete setup with simple operation. Equipped with automatic channel setting, eliminating the need for users to manually configure channels. Frees band members from troublesome channel allocation and adjustments. - Avoids interference frequencies through bidirectional communication, supporting up to 8 channels simultaneously. Real-time bidirectional communication between transmitter and receiver automatically avoids interference frequencies. Ensures dropout-free operation even in challenging wireless LAN environments or during sudden interference. Supports up to 8 simultaneous channels. - Stable operation with two transmission antennas and three diversity reception. The handheld microphone contains two antennas, transmitting signals from the best condition antenna at all times. The receiver employs space diversity, frequency diversity, and time diversity to automatically select the best reception conditions. - High-quality sound even wirelessly. Achieves high sound quality with 24bit/48kHz high-bit-rate audio. Features a newly designed dedicated dynamic unit and a high-quality analog design focused on sound quality.

[Important Notice - For Overseas Customers]

Thank you for purchasing this product. Before using it overseas, please carefully read the following important notices.

1. Laws, Regulations, and Safety Standards This product complies with Japanese safety standards. Before use in your country, please check its compliance with local laws, regulations, and safety standards. Certain product categories (electronics, cosmetics, food, etc.) may require certification in the importing country.

2. Regarding Electrical Products 【Voltage Compatibility】 When using electrical products, please note that they are designed to match Japanese voltage specifications (90-110V). Using them with a different voltage may cause malfunction.

【Plug Type】 Our products use Japanese plug types (Type A or Type B). Please use a conversion adapter as needed.

【Important Notes Regarding Transformers and Adapters】 Transformers adjust the voltage to match the requirements of the equipment. Conversion adapters only change the plug shape and do not adjust the voltage. Using only a conversion adapter without a transformer may damage the product.

[Regarding Liability] We are not responsible for any malfunctions or damage caused by improper use, such as operating the product without a transformer.

3. Language and Manual Product instructions and displays may be in Japanese only. An English version of the manual can be downloaded from our website.

4. Regarding Product Returns and Exchanges Please note that if you wish to return or exchange a product, you will be required to submit a video of the unpacking process.
