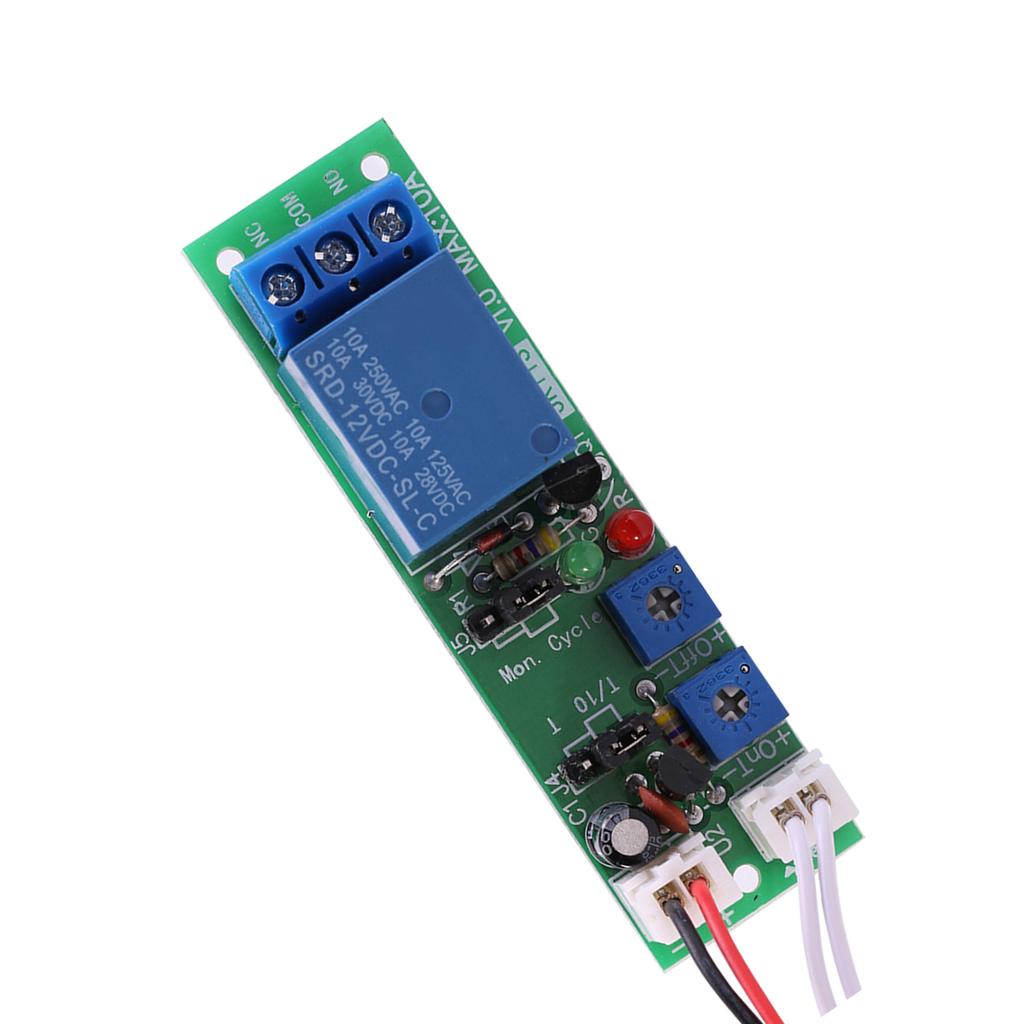

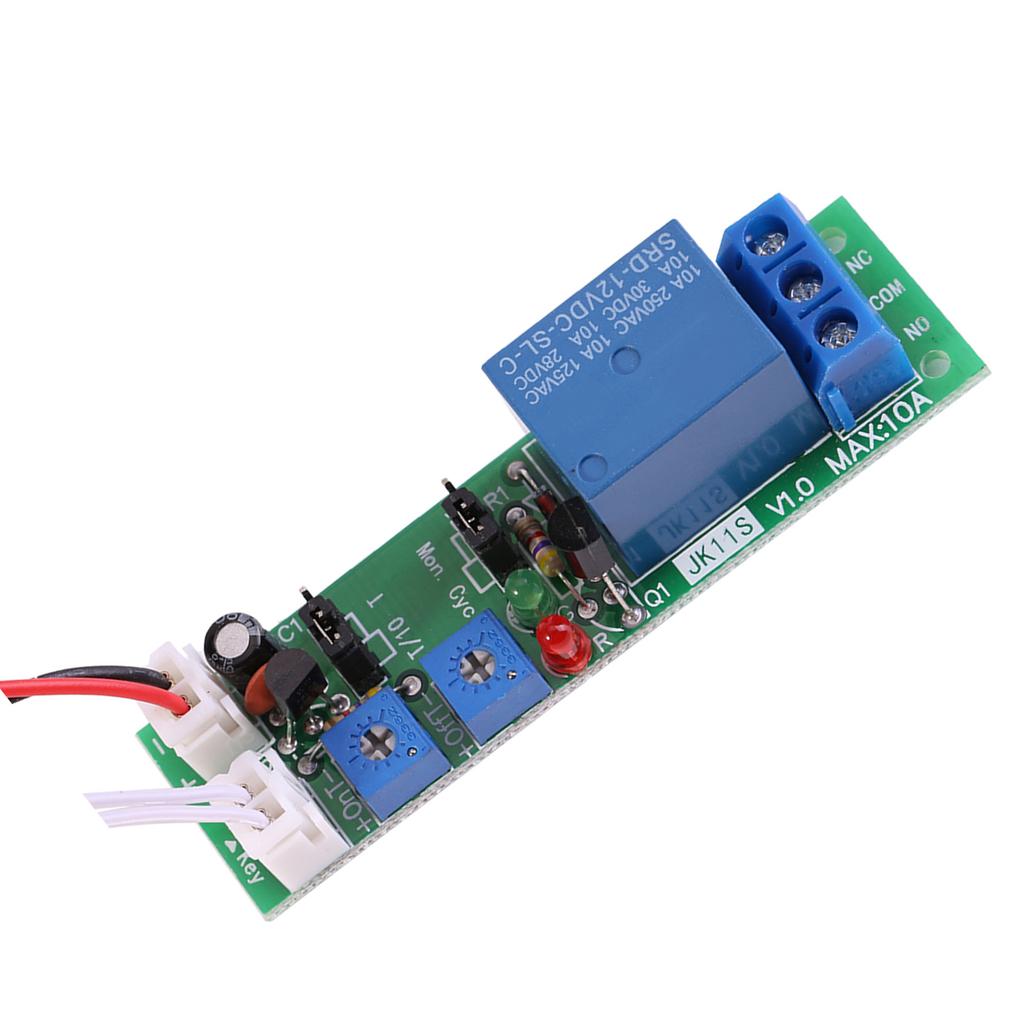

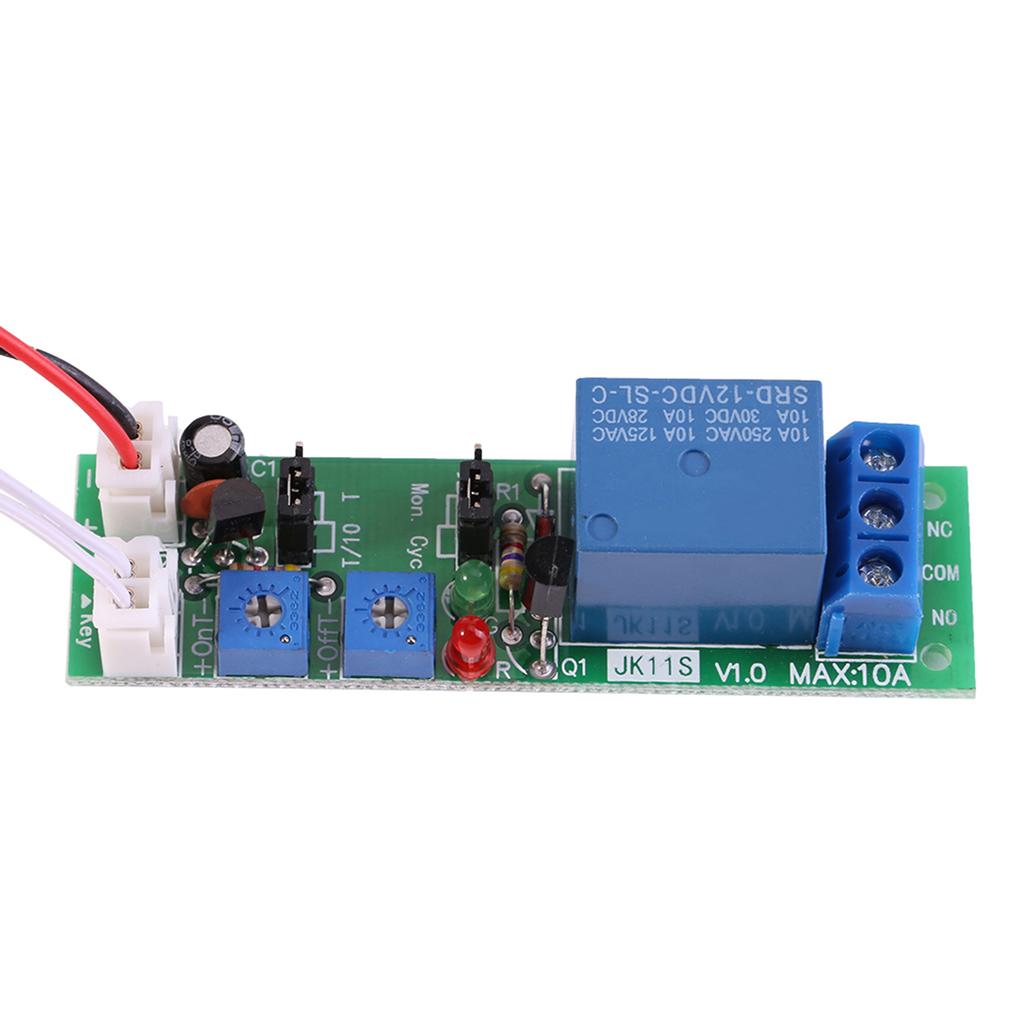

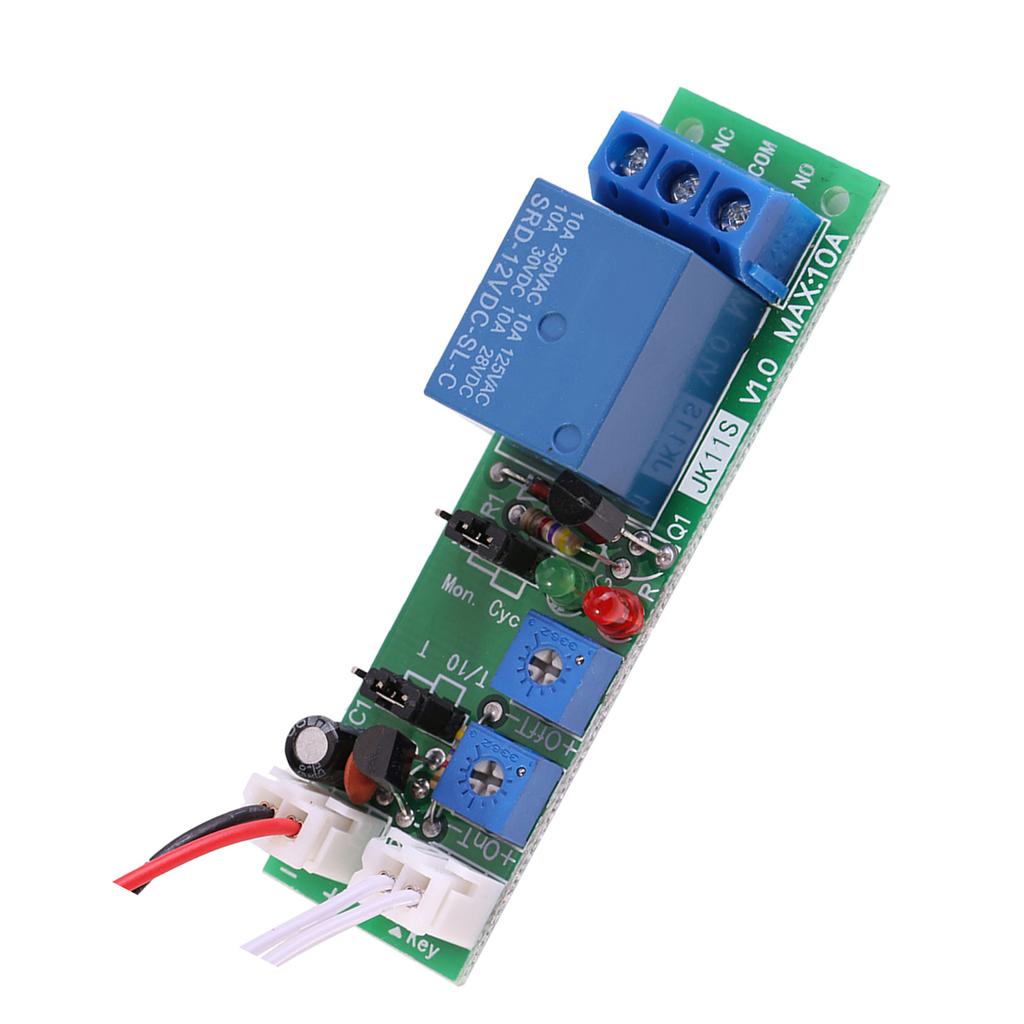

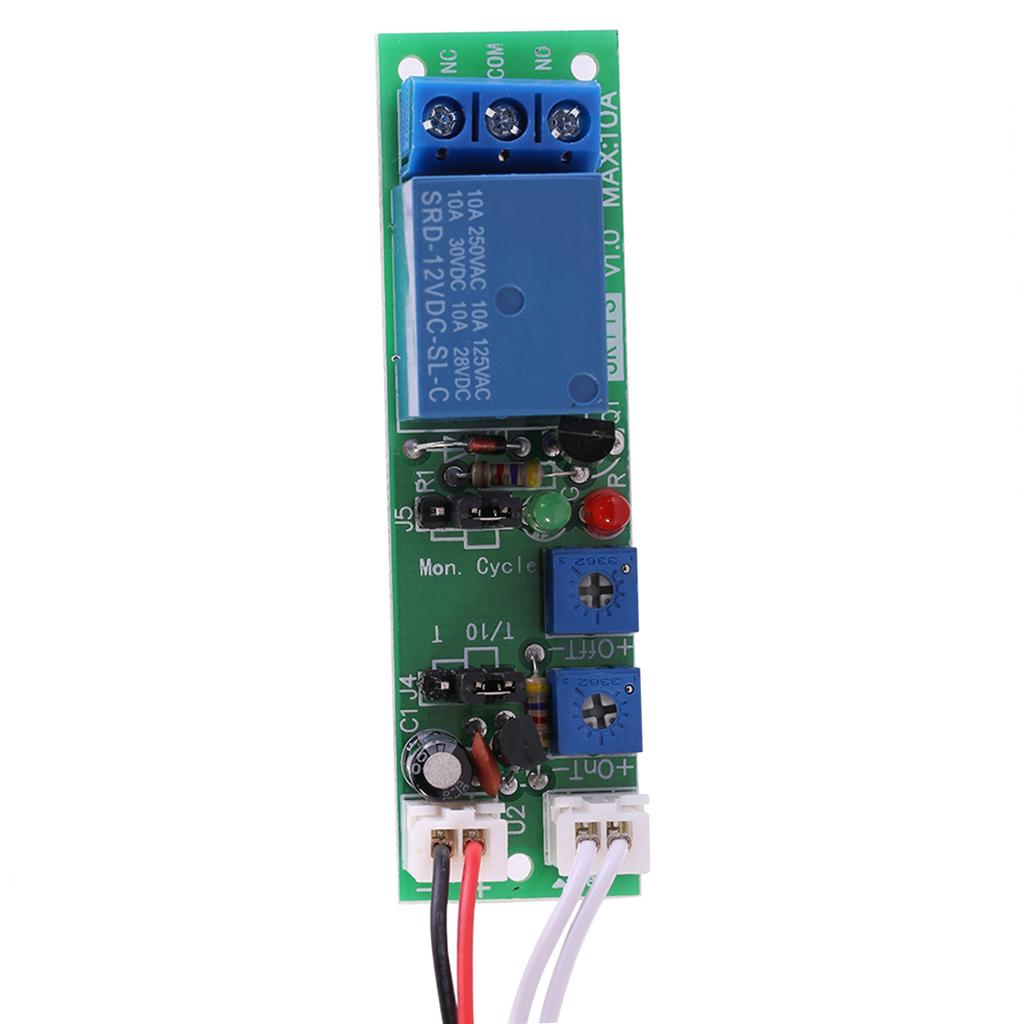

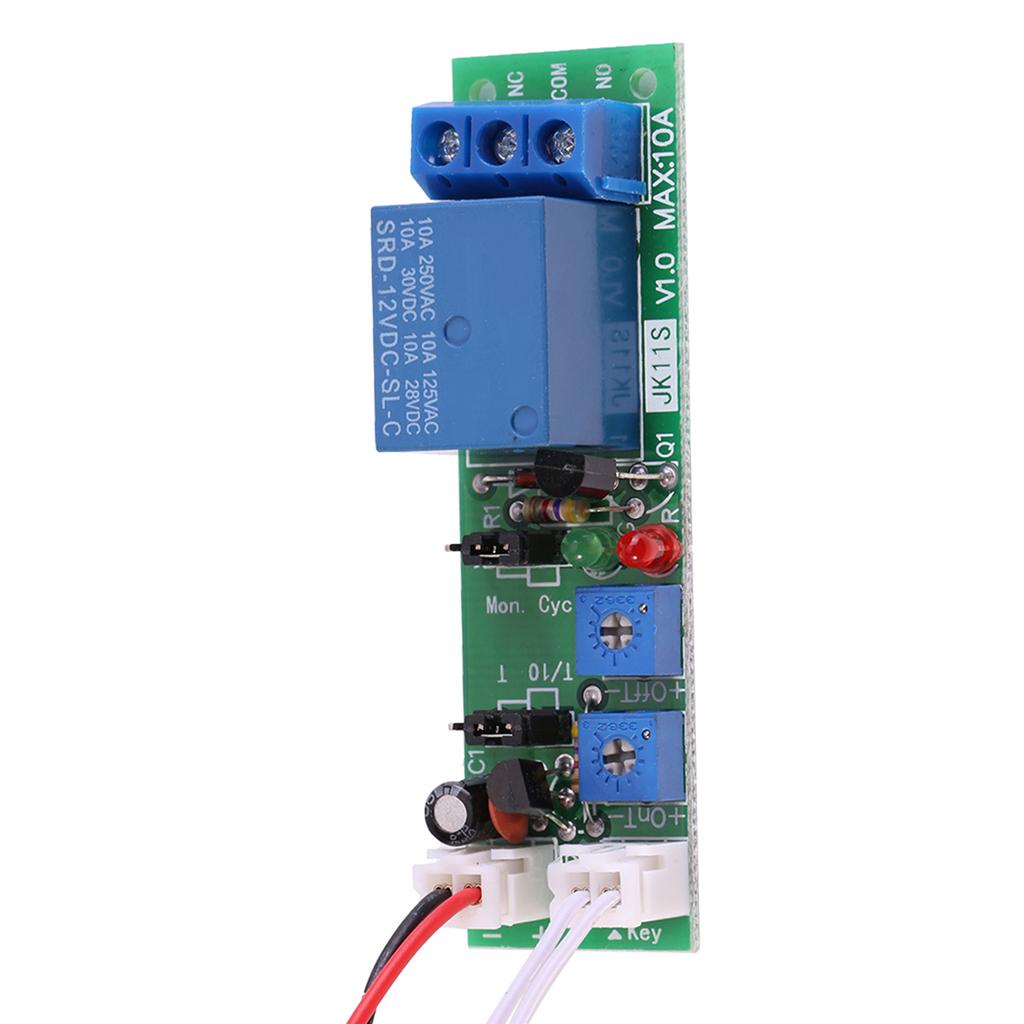

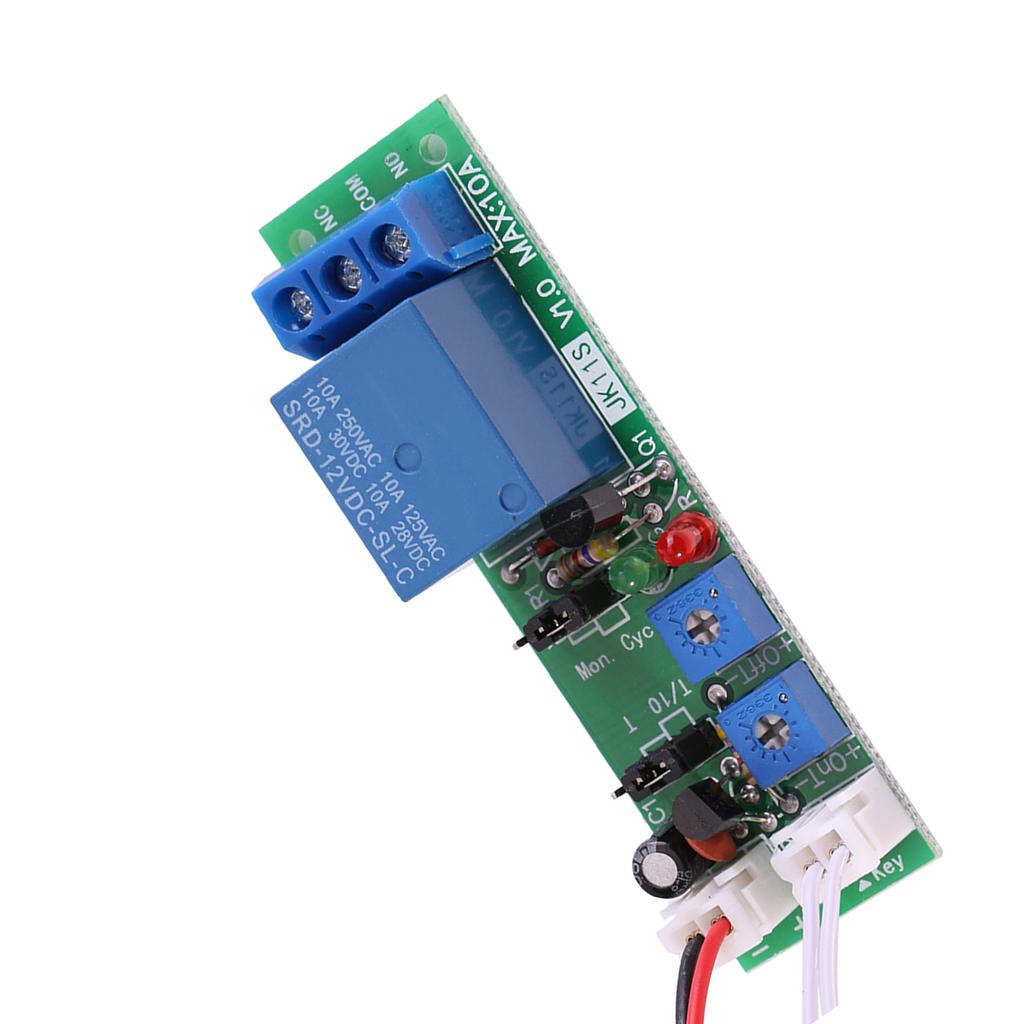

Features:
It
is a timer relay module with high
precision, stable and reliable performance
.
S
u
pport
2 modes, mon
mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper
.
Co
nnect
2
wires of K
ey
if you need modu
le to work
recurrently after power on
.
T
here
are many voltage and
tim
e range
f
or your choice, b
oth on time and off time are adjustable
.
W
idely
used on timer operating equipment, machine repetitive test circuit,
fish tank
intermittent pump, etc.
Specifications:
Type: DC5V,0 30min DC5V,0 24hr DC12V,0 120min DC12V,
0 24hr DC24V,0 15min DC24V,0 30min (Optional)
Quiescent Current: <10mA
Dynamic Current: 45mA@12V; 90mA@5V; 30mA@24V
Contact: 1 group NO+NC
Load Capacity: 10A(AC0 250V, DC0 30V)
Size: 70*20*18mm 2.75*0.78*0.7
Time Accuracy: Max value*0.001
Mon. Mode:
1. The module Power on, When triggered the relay is switched on, timer delay off.
2. When triggered
on the delay process,
ag
ain
triggered, it will immediately interrupt the delay.
Cycle Mode:
1. The module Power on, When triggered the relay is switched on, (T1) timer delay off. (T2) timer delay
on. Such cycle. T1 and T2 are set by two adjustable resistors, respectively.
2. When trig
gered on the delay process, again triggered, it will immediately interrupt the delay.
Package Includes:
1 x Timer Relay Module
.
