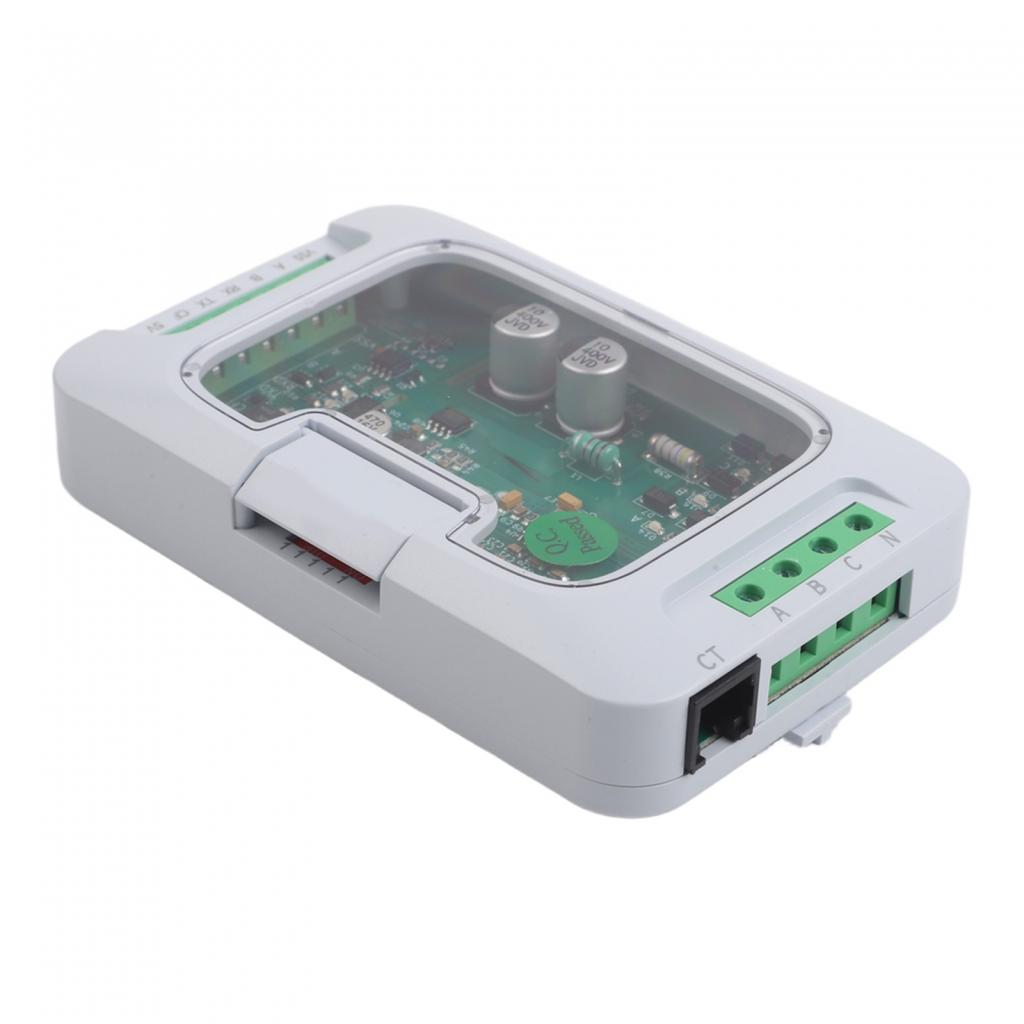

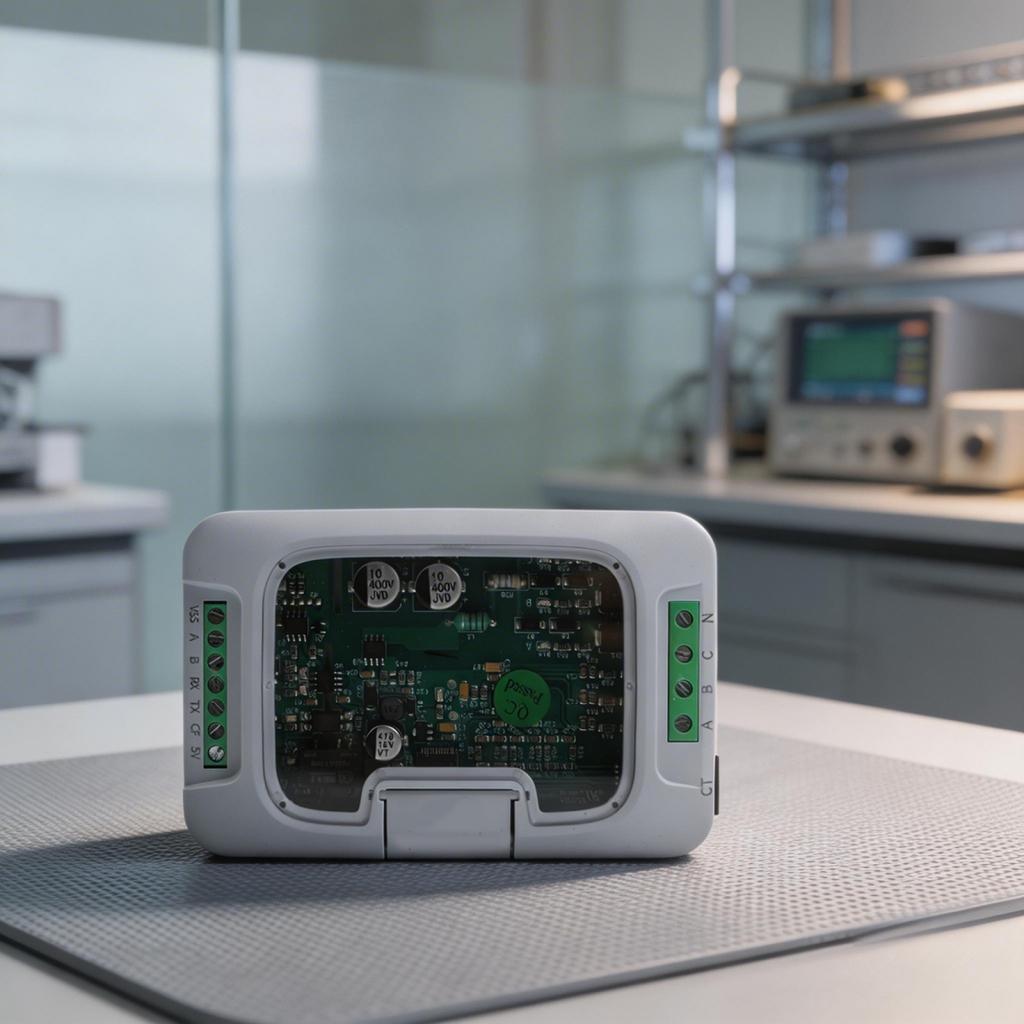

For RS485RTU PZEM6L24 Module for 380V 100A Active Reactive Energy Monitoring

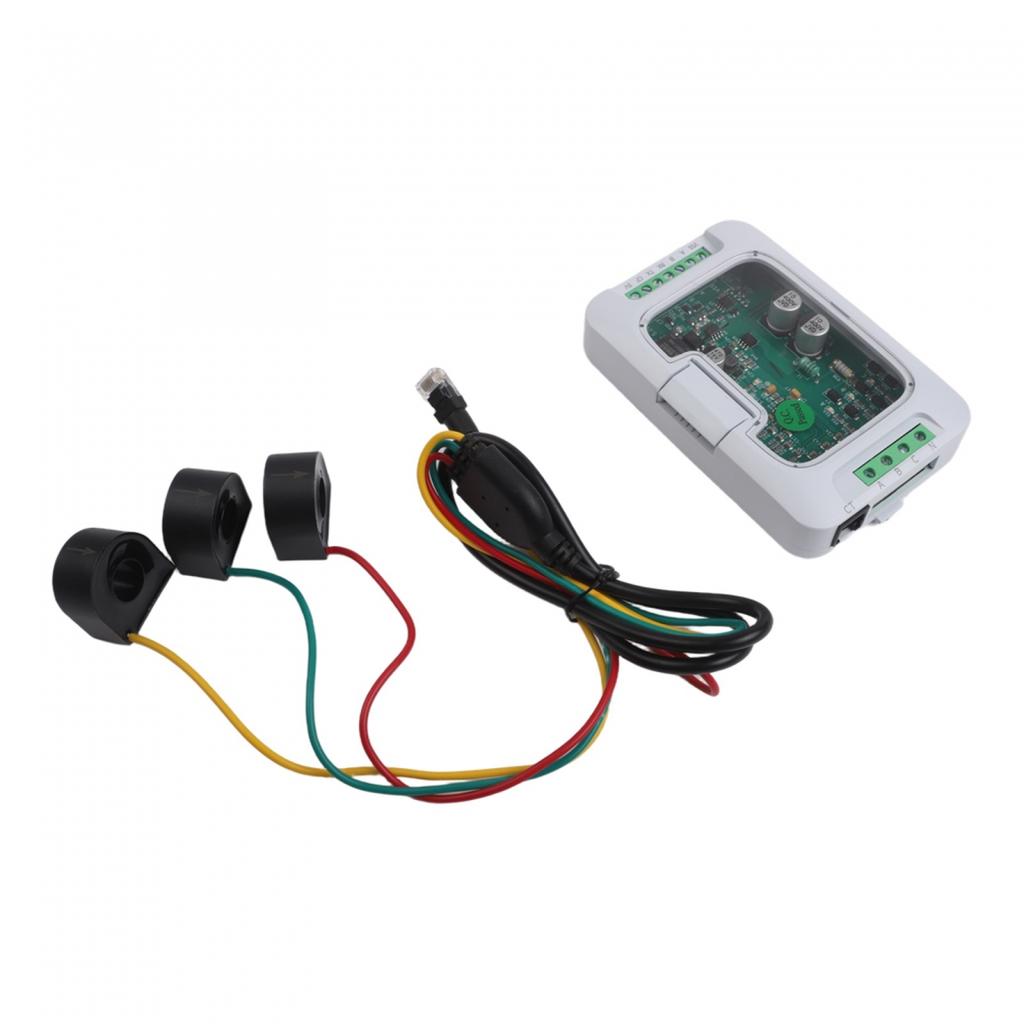

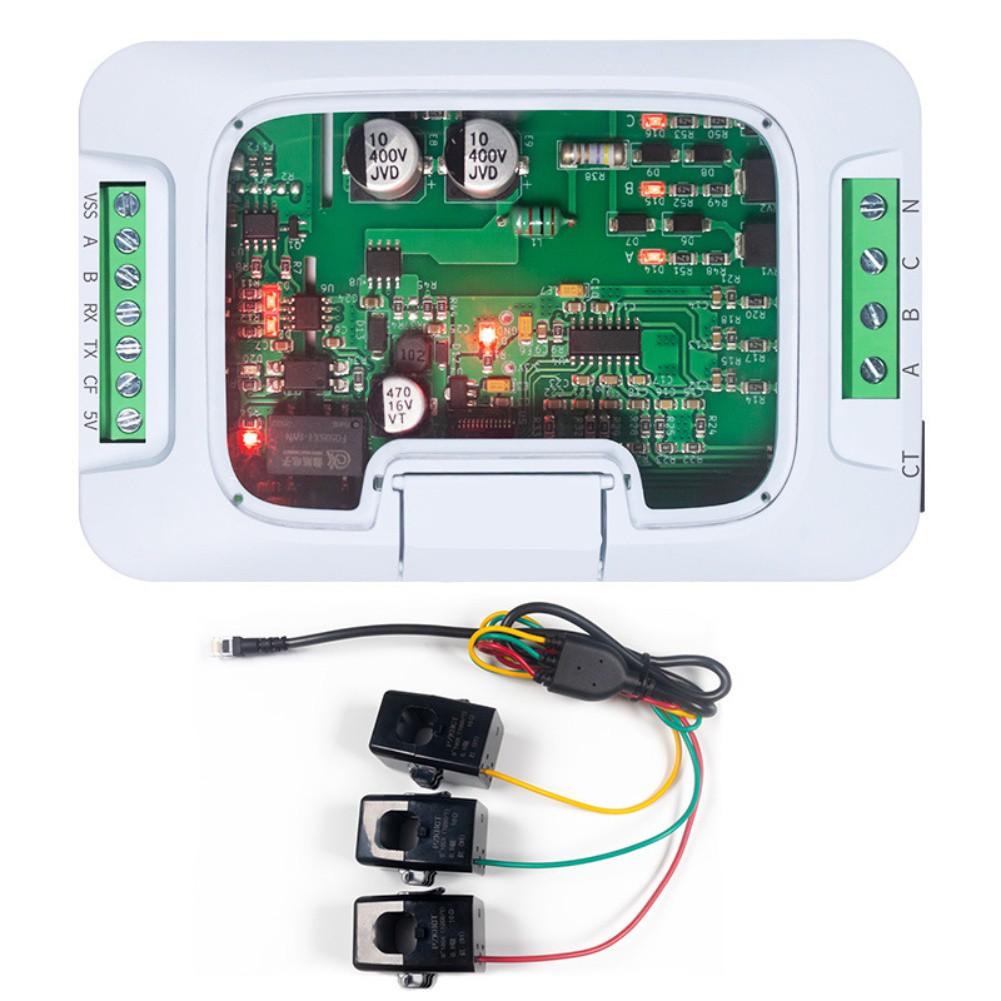

Features: Solve industrial-grade energy problems with a compact module Tired of complex energy monitoring solutions? The PZEM-6L24 features a rugged, headless design and offers laboratory-grade accuracy (1% on all parameters!), making it for ideal for seamless integration into automation panels, electricity meters, and IoT systems. Engineers Trust the PZEM-6L24: Comprehensive Measurements: * Voltage: 50–566 V (LN/LL) * Current: 0–100 A (via for CTs) * Power: Active/Reactive/Apparent (per phase + total) * Energy: kWh/kVARh/kVAh (per phase + total) * Power Factor, Frequency (45–65 Hz), Phase Angle Industrial Plug-and-Play Connectivity: * Dual Interfaces: for TTL UART (3.3 V) + Robust for RS485 * for Modbus-RTU Protocol: Read All Parameters (0x03/0x04) + Configuration Settings (0x10) + Reset Power (0x42) * Baud Rate: 2400 to 115200 bps (8N1) Deployment Flexibility: * Addressing: Configurable via dial-up hardware (1-32) or software (1-247) for Modbus ID Wiring support: three-phase 3-wire or 4-wire (pre-configured) Pulse output (for CF): 1000 imp/kWh (10 for ms open drain) Reliability design: Ultra-low power consumption:
