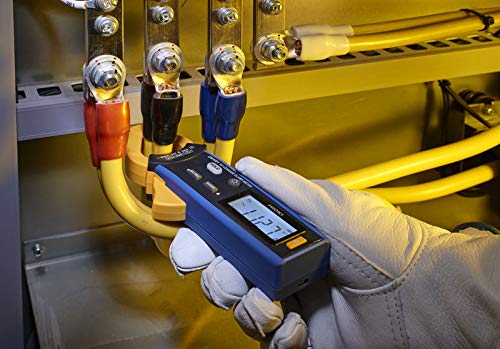

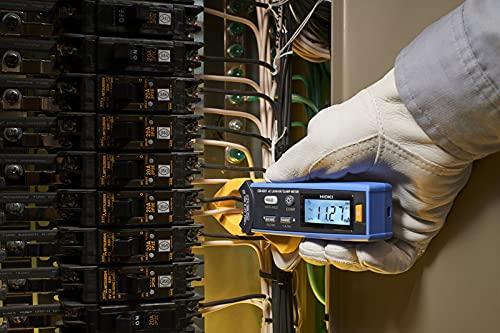

HIOKI (Hioki Electric) AC Leak Clamp Meter CM4001-90 with Wireless Adapter Z3210 Set: Bluetooth communication, current leakage measurement, AC 0.6mA a

Features • Wireless connectivity allows data transfer to smartphones and tablets. • Exceptionally easy gripping reduces leakage current detection time by half. • Easy-to-use jaws allow for effortless operation (up to φ24mm diameter). • Wide measurement range from leakage current to load current. • Comparator function shortens detection time.

Applications • For responding to leakage current problems and insulation management.

Specifications • Leakage Current (mA): 60.00 • AC Current (A): 600.0 • Power Supply (V): 1 x AAA Alkaline Battery (LR03) • Continuous Operating Time: 32h (without Z3210), 16h (with Z3210, wireless communication) • Power Supply: 1 x AAA Alkaline Battery (LR03) • Continuous Operating Time: 32h (without Z3210), 16h (with Z3210, wireless communication) • AC Current Range: 60.00mA, 600.0mA, 6.000A, 60.00A, 600.0A, 5 ranges, True RMS rectification • Basic Accuracy: 45-66Hz = ±1.5%rdg± 5dgt (60.00mA to 6,000A), ±2.5%rdg ±5dgt (60.00A to 600.0A) * Accuracy Range: 0.60mA to 600.0A * Frequency Range: 40.0Hz to 999.9Hz * Crest Factor: 4.5 for under 4000 counts, 3 for over 4000 counts and under 6000 counts * Filter Function: Cutoff frequency 180Hz ±30Hz (-3dB) when ON * Other Functions: Comparator function, Max/Minimum/Average value record function, Backlight, Data hold, Auto power off, Inrush current measurement * Display Update Rate: 5 times / second * Maximum conductor diameter measurement (mm): 24 * Width x Height x Depth (mm): 37 x 160 x 27 Quantity: 1 unit Set contents/accessories: Carrying case x 1, strap x 1, instruction manual x 1, usage precautions x 1, AAA alkaline battery x 1
