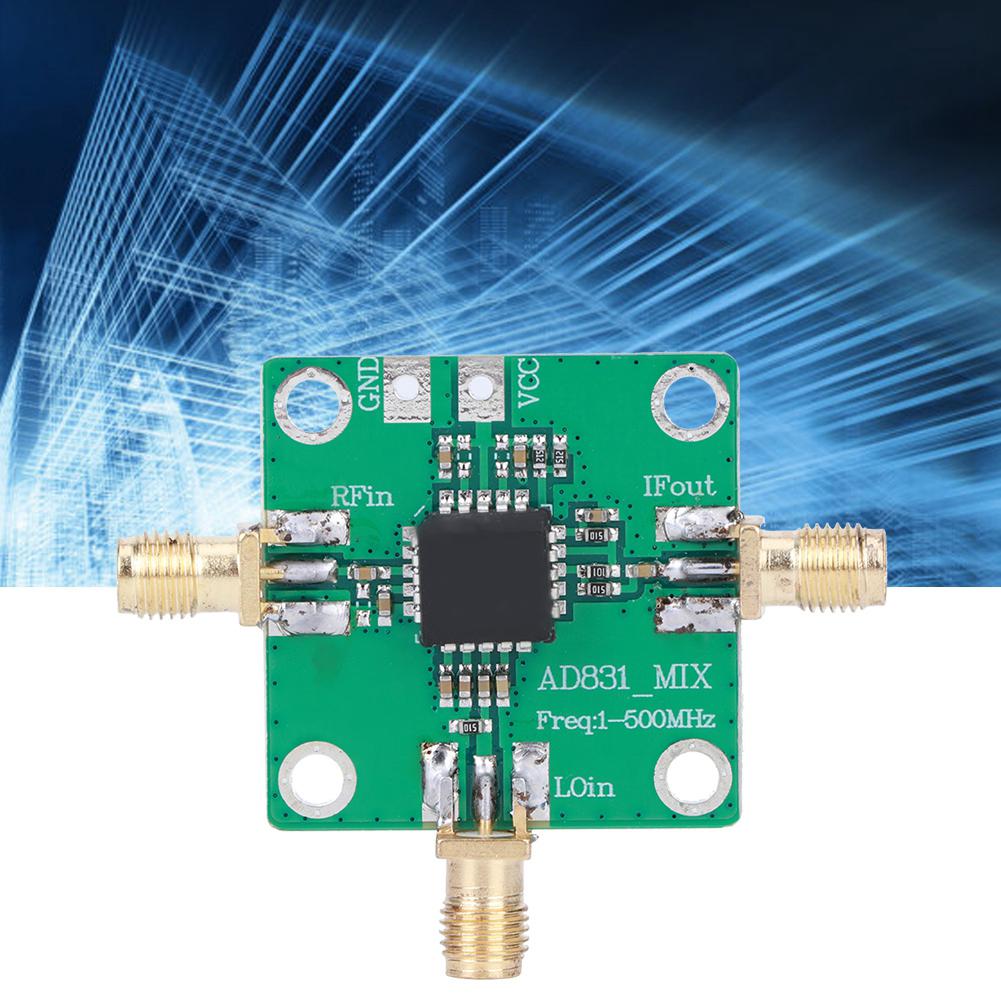

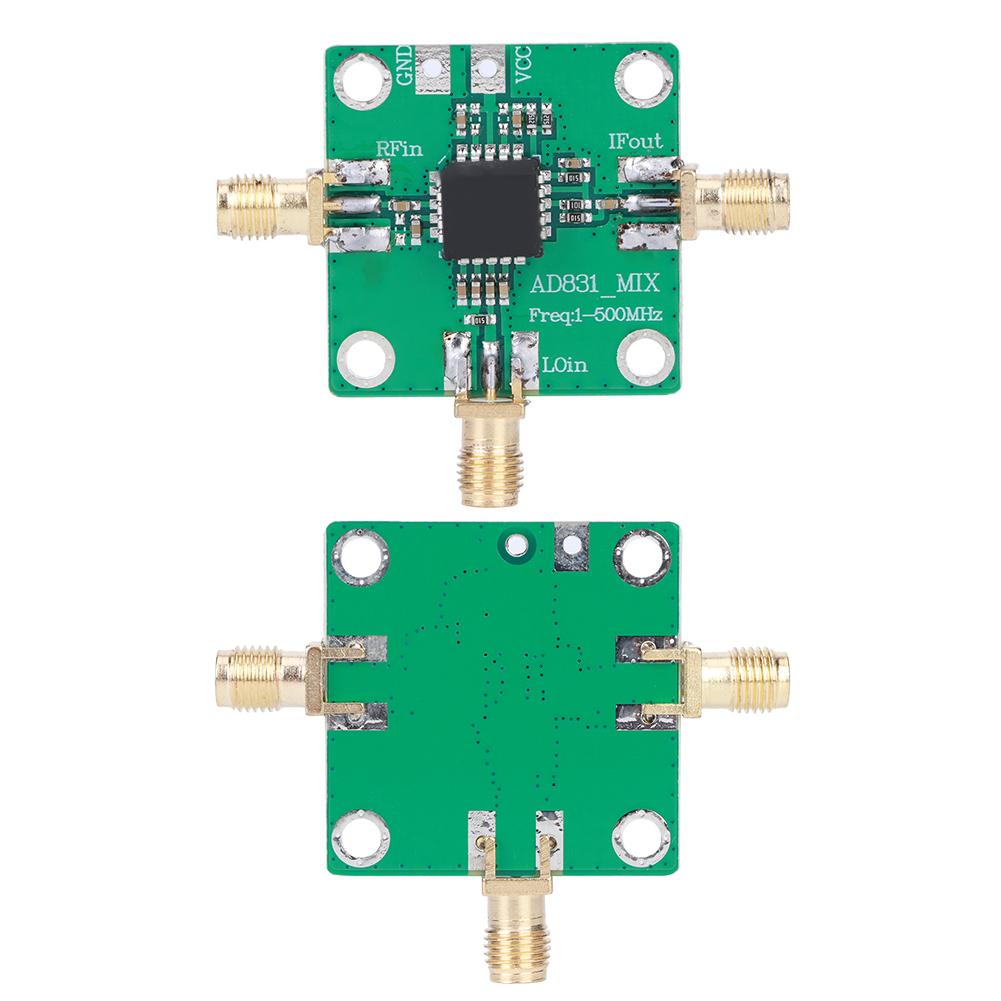

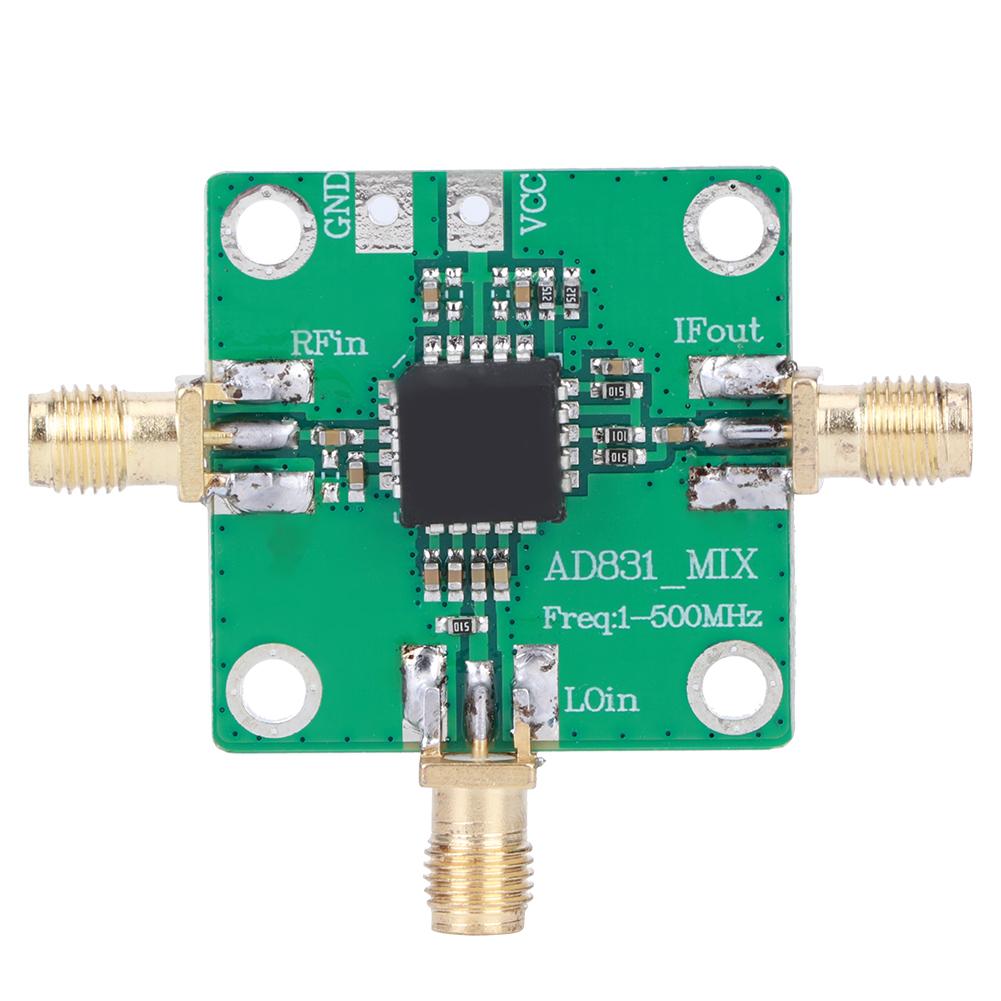

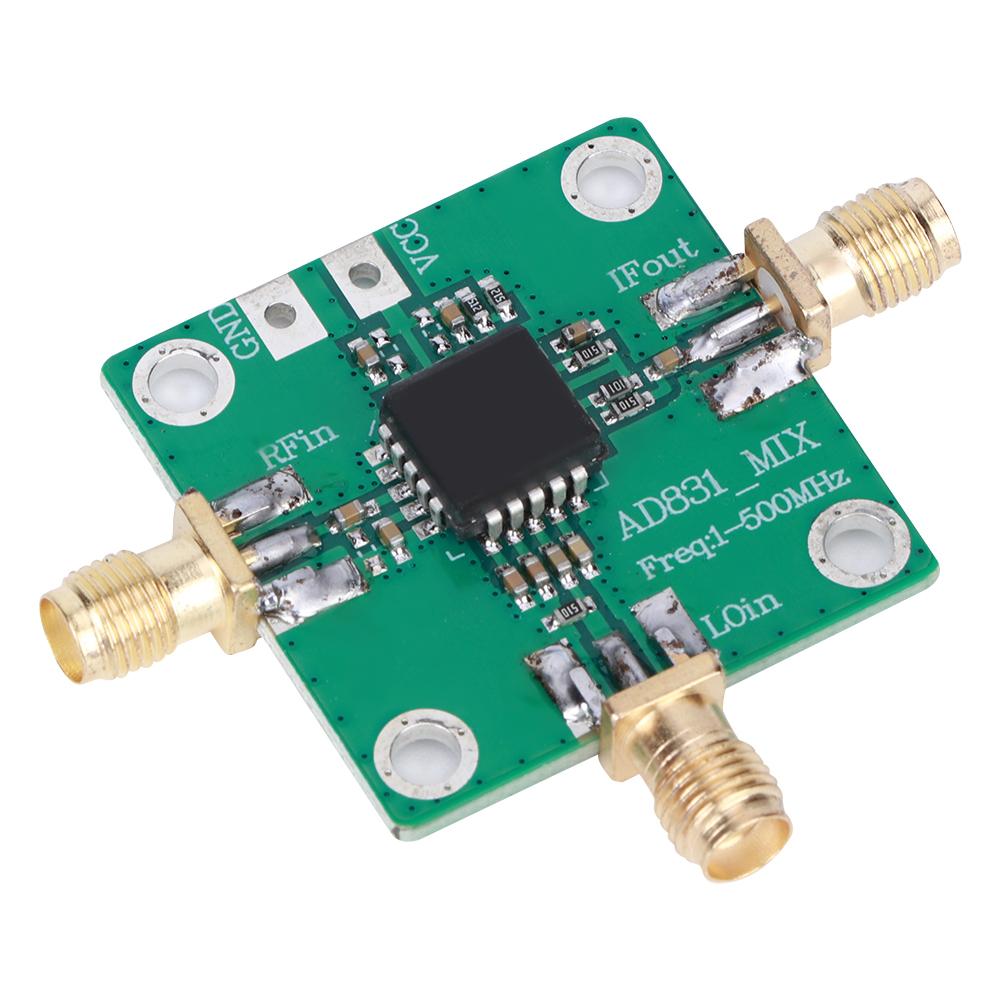

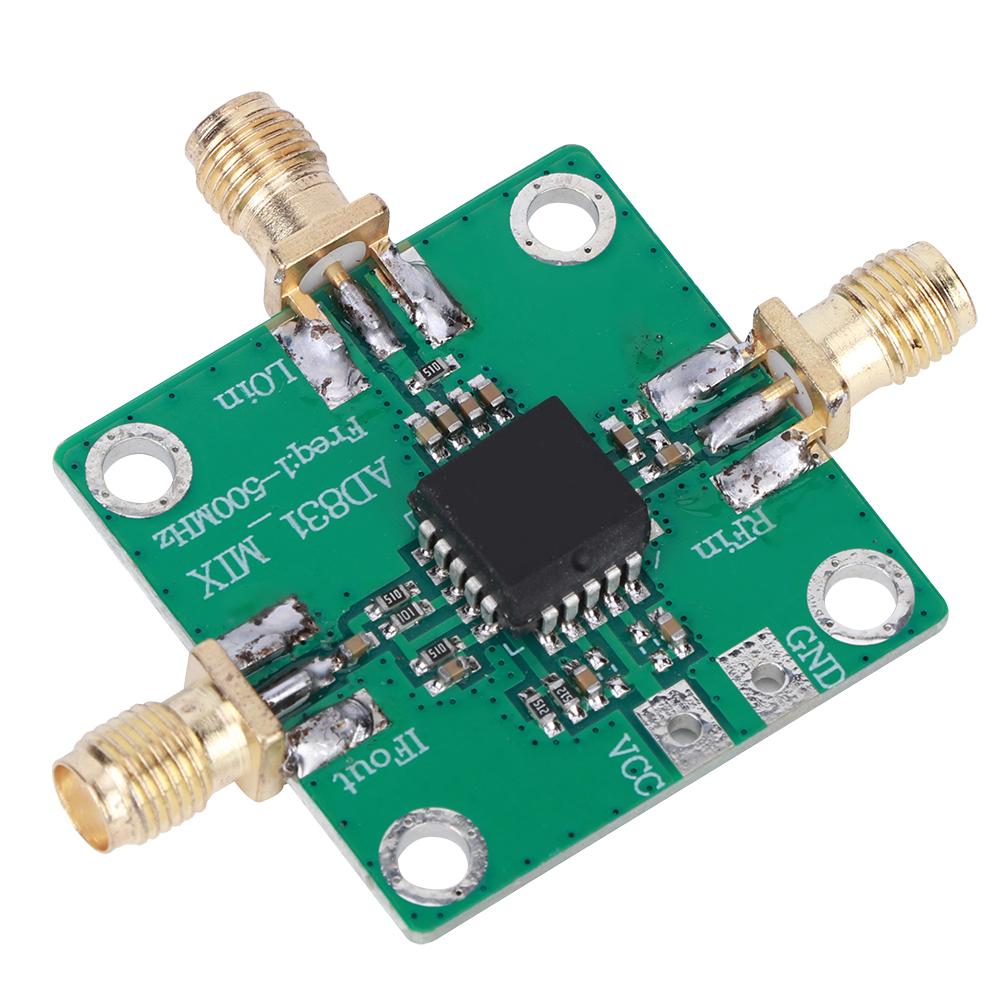

RF Mixer Module AD831 High Frequency Drive Inverter Amplifier Board Converter 1‑500MHz

Feature: 1. AD831 provides +24 dBm third‑order intercept point, which can achieve ‑10 dBm LO power consumption 2. No need for high‑power LO drivers, no corresponding shielding and isolation issues 3. AD831 is a low distortion, wide dynamic range, single‑chip mixer, suitable for applications such as RF‑IF down conversion in HF and VHF receivers, second mixer in base stations, DC‑baseband conversion, etc. 4. The mixer is designed for single power supply. The RF, IF and LO ports have DC isolation capacitors for easy use. The operating frequency of RF and LO inputs can be as high as 500MHz. 5. The IF output is a single ended voltage output with a 250 MHz output bandwidth. A single resistor connected between the pins OUT and FB is used to set the gain. 6. With the output amplifier of the mixer and the best source impedance, the SSB noise figure of the mixer is 10.3 dB at 70 MHz Specification: Item Type: RF Mixer ModuleTechnical Index: RF Input: 1 500MHz RF Input: +10dBm (1dB compression point) Local Oscillator Input: 1 500MHz Local Oscillator Input: 10dBm IF Output: 1 200MHz Power Supply Voltage: 9 11V single ended power supply. Package List: 1 x RF Mixer Module
