Easun power lifepo4 48v 300ah 200ah 100ah battery pack 51.2v 15kw lithium solar battery rechargeable battery 6000+ cycles
Features:
1. lcd monitor the energy storage power data and operating status.
2. high-quality lifepo4 battery, safe, deep cycle and long lifespan.
3. product with rounded edges is safer, avoiding accidental collisions.
4. external main switch to reduce product power consumption.
Improve safety.
5. wall brackets, which can meet the installation and use of different places.
6.bms built inside, over-voltage, over-load, over-temperature
Protection, etc.
7. compatible, can be connected to different types of loads within the
Voltage range.
8. support parallel.

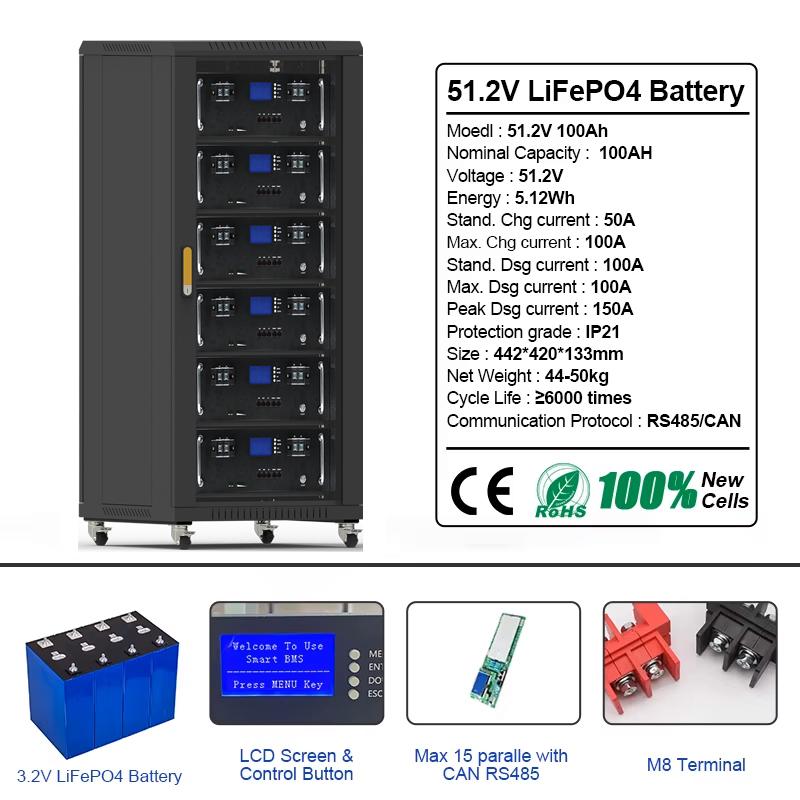

Model
Ibattery-ea-51.2v-100ah-jj
Voltage
51.2 vdc
Capacity
100 ah
Energy
4.8kwh / 5.12kwh
Max. charging voltage
54.75v / 58.4v
Cut-off discharge voltage.
39.0v – 42.0v
Stand. charging current
50 a
Max. charging current
100 a
Stand. discharge current.
100 a
Max. discharge current.
100 a
Peak discharge current.
150 a
Protections
Ovp/uvp/ocp/otp/utp/scp etc.
Communication
Rs 485/can
Working temperature
Charge: 0℃~ 45℃
Discharge: -15℃~ 60℃
Storage temperature
0℃~ 45℃@ 60 ± 20% relative humidity
Protection grade
Ip21 rating
Dimensions(l * w * h)
442*400*223 mm
442 x 420 x 133 mm
Weight
44-50 kg
Model
Ibattery 51.2v 100ah
Ibattery 51.2v 200ah
Ibattery 51.2v 300ah
Nominal voltage
51.2 v
51.2 v
51.2 v
Nominal capacity
100 ah
200 ah
300 ah
Efficiency
≥96%
≥96%
≥96%
Cell type
Lifepo4
Lifepo4
Lifepo4
Charge voltage
58.4 v
58.4 v
58.4 v
Standard charging current
50 a
100 a
100 a
Max. continuous charging current
100 a
200 a
200 a
Standard discharge current
50 a
100 a
100 a
Max. discharge current
100 a
200 a
200 a
Peak discharge currents
50 a
100 a
100 a
Communication protocol
Rs 485/can
Cycle life
≥6000 times
Self-discharge
2% per month
Net weight
42 kg
76 kg
115 kg
Gross weight
58 kg
102 kg
131 kg
Size (lxwxh)
440 x 170 x 560 mm
440 x 206 x 670 mm
520x280x751 mm
Package size (l×w×h)
625 x 520 x 335 mm
750 x 520 x 385 mm
840x610x470 mm
Package method
1pcs per wooden case
Protections
Ovp/uvp/ocp/otp/utp/scp etc.
Charge temperature range
0 to 60°c
Discharge temperature range
-10°c~65°c.
Depolama sıcaklık aralığı
-5~40 °c
Brand Name: EASUN POWER
Connection: Bluetooth-Compatible
Bms: Smart 16S 3.2A
Lithium Battery: 2000 Mah-Battery
48V 100Ah Battery: Easun Lifepo4 Battery
Origin: Mainland China
Nominal Capacity: 100/200/300Ah
Type: LiFePO4
Voltage: 51.2V
Charge Voltage: 58.4V
Parallel: Support
Life Po4 100 Ah: Li-On Batteries
Application: Laptop
Cycle Life: 6000 Cycles
Life Po4: Lifepo4 Battery 200Ah
Easun Battery: Lifepo4 Battery
5Kwh Power Wall 51.2V: 48V 100Ah Lithium Power Storage
Model Number: Lifepo4 Battery
Battery 48V 200Ah: Home Solar System Battery
Power Bank 5Kwh: Power Bank 230V
Lifepo4 51.2V: Solar Power Bank
Battery Lifepo4 51.2V: Easun Battery 48V
