✅Choice of single- and double-acting function, with floating function (lockable) and final shut-off
max. working pressure: 210 bar

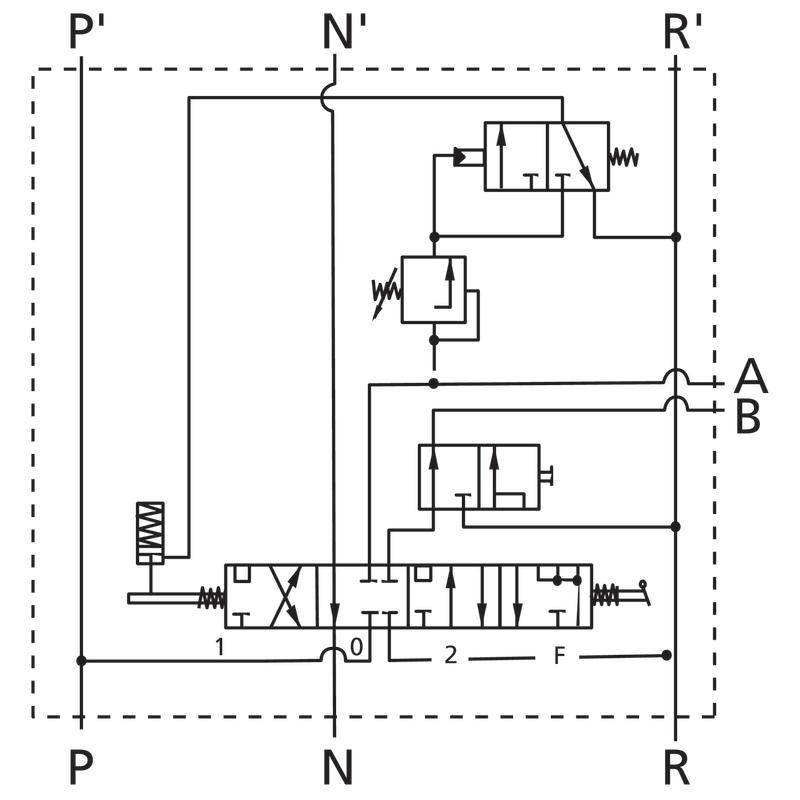

✅ Nominal flow rate: max. 70 l/min. Valve tightening torque: 30 Nm Connection: M22 x 1.5 Dimensions: 260 x 40 x 110 mm The additional directional control valve has four-stage adjustment and can be used for single- and double-acting cylinders.
It has spool-sealed cylindrical ports A and B. This means that extremely little internal oil leakage is permissible under high loads. The device has a locking function in the "Raising" position, which is equipped with an automatic hydraulic cut-out that unlocks at 180 bar.
When switched beyond the "Lower" position, floating regulation is engaged, which is not hydraulically actuated (receiving ports A and B are interconnected for reverse movement). Floating control can be used with single- and double-acting cylinders as a lockable "Lower" position.
The valve can be switched from single-acting to double-acting and vice versa. This is also possible during operation. The valve can be mounted with a sealing plate in any position, on the left or right side.
Article number: 85219008
Comparison number: 0521609001, 0521609005, 0521609009, 0521609013, 0521609019, 0521609021, 0521609022, 0521609053, 0521609054, 0521609062, 0521609063, 0521609064
