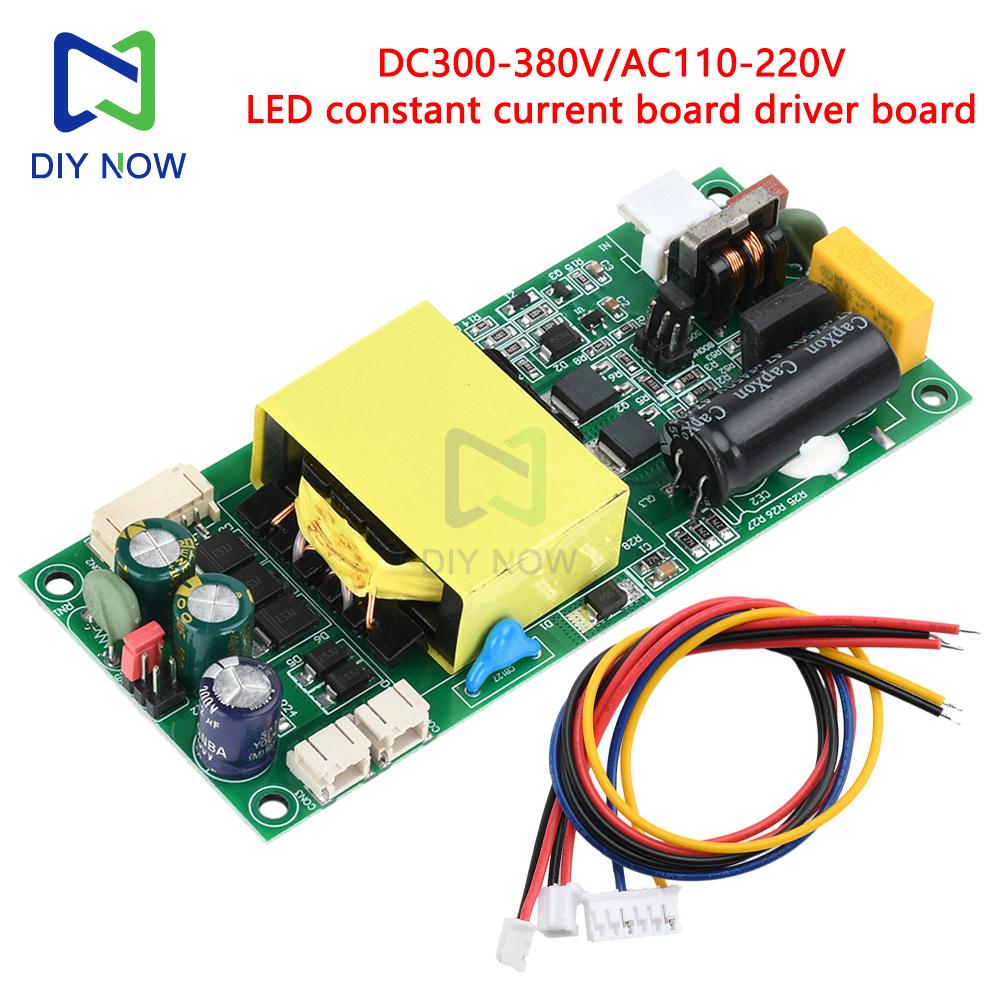

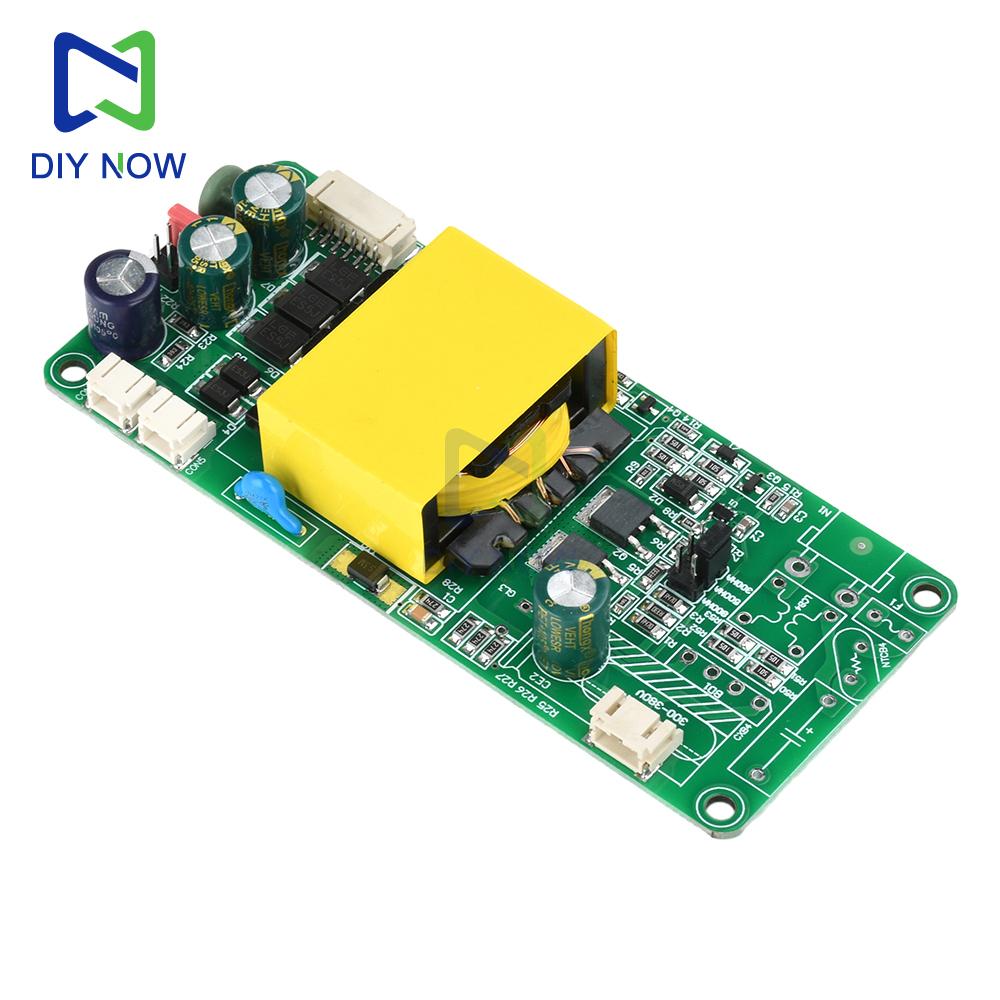

LCD TV backlight universal integrated board driver board LED universal backlight constant current board 42-70 inch AC 110V-220V

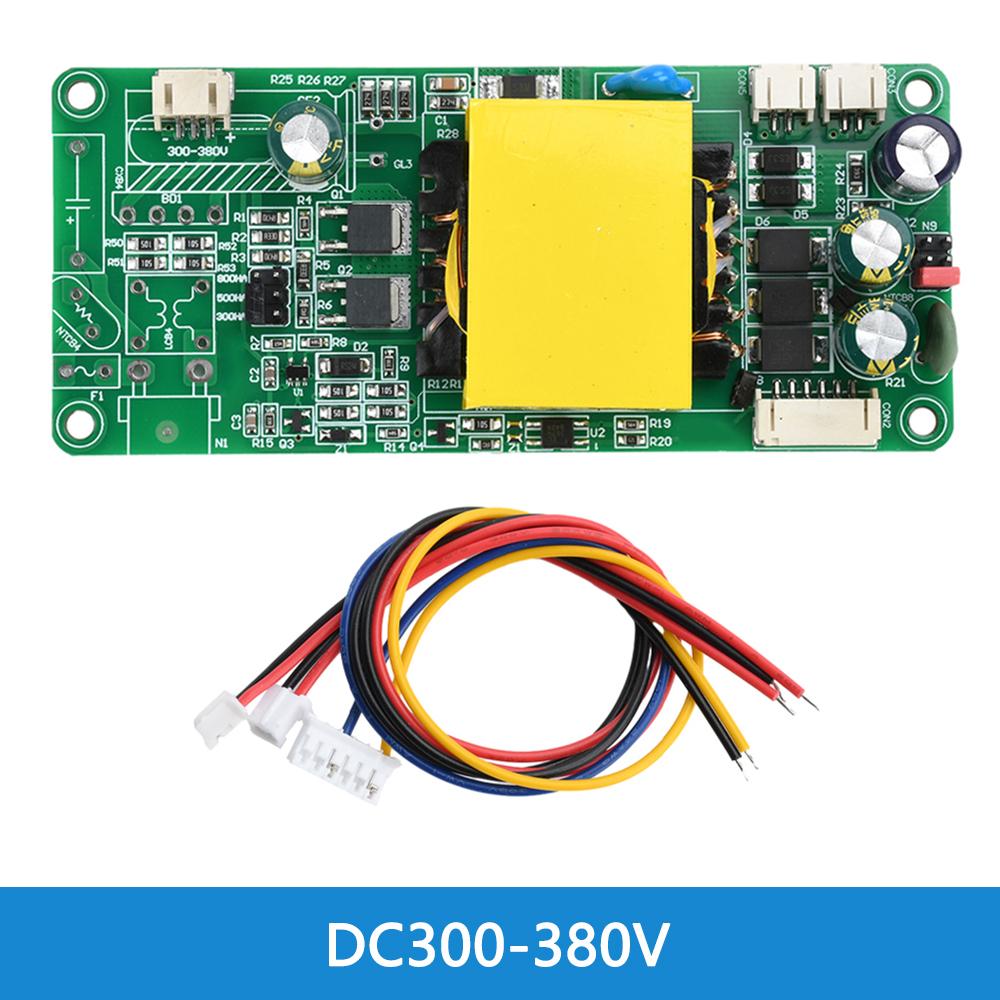

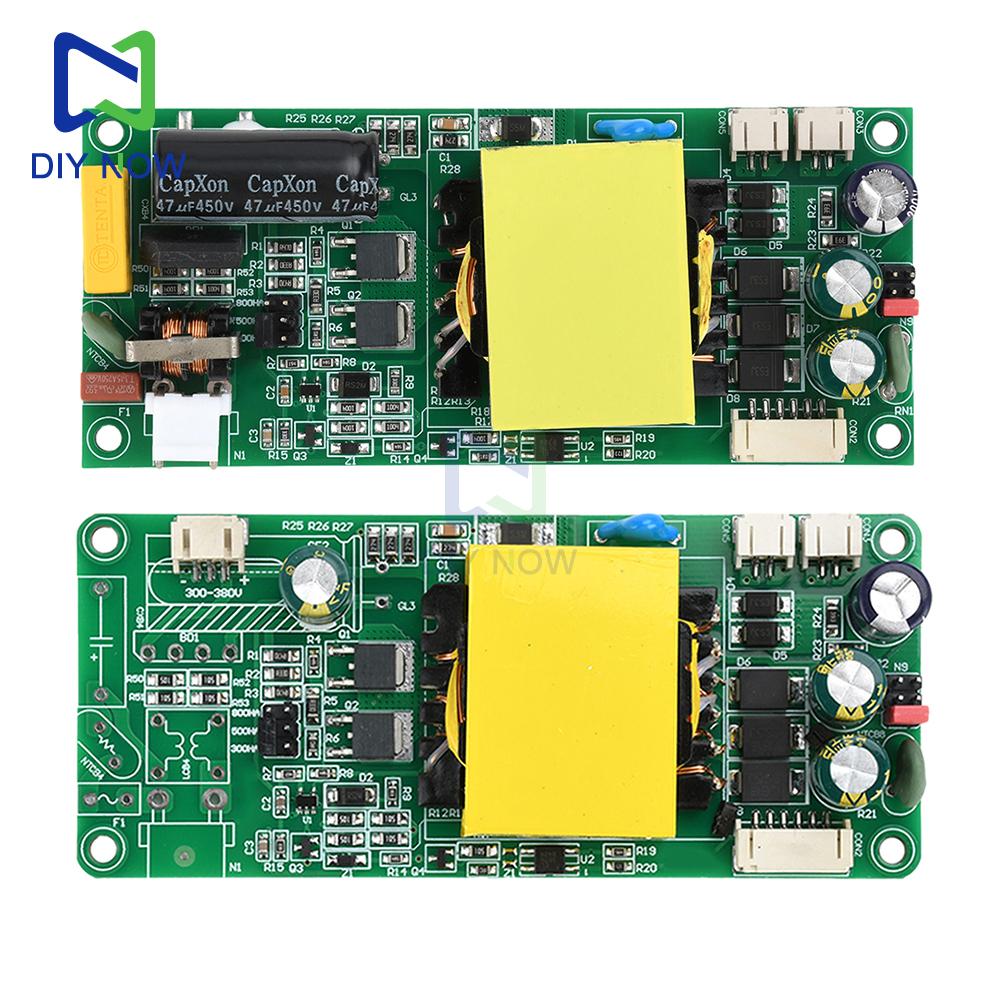

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC300-380V/AC110-220V Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

Features: 1.Provide AC110V-220V and DC300-380V input for customer's choice. 2. Suitable for 42-70 inch LCD TVs, to meet the needs of different models of LED backlit displays 3. Advanced constant current technology ensures stable LED current and prolongs the life of the load. 4. Optimized circuit design and efficient heat dissipation mechanism to ensure long time low temperature operation. 5. Selection of high-quality materials, product quality is guaranteed and performance is more stable.

Parameter: Input: DC300-380V/AC110-220V (optional) Output voltage: 30-248V Output current: 300-1100HA adjustable (shipping default 300HA) Light bar voltage setting: 30-65V/65-125V/125-248V adjustable (shipping default 30-65V)

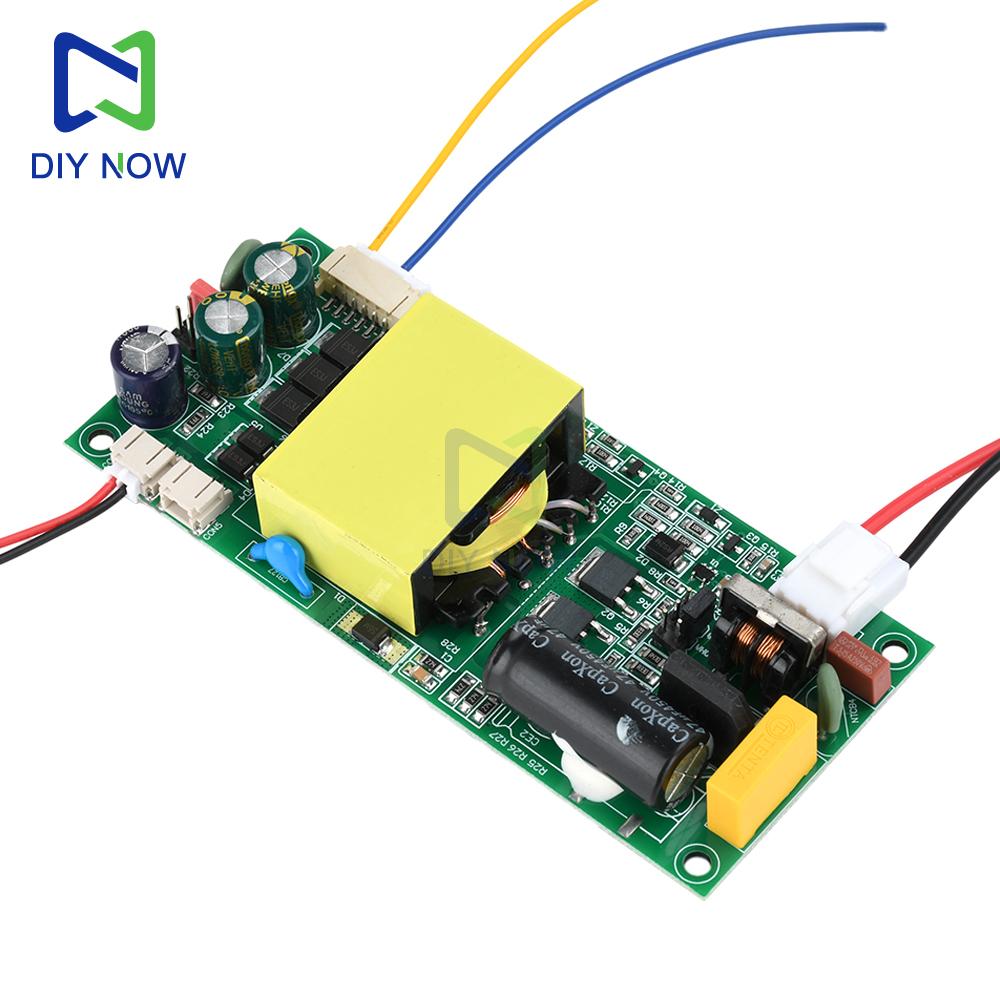

Wiring instructions: Switching signal: blue line positive, yellow line negative Backlight seat: red line positive, black line negative Note: Try not to overload the use, so as not to be durable

Package include: Driver board *1 Line *3 label:yes
