Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Dissipation Power : 100W*2
Supply Voltage : DC8-26V
Application : Speaker
Type : Module
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Tired of underpowered amplifiers that distort at high volume? Frustrated with cheap modules that can't deliver the sound your speakers deserve?
Whether you'rebreathing new life into a vintage speaker, building a DIY Bluetooth boombox, or upgrading your car audio, thisXY-AP100L 100W×2 Digital Amplifier Boarddelivers theclean, powerful soundthat brings your music to life. Powered by thegenuine TPA3116D2 digital amplifier chip– not a cheap clone – it drives8Ω speakers with a room-filling soundstagethat rivals systems costing far more. WithBluetooth 5.0, AUX, USB flash drive, and PC sound cardinputs, plus asmooth 360° encoder volume control, it's theperfect audio heartfor your next project.

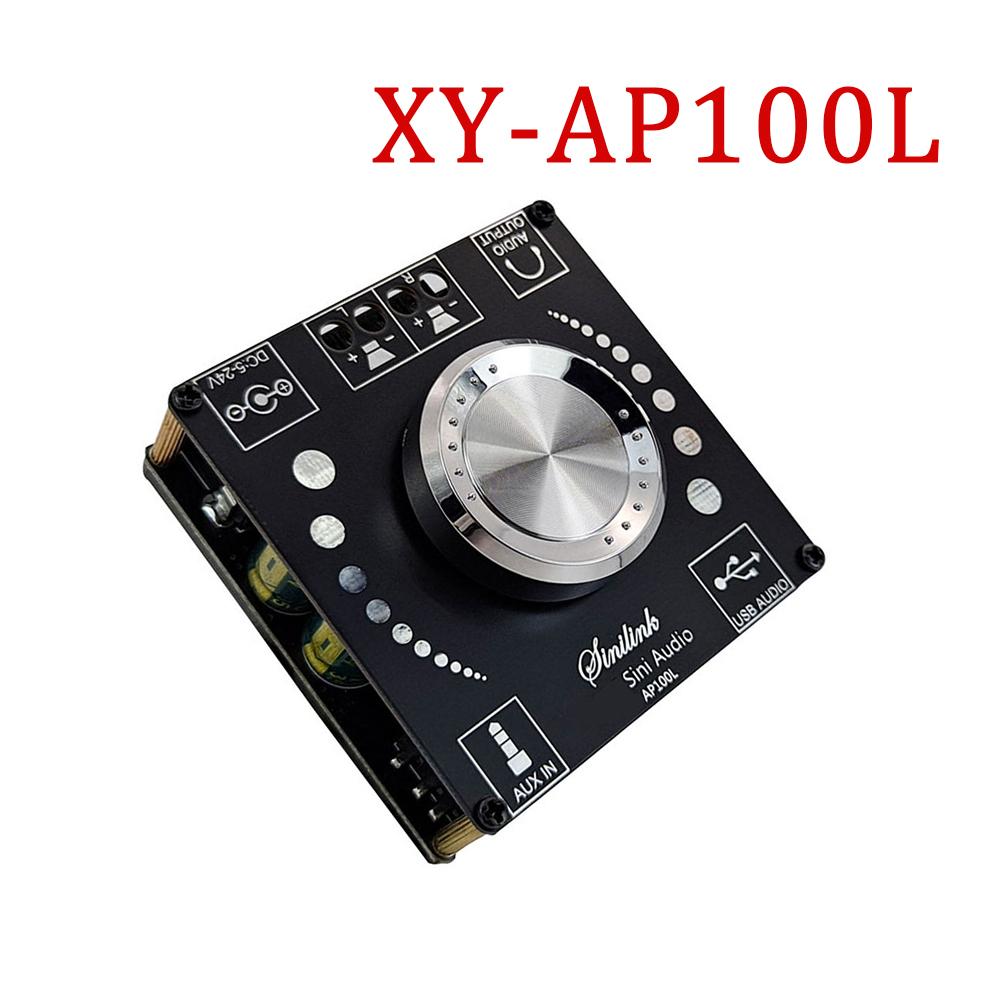

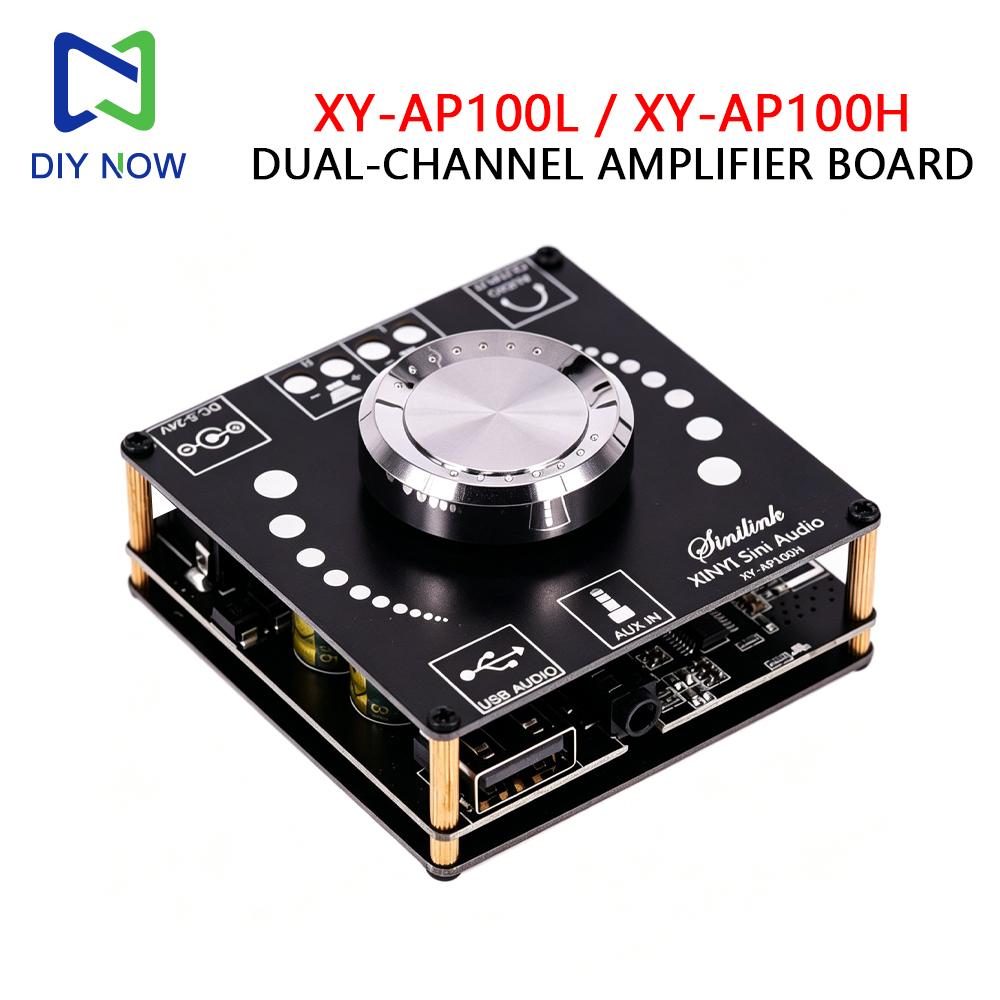

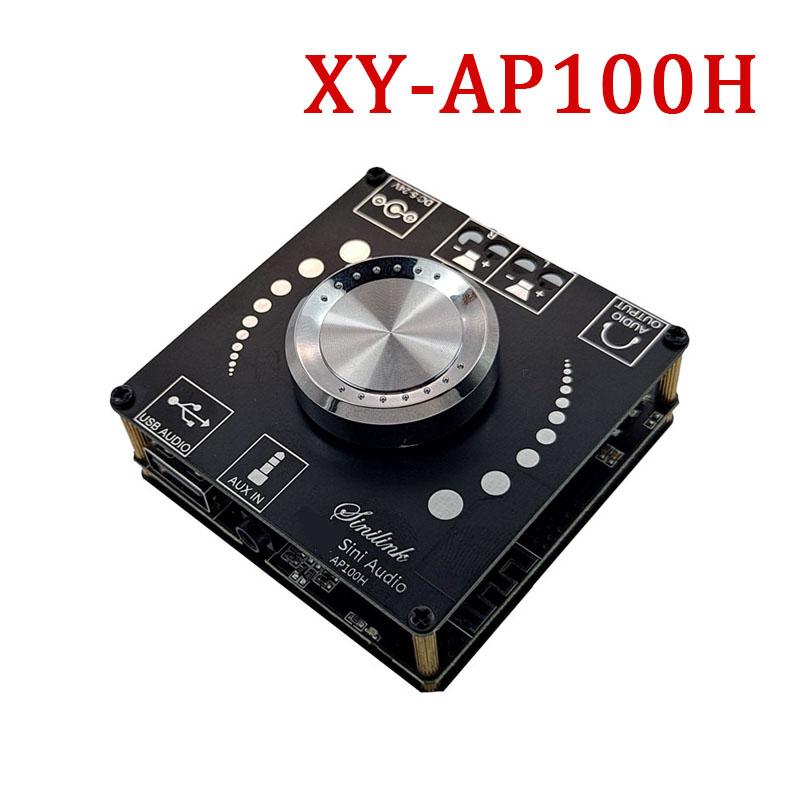

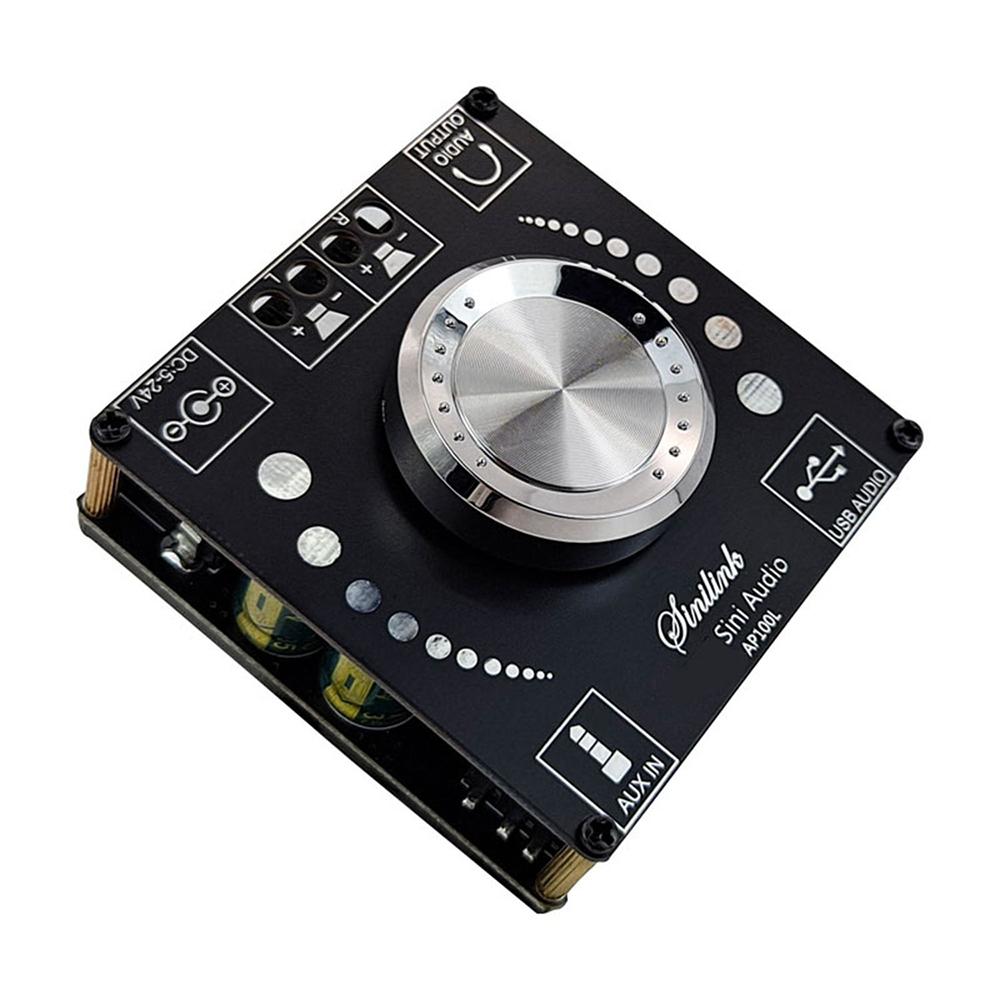

Product OverviewTheXY-AP100L / XY-AP100His ahigh-fidelity stereo Bluetooth digital power amplifier board modulefeaturing theTPA3116D2 chipfor powerful and clear audio output[. It supportsBluetooth 5.0, AUX audio input, USB sound card, and USB flash driveplayback, offering versatile connectivity for any audio sourceDesigned foraudio enthusiasts, DIY makers, and electronics hobbyists, this compact yet powerful module bringsprofessional-grade soundto your custom audio projects.
⭐ Key Features100W×2 Stereo Output – Genuine TPA3116D2 Chip
Powered by theoriginal TPA3116D2 dual-channel digital amplifier chip– not a generic clone. Delivers100W per channel (200W total)of clean, distortion-free power. Drives4-8Ω speakerswith apowerful, room-filling soundstagethat reveals thenuance and detailin your music.
Bluetooth 5.0 – Stable Wireless Streaming
Built-inBluetooth 5.0supportsSBC and AACaudio codecs. Deliverscrisp, stable wireless musicfrom your phone, tablet, or laptop withlow latency and excellent range. The blue LED flashes during pairing and stays solid when connected.
Four Audio Inputs – All Your Sources Covered
4 versatile input modesin one board:Bluetooth 5.0– wireless streaming from any device
AUX– 3.5mm analog input for CD players, phones, TV, MP3 players
USB Flash Drive– plug and play MP3/WAV from FAT32 drives (up to 32GB)
USB Sound Card– connect to PC via USB for lossless audio – no driver needed
Automatic input switching– plug in an AUX cable during Bluetooth playback and it switches seamlessly️ 360° Encoder Volume Control – Smooth & Precise
Premiumrotary encoderinstead of cheap potentiometers –no scratchy noise, no jumpy steps, just silky-smooth volume adjustment.Infinite rotationwithprecise digital controlfor perfect volume every time.Long press to power on/off.
Wide Voltage Range – DC 8-26V
Accepts8V to 26V DC input– use with12V, 19V, or 24V power adapters.Higher voltage = higher output power. For optimal 100W×2 performance, use a24V / ≥4A power supply.️ Do not exceed 26V– this will permanently damage the board.
Smartphone App Control – Sinilink-APP
Control the amplifier via theSinilink-APP, available forAndroid and iOS. Adjust volume, switch inputs, and fine-tune your audio experience – all from your phone.
3.5mm Audio Output – Headphone & Line Out
3.5mm audio outputfor connectingheadphones, active speakers, or external amplifiers. Perfect formonitoring, recording, or multi-room setups.
️ Premium Build – Quality Materials
Built withhigh-quality componentsforstable performance and long-term reliability. The compact design andelegant appearancemake it easy to integrate into any project.
Technical Specifications
Parameter
Specification
Model
XY-AP100L / XY-AP100H
Amplifier Chip
TPA3116D2 (genuine)
Power Supply
DC 8-26V (recommended: 24V / ≥4A)
Output Power
100W × 2 channels (200W total)
Channels
2.0 Stereo (L + R)
Speaker Impedance
4Ω – 8Ω (10-200W rated)
Bluetooth Version
5.0
Bluetooth Codecs
SBC, AAC
Audio Inputs
Bluetooth 5.0 / AUX 3.5mm / USB Drive / USB Sound Card
Audio Output
Speaker terminals + 3.5mm audio output
Volume Control
360° rotary encoder (long press power on/off)
USB Drive Support
FAT32, up to 32GB, MP3/WAV (44.1kHz)
App Control
Sinilink-APP (Android / iOS)
Typical Applications – Who Is This For?
Vintage Speaker Restoration
Breathe new life intoold speakers, bookshelf systems, or vintage audio gear. The XY-AP100L delivers thewarm, detailed soundthat brings classic speakers back to life. One user paired it with 1980s speakers and the response was:"This sounds just like I heard it on the radio when I was young."
DIY Bluetooth Speaker Builders
Building your ownportable Bluetooth speaker, boombox, or custom audio system? This board providesall the amplification and source selectionyou need in one compact module. Pair it with8Ω bookshelf speakersfor aroom-filling soundstagethat rivals commercial products.
Car Audio System Upgrade
Upgrade your car's audio withBluetooth streaming, USB playback, and high-power amplification. Thewide voltage range (8-26V)works with12V automotive systems– just add a suitable power supply.
Home Theater & Desktop Audio
Power yourhome theater speakers, desktop monitors, or bookshelf system. Themultiple inputslet you switch betweenTV audio, music streaming, and computer soundseamlessly.
STEM Education & Maker Projects
Perfect forelectronics students, makers, and hobbyistslearning aboutamplifier circuits, Bluetooth audio, and DIY electronics. Theeasy-to-use designmakes itaccessible for beginnerswhile offeringprofessional-grade performancefor advanced projects

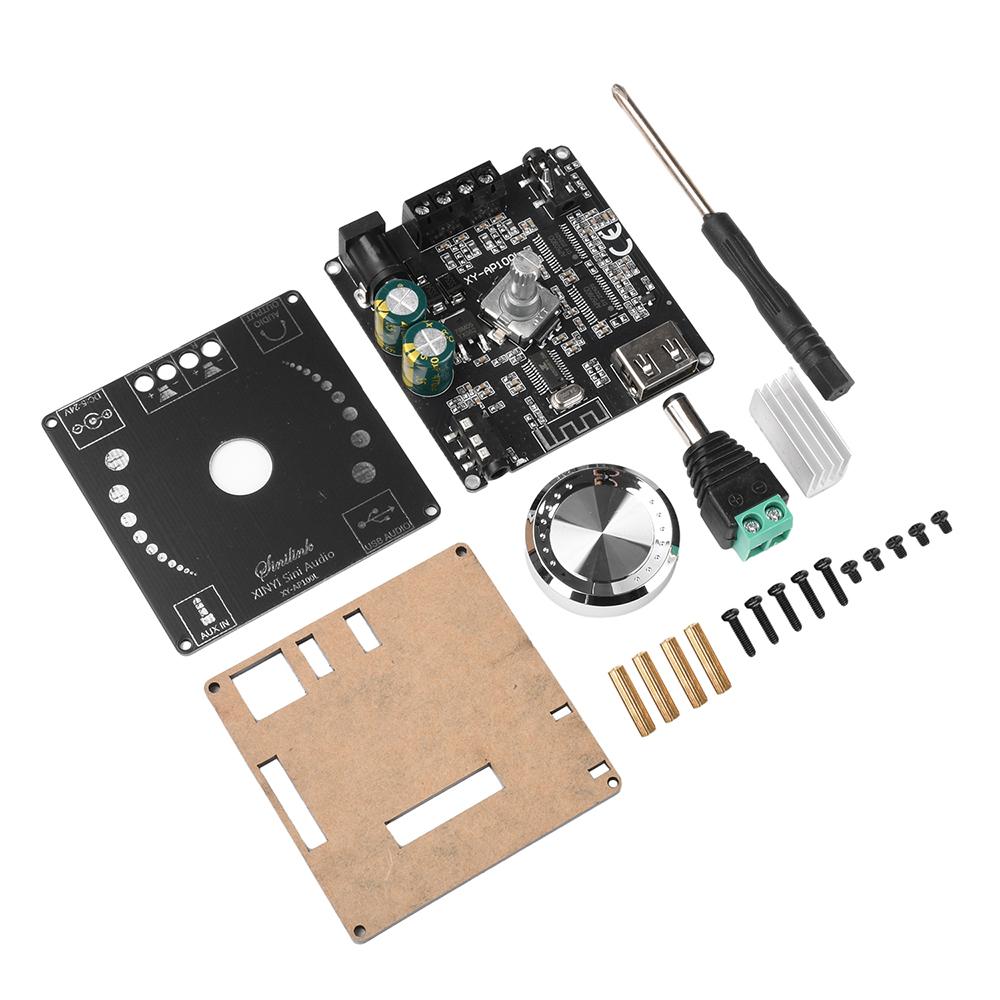

Package Includes
1 × XY-AP100L / XY-AP100H Digital Amplifier Board
