Feature:
1. [Versatile Use] This optical fiber fusion splicer is suitable for cladding fiber with a Diameter of 80 to 150micrometer and coating fiber with a Diameter of 100 to 1000micrometer.
2. [Fast Fusion Speed] With a typical heating time of 26 seconds and a typical splicing time of 9 seconds, this fusion splicer ensures quick and efficient fusion while minimizing loss.
3. [Adjustable Heating Settings] The heating time can be set, and the heating temperature is adjustable, providing flexibility to accommodate various fiber types.

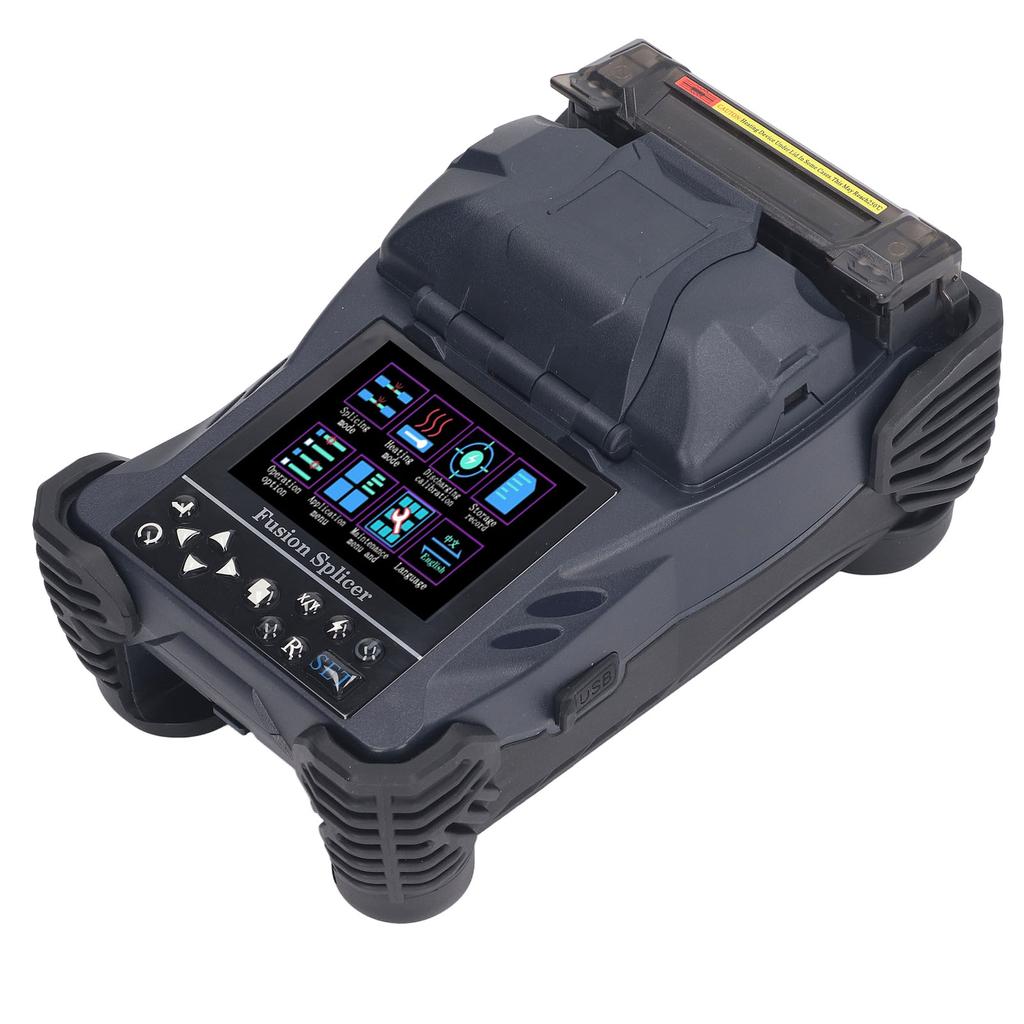

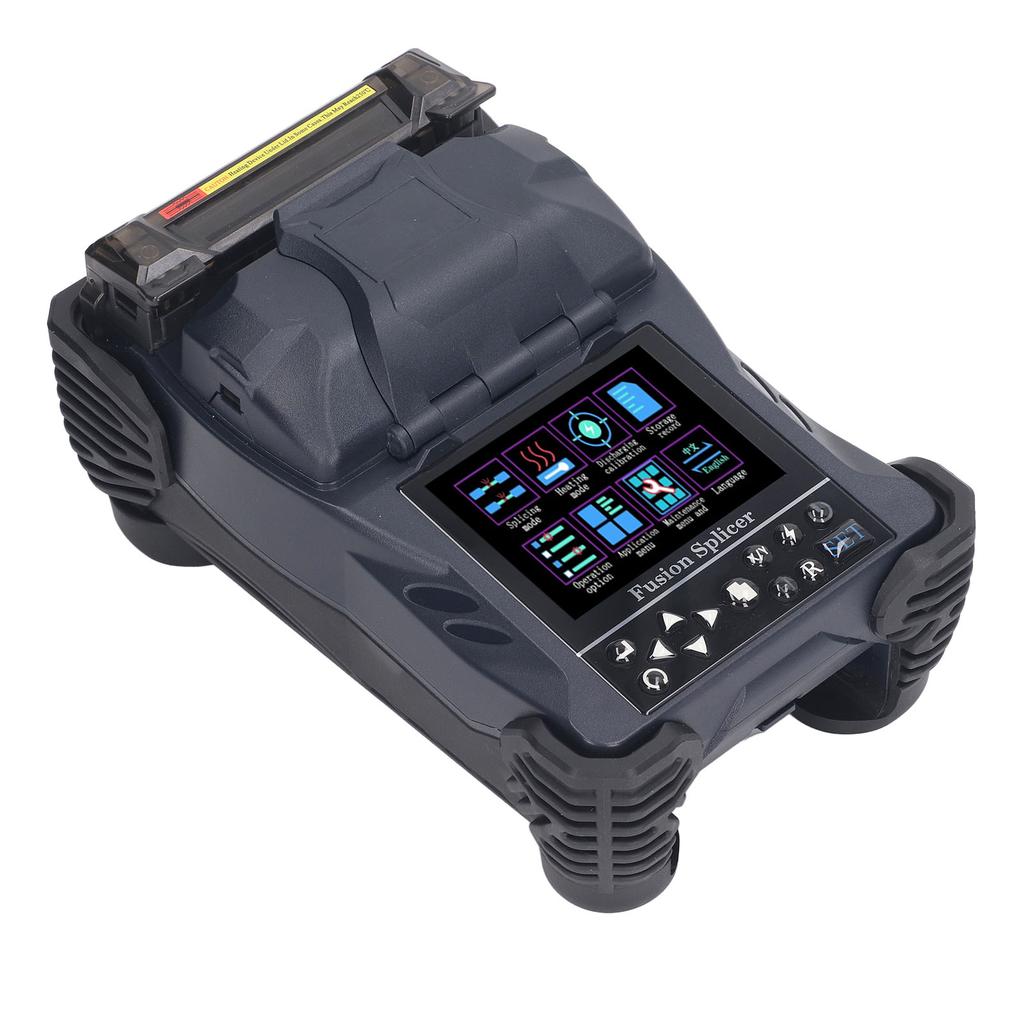

4. [3.5 Inch Color Display] The 3.5 inch TFT color LCD display of this fusion splicer is easy to read and can be flipped for convenient dual direction operation.
5. [Wide Application Range] Ideal for fiber projects, maintenance, scientific research, and teaching in the communication field of telecom, broadcasting, railway, petrochemical, power, military, public security, and more.
Specification:

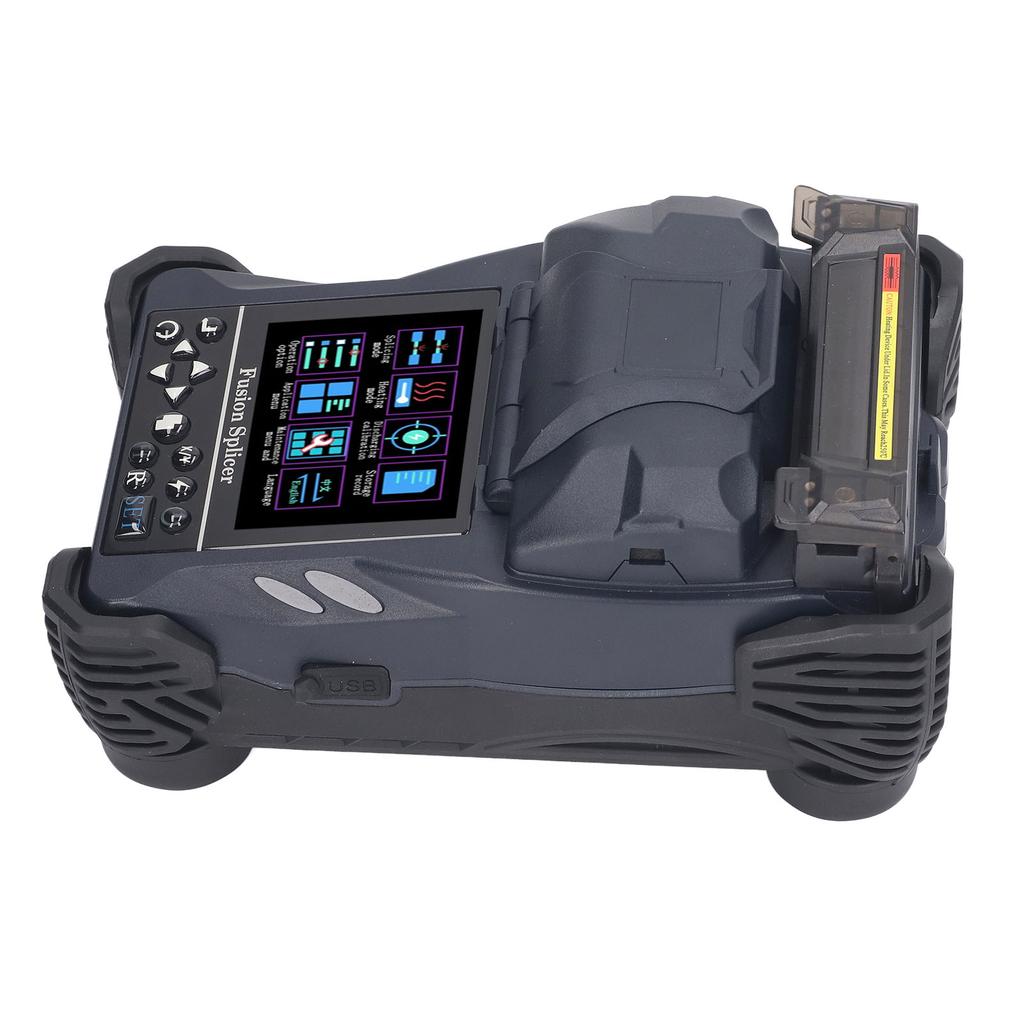

Item Type: Optical Fiber Fusion Splicer
Material: ABS
Model: A 15F
Magnification: 400X (X or Y axes)
Return Loss: Better than 60dB
Typical Splicing Time: 9s
Typical Heating Time: 26s (heating time can be set, heating temperature can be adjusted)
Fiber Diameter: Cladding Diameter 80 150micrometer, coating Diameter 100 1000micrometer
Cutting Length: Coating layer below 250micrometer: 8 16mm; Coating layer 250 1000micrometer: 16mm
Heat Shrink Tubing: 60mm, 40mm, and a series of micro shrink tubing

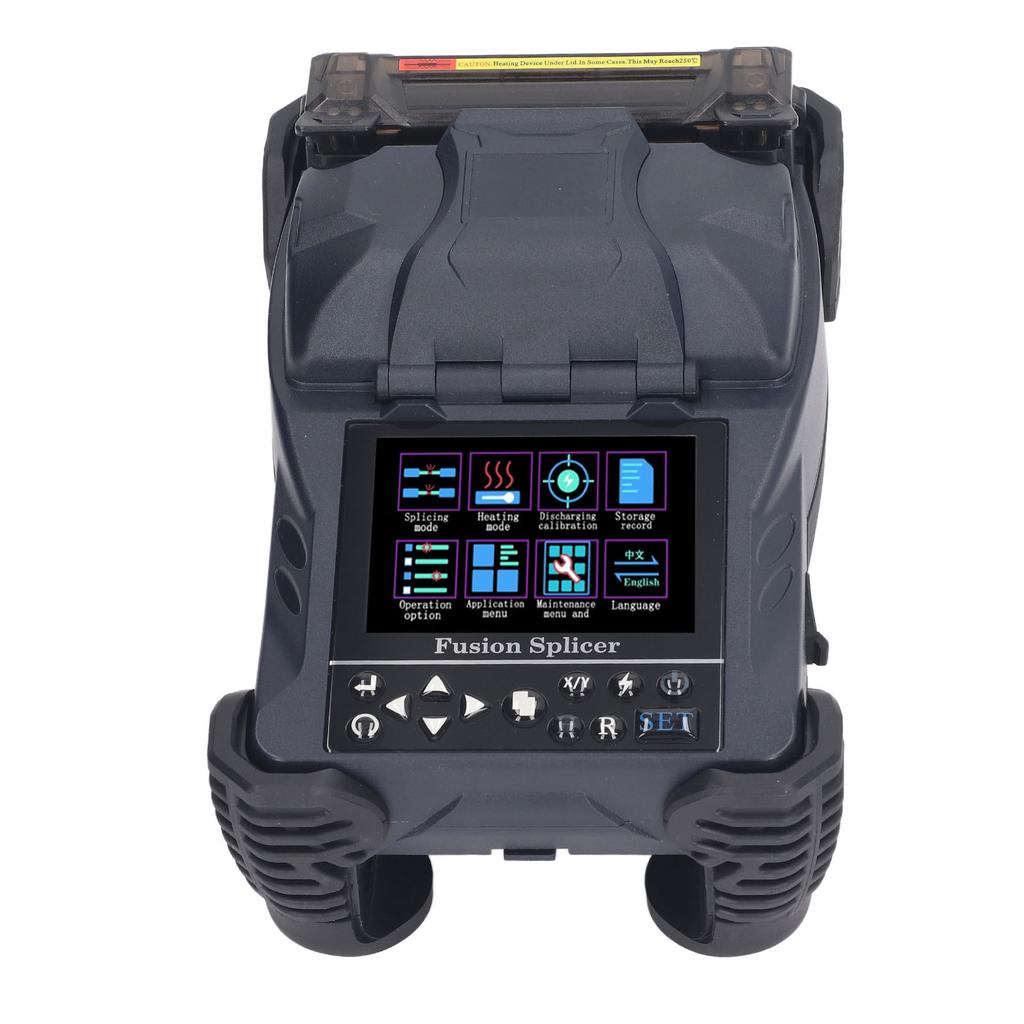

Display: 3.5 inch TFT color LCD display screen (content can be flipped, convenient for bidirectional operation)
External Interface: USB interface, convenient for data download and software update
Fusion Mode: 17 sets of usage modes
Heating Mode: 9 sets of usage modes
Connection Loss Storage: Internal memory stores 5000 updated connection results
Battery: 11.1V lithium battery x 1 (capacity 4800mAh) (shipped with matching battery)
Power Supply: Built in lithium battery power supply, charging time less than 3.5 hours
Applicable Fiber Types: SM (G.652 and G.657), MM (G.651), DS (G.653), NZDS (G.655), and custom fiber types

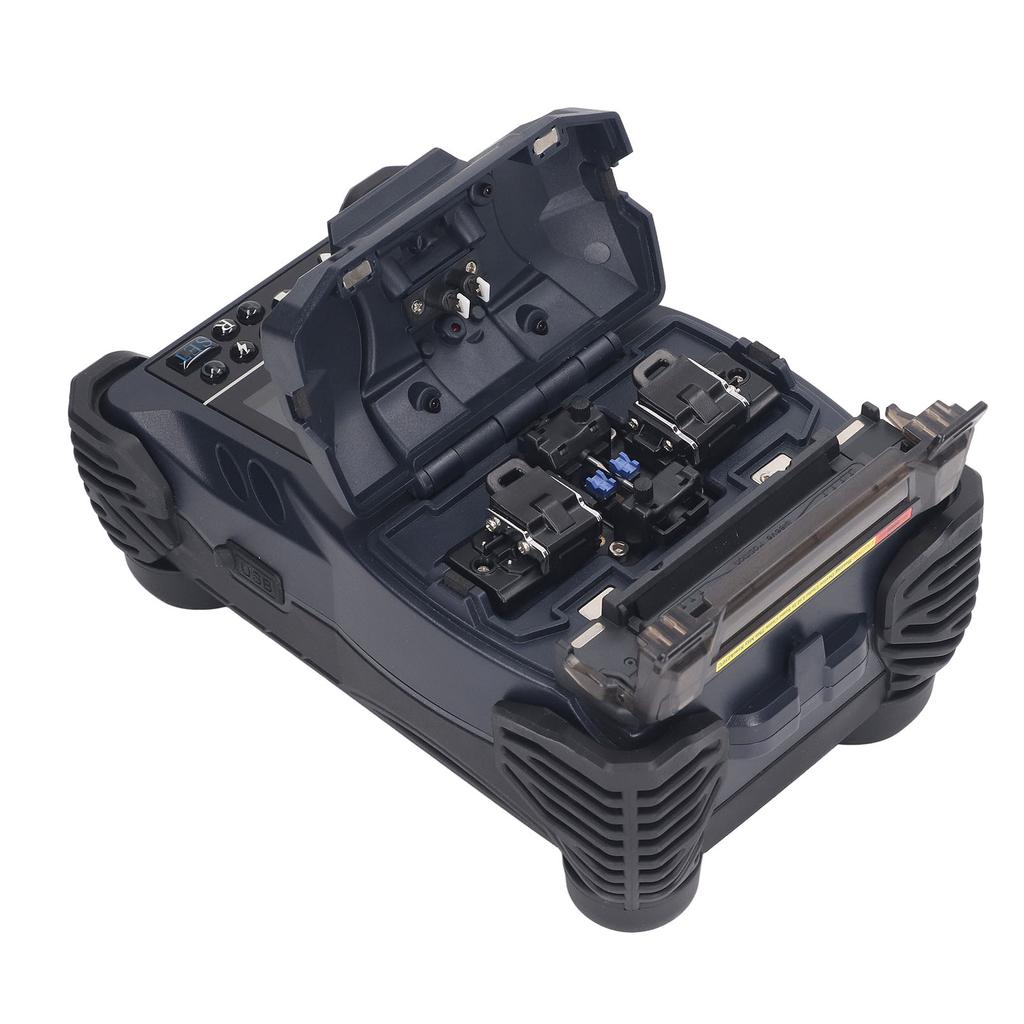

Fiber Optic Fixture: Multifunctional fixture, suitable for bare fiber, pigtail, jumper, leather wire, the replacement fixture can be used for various FTTx fiber optic cables with SC and other connectors
Plug Specifications: 100 240V.

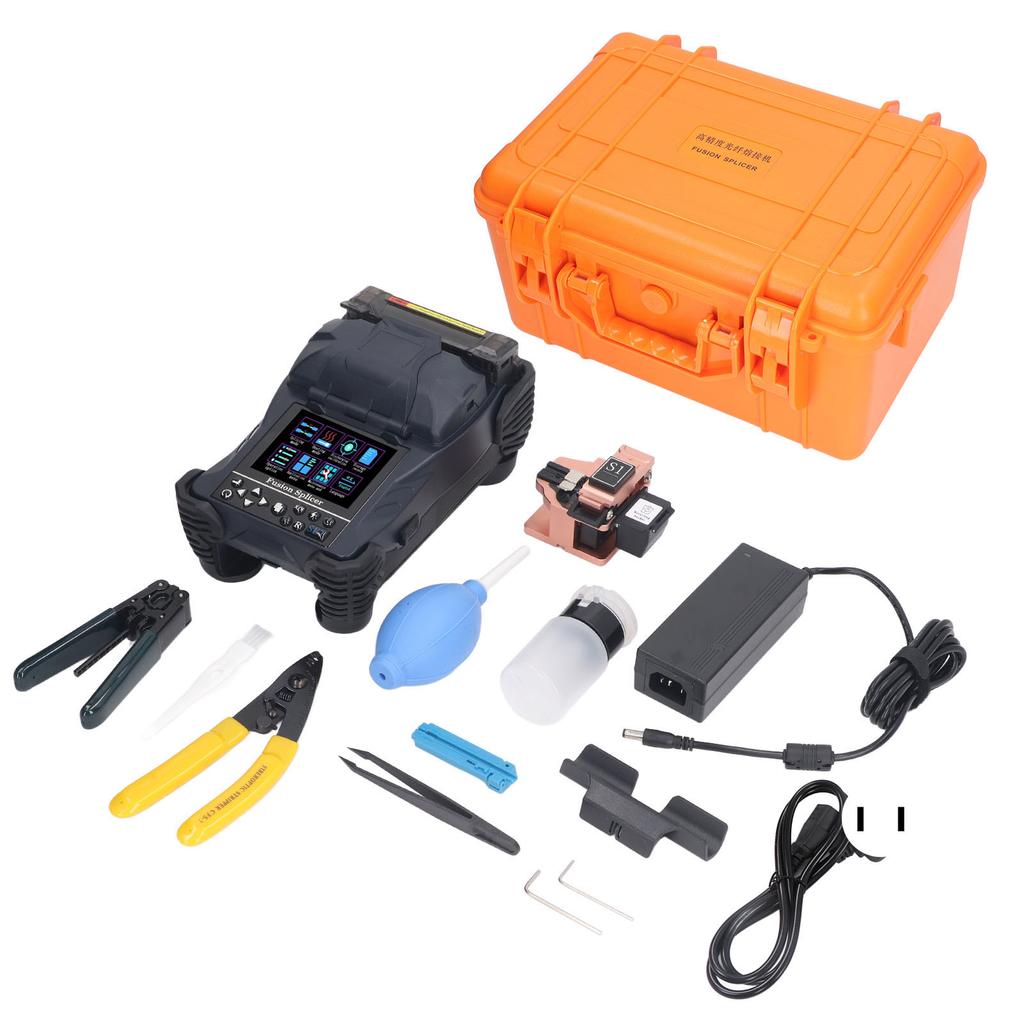

Package List:
1 x Optical Fiber Fusion Splicer1 x Battery Pack1 x Fiber Optic Cleaver1 x Leather Wire Stripping Pliers1 x 3 Port Pliers1 x Plastic Length Fixer1 x Charging Adapter1 x Power Cord1 x Empty Alcohol Bottle1 x Blowing Ball1 x Brush1 x Tweezers1 x Fusion Splicer Manual1 x Cleaver Storage Bag1 x Cooling Bracket2 x Adjusting Wrench1 x Tool Bag
