Feature:
1. Adopt ceramic fiber press hammer, durable for a long service life
2. Equipped with waterproof buttons, very practical in daily life use
3. LED auxiliary light bring clear lighting, easy to use at night, very convenient
4. Using good quality electrode rod, possess of sharpness top, uniform discharge and lower loss
5. Made of good‑quality aluminum material, light and soft with good strength and good corrosion resistance
Specification:

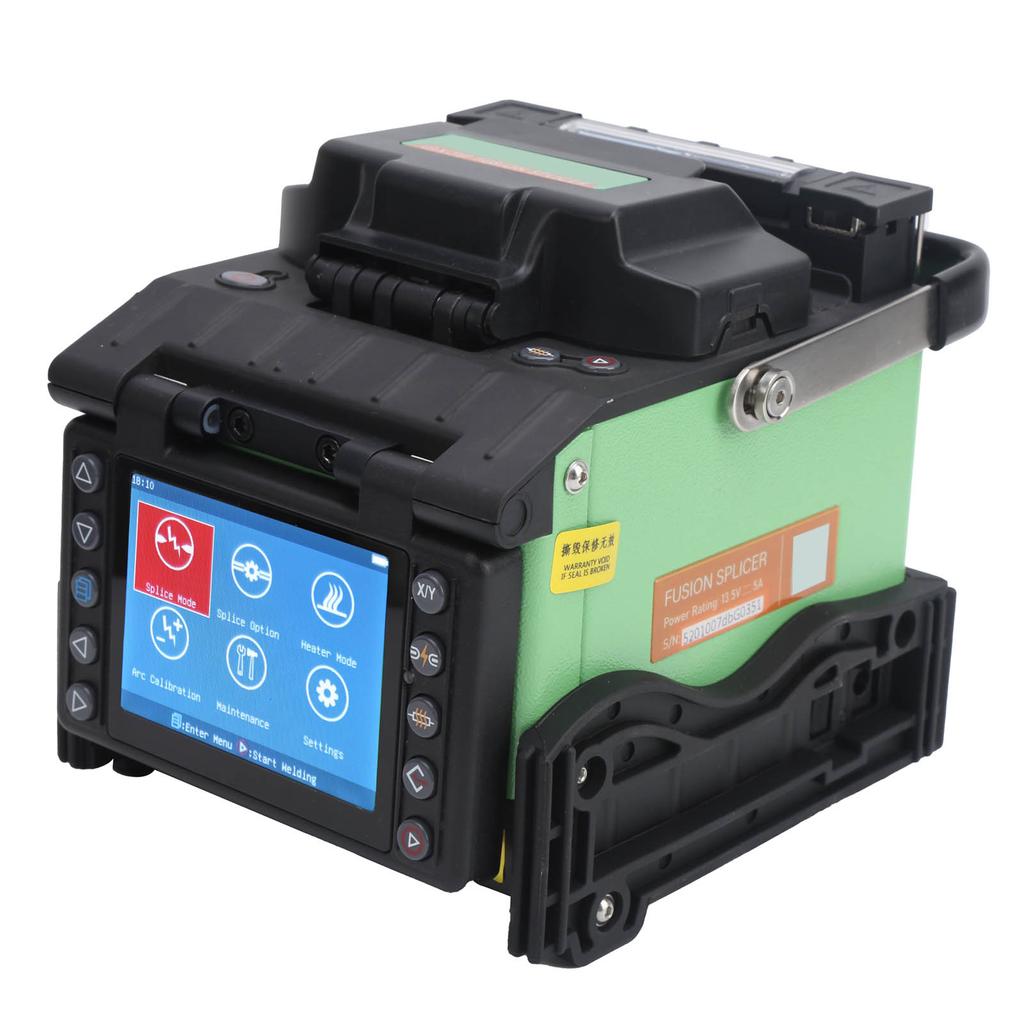

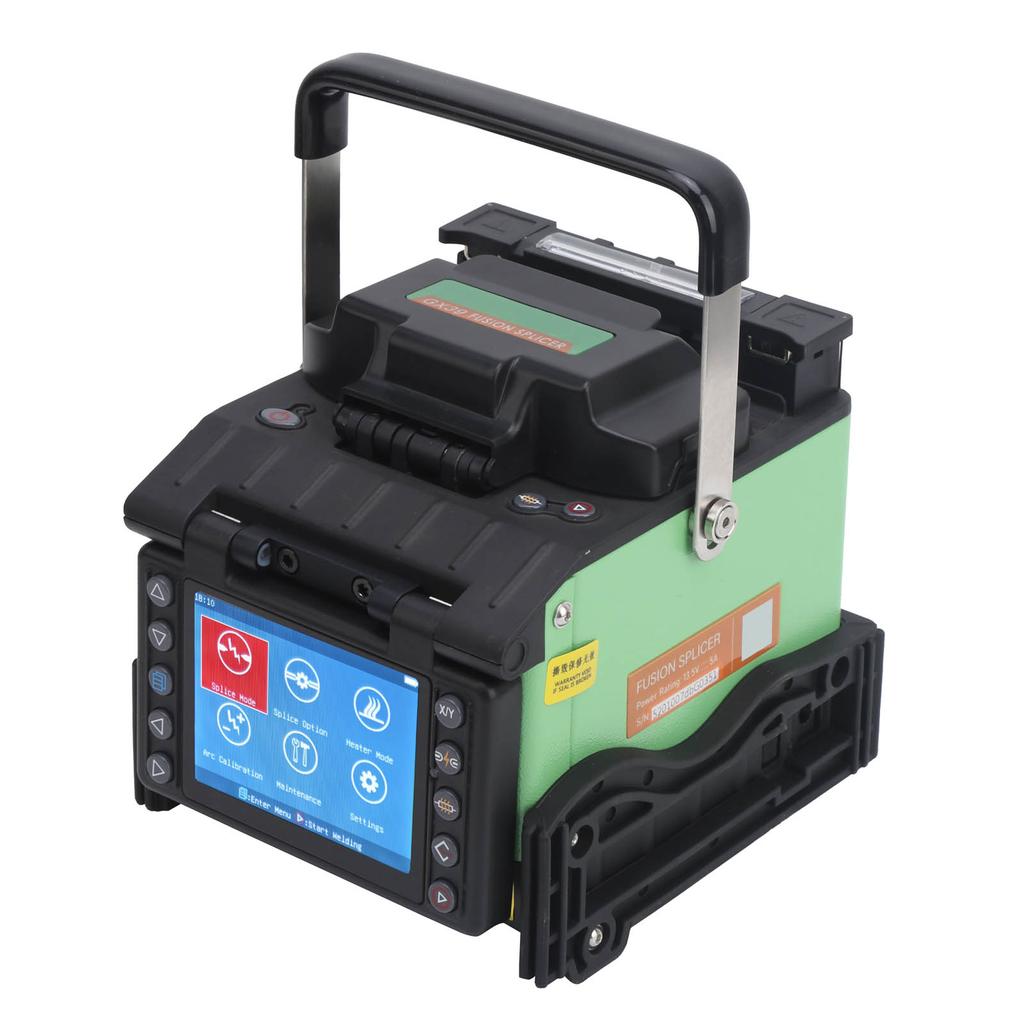

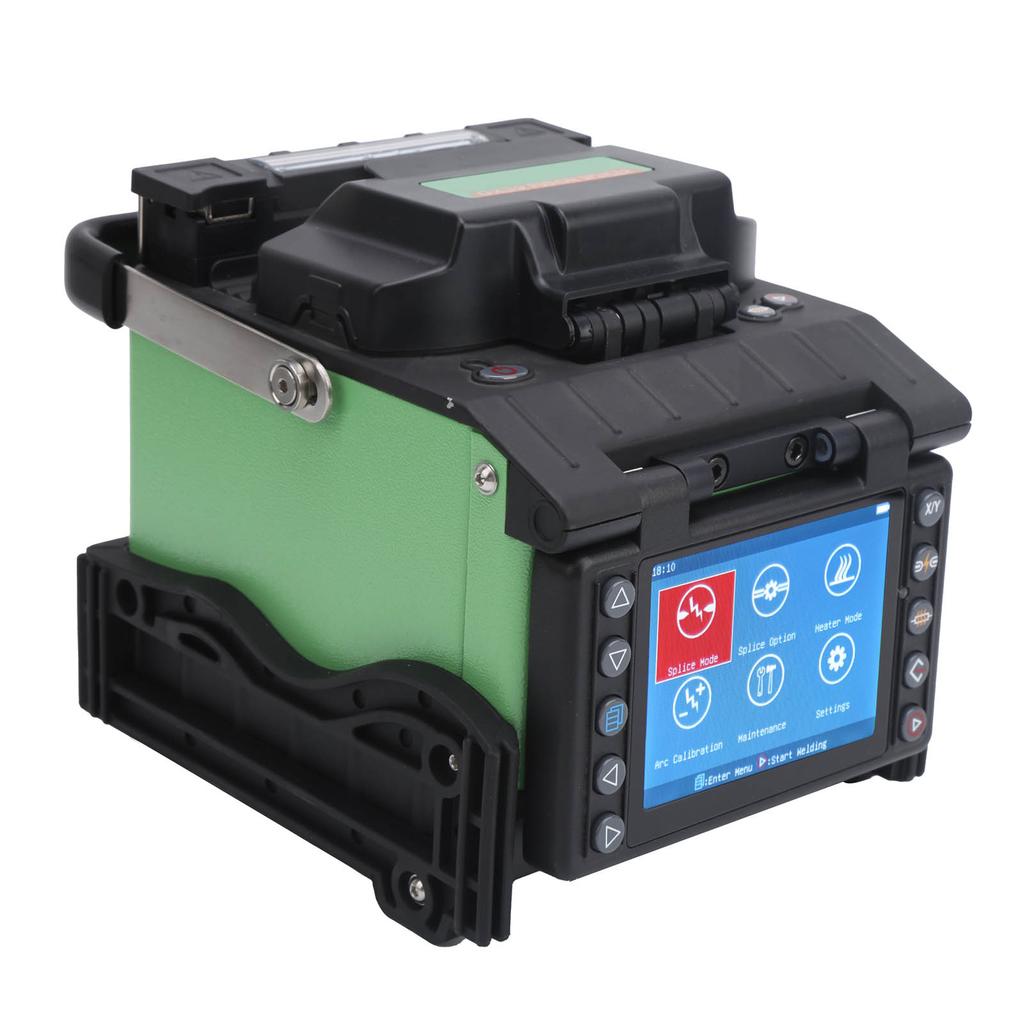

Item Type: Fusion Splicer
Material: Aluminum
Model: GX39
Applicable Fiber: SM(G.652 and G.657) MM(G.651) DS(G.653) NZDS(G.655)
Continuous Loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(DS NZDS)
Control Technology: Real time control and correction of welding arc; self adaptation within working environment; self adaptation of electrode oxidation
Return Loss: Better than 60dB
Typical Duration: 9 Seconds (standard SM)
Typical Heating Time: 20 Seconds (heating time can be set, heater temperature can be adjusted), with rapid heating function
Fiber Alignment: Fine alignment, core alignment, cladding alignment, manual alignment
Fiber Diameter: Cladding Diameter 80 150um, coating Diameter 100 1000um
Cutting Length: Coating Layer Below 250um: Approx. 8 16mm 0.3 0.6in; Coating Layer 250 1000um: Approx. 16mm 0.6in
Heat Shrink Tubing: Approx. 60mm 2.4in, 40mm 1.6in and a series of miniature tubing
Tension Test: Standard 2N (optional)
Optical Fiber Clamp: Multi function clamp, suitable for bare fiber, pigtail, jumper, leather cable, optional clamp, meet industry standard FTTX hot melt quick connector
Magnification: 300 Times (X axis or Y axis); 150 times (X axis and Y axis)

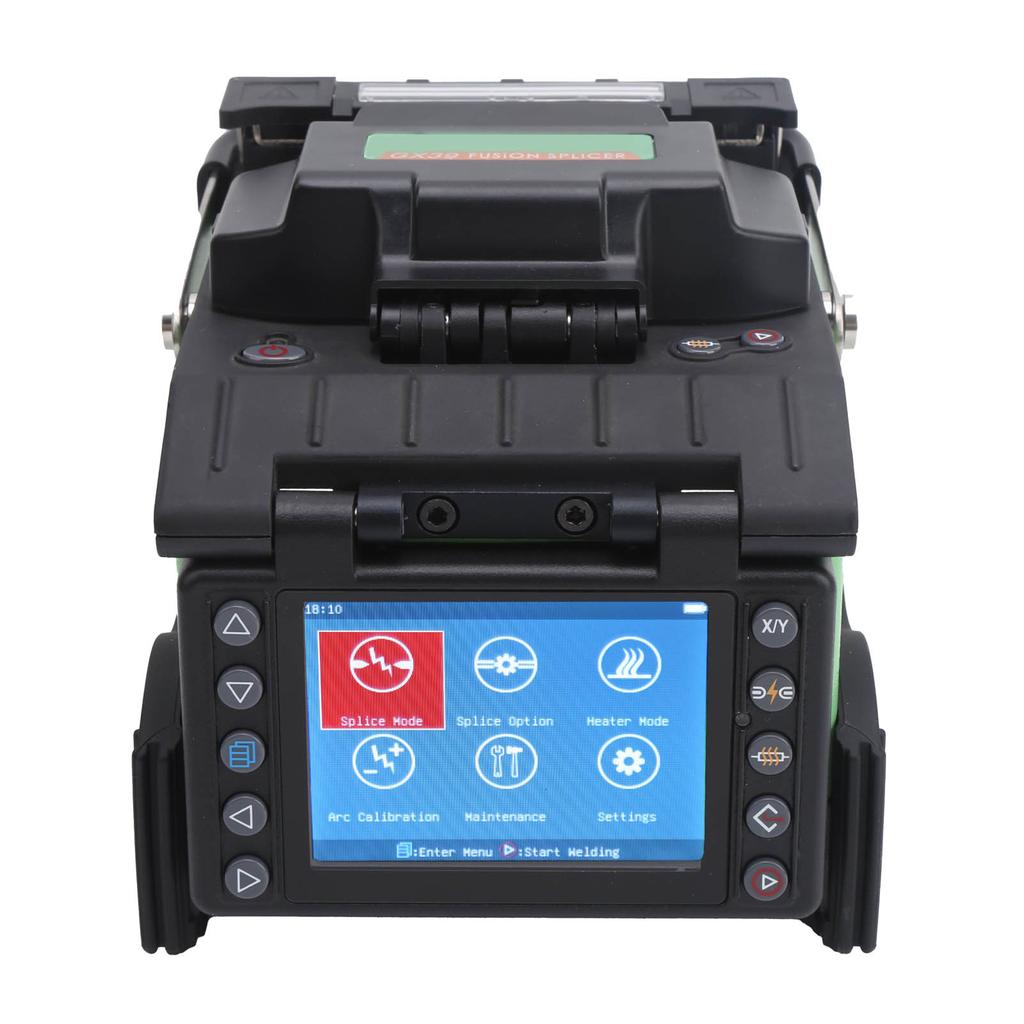

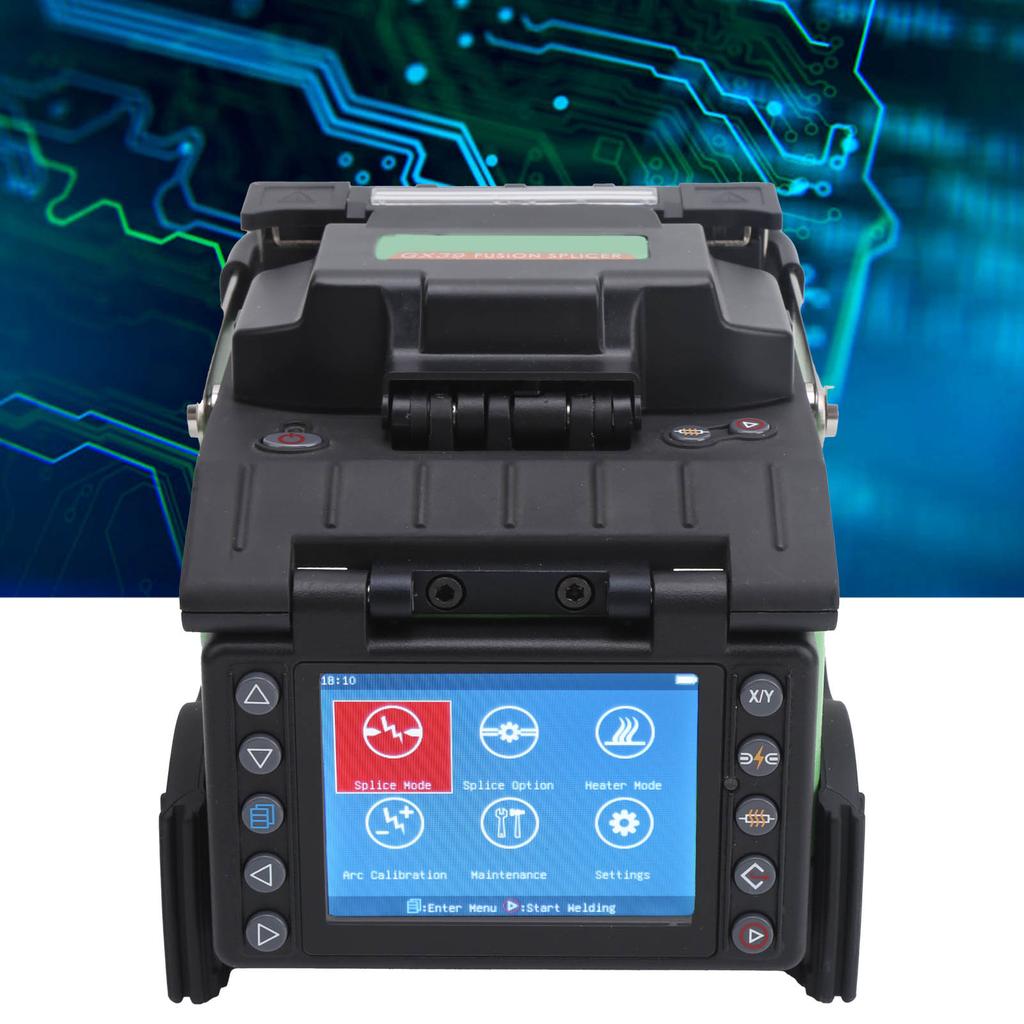

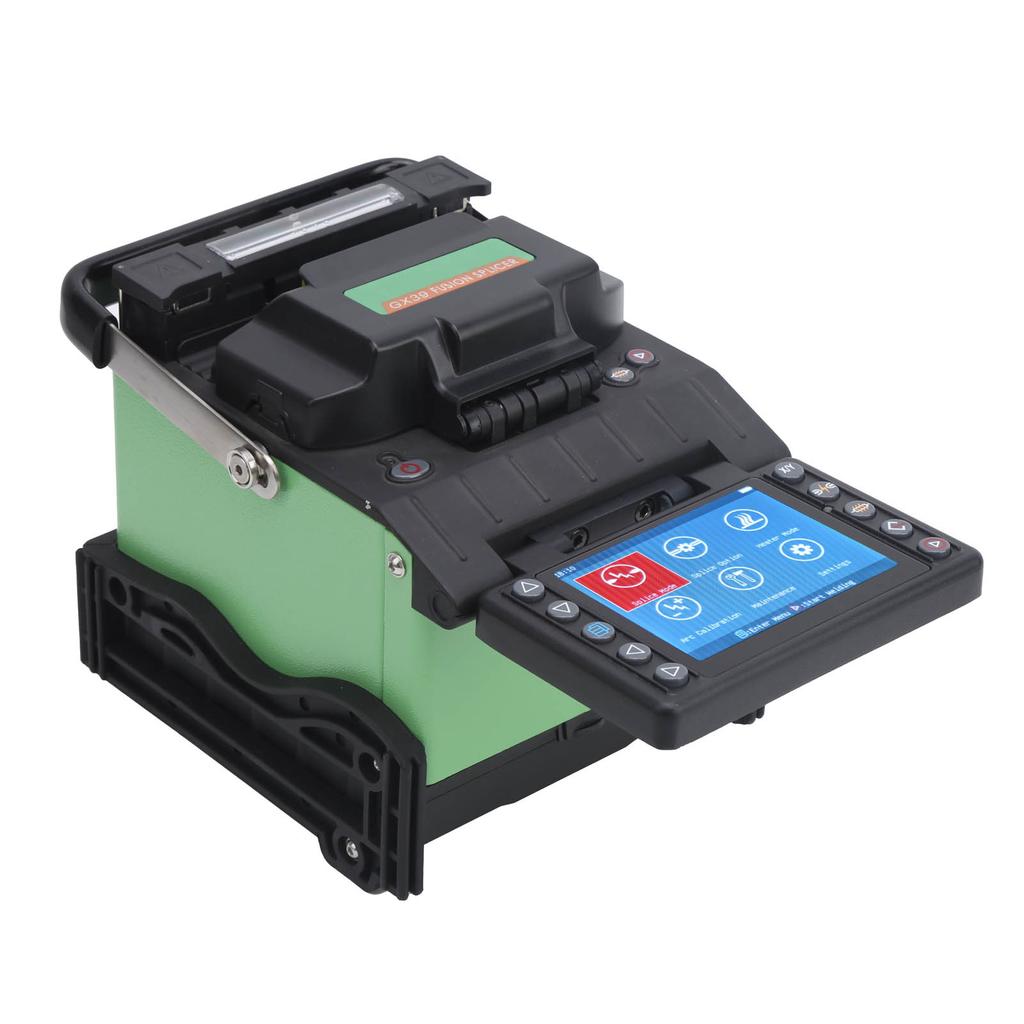

Display: 3.5 inch TFT color display, content can be flipped, convenient for two way operation
External Interface: USB2.0 interface, convenient for data download, using U disk to upgrade software
Splicing Mode: 100 groups of user modes, 53 groups of factory modes
Heating Mode: 40 groups of user modes, 11 groups of factory modes
Continuous Loss Storage: 10,000 latest continuous results are stored in the built in memory, and 100 sets of latest splicing images can be stored
Built in Battery: Lithium battery 12.5V power supply (10.8V storage), independent charger, charging time less than 3.5 hours; continuous welding, heating not less than 350 times (typical environment)
Power Supply: Power supply adapter, External Adapter: Input AC100 240V 50 60HZ), output DC13.5V 4.8A) The current power mode can be identified, and the current battery capacity can be monitored in real time
Working Environment: Temperature: 10 +50 celsius , Temperature: Less Than 95percent RH (no condensation), Working Altitude: 0 5000meter, Can Resist Maximum Wind Speed: less than 15meter s
Built in Lighting: Convenient to prevent fiber at night
Dimension: Approx. 122 x 148 x 130mm 4.8 x 5.8 x 5.1in
How to Use:
1. Strip the optical cable and fix the optical cable to the fiber tray
2. Pass the stripped fibers through the heat shrinkable tube
3. Turn on the power of the fusion splicer and select the appropriate splicing method
4. Prepare fiber end face
5. Place the fiber
6. Connect optical fiber
7. Take out the optical fiber and reinforce the optical fiber fusion splice with a heater
8. Coiling and fixing.

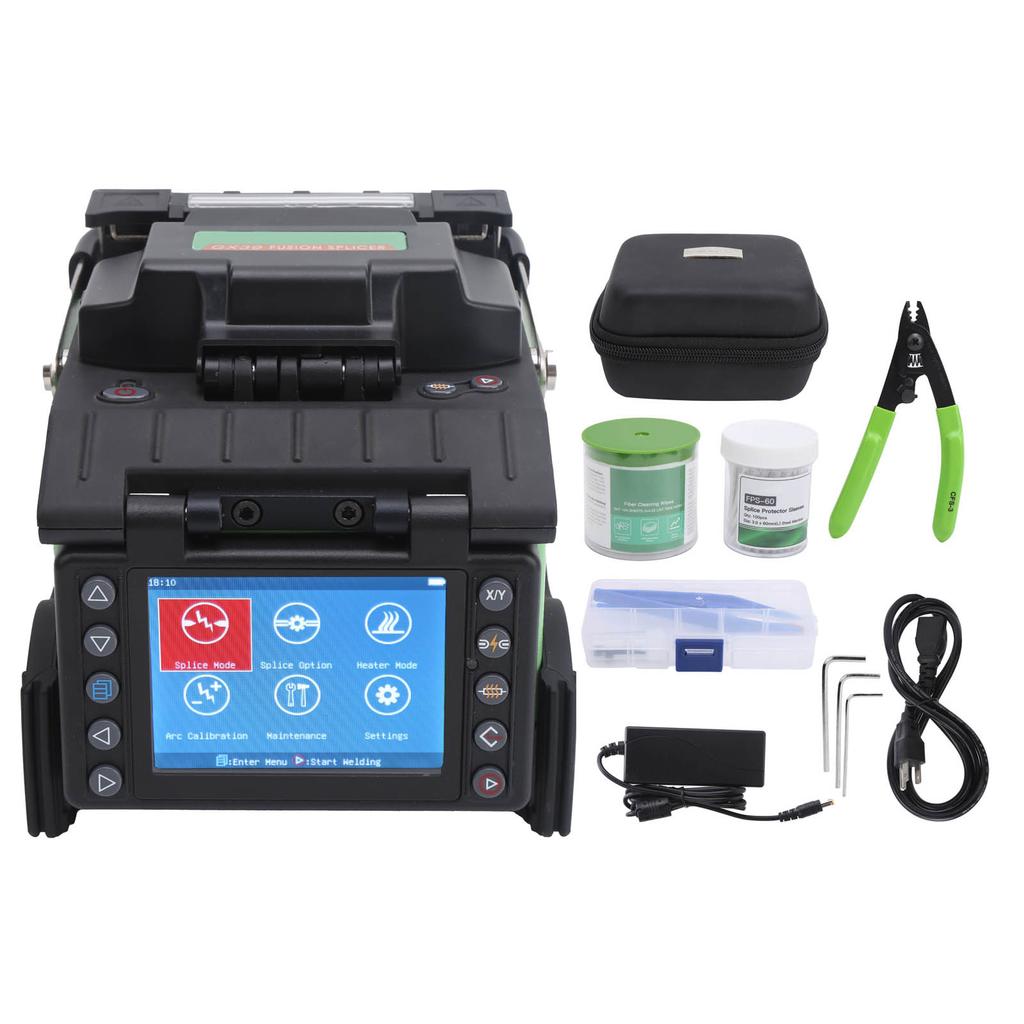

Package List:

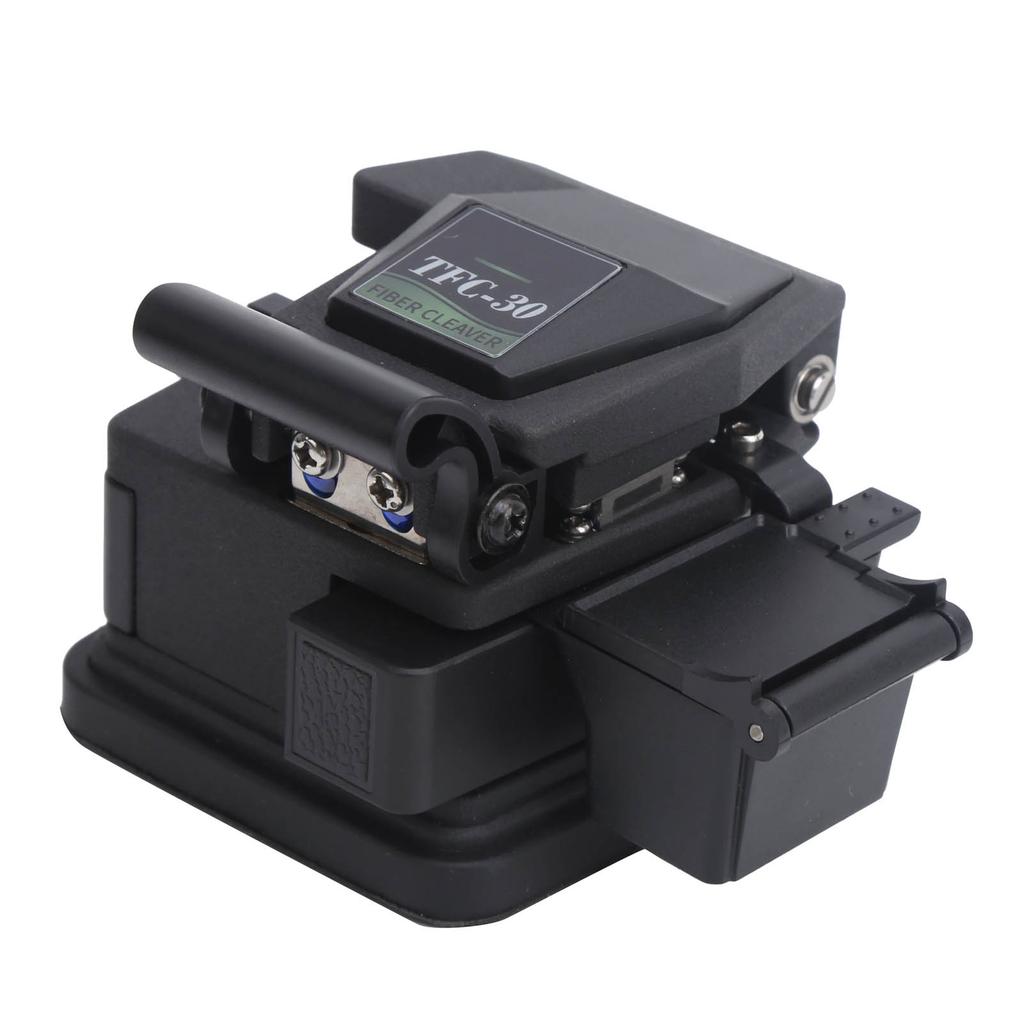

1 x Fusion Splicer

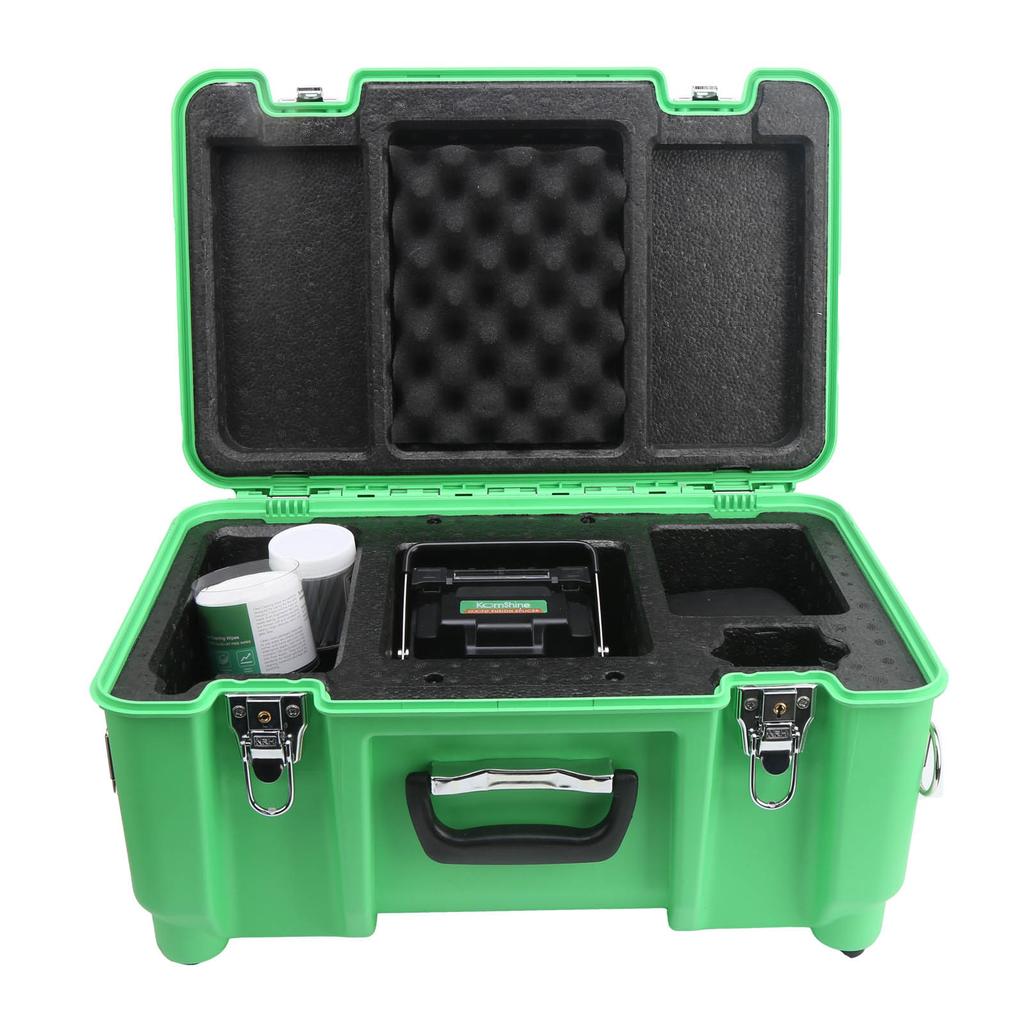

1 x Fusion Splicer Component1 x Wire Stripper1 x Charger1 x Power Cord1 x Tweezers1 x Brush1 x Plastic Box1 x Packing Box1 x Green Boxed Accessories(100pcs)1 x Boxed Roll Paper1 x Carrying Case2 x Black Accessories1 x User Manual
