Feature:
1. High Performance: The hot melting machine is light in weight and easy to carry, simple in operation, fast in welding speed and small in welding loss.
2. Universal Fixture: Adopt 3 in 1 universal fixture, suitable for leather cable, optical cable, pigtail, fully automatically fusion splicing.
3. Applicable for: Applicable cladding fiber Diameter is 80‑150micrometer, coating fiber Diameter is 100‑1000micrometer, the cutting length of coating layer below 250micrometer is 8‑16mm, for 250‑1000micrometer is 16mm.
4. With TFT LCD Screen: Equipped with 5in TFT color LCD display, the content can be flipped, convenient for 2 way operation, and the focus magnification is up to 300 times.
5. Wide Application: This machine is suitable for optical fiber engineering, maintenance, scientific research and teaching in the fields of telecommunications, radio and television, railway, petrochemical, electric power, public security, etc.
Specification:
Item Type: Automatic Fusion Splicer
Material: ABS
Return Loss: Better than 60dB
Typical Connection Time: 9 seconds
Typical Heating Time: 26 seconds (heating time can be set, heating temperature can be adjusted)
Fiber Diameter: Cladding layer Diameter 80 150micrometer, coating layer Diameter 100 1000micrometer
Cutting Length: Coating layer below 250micrometer: 8 16mm, coating layer 250micrometer 1000micrometer: 16mm
Magnification: 300 times (X axes or Y axes)
Heat Shrink Sleeves: 60mm, 40mm and a range of micro shrink sleeves
Display: 5.0in TFT color LCD display (content can be flipped, convenient for two way operation)
External Interface: USB interface, easy for data download, software update
Splice Mode: 17 groups of use modes
Heating Mode: 9 groups of use modes
Connection Loss Storage: Internal memory saves 5000 pcs updated connection results

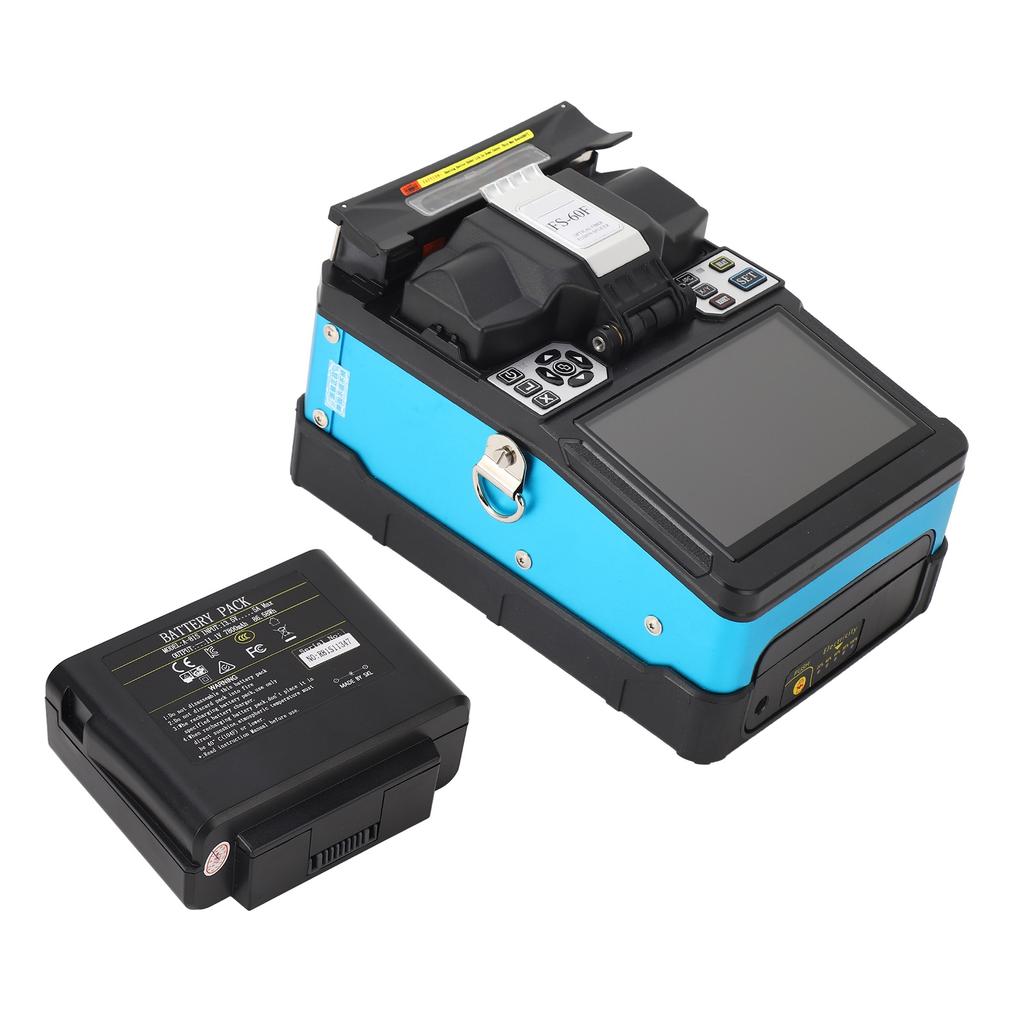

Built in Battery: Model 11.1V 7800mah capacity (shipped with matching battery)
Power Supply: Built in lithium battery, charging time is less than 3.5 hours
Applicable Fibers: SM (G.652 and G.657), MM (G.651), DS (G.653), NZDS (G.655) and custom fiber types
Optical Fiber Fixture: Multi function fixture, suitable for bare fiber, pigtail, jumper, leather cable, replacement fixture can be used for SC and other connectors for various FTTx fiber optic cables.

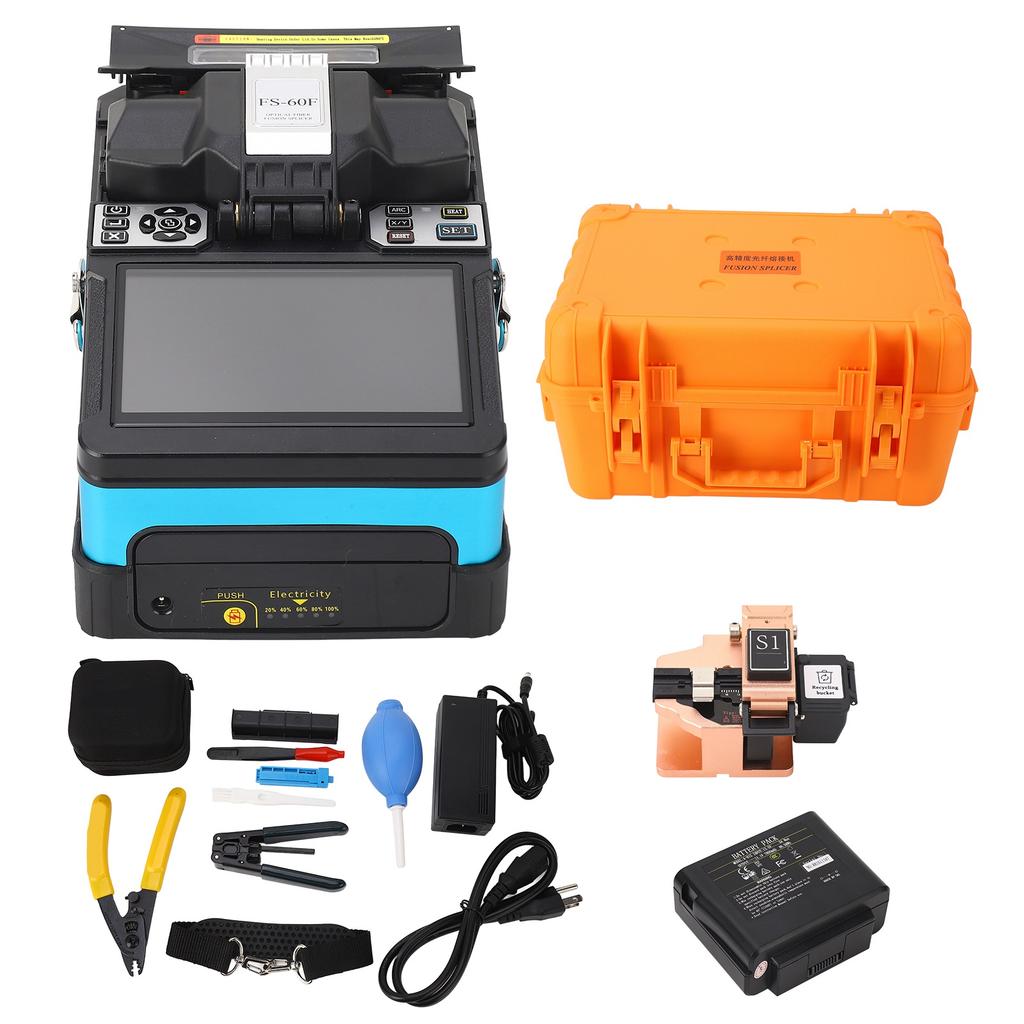

Package List:
1 x Automatic Fusion Splicer1 x Battery Pack1 x Optical Fiber Cutter1 x Leather Wire Stripping Pliers1 x 3 Port Pliers1 x Plastic Length Fixer1 x Charging Adapter1 x Power Cable1 x Tote Bag1 x Empty Alcohol Bottle1 x Blower Ball1 x Brush1 x Tweezers1 x Stool1 x Welding Machine Manual1 x Anti Fall Bag 1 x Cooling Bracket3 x Knife Adjustment Wrench1 x Toolbox1 x Cutter Instruction Manual
Note:
